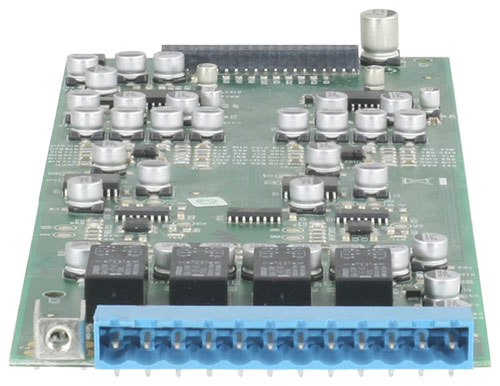

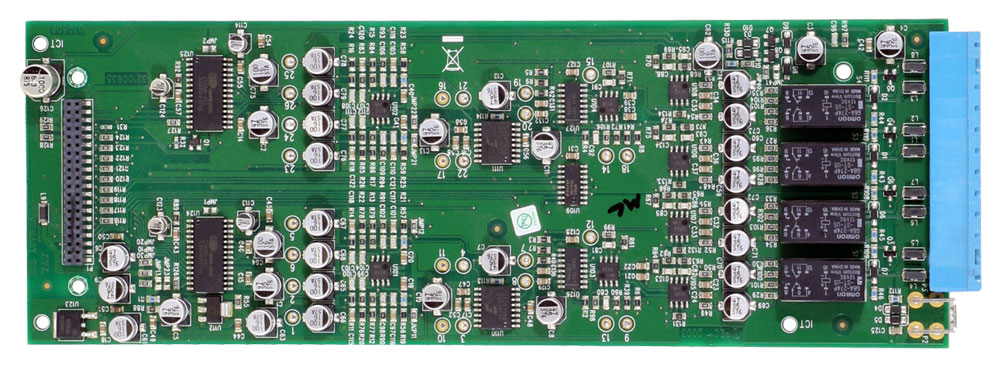

MM™ Out 4

4 Channel Line Output Card for CAB Breakout Boxes

Downloads

Description

The MM™ Out 4 card provides four channels of low-impedance, balanced, line-level audio outputs for the CAB™ breakout boxes.

Features MM Out 4

• Four channels of low impedance electronically balanced outputs

• Sensitivity selectable per channel: 6, 12, 18 6 24 dBu

• Each channel software controlled analog gain: -95 to +30 dB

Additional information

Channels (Output)

4

Frequency Response

20 Hz – 20 kHz; ±3 dB

Output Connectors

via Phoenix/Euro Connector

Line Outputs

4

SKU

03482660
