Digitool® D4S™

4-Button Wall Controller

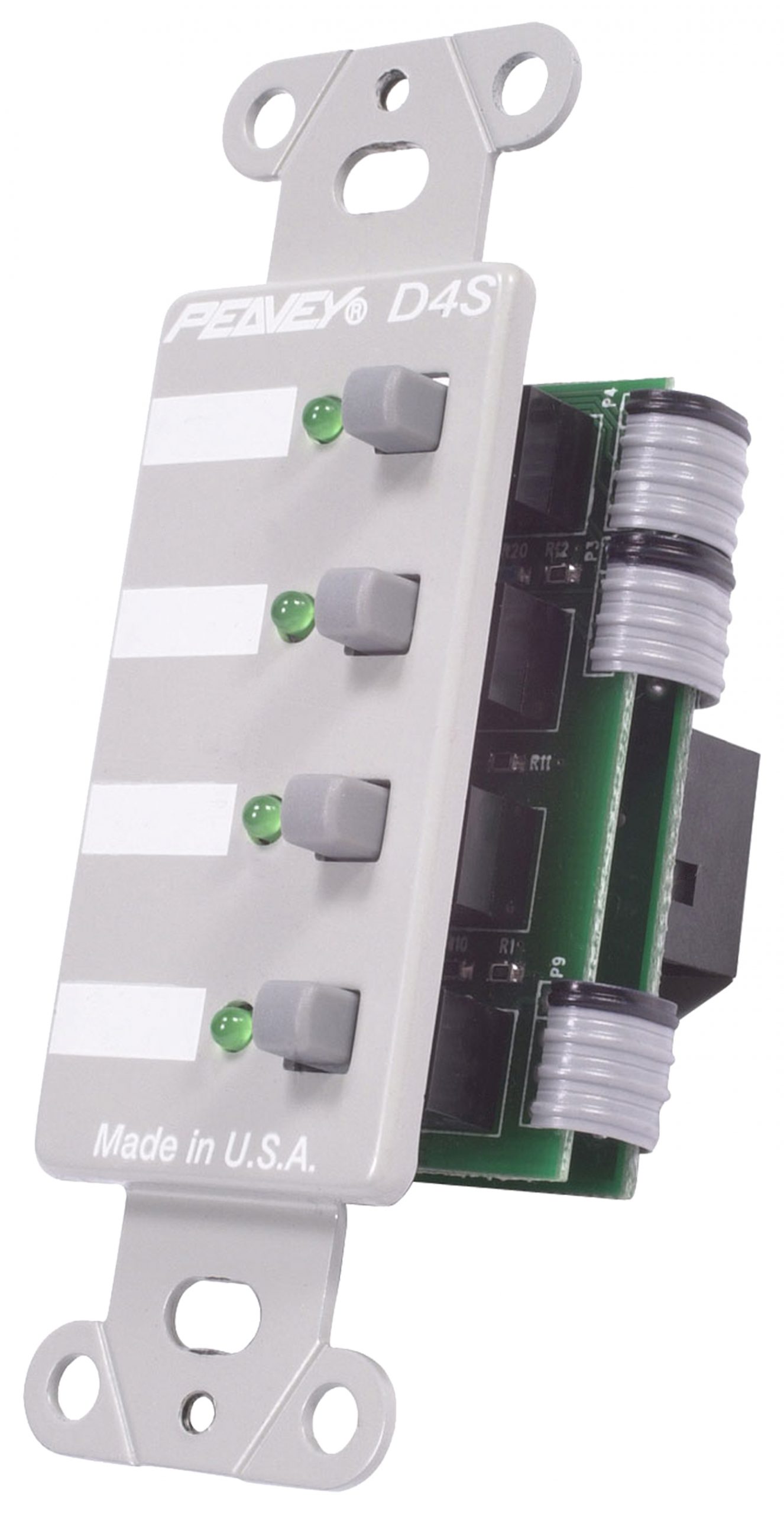

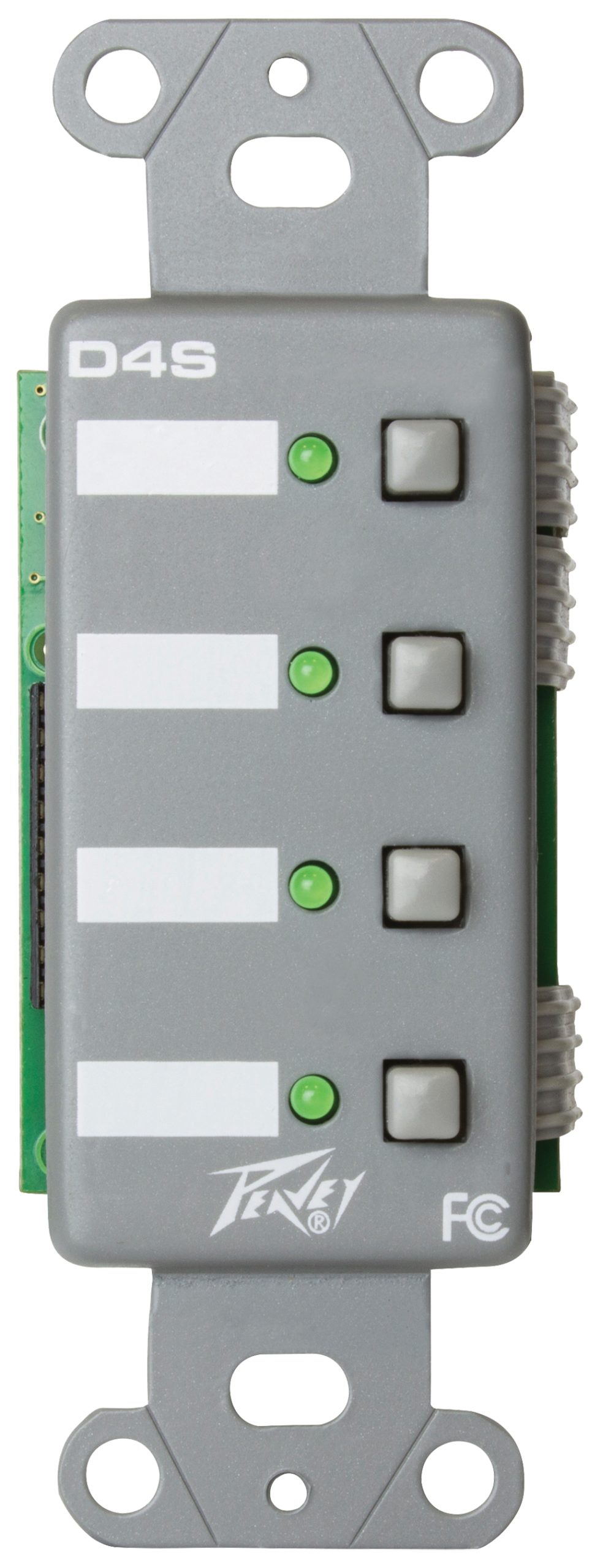

The D4S™ is a simple wall panel controller option for Digitool® and NION® based systems. The 4 push buttons on the device can be configured as either switches (toggles) or momentary triggers depending on the requirement. Buttons can be assigned as either mutes or presets in a Digitool project and can be connected to any DSP or Control object within a NION project.

Digitool can support up to 16 D-Series panels while NION can support up to 31 devices. Convenient CAT5 cabling with RJ45 termination is utilised to link the panels together in an RS-485 multi-drop topology and home run to the processor. The D4S panel is mounted in a standard NEMA 1G mounting box.

Features D4S

• RS-485 multi-drop network

• Easy wiring & installation

• Configurable controls

• Attractive cosmetic package

• Standard Decora™ 1G mounting

• Flexible

• Addressable

• Tracking LED status indication for multiple locations

Additional information

Input Connectors


Output Connectors
