ISM 5Tx™

5″ Two-Way Weather-Resistant 70V & Low Impedance Loudspeaker

Description

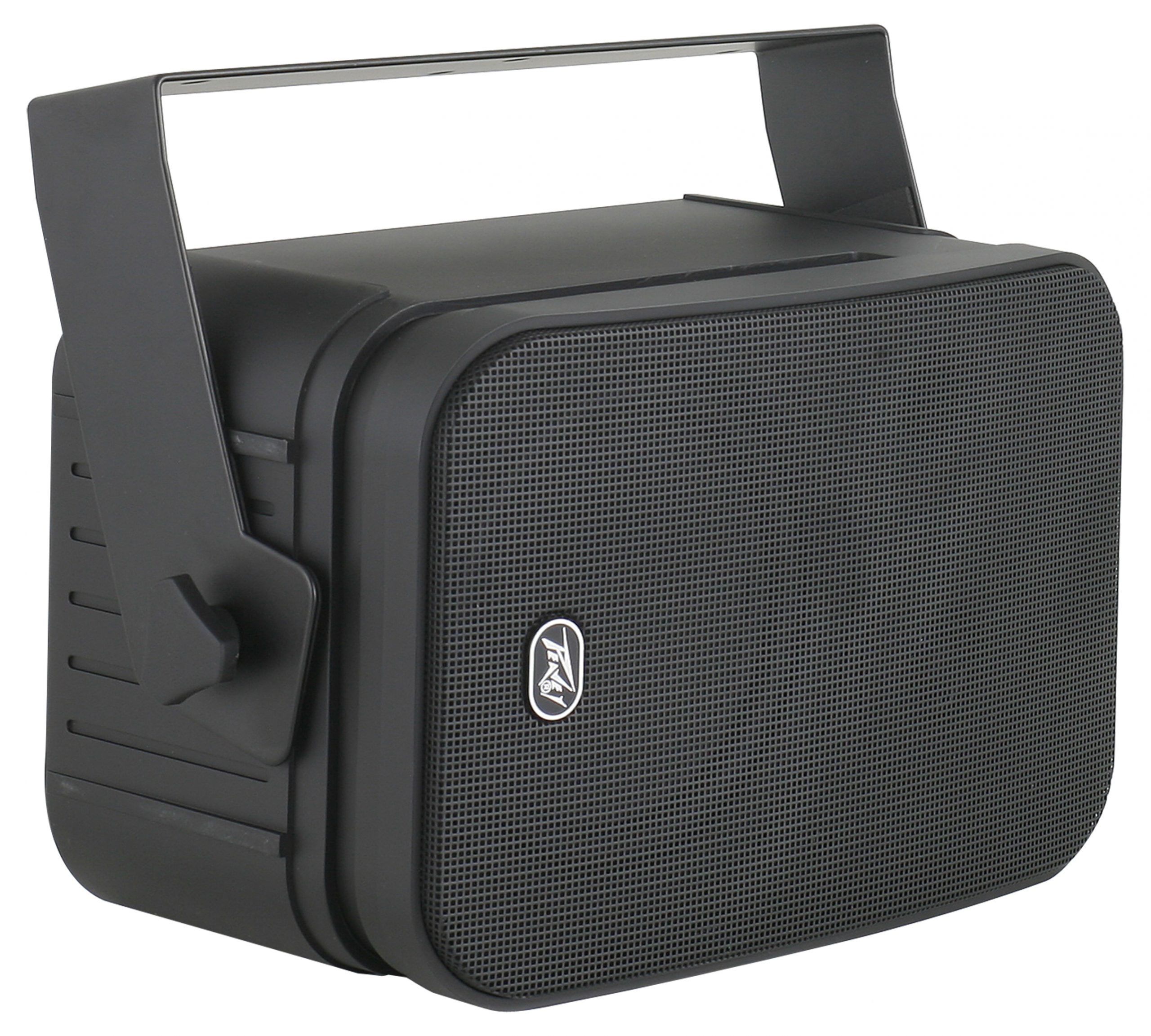

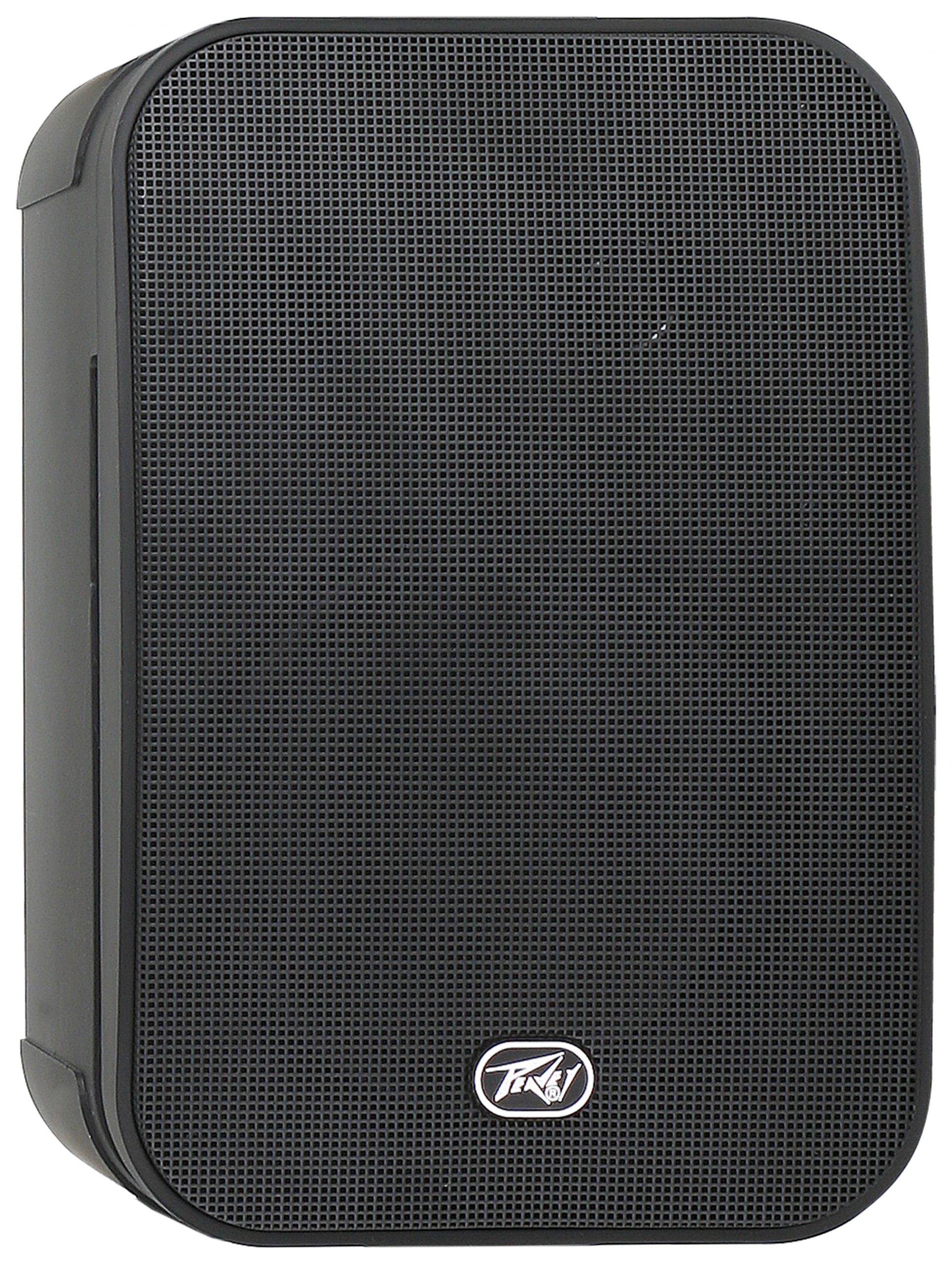

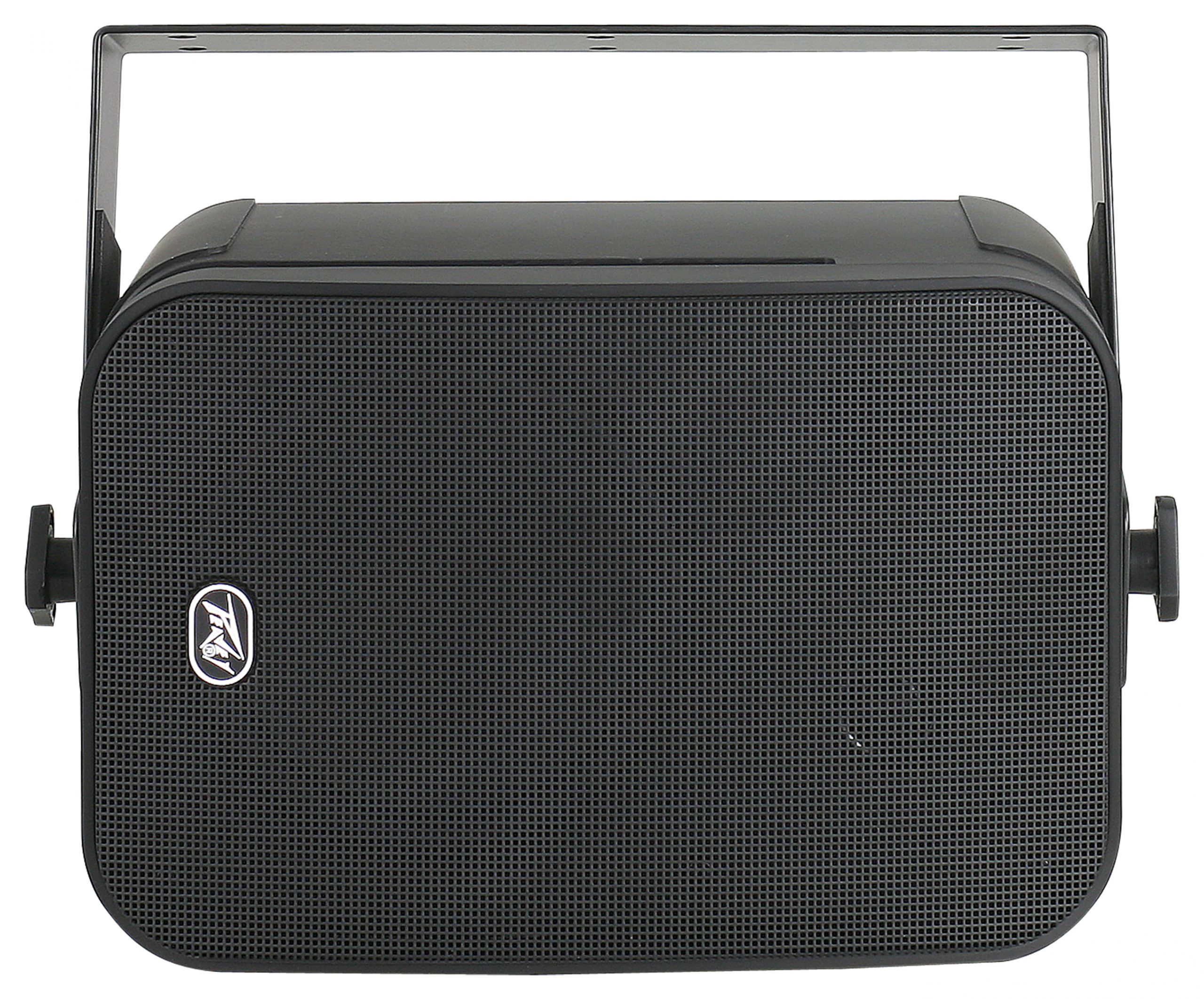

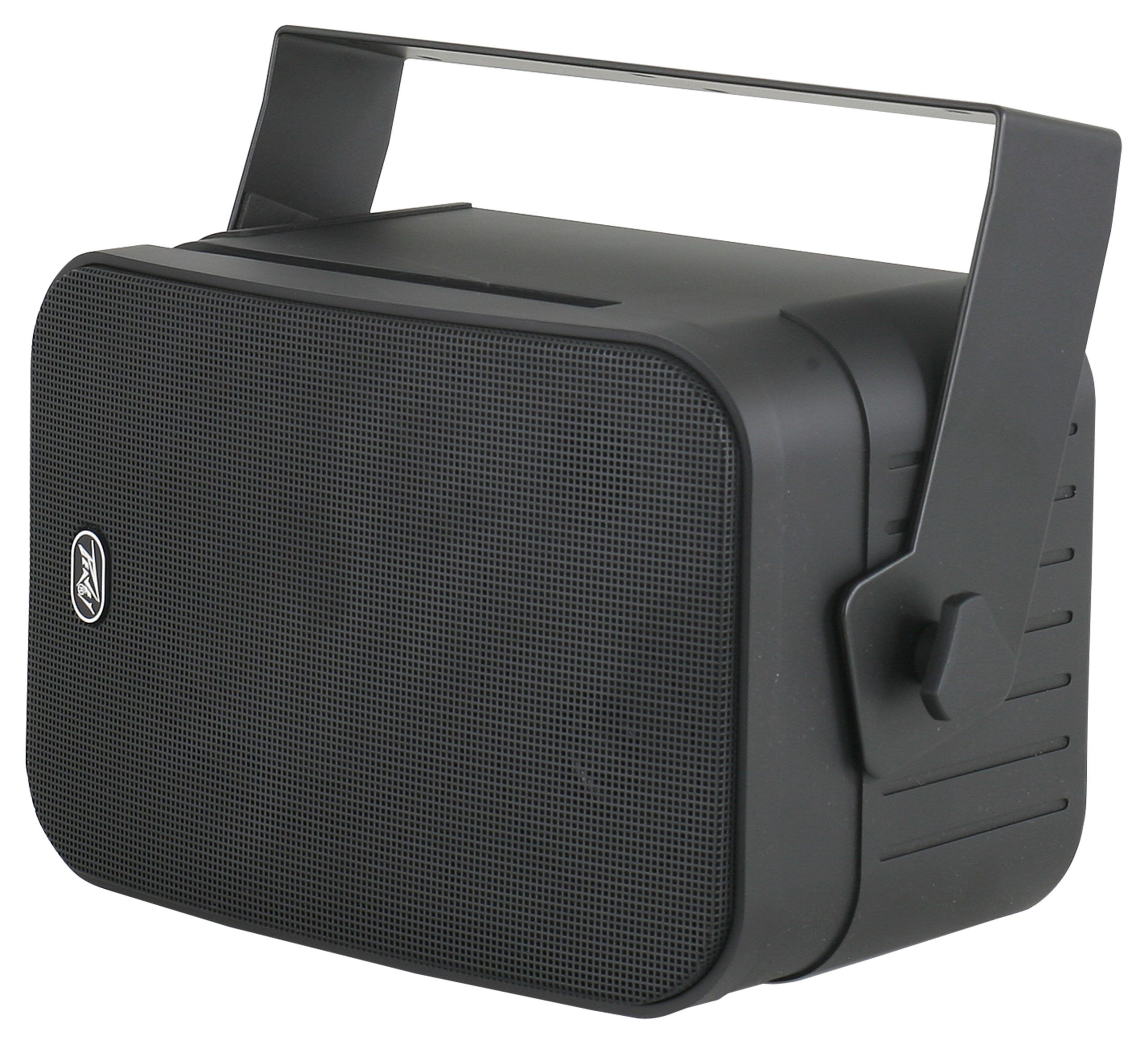

The ISM 5Tx™ is a small format two-way speaker system that is perfect for any application from foreground music to speech reinforcement. The ISM 5Tx has a Hi-Fi sound character with good clarity, which is ideal for music systems in bars, taverns, arenas, lounges, arcades or anywhere multi-channel, multi-speaker sound systems are required. This speaker utilizes a specially designed 5” woofer and a 1” polydome tweeter. The lightweight and rugged injection-molded cabinet is weather-resistant for indoor or outdoor use. A curved black metal perforated grille provides driver protection and a professional appearance.

The compact, lightweight package coupled with its smooth response makes this system ideal for the smaller venues where space is at a premium.

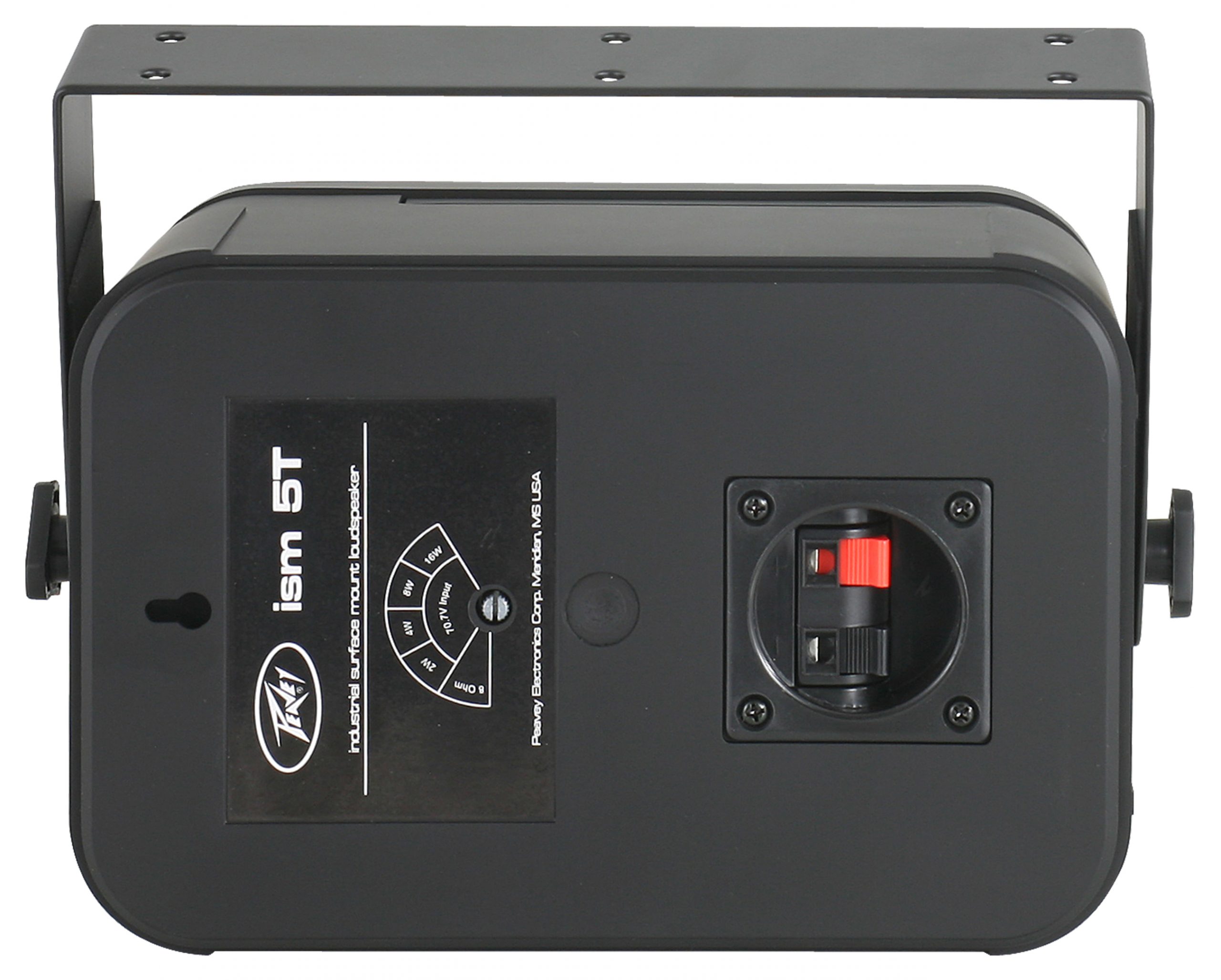

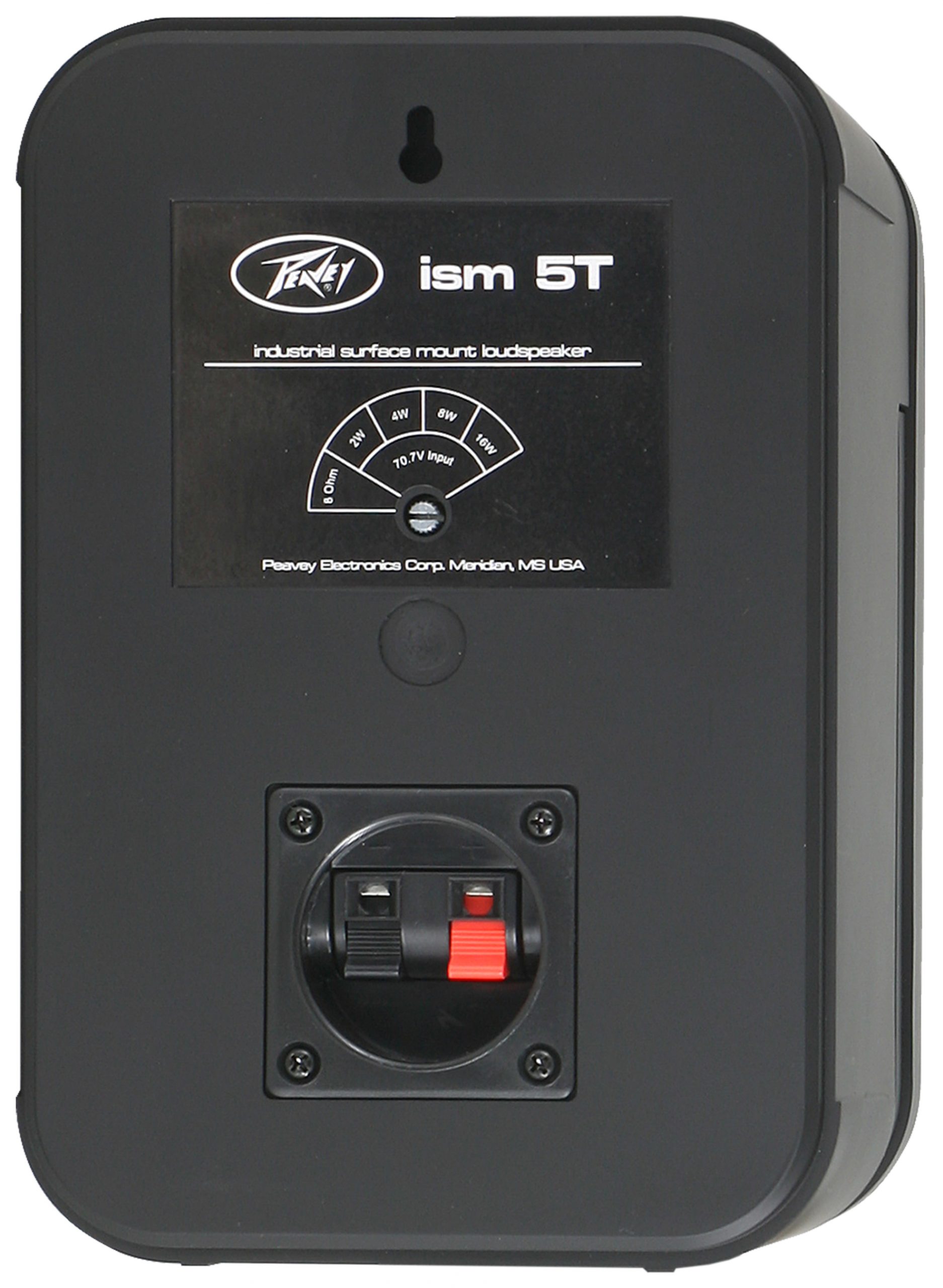

The ISM 5Tx speaker system is rated at 80 Watts program power handling. Spring-loaded terminal input connectors make hook-up extremely simple. Incorporation of a 70.7 volt line transformer with taps at 16W, 8W, 4W and 2W allow easy use with 70.7 volt distributed systems. The tap selector switch also has an 8 Ohms input option, so the ISM 5Tx speaker system can be used with a direct connection to a power amp, providing unequaled versatility.

Features ISM 5Tx

• Premium 5” woofer with rubber surround

• 1” polydome dynamic tweeter

• Weather resistant

• Power Handling: 80 Watts program

• Built-in switched 70 volt line transformer with Taps at 16W, 8W, 4W, 2W

• 8 Ω nominal position on switch

• Small lightweight molded enclosure

• Flame retardant enclosure, to UL 94 HB

• Molded-in mounting inserts

• Mounting bracket included

• Color: Black

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

IP Rating

Power RMS

4, 40 W @ 8 Ω – Selectable taps – 16, 8, or 2 W @ 70V

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

88 dB

Maximum SPL

103 dB

Speaker Frequency Response

65 Hz – 20 kHz

Coverage (H x V)

110° x 110°

HF Driver

1" Polydome Dynamic Tweeter

LF Driver

5" Water-Resistant Woofer

Input Connectors

2 x Push Terminals

Suspension Points

Wall Mounting Bracket included

Enclosure Material

ABS

Color

Net Weight

5.5 lbs (2.50 kg)

Product Height

8.87" (225 mm)

Product Width

5.88" (149 mm)

Product Depth

5.57" (141 mm)

SKU

03601790
