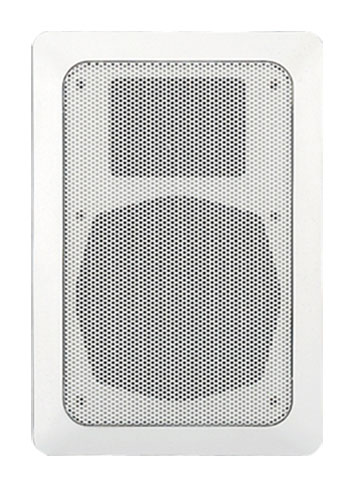

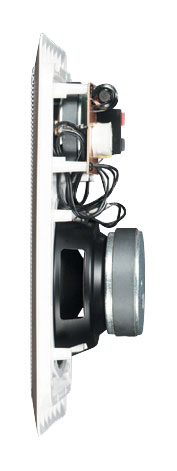

WS™ 52T - White

5″ Two-Way In Wall Speaker

Downloads

Specifications

Certificates

Description

The WS™ 52T full-range, two-way in-wall speaker consists of a 5″ woofer and one swivel 1″ silk dome tweeters. A mounting (rough-in) frame is not required when the speakers are installed in existing construction or a retrofit application. The WS 52T features a 70V/100V line matching transformer for constant voltage systems, and spring clip wiring connections to simplify installation. The WS 52T in-wall speakers are sold as pairs.

Features WS 52T

• Frequency Response: 68 Hz to 18 kHz, +/- 3 dB

• Power Handling: 50 Watts

• Impedance 8 Ω

• Sensitivity: 88 dB ±3dB ,1m,1W

• Transformer Taps:  20W, 10W, 5W, 2.5W (100V), 70V capable

• 5.25″ woofer

• 1″ dome tweeter

• Crossover Frequency: 4 kHz

• Outside Dimensions: 11″ x 7.5″ (Outermost Diameter x Overall Depth)

• Cutout Diameter: 9.563″ x 6.125″ x 2.75″ (HxWxD)

• Full-range, two-way system

• Adjustable tweeter angle

• 100 Watts program power handling

• Easy, attractive install

• White plastic frame and white metal grille can be painted any colour

Additional information

Speaker Configuration

In Wall 2-way

Speaker Type

Non-Powered

Power RMS

10, 5, 50 W @ 8 Ω – Selectable taps – 20, or 2.5 W @ 70/100V

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

88 dB

Maximum SPL

108 dB

Speaker Frequency Response

68 Hz – 18 kHz (±3 dB)

HF Driver

1" Dome Tweeter

LF Driver

5.25" Woofer

Input Connectors

Block Terminals

Enclosure Material

ABS

Color

Net Weight

4.3 lbs (1.95 kg)

Product Height

11.00" (279 mm)

Product Width

7.50" (191 mm)

Product Depth

2.75" (70 mm)

SKU

00570690
