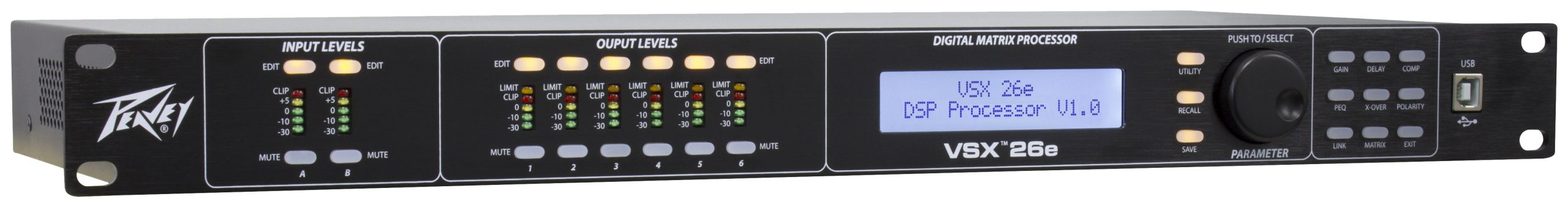

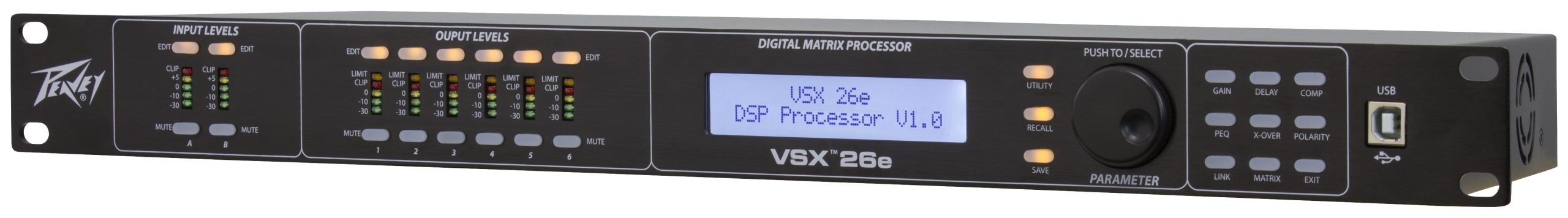

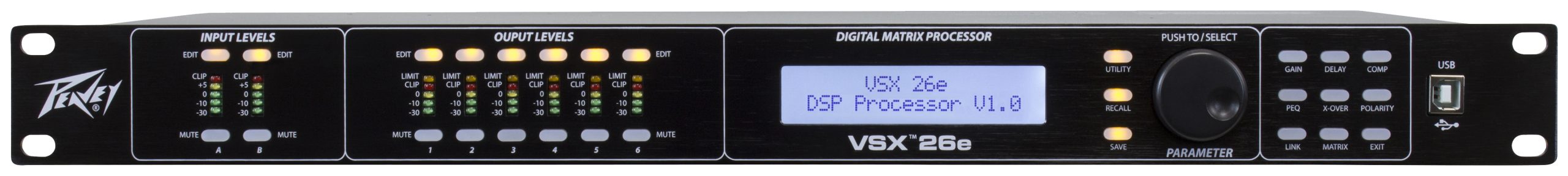

VSX® 26e

DSP-based Loudspeaker Management System – 2 In & 6 Out

Description

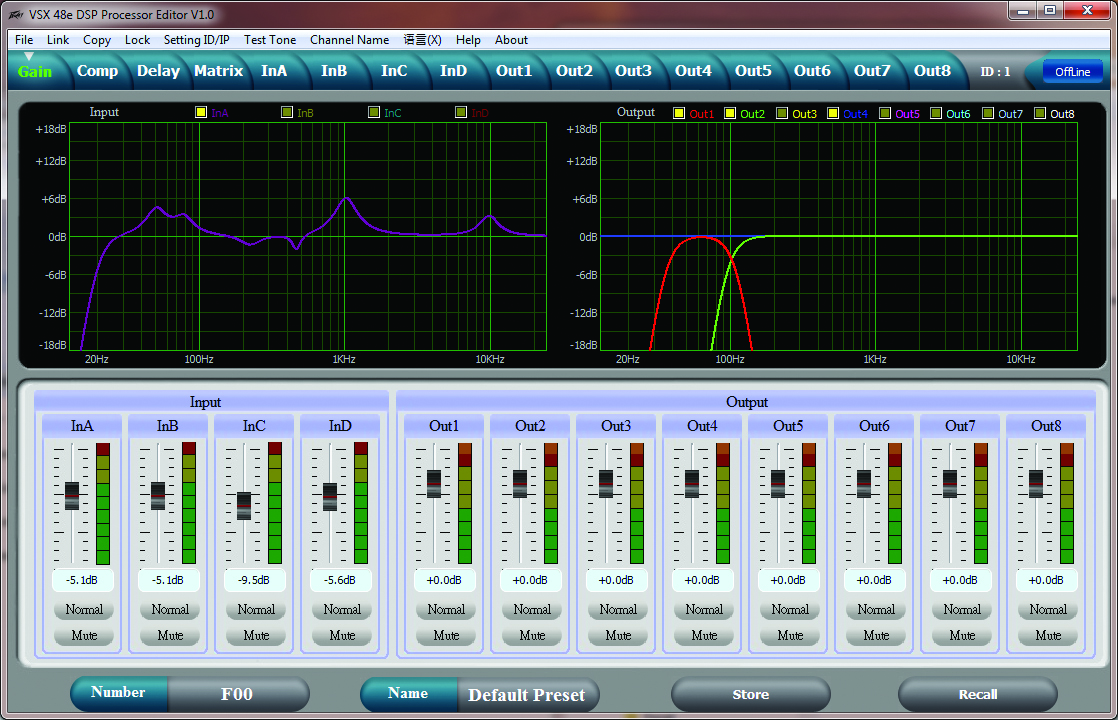

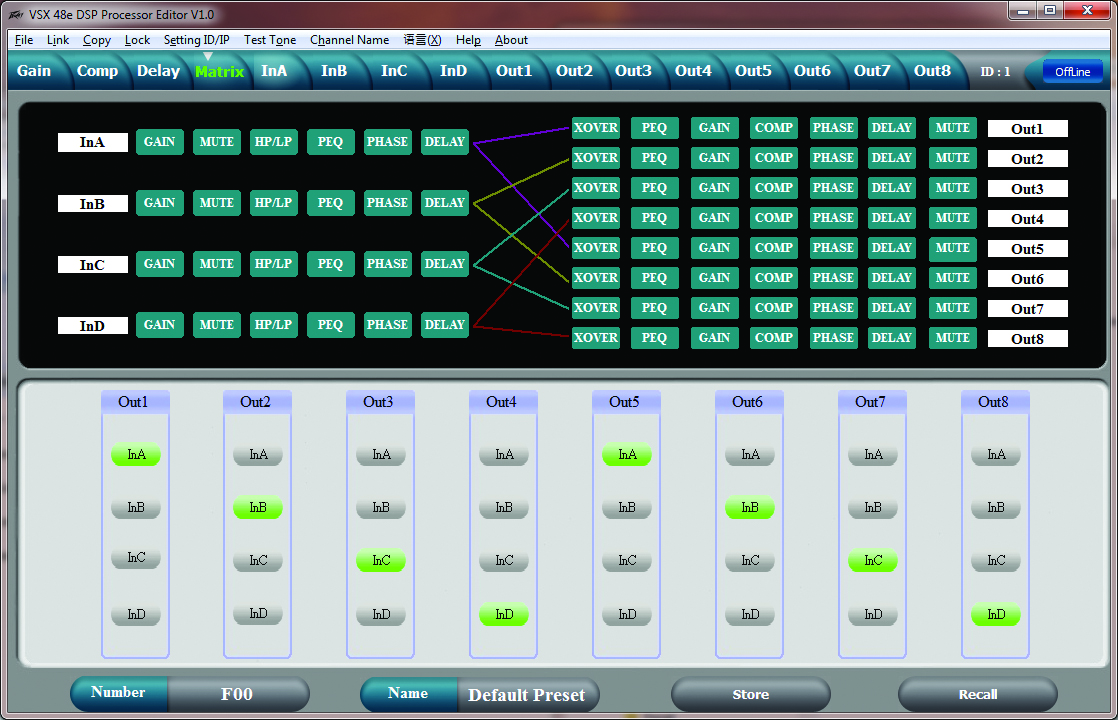

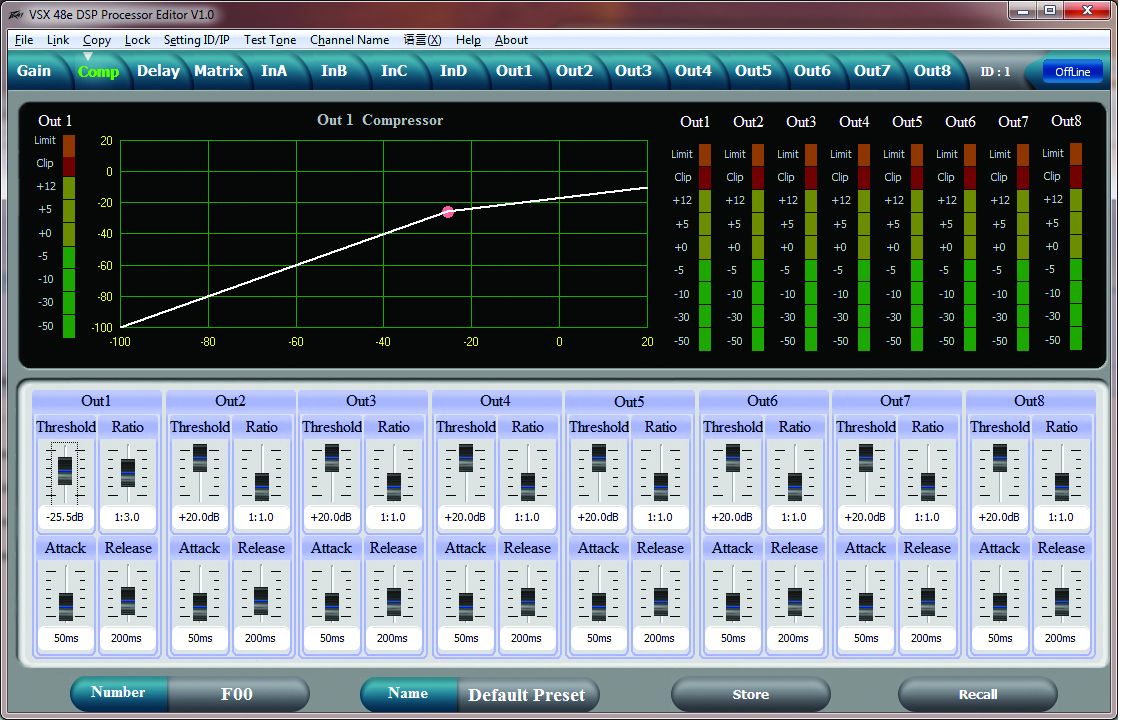

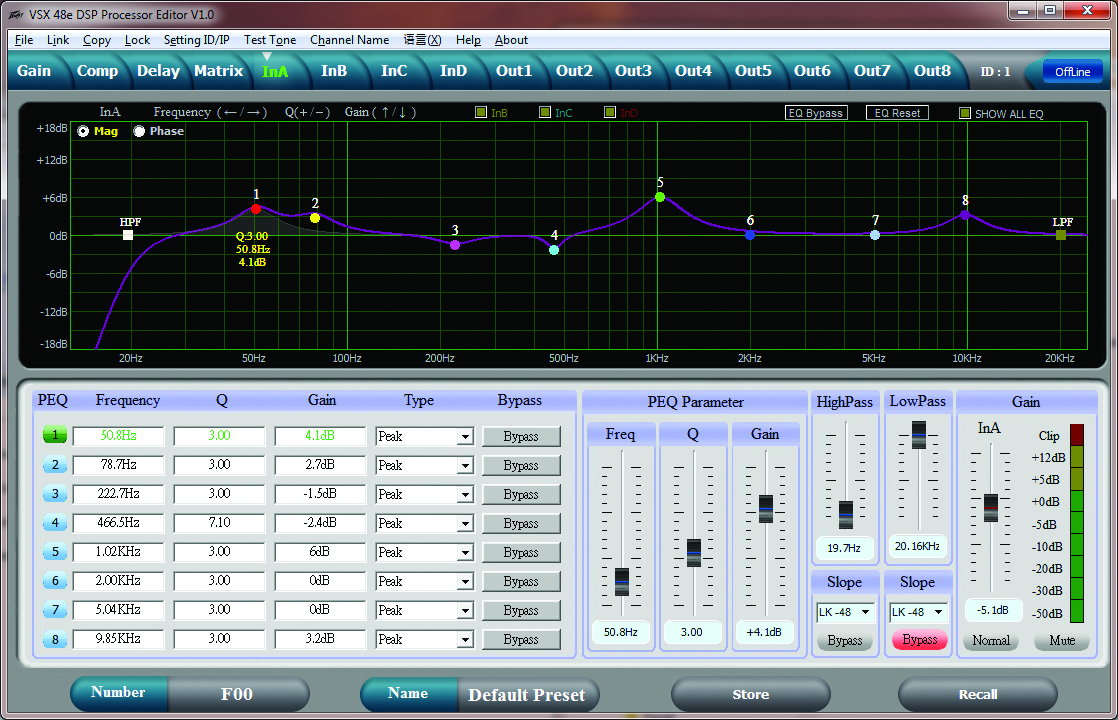

The VSX® 26e processors is a DSP-based, loudspeaker management system that boast a 96 kHz sample rate and a floating point DSP processor for quiet accurate filter response. The crossover filters are fully adjustable and any input can be routed to any output. The VSX Editor Software for PC allows complete remote setup and operation via the front panel USB port or by the rear panel Ethernet network connection. Files can also be saved and loaded using this interface software.

Features VSX 26e

• Balanced Inputs: 2 x XLR

• Balanced Outputs: 6 x XLR

• EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2

• Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)

• Signal generator (sine, white noise, pink noise)

• Channels can be linked for simplified stereo operation

• Every output features: 9-band PEQ, gain, compressor/limiter, polarity, Delay (680 ms), mute, and crossover/band-pass filters

• 5-segment LED meters with limit indication on each output

• 5-segment LED meters on each input

• Maximum input and output level +20 dBu, XLR balanced inputs and outputs

• Every input features Gain, Mute, HP and LP filters, 8-band PEQ, polarity and Delay (680 ms)

• Security lock

• Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB (unweighted)

• 24-bit Delta-Sigma A/D and D/A converters

• Ethernet & USB “B” port for setup and control

• 96 kHz Sample rate

• PC Editor Software allow complete remote setup and operation via USB or Ethernet

Additional information

Channels (Input)

2

Channels (Output)

6

DSP On-Board

Yes

Network Control

Yes

Frequency Response

10 Hz – 21 kHz; +0 / -0.5 dB

Front Panel Control

Yes

Mute Groups

Yes

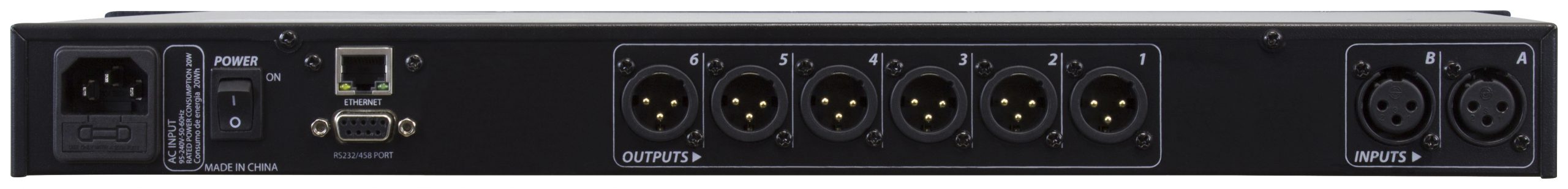

Input Connectors

2 x XLR

Output Connectors

6 x XLR

Color

Rack Mount (19")

Yes (1U)

Net Weight

5.3 lbs (2.39 kg)

Product Height

1.75" (45 mm)

Product Width

19.00" (483 mm)

Product Depth

8.25" (210 mm)

AC Power Input

Universal Power Supply 95-240VAC 50/60 Hz

SKU

04000110
