Versarray™ PRO 112

12″ Two-Way Powered Ribbon Line Array Module

Description

The Crest Audio® Versarray™ PRO 112 powered ribbon tweeter line source array speaker system consists of a 12” Neo Black Widow® woofer combined with a Neodymium based RD™ 2.6 MK III ribbon tweeter in a cabinet with a simple, quick, yet flexible rigging system. Designed to provide modular coverage of small to medium venues, and intended for use with the companion Crest Audio Versarray PRO Sub models, the Versarray PRO 112 offers excellent versatility with a very high performance capability. The two-way system consists of the following driver components: a 12” Black Widow Neo series woofer with Neodymium magnet structure. Capable of over 500 Watts of continuous power handling (AES Std 2-1984), the woofer can handle a lot of sheer power. The high frequencies are handled by two RD 2.6 MK III ribbon tweeters utilizing a composite sandwich ribbon, a Neodymium magnet
system, and a low distortion CLEAR FORM™ waveguide.

Power for bi-amping is supplied by some very efficient power amplifier systems, controlled by a sophisticated and refined DSP operations system with Dante® connection capability. Total system power is 3400 Watts total peak power, with 2000 Watts peak power for the woofer, and 1400 Watts total peak power for the two ribbon tweeters. This sheer power is controlled precisely and processed by a high performance DSP system, which provides all the crossover and EQ functions, as well as providing all limiting, compression and driver protection duties with unfailing attention to every detail of the music.

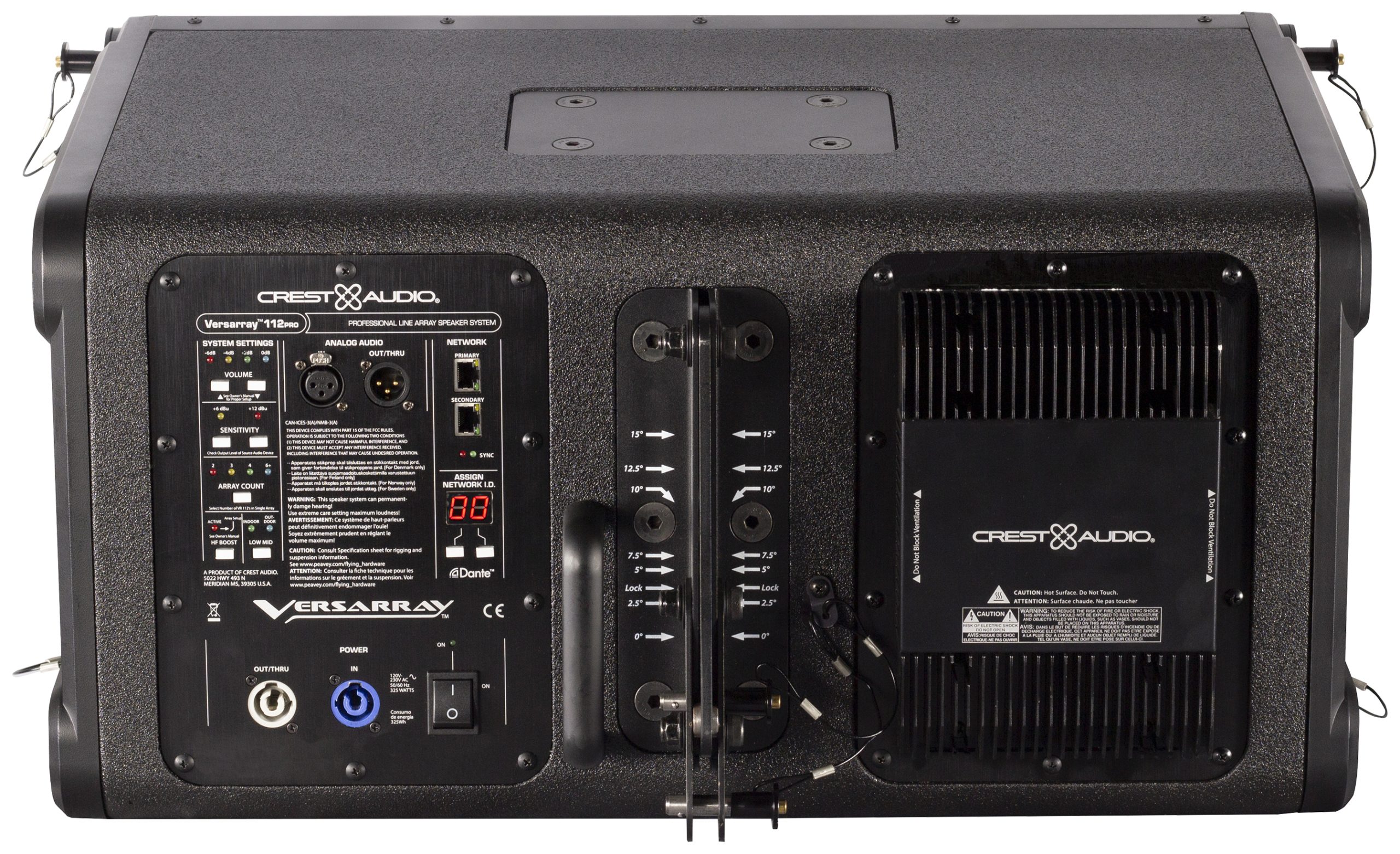

A unique set of control buttons on the rear panel allow analog signal input and use without the need for a network controller, by setting the system for typical use situations via push-button. This feature allows the use of the system without the requirement for a full-blown digital networking controller or system.

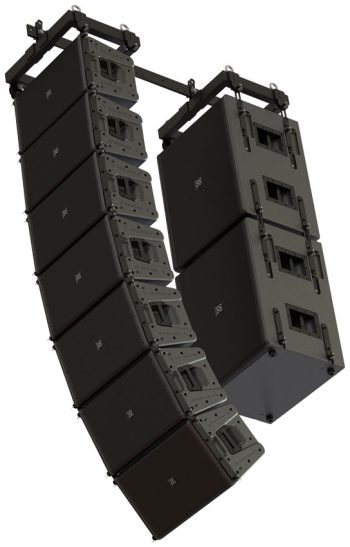

The FlyQWIK™ adjustable rigging system provides for a classic straight line-array configuration, or a number of different angling options, providing easy aiming of the system. Angles between the array modules is adjustable from 0 degrees (straight), to 15 degrees in 2.5 degree increments. Flying and adjusting the coverage angles is all very quick and simple with the new FlyQWIK system.

Quick release push-lock pins are supplied with the rigging hardware to couple the Versarray PRO 112 modules together and lock the angles between them into place, as well as for the rigging halo and fly bar configurations of a line array. The flexibility of the Versarray system allows the use of anywhere from 1 to 10 Versarray PRO 112 modules in conjunction with anything from one Versarray PRO 218 Sub to as many Versarray PRO 218 or PRO 215 Subs as you can! An optional special groundstack bracket set mounts to the Versarray PRO 218 Sub, and allows up to three of the Versarray PRO 112’s to be mounted on top of the Versarray PRO 218 Sub, and angled upward, for use on stage in a stadium seating situation.

Features Versarray PRO 112

• Two-way bi-amp ribbon line source array SR system

• 3400 Watts total peak of system power

• 12″ Neo Black Widow woofer with 4″ VC

• Exclusive RD 2.6 Mk III ribbon tweeters with neo magnet and composite material sandwich ribbon

• Ribbon Tweeters mounted to our proprietary CLEAR FORM Waveguide

• 90° x 15° (HxV) coverage pattern (per one cabinet)

• Modular Line Array System™ for ease of vertical coverage configuration

• MLAS™ EQ Presets provide professional results quickly

• Easy aiming FlyQWIK™ hardware rigging system

• Angle adjustable in 2.5° increments, from 0° to 15° total angle between adjacent cabinets

• Full complement of DSP based limiting and compression to protect the drivers from overdrive conditions

• Fan cooled for maximum reliability

• Inputs are analog XLR in and/or Dante Ethernet audio network in

• Analog output thru connector is a male XLR

• Analog signal input use without the need for a digital network controller, via the use of rear panel push-button set-up

• 18 mm 13-ply Baltic Birch enclosure with steel inner brackets

• Injection molded cabinet end caps, made from high impact material

• Hammerhead™ polyurea black finish and black powder-coated cloth lined grilles

Additional information

DSP On-Board

Yes

Networked Audio

Yes (Dante)

Network Control

Yes

Input Connectors

1 x XLR & 2 x RJ45

Output Connectors

1 x XLR

Speaker Configuration

Line Array Module 2-way

Speaker Type

Powered

Power RMS

System – 850 W (LF – 500 W & HF – 350 W)

Power Program

Power Peak

Sensitivity (1W/1m)

LF – 97 dB & HF – 101 dB

Maximum SPL

LF – 130 dB & HF – 130 dB

LF Driver

12" Neo Black Widow® Woofer, 4" Voice Coil

HF Driver

2 x RD™ 2.6 Mk III – 4.75" Ribbon Tweeters

Coverage (H x V)

90° x 15°

Speaker Frequency Response

100 Hz – 20 Hz (±3 dB)

Suspension Points

FlyQWIK Flying Hardware

Enclosure Material

Baltic Birch Plywood

Color

Net Weight

75.0 lbs (34.10 kg)

Product Height

15.13" (384 mm)

Product Width

27.13" (689 mm)

Product Depth

16.75" (426 mm)

AC Power Input

Universal Power Supply 120-240VAC 50/60 Hz

SKU

03617310
