Versarray™ Mk III Halo

Halo for Versarray Pro 112, Pro 215 Sub & Versarray 112 Mk III

Description

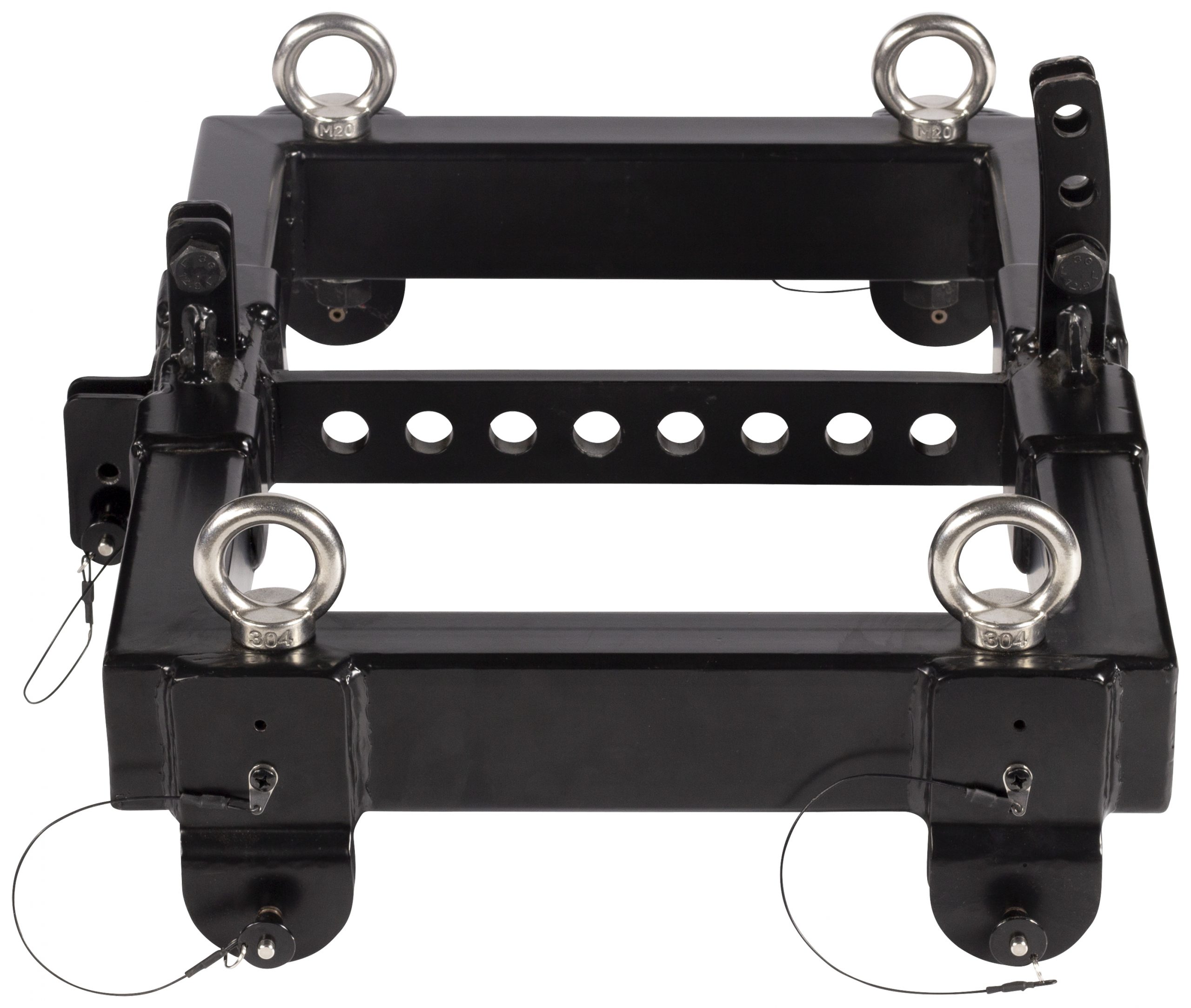

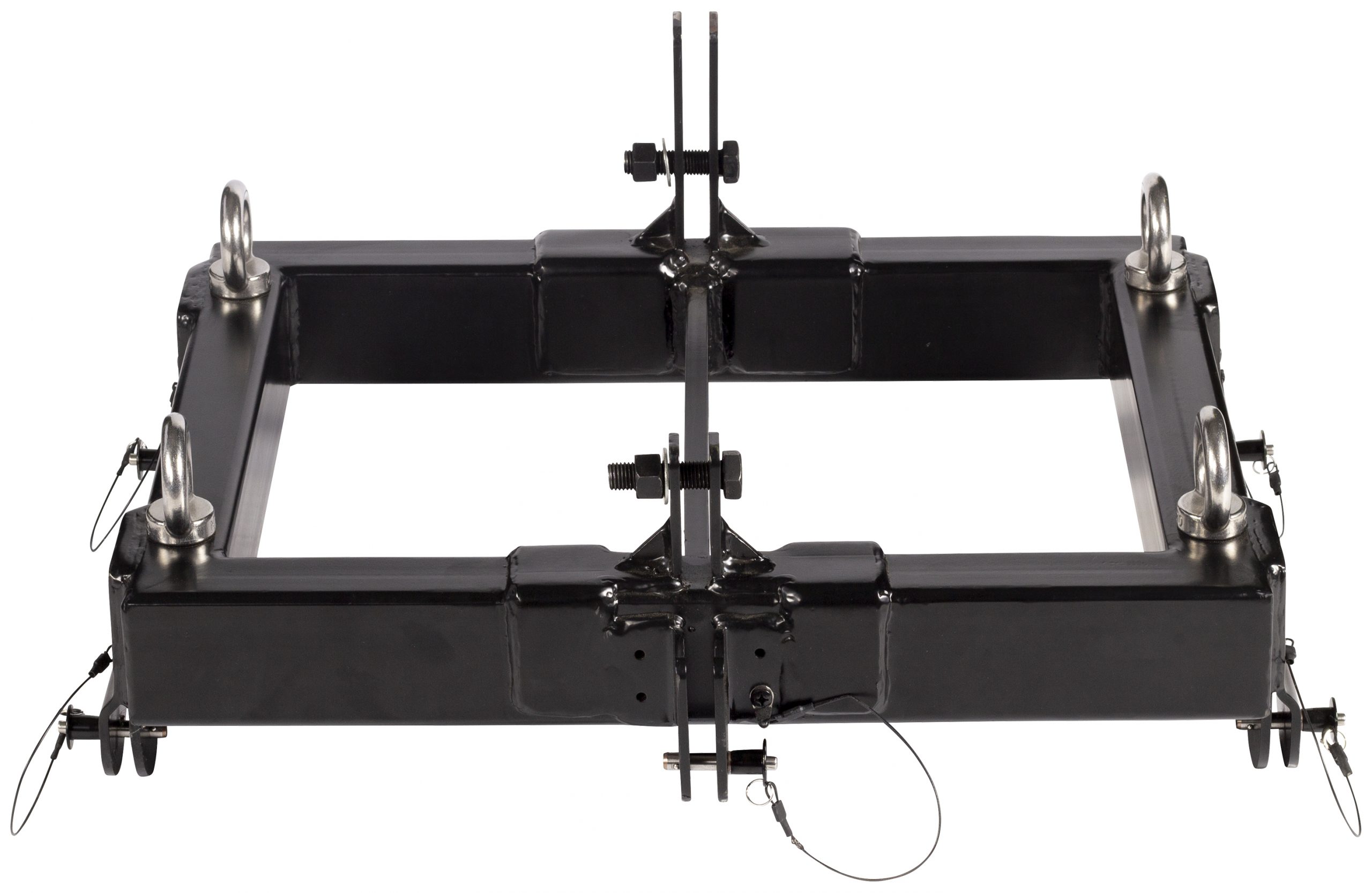

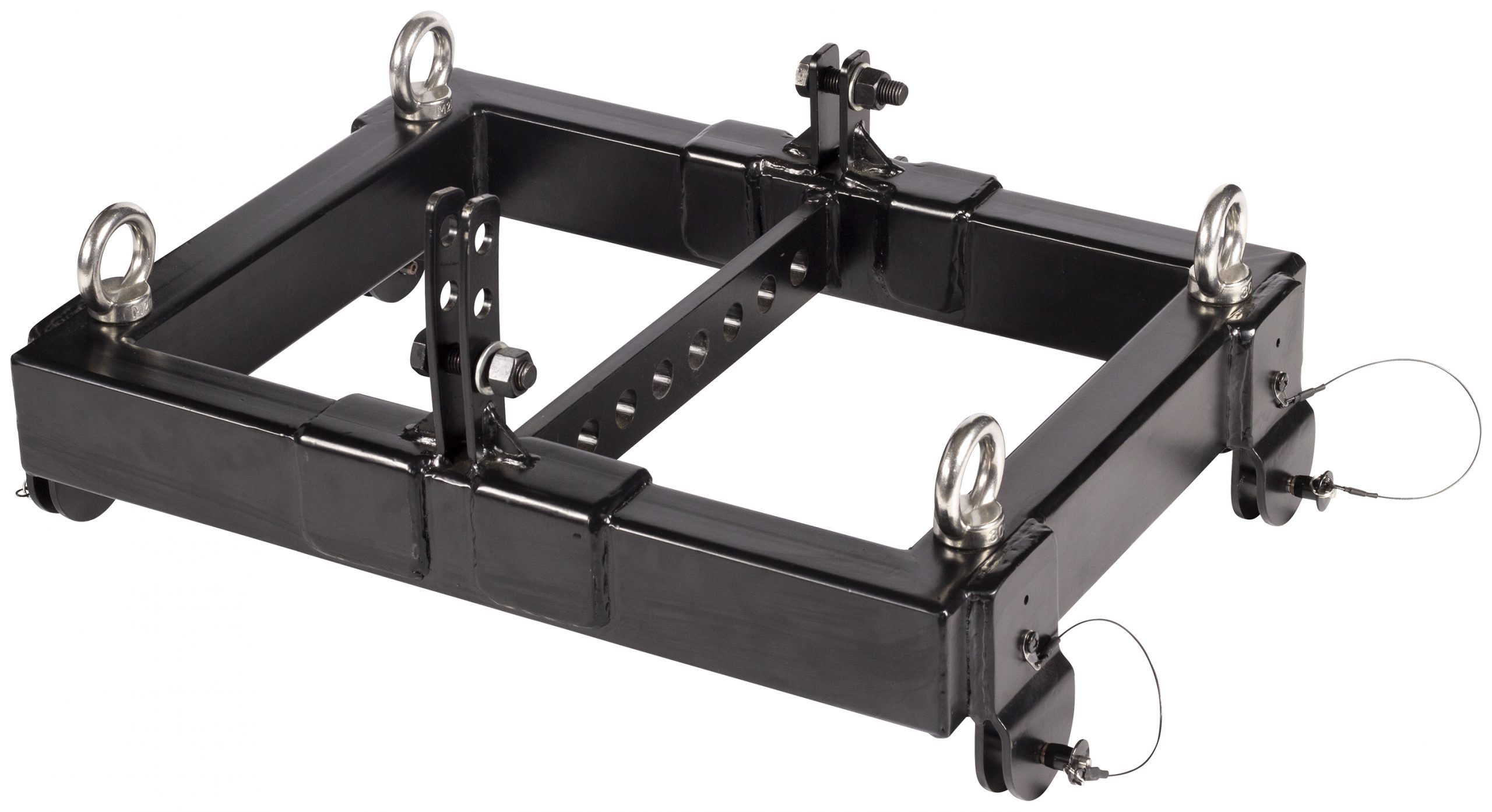

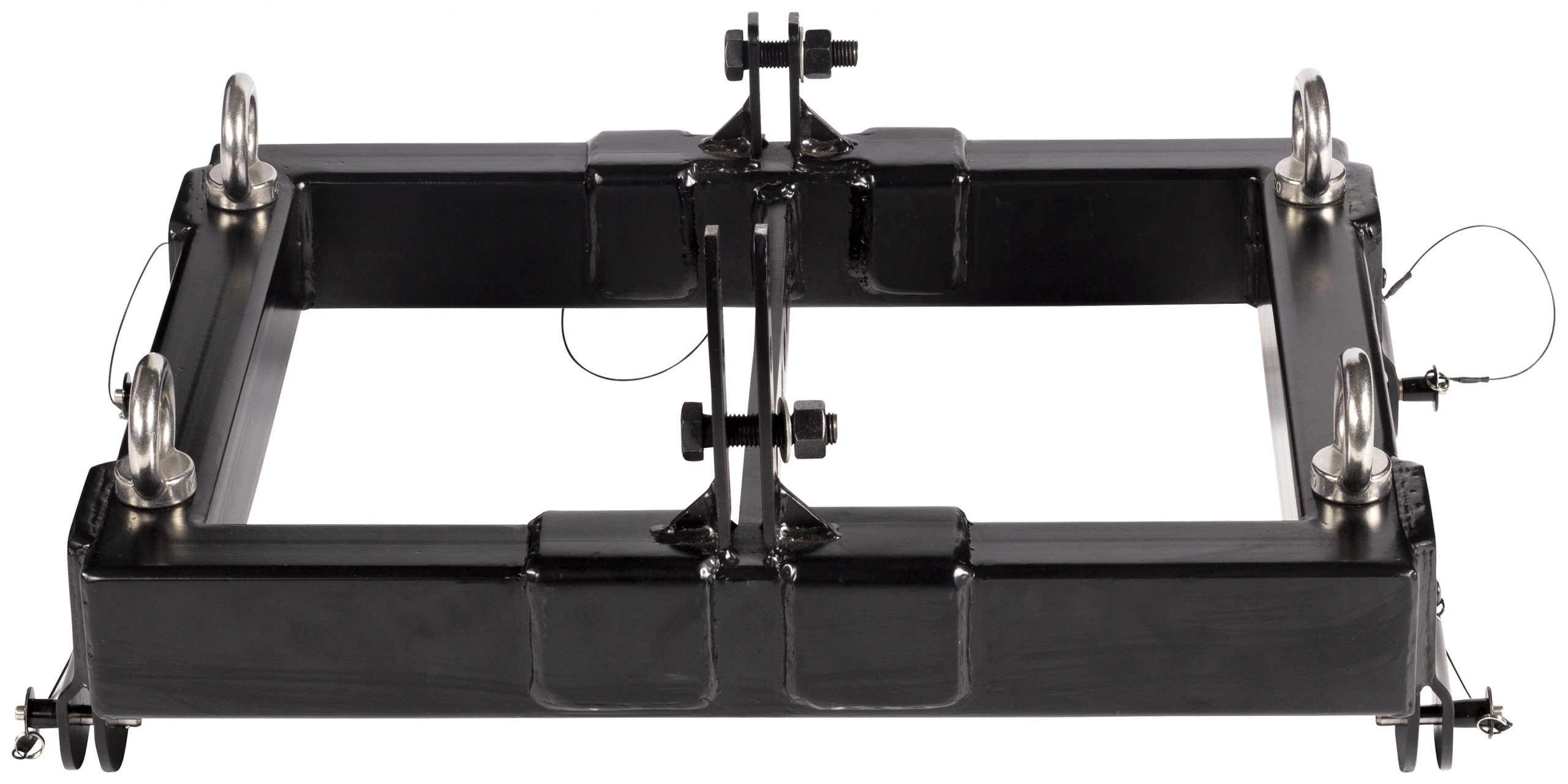

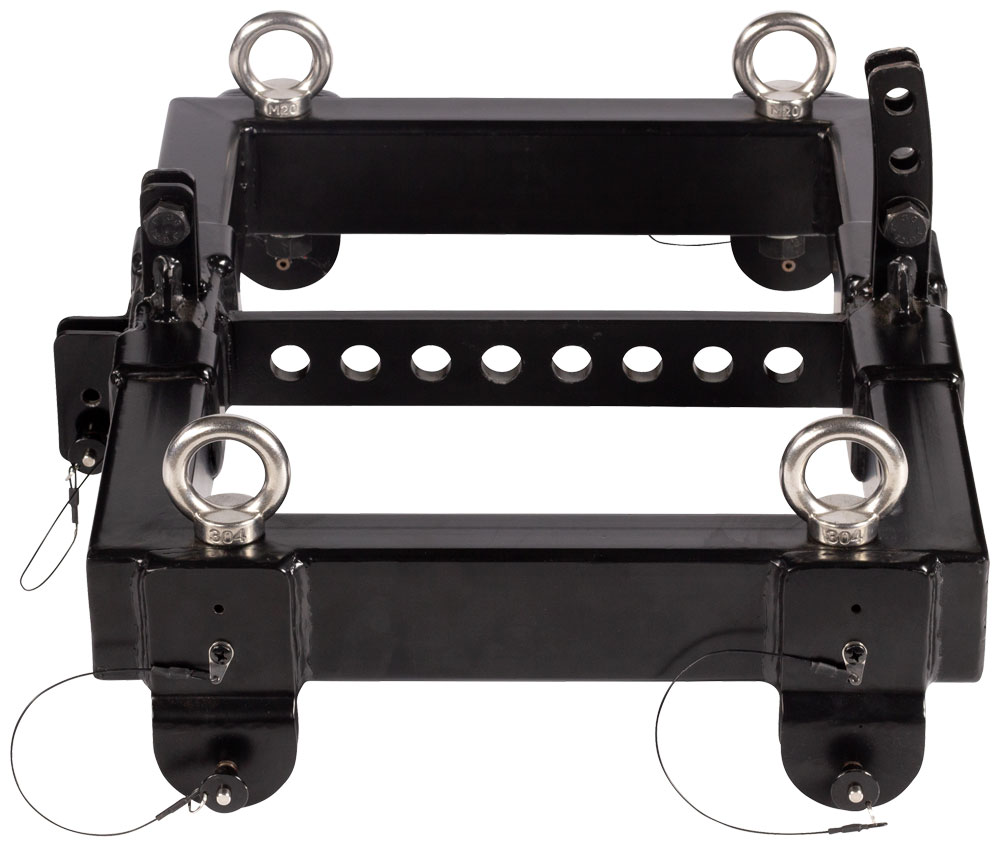

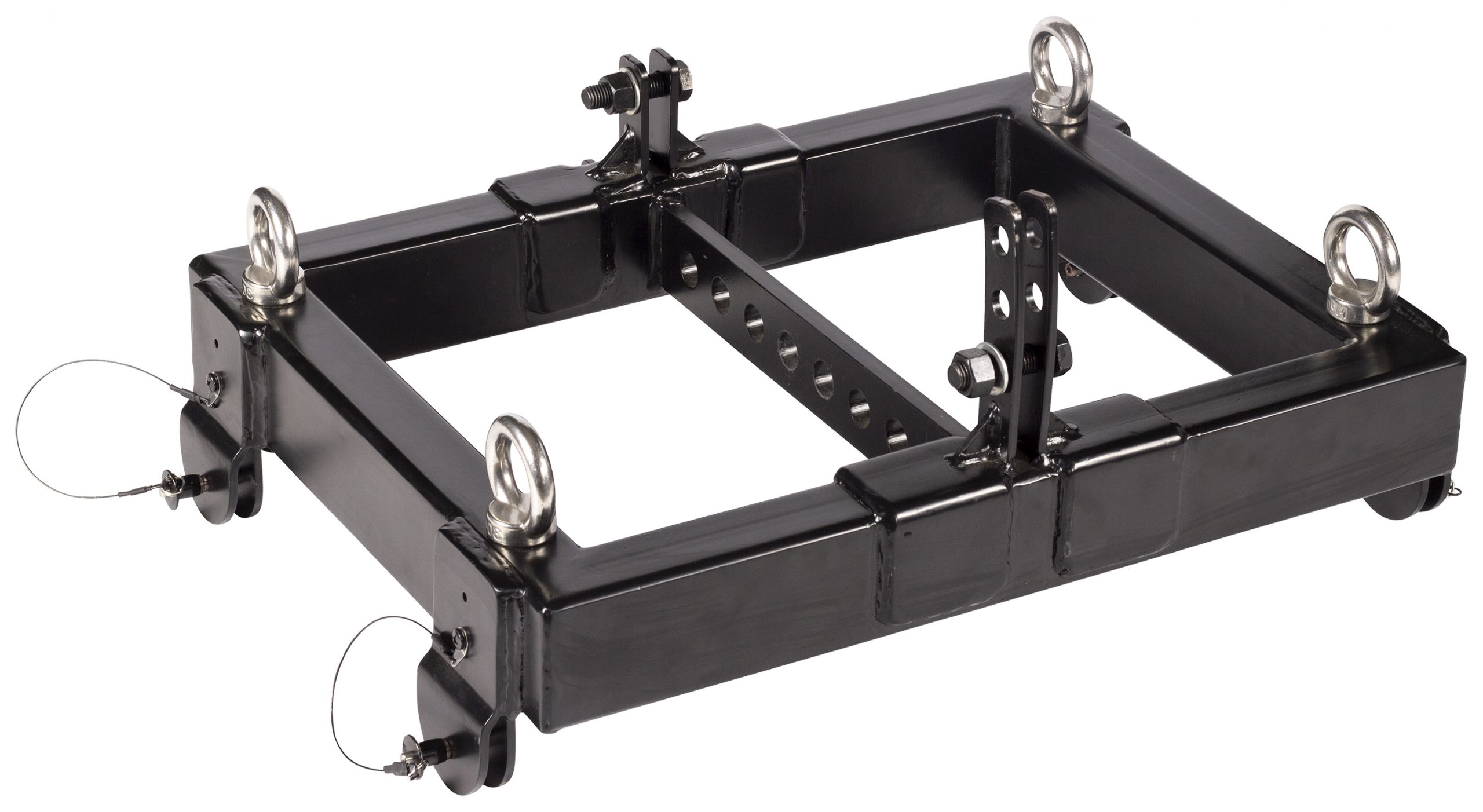

The Crest Audio® Versarray™ Mk III Halo connects Versarray 112 Mk III / Pro 112 and Pro 215 Sub speakers to overhead rigging.
Provides four M20 X 2.5 mm thread forged steel eyebolts for traditional rigging on the top of the halo; halo center bar has 8 single-point hang locations to balance the Halo, and an optional 2 foot fly bar increases the number of separate and distinct balance points to 29. Includes quick-lock pins to mate to optional fly bar and the first Versarray 112 Mk III / Pro 112 cabinet in a line.

Features Versarray Mk III Halo

• Material: All steel construction, 2” by 3” welded steel frame tubing with 3/16” wall thickness, center bar 1/2 ” thick by 3” solid steel with eight 23 mm rigging holes along the center of it’s length, Halo coupling mounts for the cabinet front hang straps are dual 1/8” thick steel plates, one pair on each side

• Finish: Entire halo is flat black powder coated paint finish

• Working load limit: 400 kg / 881 lbs for Ultimate Strength Design Factor of 10:1 (This meets PLASA North America criteria and typically exceeds local USA safety requirements.)

• Working load limit: 334 kg / 734 lbs for Ultimate Strength Design Factor of 12:1 (This is in compliance with the European Union mandated Safety Factor)

• Maximum number of Versarray 112 Mk III passive cabinets: 10

• Maximum number of Versarray Pro 112 powered cabinets: 10

• Maximum number of Versarray Pro 215 Powered Sub cabinets: 5
(Note: Versarray Pro 215 Sub cabinets do NOT articulate or angle, they must be hung at a zero degree angle. Therefore, we recommend that they be hung at the top of a line.)

• Can fly up to 5 Versarray Pro 215 Subs, or 10 Versarray 112 Mk III / Pro 112 cabinets

• Maximum combined pull-back angle for two or less subs in the hang: 30°

• Maximum pull-back angle for more than two subs in the hang: 15°

Additional information

Suspension Points

FlyQWIK Flying Hardware

Color

Net Weight

64.0 lbs (29.03 kg)

Product Height

11.63" (295 mm)

Product Width

27.44" (697 mm)

Product Depth

20.63" (524 mm)

SKU

03617370
