Tactus™ .Stage

32 In / 16 Out SoundGrid Stage Box

Description

Built in partnership with Waves®, the Tactus™ Digital Mixing System puts high quality audio, custom configuration and class leading features at the operator’s fingertips. Built on the combination of the Waves eMotion™ LV1 mixer, SoundGrid® server technology and Crest Audio Tactus IO interfaces, the Tactus Digital Mixing System represents the next evolution in digital consoles- without the physical limitations of a console.

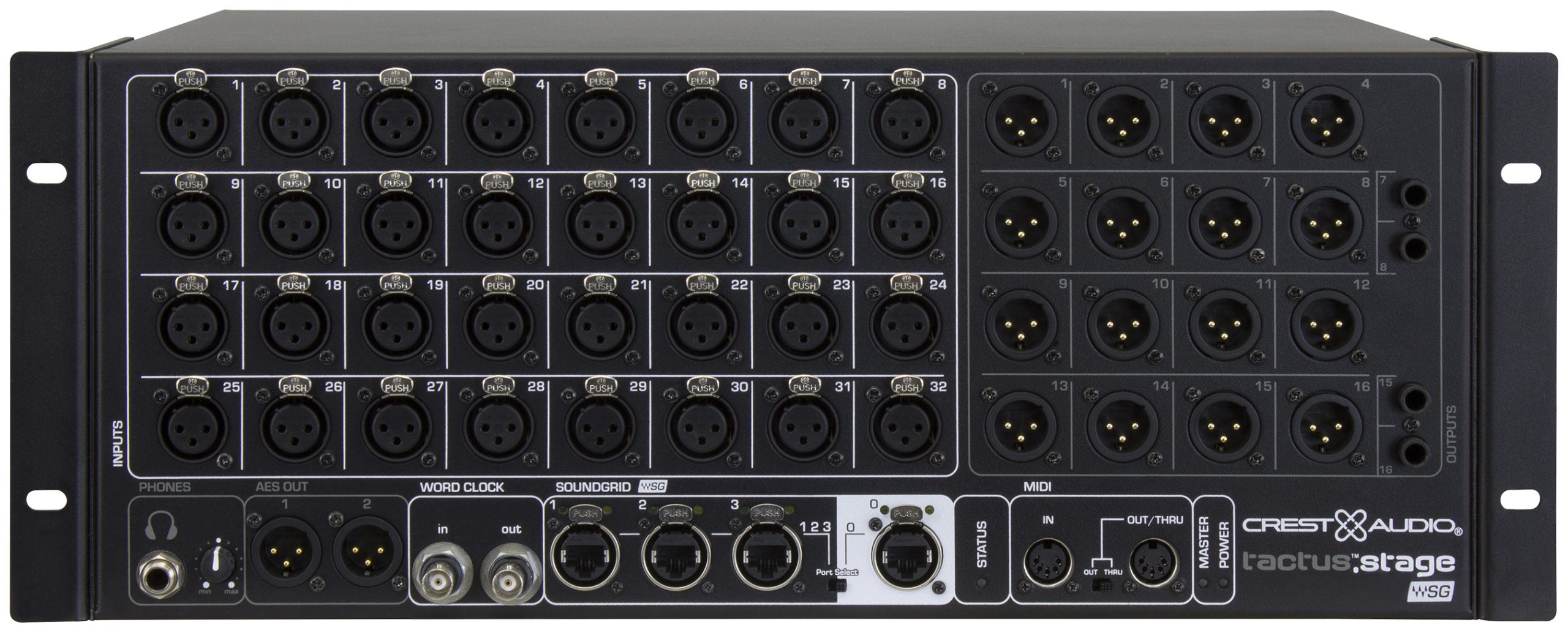

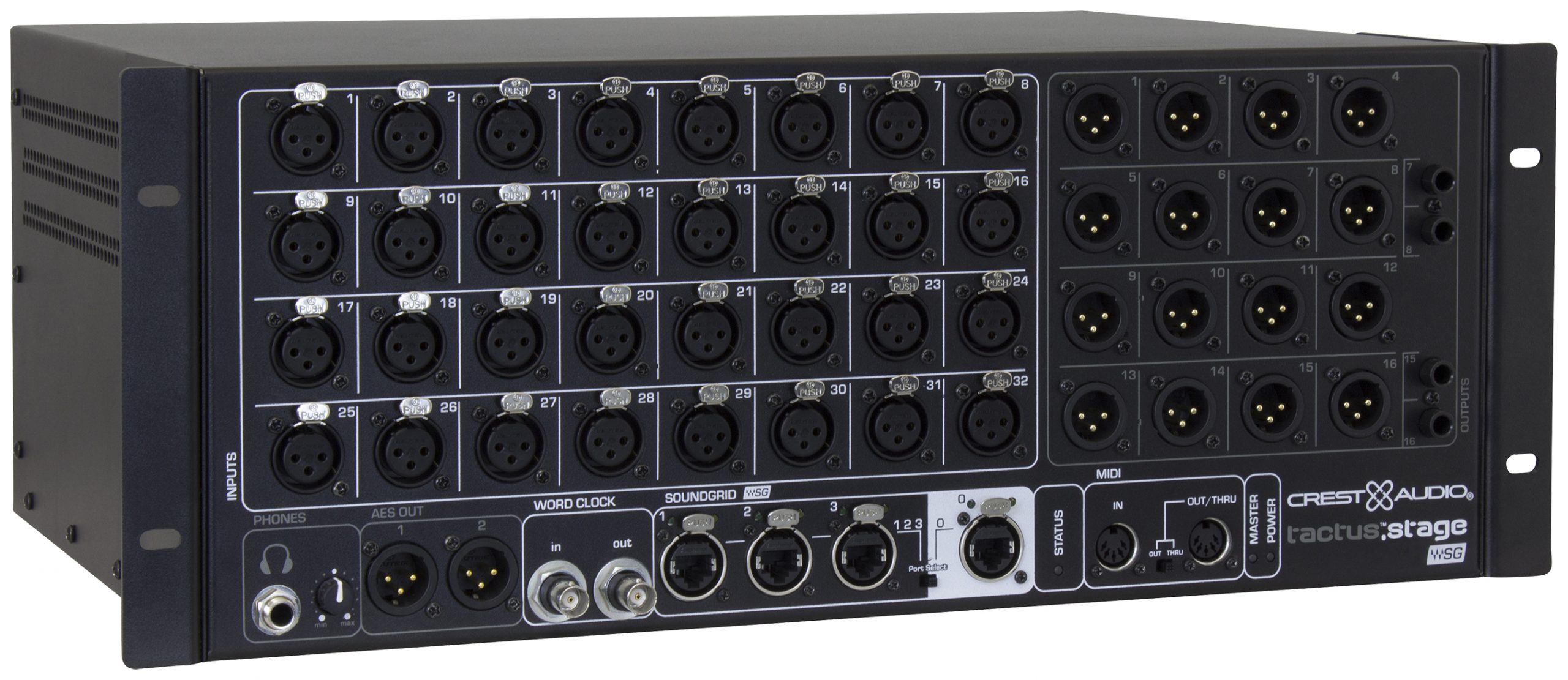

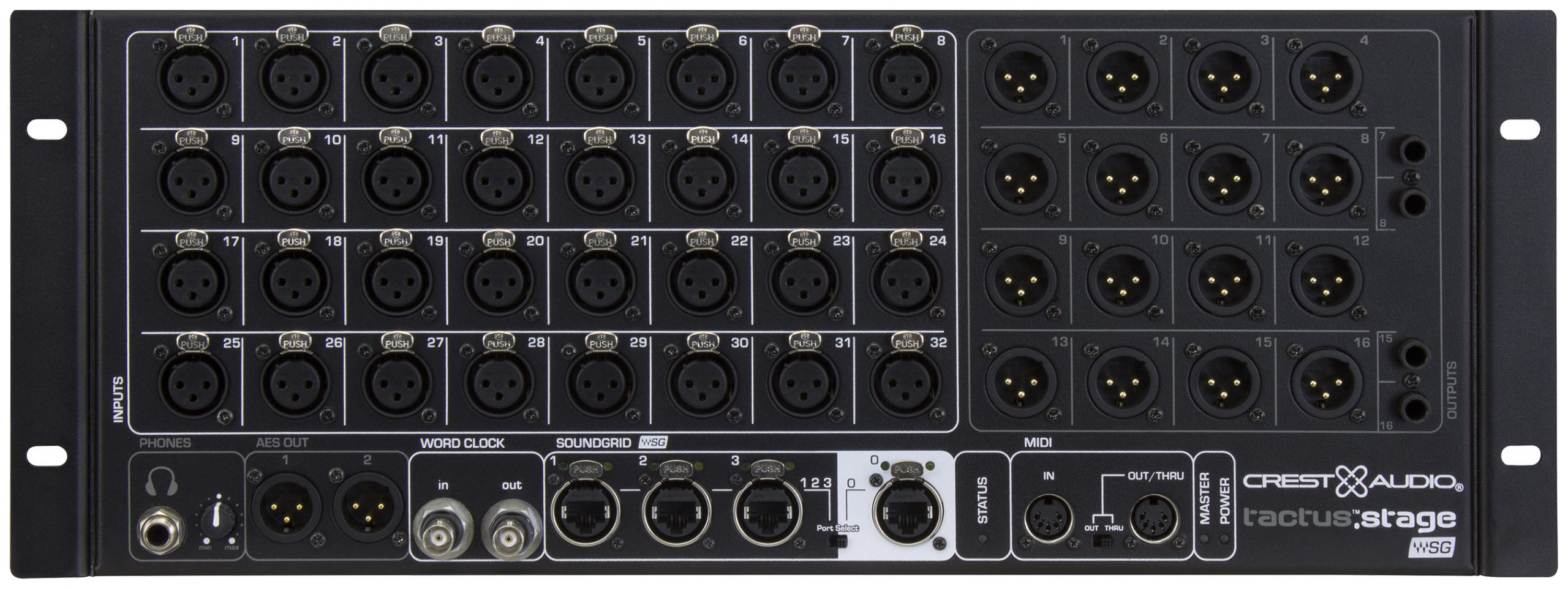

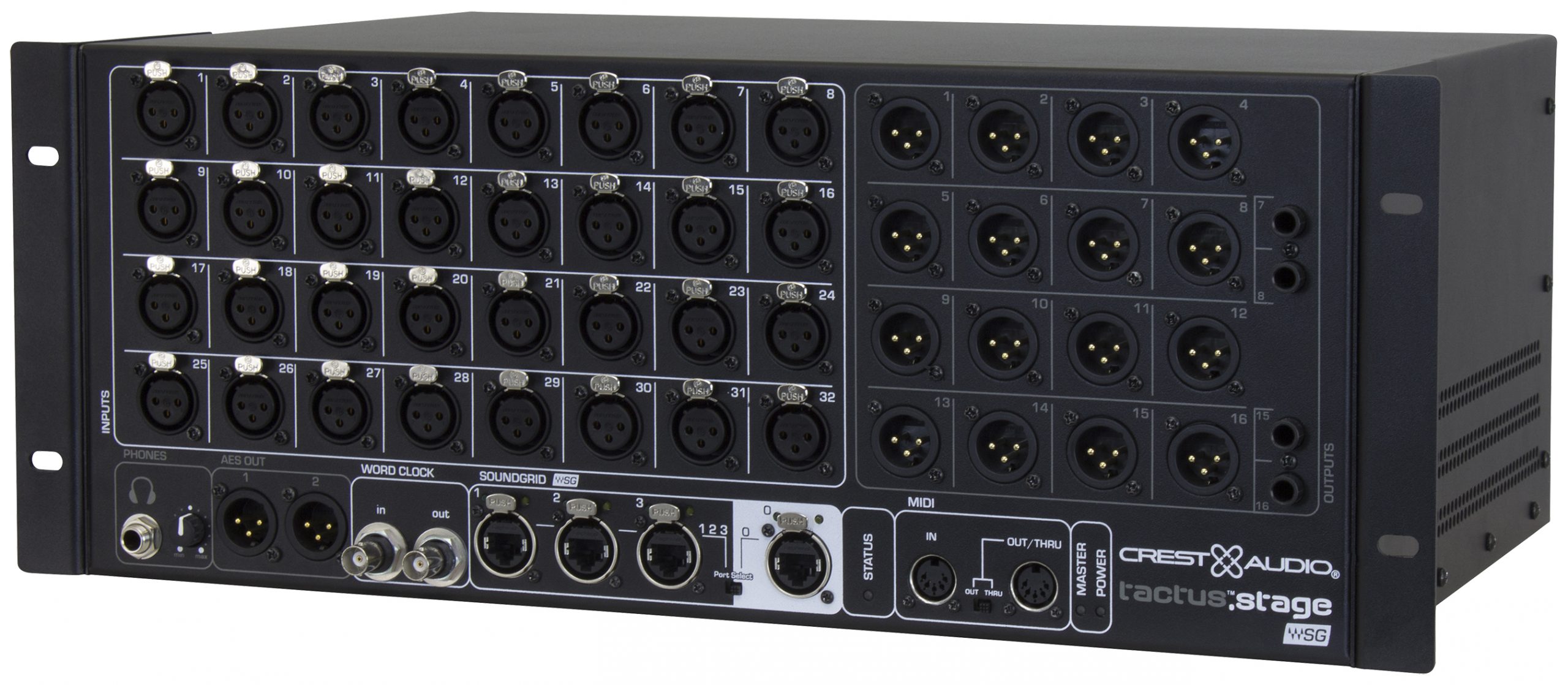

The Tactus™ .Stage serves as a 32 Input x 16 Output analog patch which converts and taxi’s audio over SoundGrid to and from the Tactus. FOH Server. It also offers 2x AES3 Digital outputs, MIDI connections, Word clock BNC connections, a Headphone TRS Input jack and a 3-port Gb built-in switch with an additional direct low latency port.

Multiple Tactus. Stage units can be configured in a single system offering scalable, flexible and switched AB configurations.

Features Tactus .Stage

• 32 XLR microphone/line inputs

• 16 XLR line outputs

• Four additional 1/4″ line outputs

• Mic input accepts a +27 dBu input signal without a pad

• 66 dB adjustment range in 1 dB steps to maximize dynamic range

• Gain changes on zero crossing to minimize adjustment noise

• High performance digitally controlled microphone preamps feature: Low input noise at both high and low gain settings, high slew-rate and very low THD

• 48V phantom power switchable on every mic input

• Internal 4-port gigabit Ethernet switch for easy networking

• Waves SoundGrid Digital audio network protocol

• Balanced output maximum level switchable between +18 dBu and +24 dBU

• Headphone output with level control

• MIDI in and switchable out or thru

• 4U rack mount package

• Universal power supply

Additional information

Channels (Input)

32

Channels (Output)

16

Networked Audio

Yes (SoundGrid)

Network Control

Yes

Input Connectors

32 x XLR

Output Connectors

16 x XLR & 4 x 1/4" & 2 x XLR (AES Out)

Frequency Response

15 Hz – 22 kHz; +0/-0.2 dB @ 48 kHz sample rate 17 Hz – 40 kHz; +0/-.02 dB @ 96 kHz sample rate

Phantom Power

Yes (48V)

Headphones Output

Yes (1 x 1/4" with level control)

MIDI In/Out

Yes

Color

Rack Mount (19")

Yes (4U)

Net Weight

17.6 lbs (8.00 kg)

Product Height

6.67" (177 mm)

Product Width

18.94" (481 mm)

Product Depth

14.53" (369 mm)

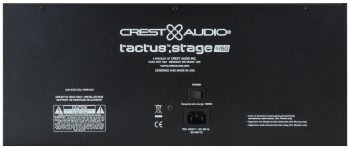

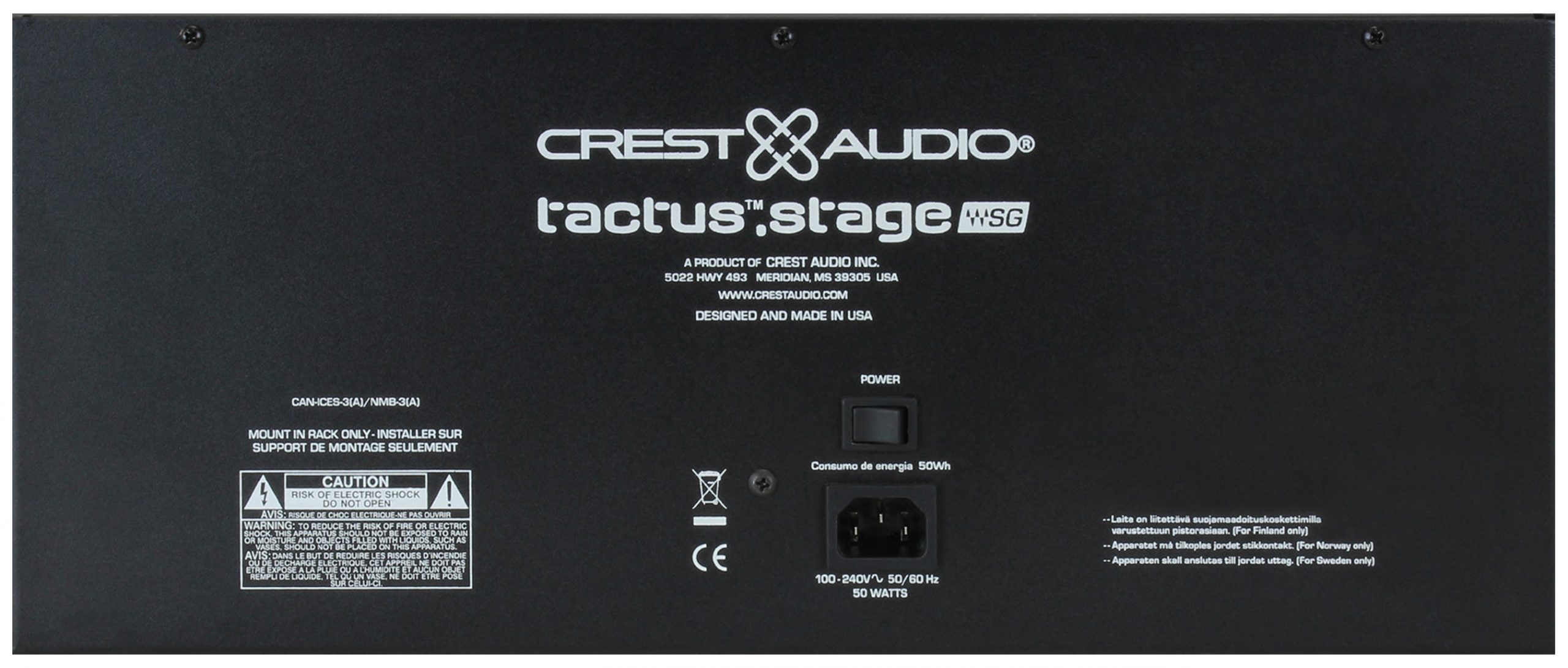

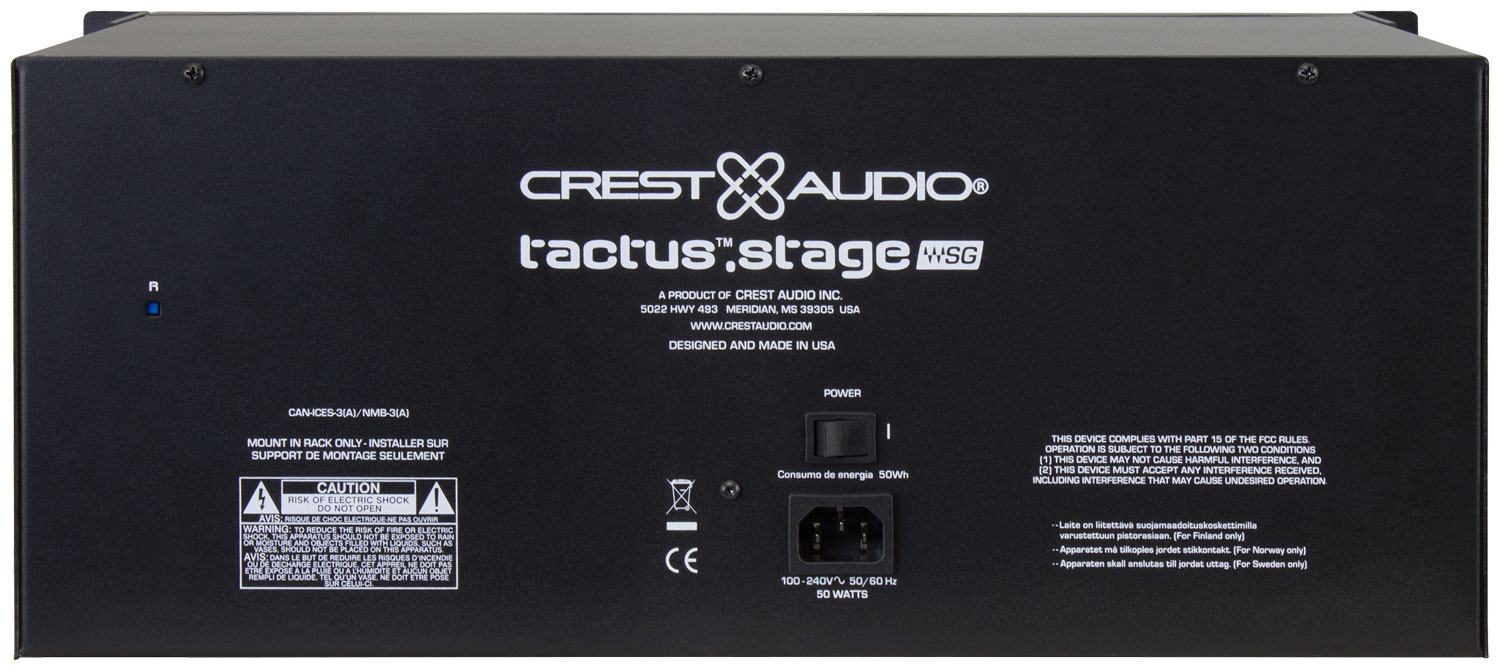

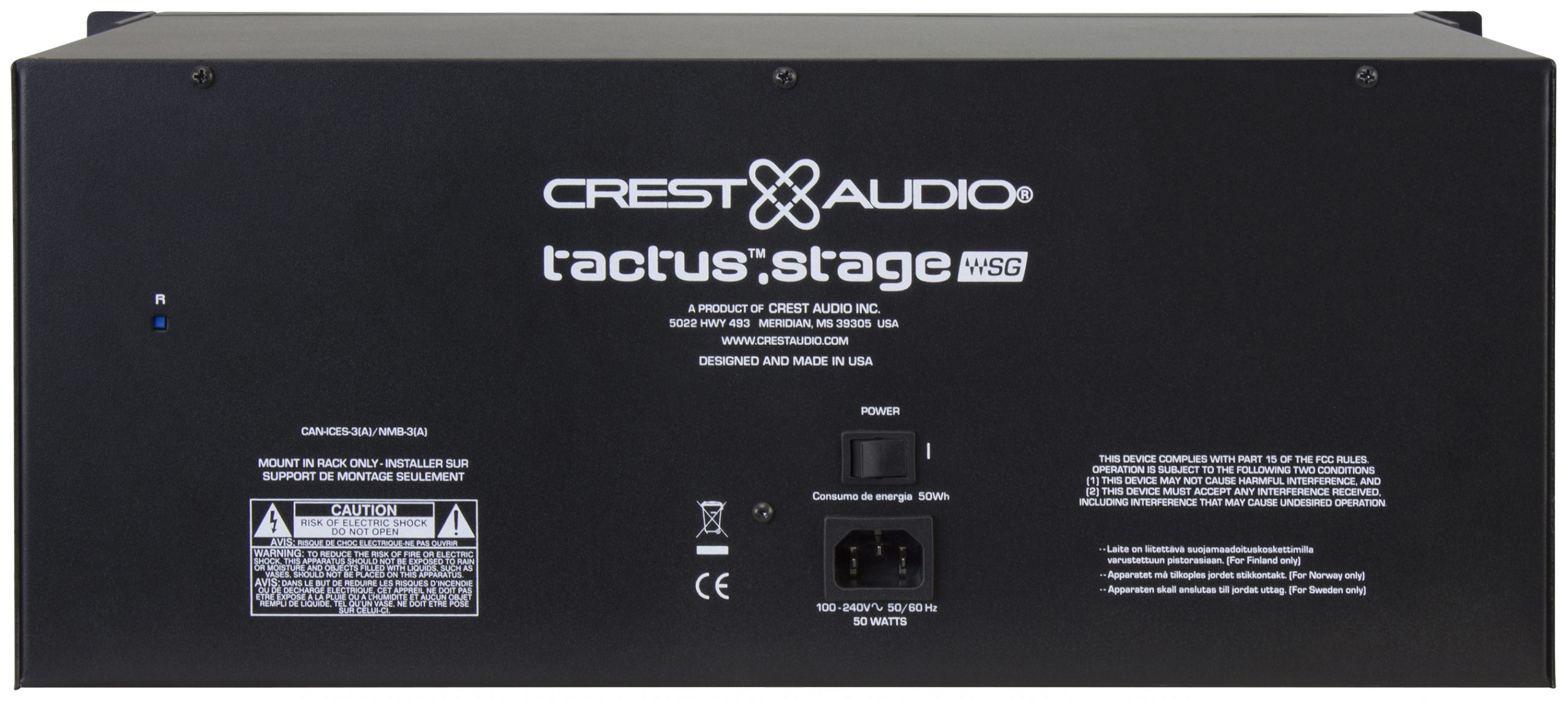

AC Power Input

50/60 Hz, Universal Power Supply 100-240VAC

SKU

03612030
