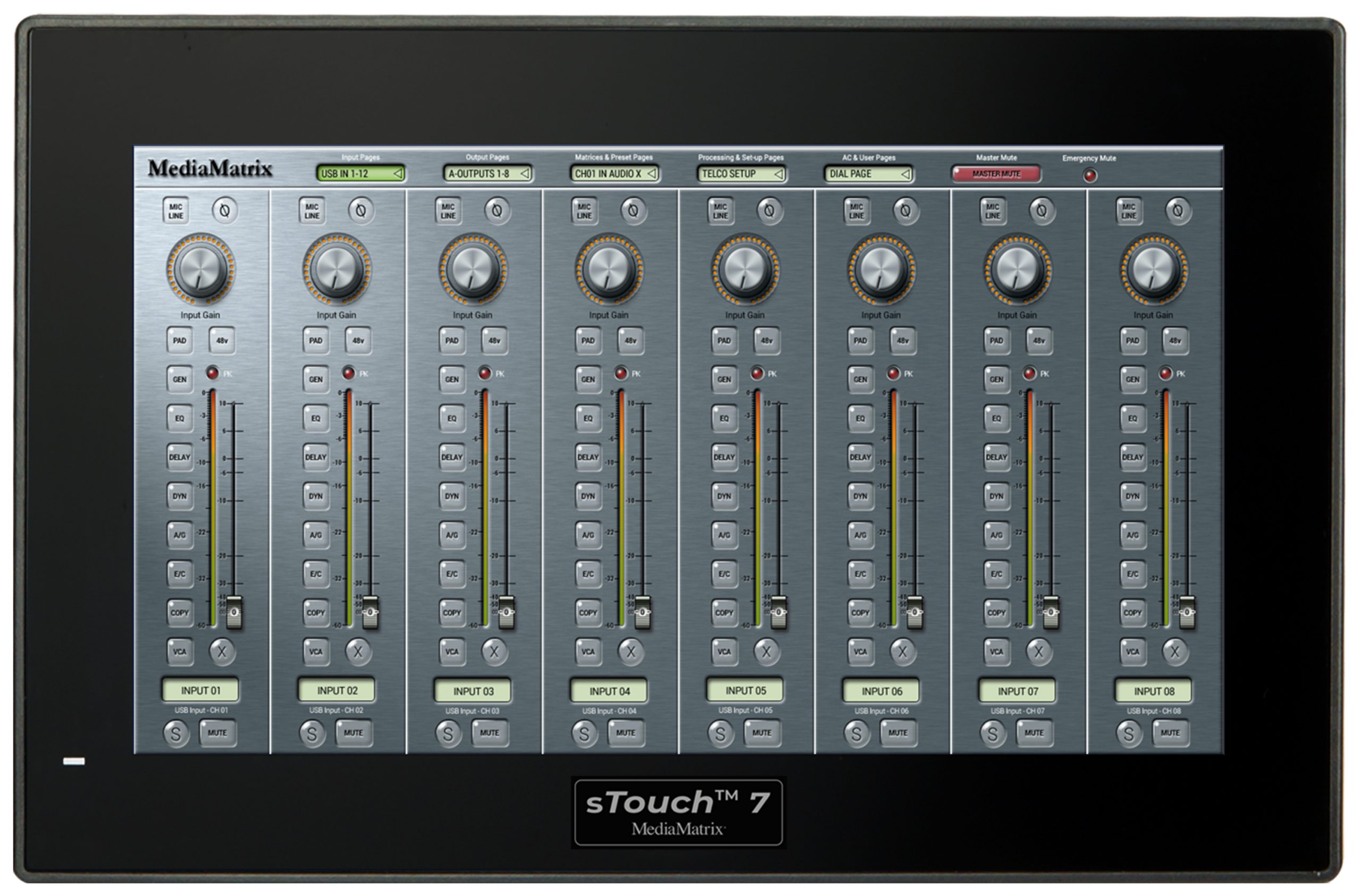

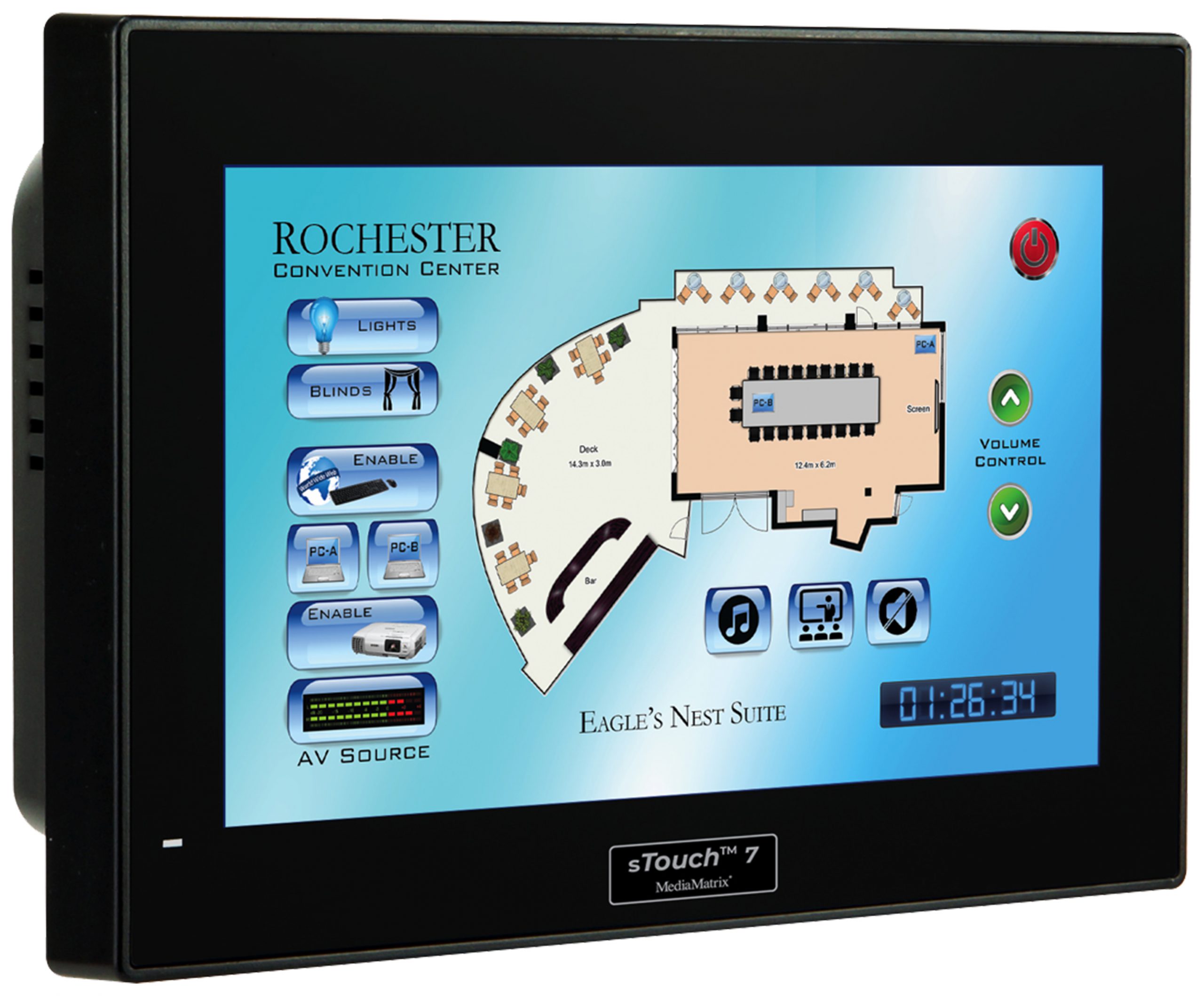

sTouch™ 7

7″ Touch-Screen Control Panel


The MediaMatrix®  sTouch™ 7 is a PoE powered seven (7”) inch diagonal IP 65 compliant intelligent touch screen controller featuring a clean line modern design capable of being mounted in any number of locations providing a rich graphical user interface that can be tailored to support any control and monitoring requirement.

The sTouch 7 offers a functional and responsive Projected Capacitive (PCAP) anti-UV/anti-glare touch control interface with a resolution of 1024 x 600, 16:9 aspect ratio, providing a greater user experience.

Two (2) GbE ports support network connectivity with multiple USB-3 and USB-2 ports allowing for general purpose control and monitoring fully supported by the award winning MediaMatrix nWare and Kiosk2Go audio-video & control software suite.  Onboard M.2 SSD storage of 32 GB plus 4 GB DDR3L RAM is included.

The sTouch 7 is capable of being powered over ethernet from a single cable drop connected to a PoE capable network switch supporting IEEE 802.3at or eqivalent power injector, alternatively from an external universal 12VDC – 3A power supply.

Optionally ordered mounting solution are provided for deskop, wall/surface and 19” equipment cabinet mounting.

Features sTouch 7

• 16:9 ratio 7” diagonal high resolution display

• Projected Capacitive (PCAP) anti-UV/anti-glare

• Silent convection cooled operation

• Apollo lake Intel® Celeron® processor

• WIN 10 IOT Ent robust industrial operating system

• 32 GB of M.2 SSD storage with 4 GB DDR3L RAM

• IP65 compliant front panel

• Universal power supply – 12VDC @ 3A

• PoE IEEE 802.3at onboard support

• Flexible mounting options

Additional information

Network Control


Front Panel Control


Input Connectors

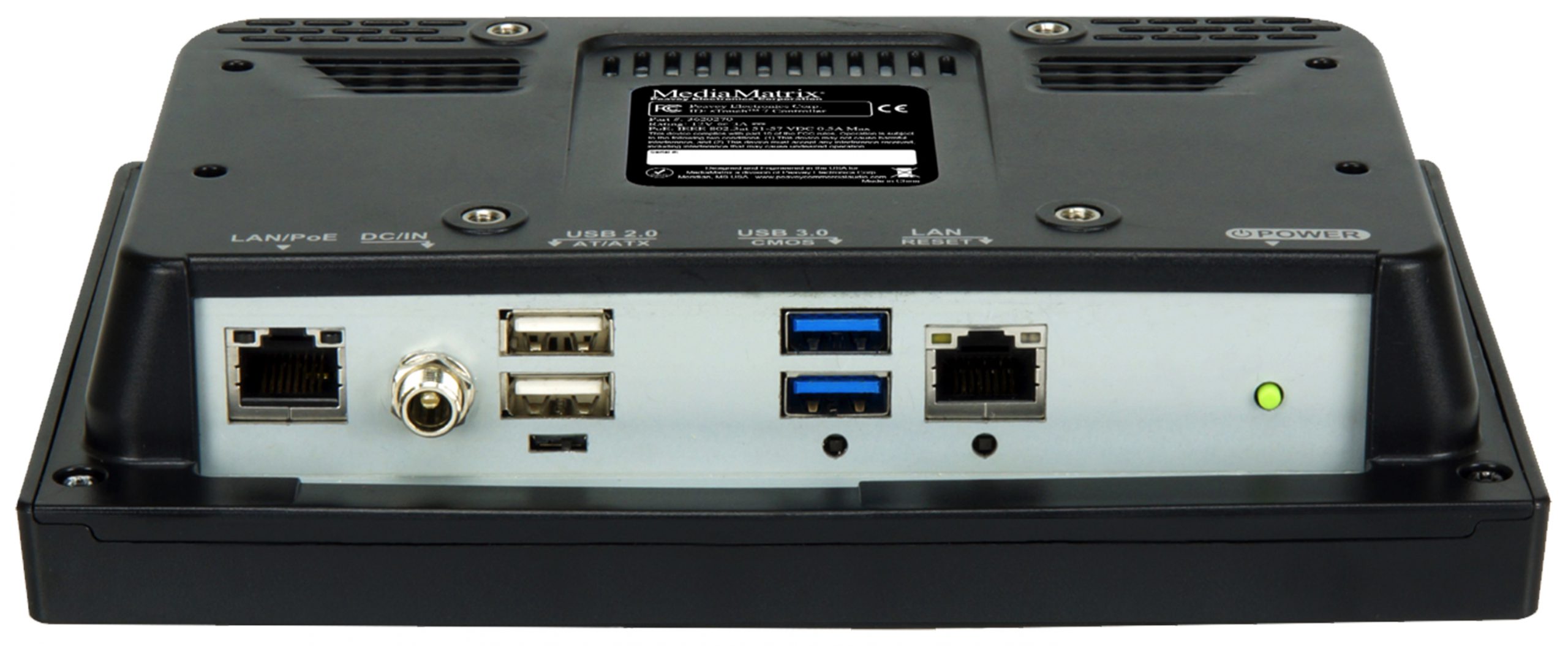

2 x RJ45, 2 x USB 2.0, 2 x USB 3.2

Power over Ethernet (PoE)


Net Weight

1.61 lbs (0.73 kg)

Product Height

5" (127 mm)

Product Width

7.52" (191 mm)

Product Depth

1.69" (43 mm)

AC Power Input

External Power Supply 12VDC @ 3A, Optional 12VDC @ 2.5A
