sTouch™ 55

Wall Mount 5.5″ Touch-Screen Control Panel

Description

The MediaMatrix® sTouch™ 55 is a PoE powered five and a half inch (5.5”) diagonal wall mount touch screen control panel featuring a Quad-Core ARM Cortex-A55 1.8 GHz processor, 2 GB operating memory with 16 GB on-board storage housed in a clean line modern design.  Capable of being mounted in any number of locations the sTouch 55 provides a rich graphical user interface that can be tailored to support any local control requirement.

The sTouch 55 offers a functional and responsive IPS LCD “In-Plane Switching Liquid Crystal Display” touch screen producing superior rich colors across a resolution of 720 (H) x 1280 (V) pixels and brightness of 300 Nits providing greater user experience.

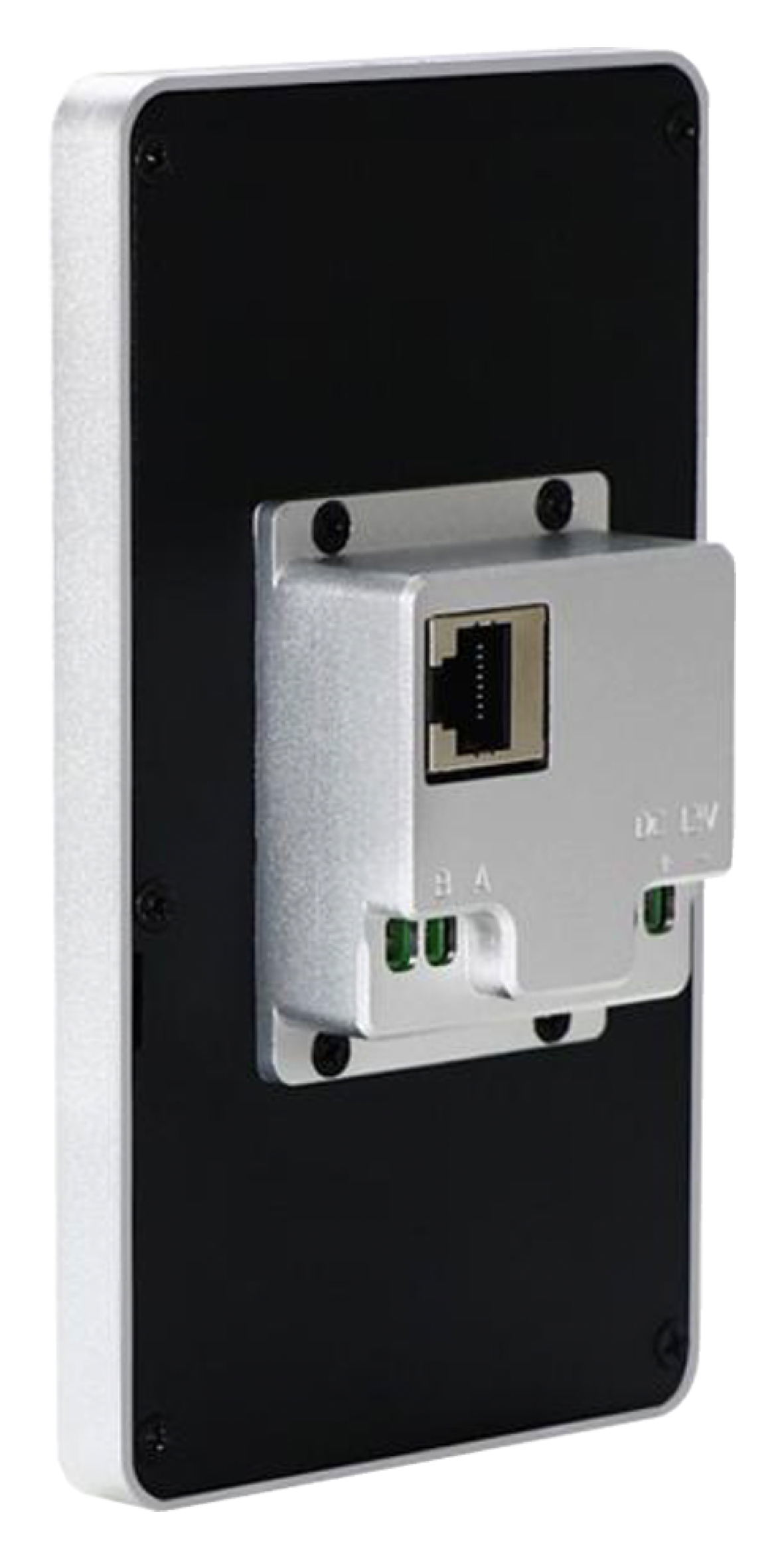

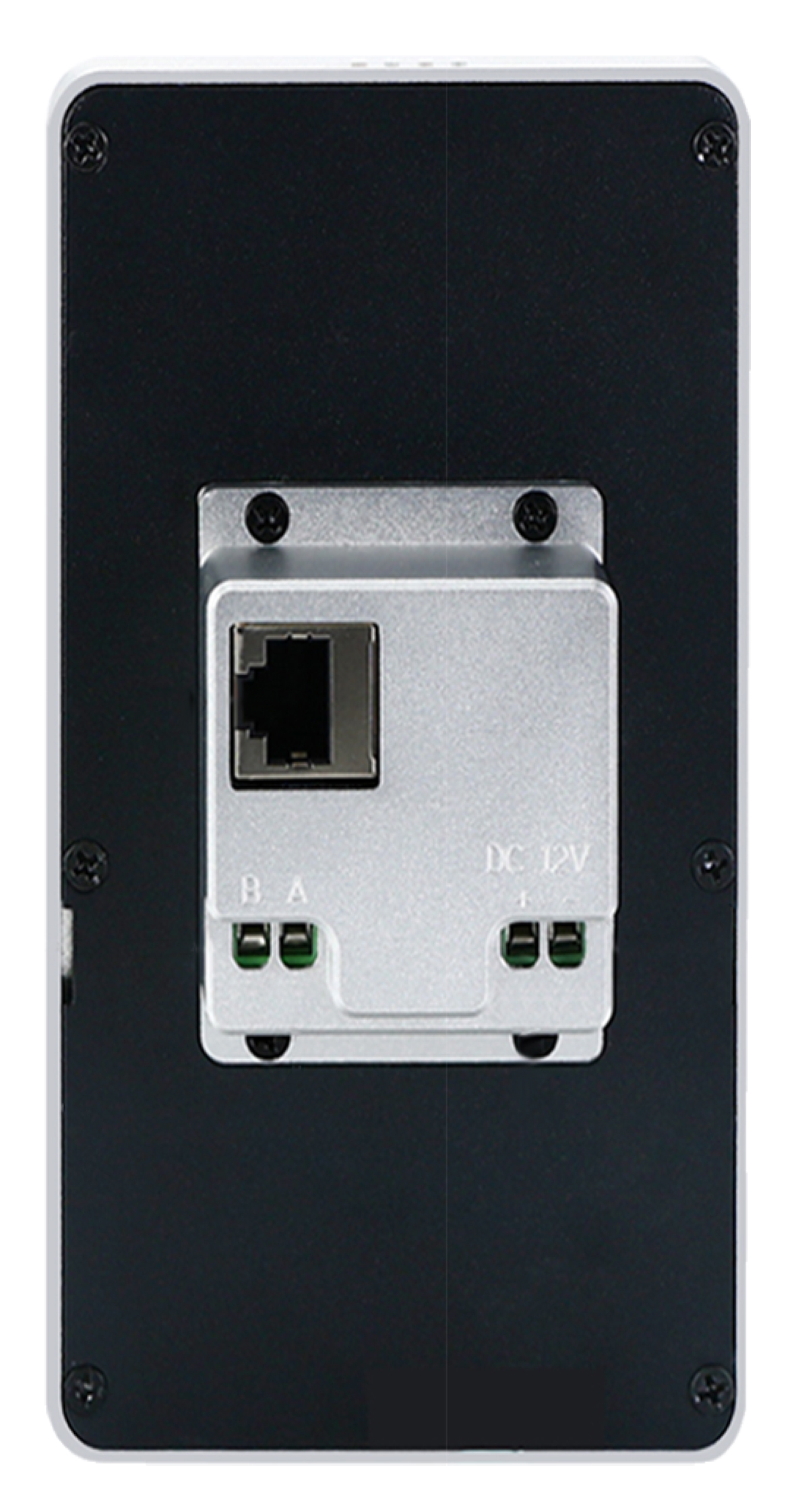

A rear mounted RJ45 Ethernet network port supports network connectivity with built-in future I/O expansion.  Fully supported by the award winning MediaMatrix® nWare™ and Kiosk2Go™ audio-video & control software suite.

The sTouch 55 is capable of being powered over Ethernet from a single cable drop connected to a PoE capable network switch supporting IEEE 802.3af/at or equivalent power injector, alternatively from an external universal 12VDC power supply.

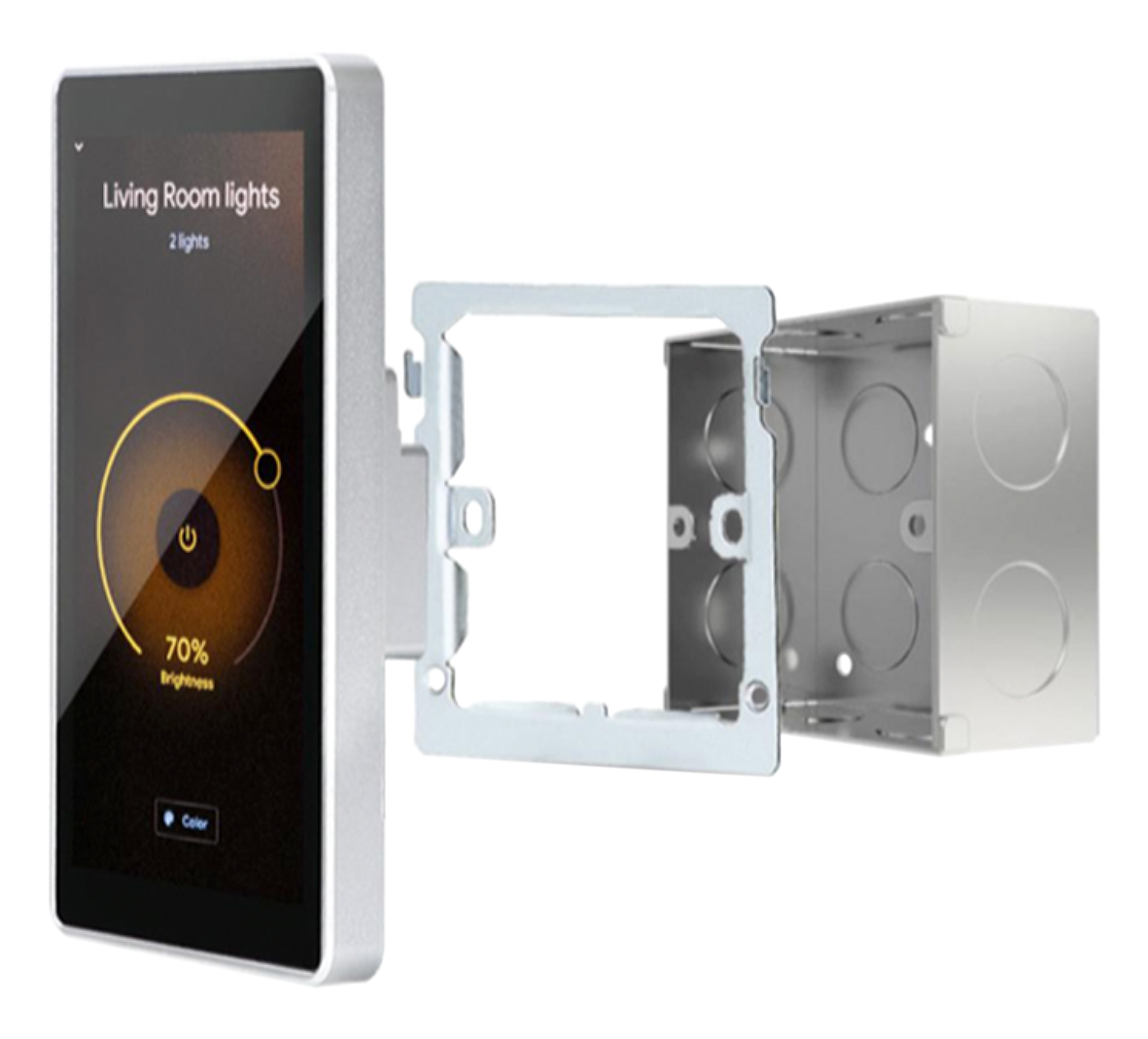

USA NEMA and UK standards single gang backbox supported with optionally selected adapter plate.

Features sTouch 55

• 5.5” diagonal high resolution 720 x 1280 display

• IPS LCD captive touch screen

• RK3566 Quad-Core ARM Cortex-A55,up to 1.8 GHz

• Android 11 operating system / MediaMatrix Kiosk2Go

• 16 GB memory storage with 2 GB DRAM

• RJ45 10/100M Ethernet connectivity

• PoE IEEE 802.3af/at onboard support

• Optionally powered by 12VDC external supply

• Convection air cooled operation

• Optional in-wall installation supported back boxes

Additional information

Network Control

Yes

Front Panel Control

Yes

Input Connectors

1 x RJ45

Power over Ethernet (PoE)

Color

Net Weight

1 lbs (0.45 kg)

Product Height

5.75" (146 mm)

Product Width

3.31" (84 mm)

Product Depth

1.26" (32 mm)

AC Power Input

Optional 12VDC @ 2.5A

SKU

03621000
