SP® 4

2 x 15″ Quasi Three-Way PA Speaker

Description

The SP® 4 quasi-three-way, full-range/bi-ampable Sound Reinforcement system features two premium 15″ BWX Black Widow® 4″ diameter VC woofers with field-replaceable baskets, RX™ 22CT compression driver, and Sound Guard™ III tweeter protection. Engineered for optimal sound reproduction with proven reliability continuing a 30-year legacy, Peavey SP enclosures feature exclusive asymmetrical Quadratic Throat Waveguide™ technology that helps deliver pristine, precise sound. Asymmetrical horn aims the coverage pattern 15° upward and 35° downward – directing sound to your audience, not over their heads..

Features SP 4

• Quasi-three way, full-range / bi-ampable Sound Reinforcement system

• Frequency Response: 69 Hz to 17 kHz

• Two 15″ BWX Black Widow 4″ diameter VC woofers

• RX 22CT compression driver

• Exclusive Quadratic Throat Waveguide technology

• Power Handling: 1000 Watts continuous, 2000 Watts program, 4000 Watts peak

• Sensitivity: 98 dB (1W/1m)

• 133 dB SPL peak

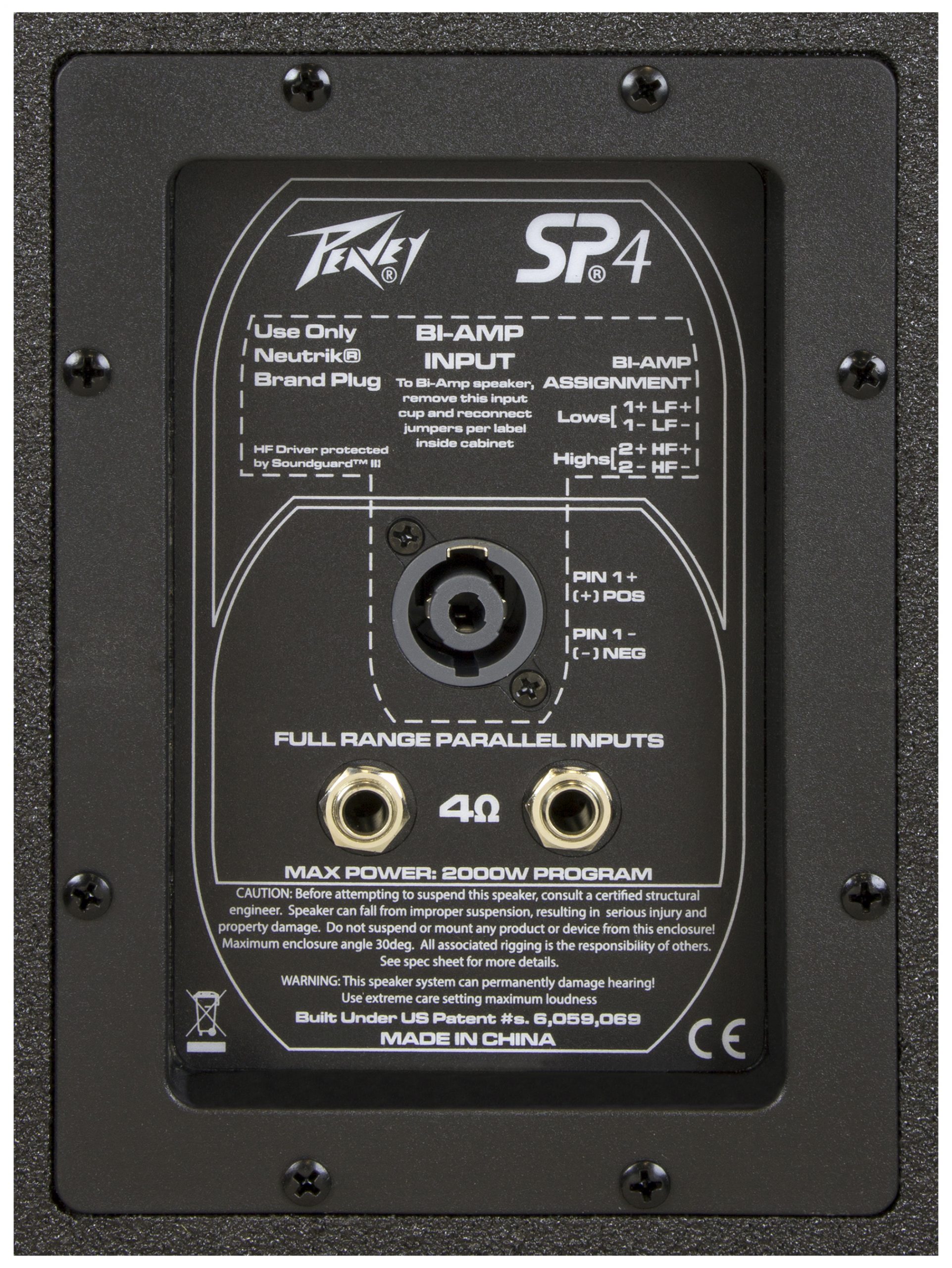

• Full-range inputs include two 1/4″ phone jacks, one four-pin, twist lock connector & one Neutrik® NL4 Speakon® switching jack (bi-amp only)

• Asymmetrical horn aims the sound down 10° (at the audience, not over their heads)

• Full length black powder coated metal grille

• M8 threaded mounting suspension points (3 top, 3 bottom and 2 each side & 1 each top rear and bottom rear)

• Sound Guard III tweeter protection

• Four large rubber feet on bottom for floor use

• Trapezoidal plywood enclosure finished in black textured paint

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

Crossover Modes

Power RMS

1000 W

Power Program

Power Peak

Nominal Impedance

4 Ω

Sensitivity (1W/1m)

98 dB

Maximum SPL

127 dB

Speaker Frequency Response

69 Hz – 17 kHz (±3 dB)

Coverage (H x V)

100° x 50°

HF Driver

RX™ 22CT – 2" Titanium Diaphragma Compression Driver

LF Driver

2 x 15" Black Widow® 1508-8 SPS Woofer, 4" Voice Coil

Input Connectors

1 x 4-pin Twist Lock & 2 x 1/4" Jack

Suspension Points

10 x M8

Enclosure Material

Plywood

Color

Net Weight

87.0 lbs (39.50 kg)

Product Height

43.50" (1105 mm)

Product Width

16.75" (426 mm)

Product Depth

16.85" (428 mm)

SKU

03614810
