SP® 218P

2 x 18″ Powered Subwoofer

Description

The Peavey® SP® 218P Sub is a compact vented powered subwoofer system utilizing two Peavey® exclusive Pro Rider™ 18” woofer, coupled to a power amplifier with 2000 Watts peak available power. The full-length black perforated steel grille provides protection and a professional appearance, along with the steel handles and tilt-back casters for transport.

Internal line-level crossover with two outputs, independently electrically buffered; one full-range thru output, and one high-pass output.

A threaded pole-mount system provides a sturdy and stable platform to mount a suitably equipped speaker system above the sub woofer. Either the SP 2P or the SP 4P two-way powered speakers are an excellent partner for the SP 218P Sub.

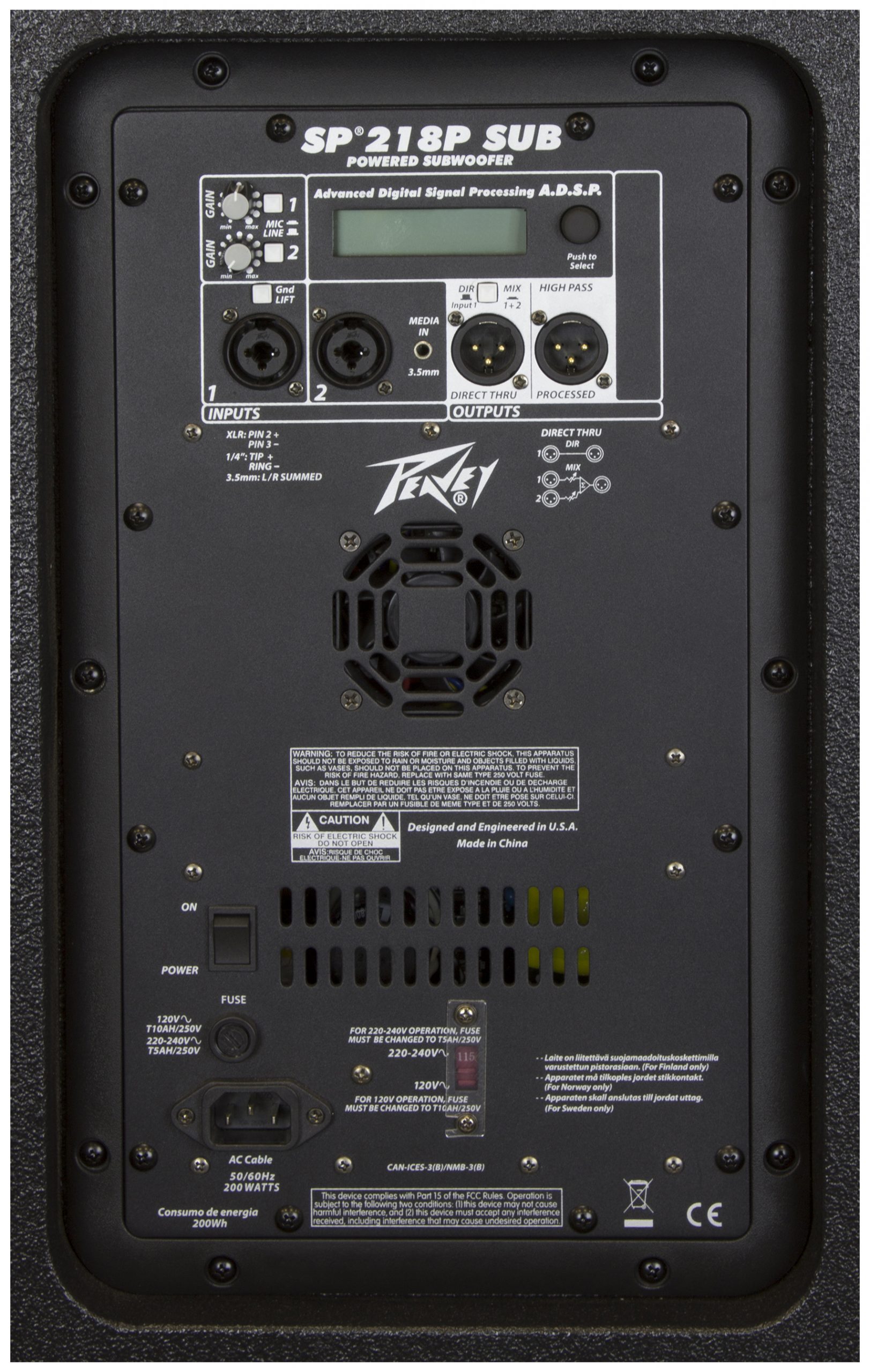

The SP 218P Sub speaker system power amplifier providing the power is a low-distortion ultra-reliable fan-cooled unit providing 2000 Watts peak available power for the system. The power supply for the power amp is a switch mode type for low weight and high efficiency. The amplifier features our DDT™ compression, which virtually eliminates audible power amplifier clipping. Cooling is provided via a low-noise fan, for reliable operation under any conditions. Input is via two channels of a combo female XLR and 1/4” TRS phone jack with balanced input to the preamp/EQ electronics, and a level control.

The internal speaker crossover and processor is implemented with a high-performance DSP system. Using 24-bit ADC’s and DAC’s operating at 96 kHz, the 32-bit fixed point DSP processor provides all the filtering and EQ functions to allow the subwoofer to operate at it’s best. DSP based limiting works in conjunction with the DDT™ compression to improve woofer reliability without intruding into the musical performance. An LCD display shows what functions or presets have been selected, these functions are selected via a push-to-select rotary knob.

Features SP 218P

• Vented bass powered subwoofer enclosure

• 2000 Watts peak, 1000 Watts continuous available woofer power

• Two Peavey exclusive Pro Rider 18” woofer

• Power amp has forced air cooling for maximum reliability

• Powerful yet precise DSP based crossover network and speaker processing

• DSP based limiter for woofer protection

• 24-bit ADC/DAC, 96 kHz sample rate, 32-bit fixed point DSP

• Two channels with XLR Combo inputs

• Two XLR outputs, one high-pass and one full range thru

• Full coverage heavy-duty perforated steel grille

• Two metal handles, one on each side, and top rear corner handle

• Threaded pole mount

• Speaker pole included

• Tilt-back casters for ease of transport

Additional information

Speaker Configuration

Subwoofer

Speaker Type

Powered

DSP On-Board

Yes

Power Program

Power Peak

Sensitivity (1W/1m)

97 dB

Maximum SPL

131 dB

Speaker Frequency Response

40 Hz – 140 Hz

LF Driver

2 x 18" Pro Rider® 1808-4 ALCP Woofer, 4" Voice Coil

Input Connectors

2 x XLR-1/4" Combo & 1 x 3.5 mm Jack

Output Connectors

2 x XLR

Pole Mount

Yes (M20)

Enclosure Material

Plywood

Color

Net Weight

151.0 lbs (68.60 kg)

Product Height

47.27" (1201 mm)

Product Width

21.13" (537 mm)

Product Depth

26.81" (681 mm)

AC Power Input

Dual Voltage – 120 or 220-240VAC 50/60 Hz

SKU

03614930
