SP® 15M

15″ Two-Way Floor Monitor

Downloads

Specifications

Product Images

Certificates

Description

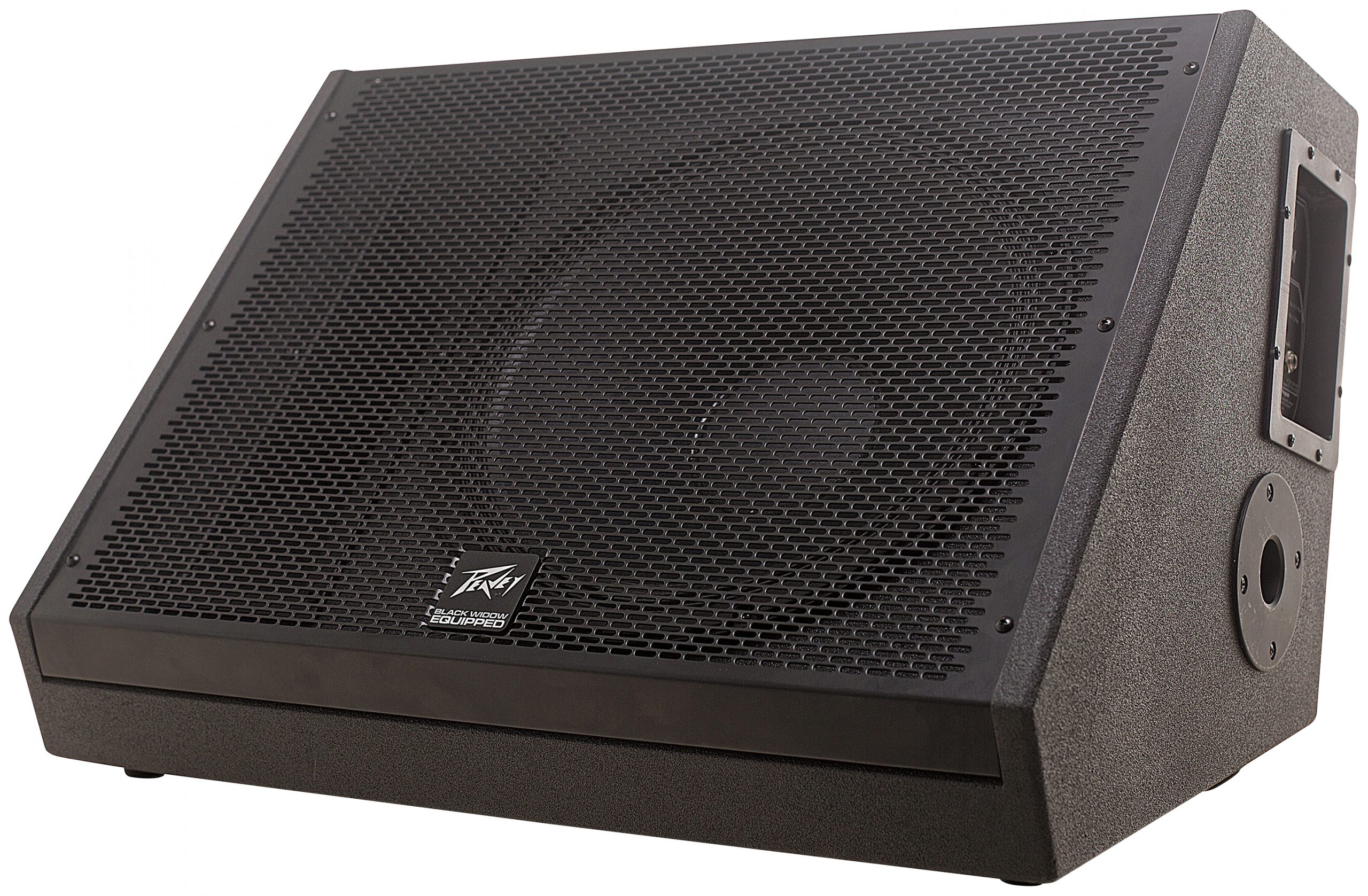

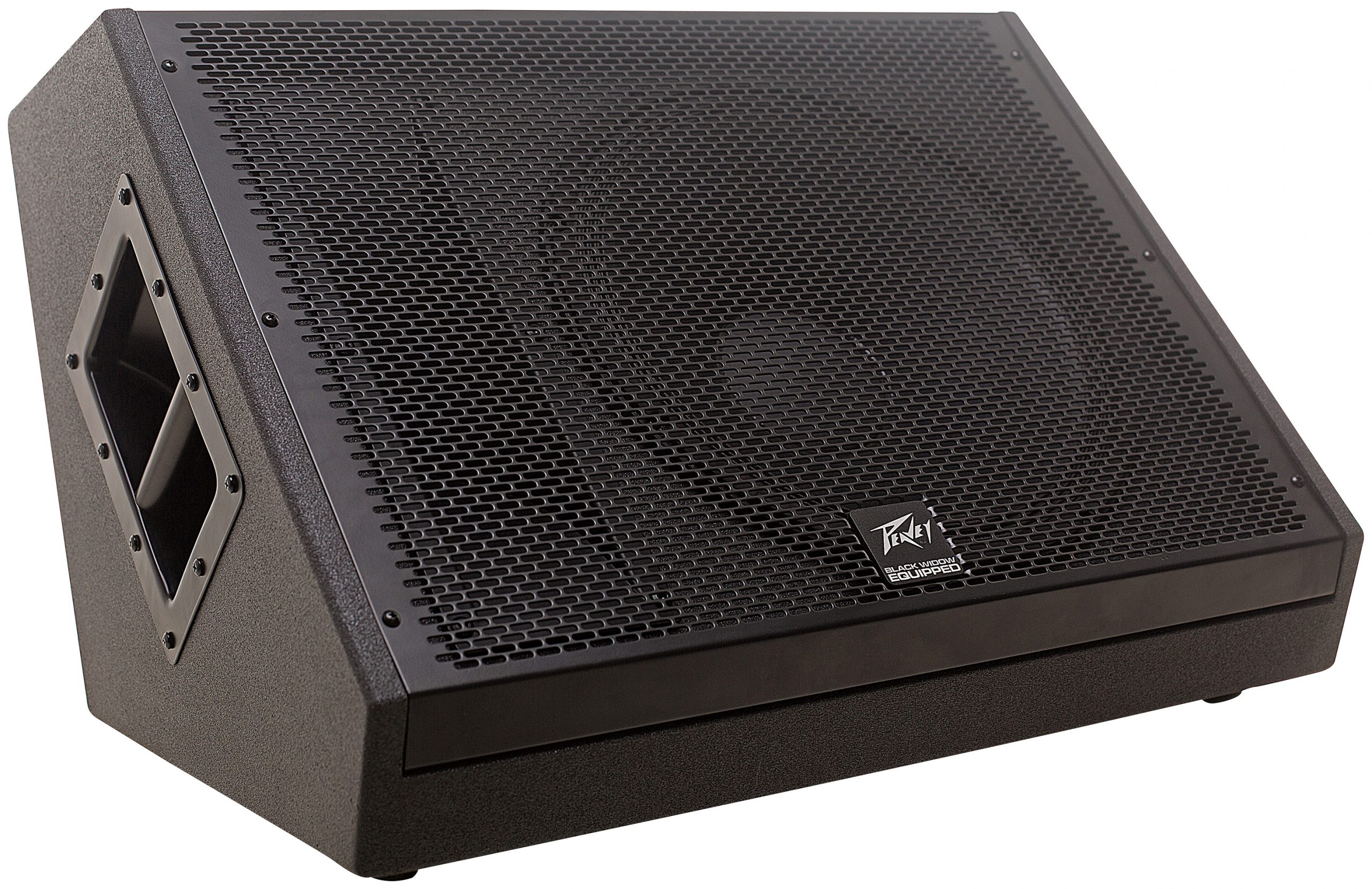

The SP® 15M two-way, full-range floor monitor features a 15″ BWX Black Widow® 4″ diameter VC woofer with a field-replaceable basket, RX™ 22CT compression driver with titanium diaphragm, and Sound Guard™ III tweeter protection. The unit includes dual-baffle angles of 45° or 30° and two 1/4″ full-range phone-jack inputs in parallel with a four-pin twist lock connector.

Features SP 15M

• Two-way, full-range floor monitor

• Power Handling: 500 Watts continuous, 1000 Watts program, 2000 Watts peak

• One 15″ BWX Black Widow woofer, 4″ VC, field-replaceable basket

• RX 22CT compression driver with titanium diaphragm

• Sound Guard III tweeter protection

• Dual-baffle angles of 45° or 30°

• Two 1/4″ full range phone-jack inputs in parallel with a four-pin twist lock connector

• Metal stand mount adapter incorporated and four rubber feet on side for angle use

• Plywood enclosure finished in black textured paint

• Full length black powder coated metal grille

Additional information

Speaker Configuration

Floor Monitor 2-way

Speaker Type

Non-Powered

Power RMS

500 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

99 dB

Maximum SPL

132 dB

Speaker Frequency Response

90 Hz – 14 kHz (±3 dB)

Coverage (H x V)

40° x 90°

HF Driver

RX™ 22CT – 2" Titanium Diaphragma Compression Driver

LF Driver

15" Black Widow® 1508-8 HE SF Woofer, 4" Voice Coil

Input Connectors

1 x 4-pin Twist Lock & 2 x 1/4" Jack

Pole Mount

Yes

Enclosure Material

Plywood

Color

Net Weight

56.0 lbs (25.40 kg)

Product Height

17.13" (435 mm)

Product Width

26.13" (664 mm)

Product Depth

19.88" (505 mm)

SKU

03614970
