SP® 118 Sub

18″ Subwoofer

Downloads

Description

The SP® 118 subwoofer features an 18″ 1808-8 AL CP Pro Rider® woofer. Power handling is 1200 Watts program and 2400 Watts peak, with low frequency response down to 41 Hz. Inputs include one four-pin twist lock connector and two 1/4″ phone jacks. Threaded pole for mount is included.

Features SP 118 Sub

• One 18″ 1808-8 AL CP Pro Rider woofer

• Power Handling: 600 Watts continuous, 1200 Watts program, 2400 Watts peak

• Low frequency response down to 41 Hz

• Inputs include one four-pin twist lock connector and two 1/4″ phone jacks

• Pole mount plate built-in, threaded for positive pole support

• Full-length, wrap-around perforated steel grille

• Threaded speaker pole included

• Multiple fly points

• Four large rubber feet on bottom for floor use

Additional information

Speaker Configuration

Subwoofer

Speaker Type

Non-Powered

Power RMS

600 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

98 dB

Maximum SPL

132 dB

Speaker Frequency Response

51 Hz – 320 Hz (±3 dB)

LF Driver

18" Pro Rider® 1808-8 ALCP Woofer, 4" Voice Coil

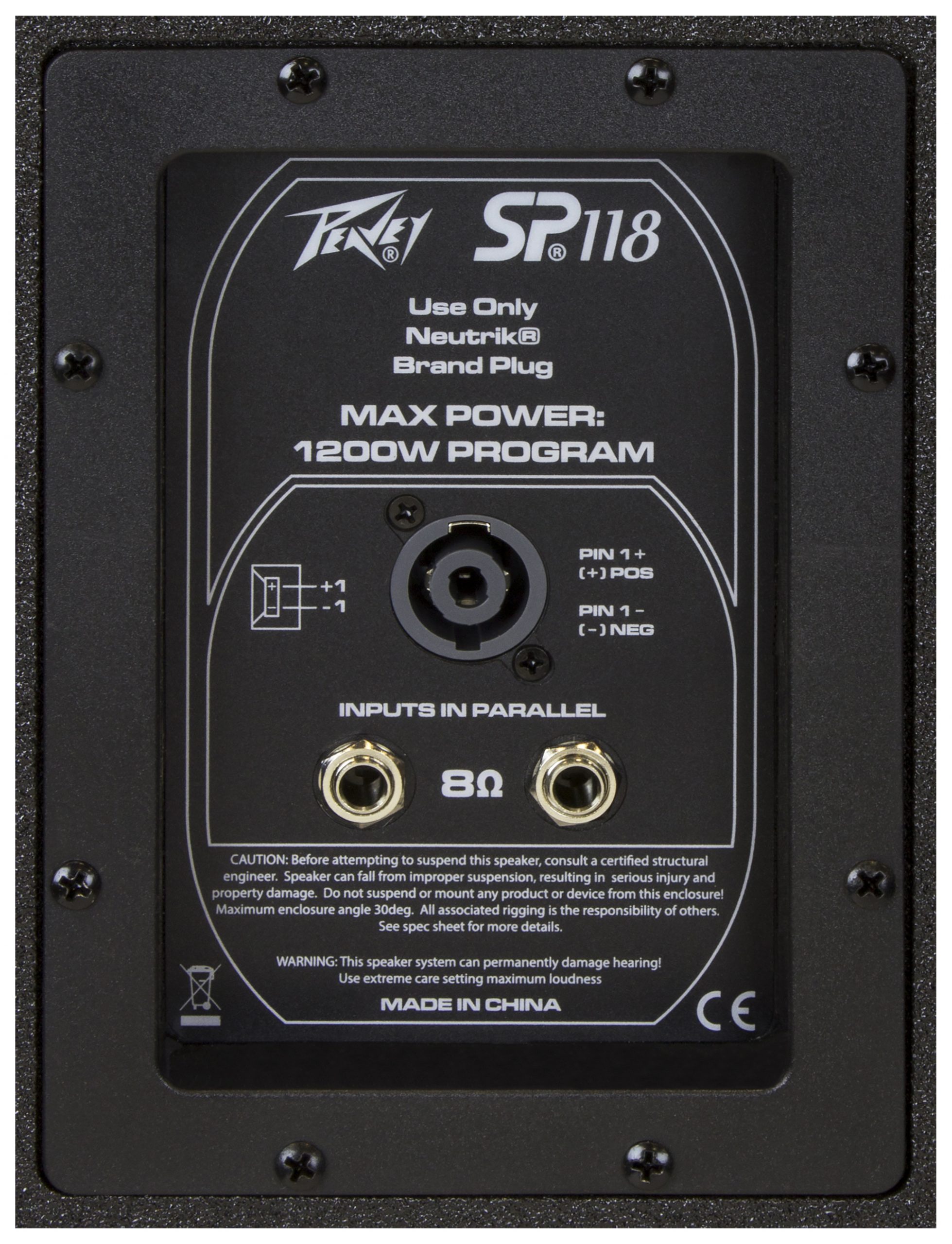

Input Connectors

1 x 4-pin Twist Lock & 2 x 1/4" Jack

Suspension Points

12 x M8

Pole Mount

Yes (M20)

Enclosure Material

Plywood

Color

Net Weight

77.0 lbs (35.00 kg)

Product Height

26.38" (670 mm)

Product Width

22.84" (580 mm)

Product Depth

24.50" (622 mm)

SKU

03614820
