RMP-2™ Remote Mic Station

Remote Mic Station for ControlMatrix II

Description

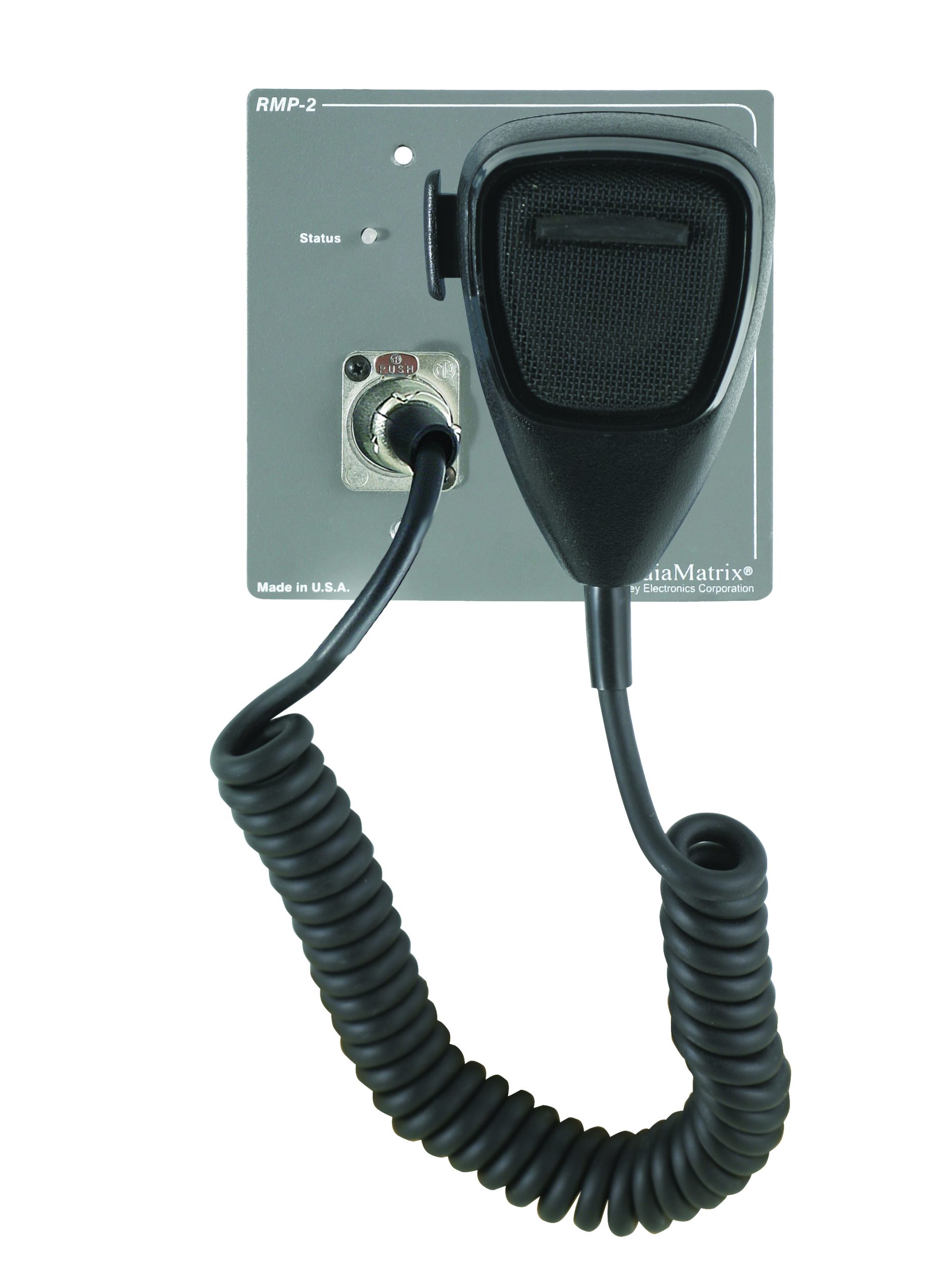

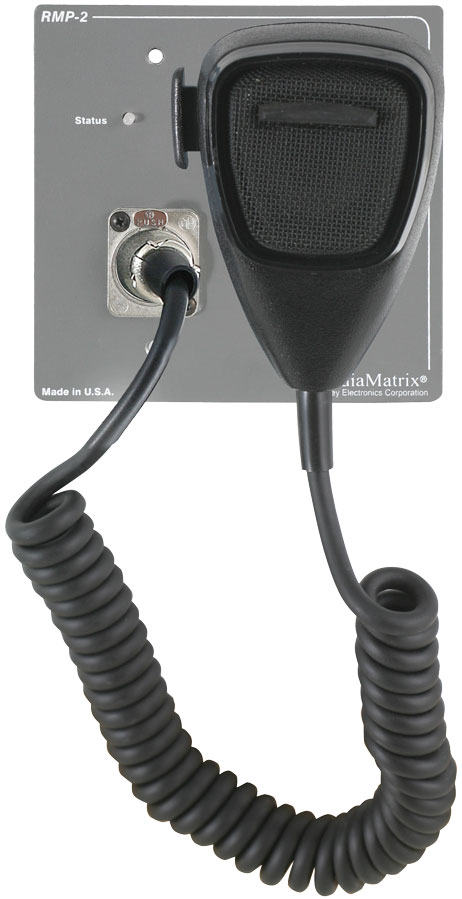

The RMP-2™ is a flush-mounted remote mic station that extends paging functions to a second location in areas such as airport jetways and train station loading platforms. The RMP-2 is powered by a “host” ControlMatrix® digital paging station (such as the CM2-10d) via a single Ethernet type connection. The RMP-2 allows the remote user to page to the current zone selected at its host paging station. A status LED on the front panel alerts the user when the host paging station is in use. The RMP-2 is housed in a durable 16-gauge steel front panel which mounts in a standard two-gang NEMA enclosure.

Features RMP-2

• Easily configurable for administrative or user paging with ControlMatrix II software

• Operates via standard Ethernet topology with direct connection to the host paging station

• Compact design with a durable powder-coated steel faceplate, mounts in a standard two-gang NEMA enclosure

• Front panel status LED provides confirmation that the station is available for paging

• Handheld dynamic microphone with PTT switch

• Integrated microphone clip

• Simple, intuitive operation

Additional information

Channels (Input)

1

Frequency Response

20 Hz – 20 kHz; ±3 dB

Output Connectors

RJ45

SKU

03608486
