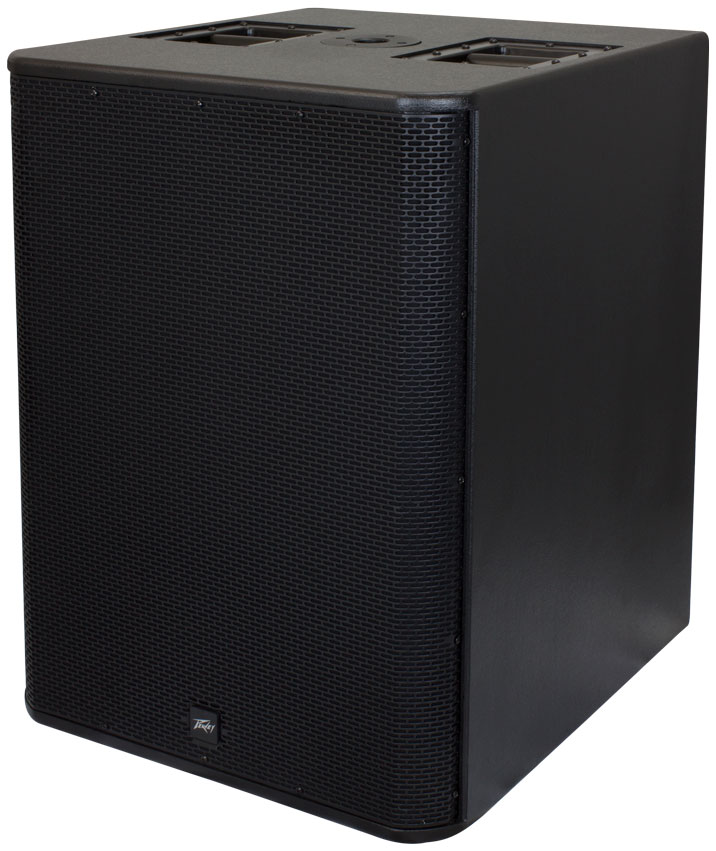

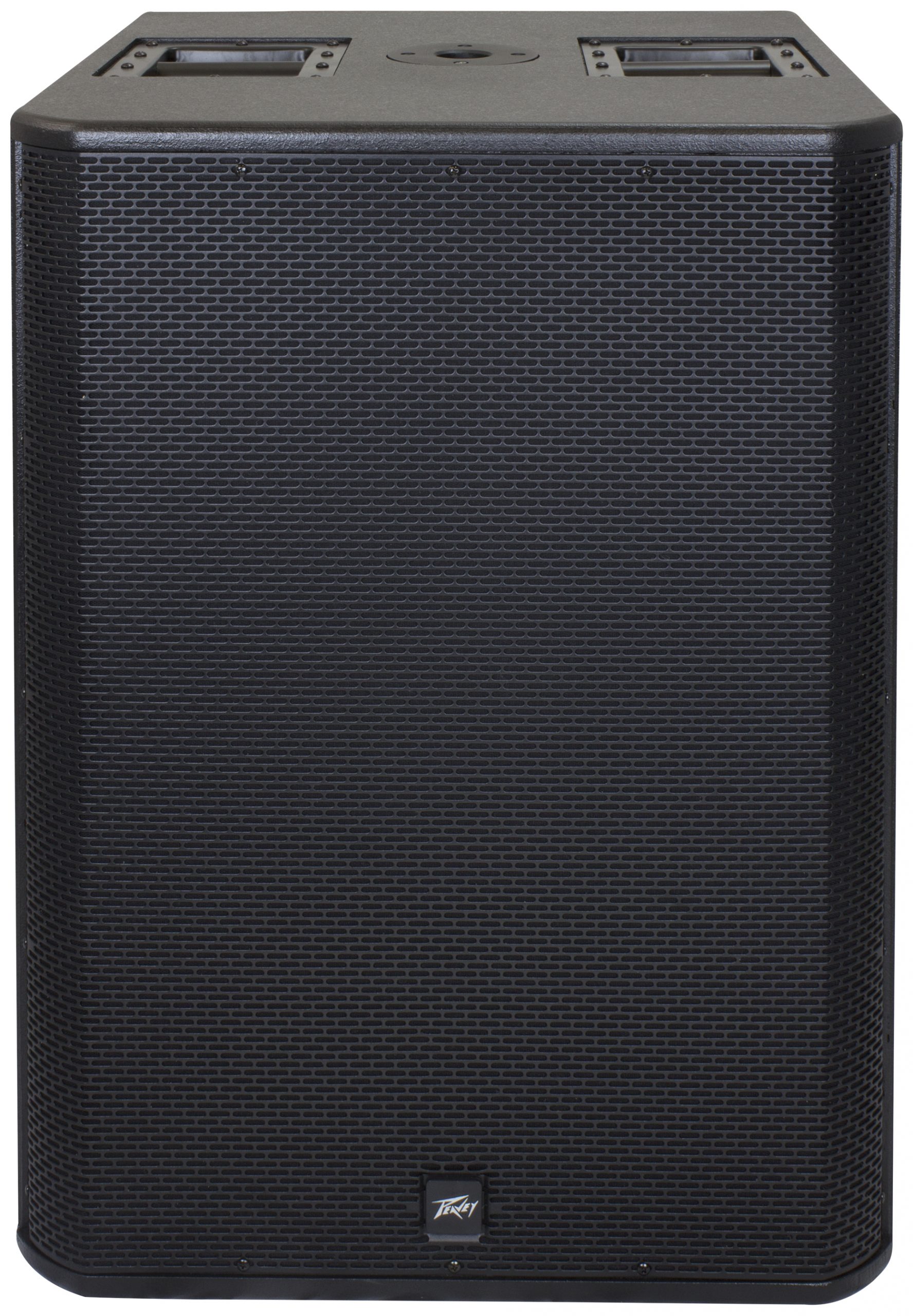

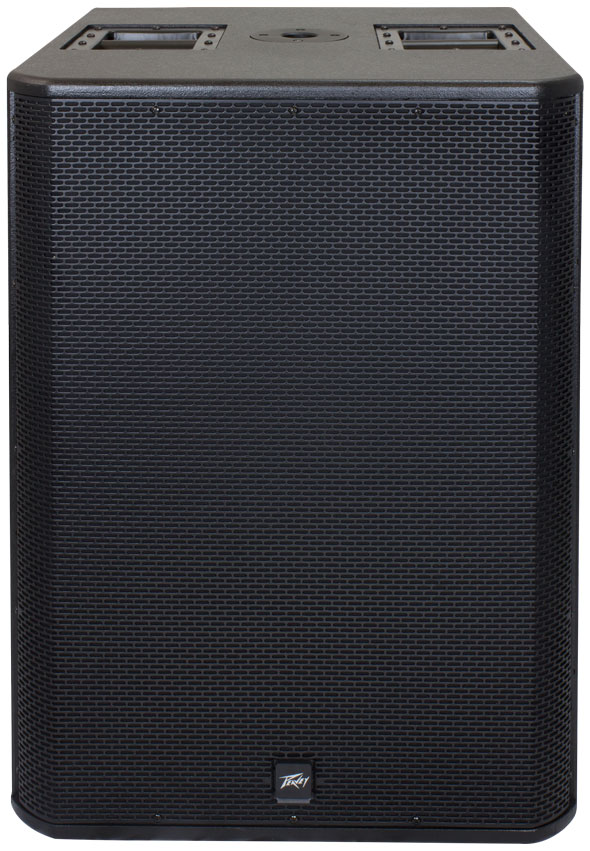

RBN™ 118 Sub

18″ Powered Subwoofer

Description

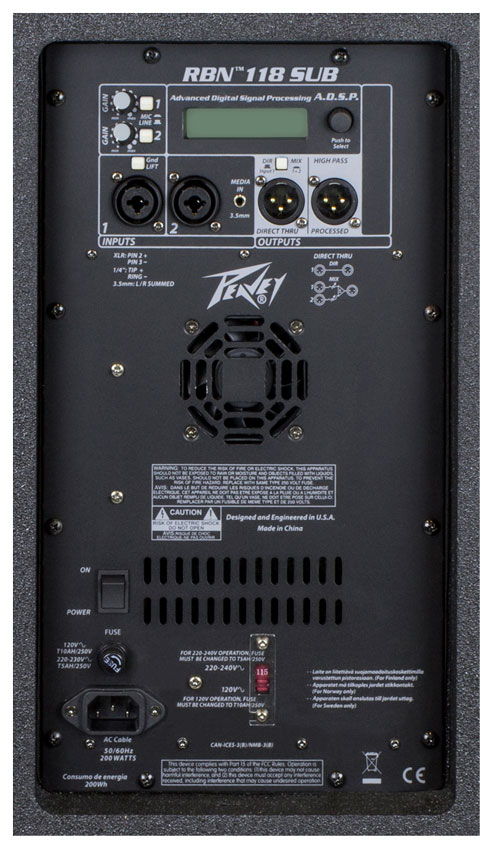

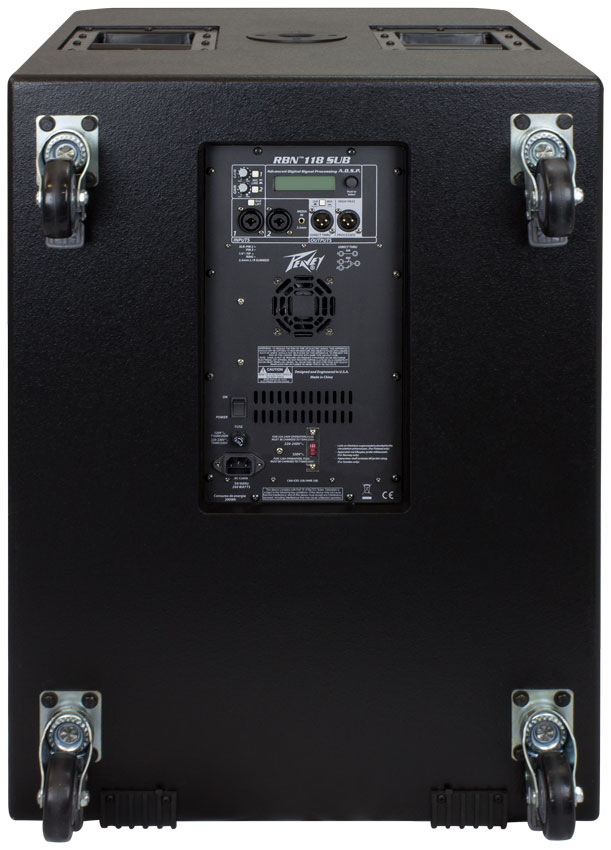

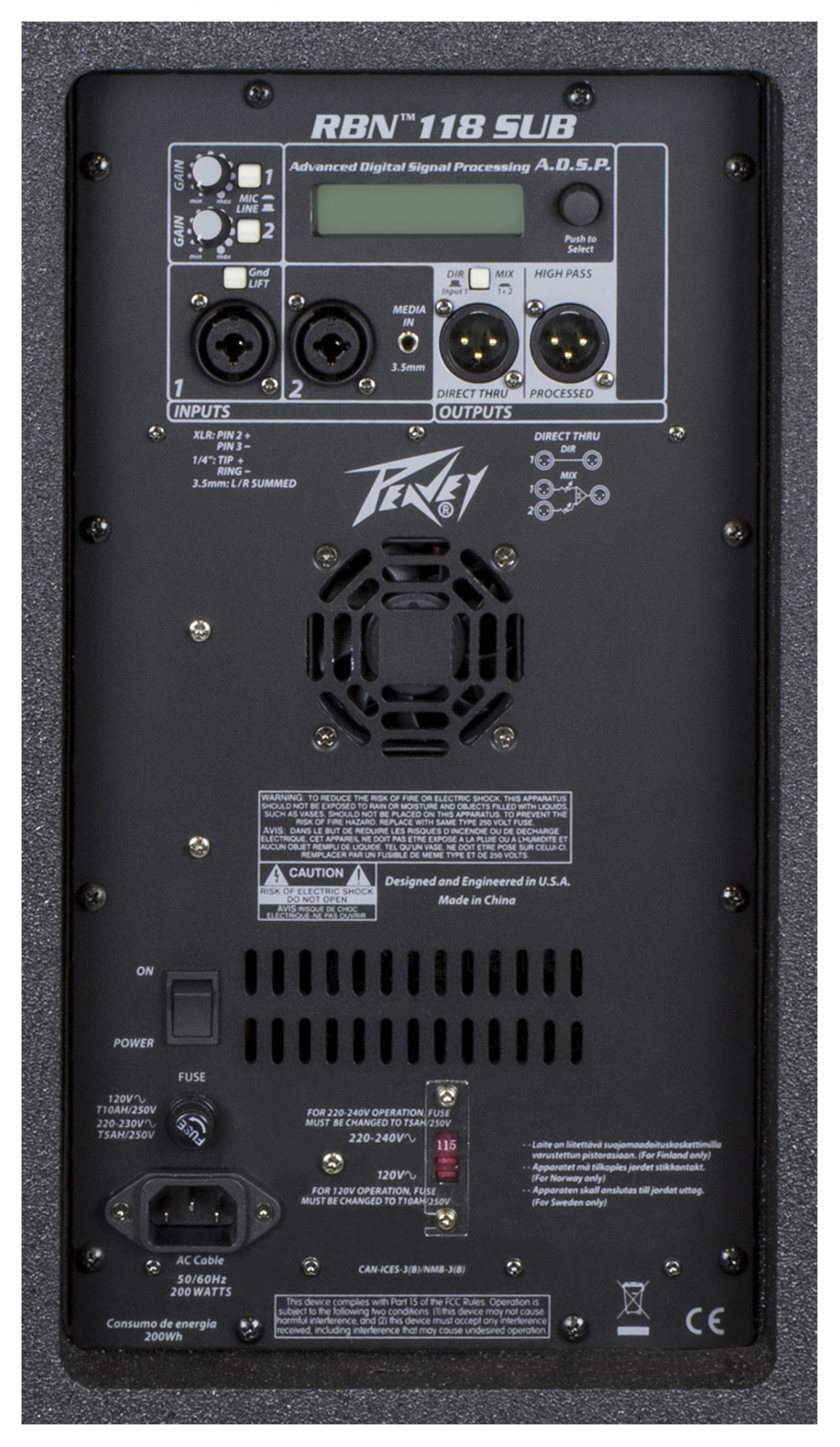

Our RBN™ subs are designed to deliver FULL power and deep sound where it matters most. Constructed of heavily braced 18 mm birch plywood, the RBN sub is perfect for installations or portable applications where audio quality, reliability and efficiency are of the utmost importance. Incorporating the latest digital signal processing technology, the RBN subwoofers feature two XLR-1/4″ combination inputs, a 3.5 mm input, and a mic/line level selection. Each input features digital infrasonic high-pass filters, a 9-band graphic EQ and delay. Each output features a sophisticated compressor/limiter and fourth order highpass/low-pass filters for crossover output. Internal temperature monitors combined with a variable speed cooling fan, plus level and clip indication, ensure reliable performance even during the most demanding conditions. Internal presets built into the DSP allow users to quickly select the speaker’s application via the LCD on the rear of the enclosure.

Features RBN 118 Sub

• Single Low Rider™ 18” woofer with 4“ voice coil

• Power Handling: 1000 Watts continuous / 2000 Watts total peak power

• Sensitivity: 96 dB (1W/1m)

• 128 db SPL Peak

• Two channel XLR-1/4″ combination inputs

• 24-bit ADC/DAC, 96 kHz sample rate, 32-bit fixed point DSP

• Delay 0-150 ms

• Assignable crossover

• Power amp VU meter with LCD display

• Internal temperature monitor with variable speed cooling fan

• Auto power off

• Mic/line level selection

• Setup Wizard for easy configuration

• Digital compression/limiting; 9-band EQ

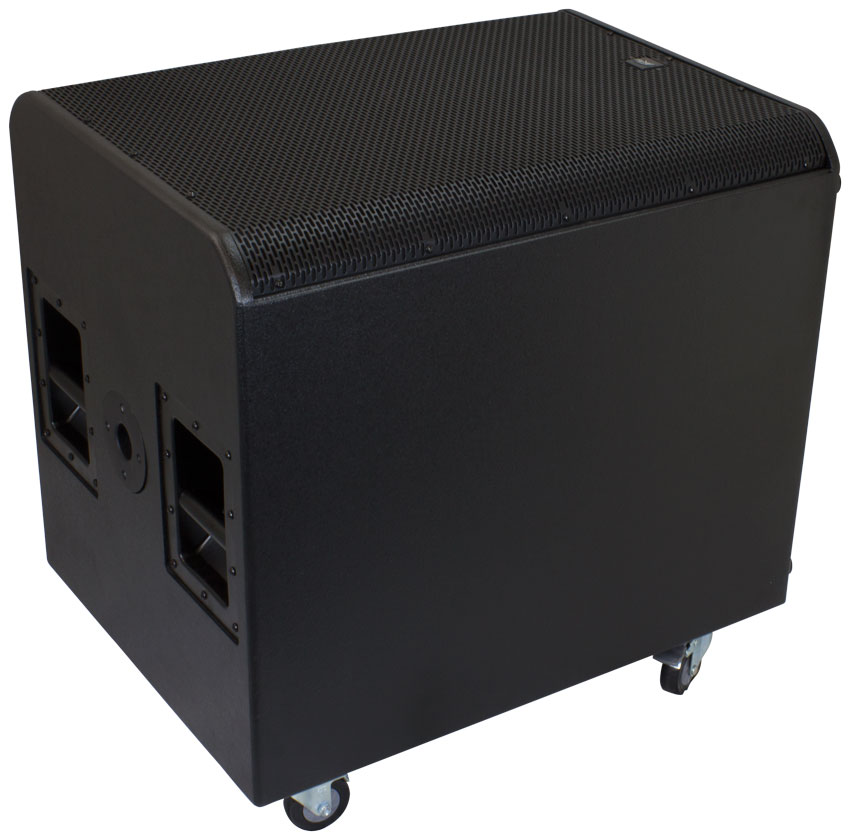

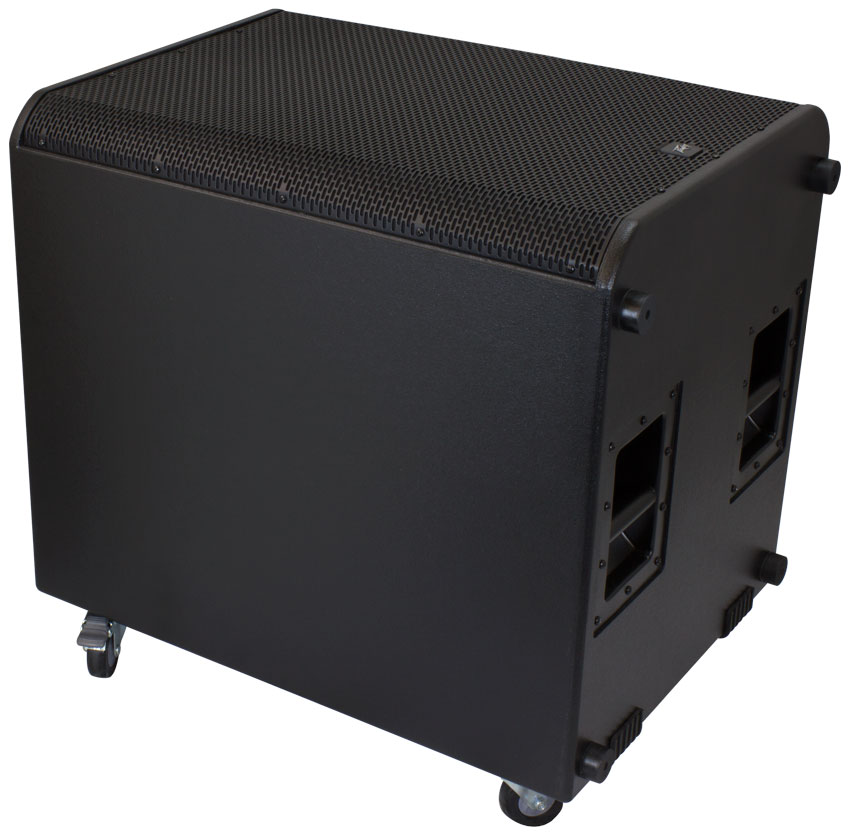

• Heavy-duty locking casters

• Bass enhancement

• Ultra-braced cabinet assembly

• Power amp forced air cooling for maximum reliability

• Direct-Thru output with combine function

• Ground lift

• Processed Thru output enables DSP to be used with external speaker cabinet

• On-board advanced digital signal processing

• Heavy-duty steel perforated grille

• Threaded pole mount (M20)

• Speaker pole included

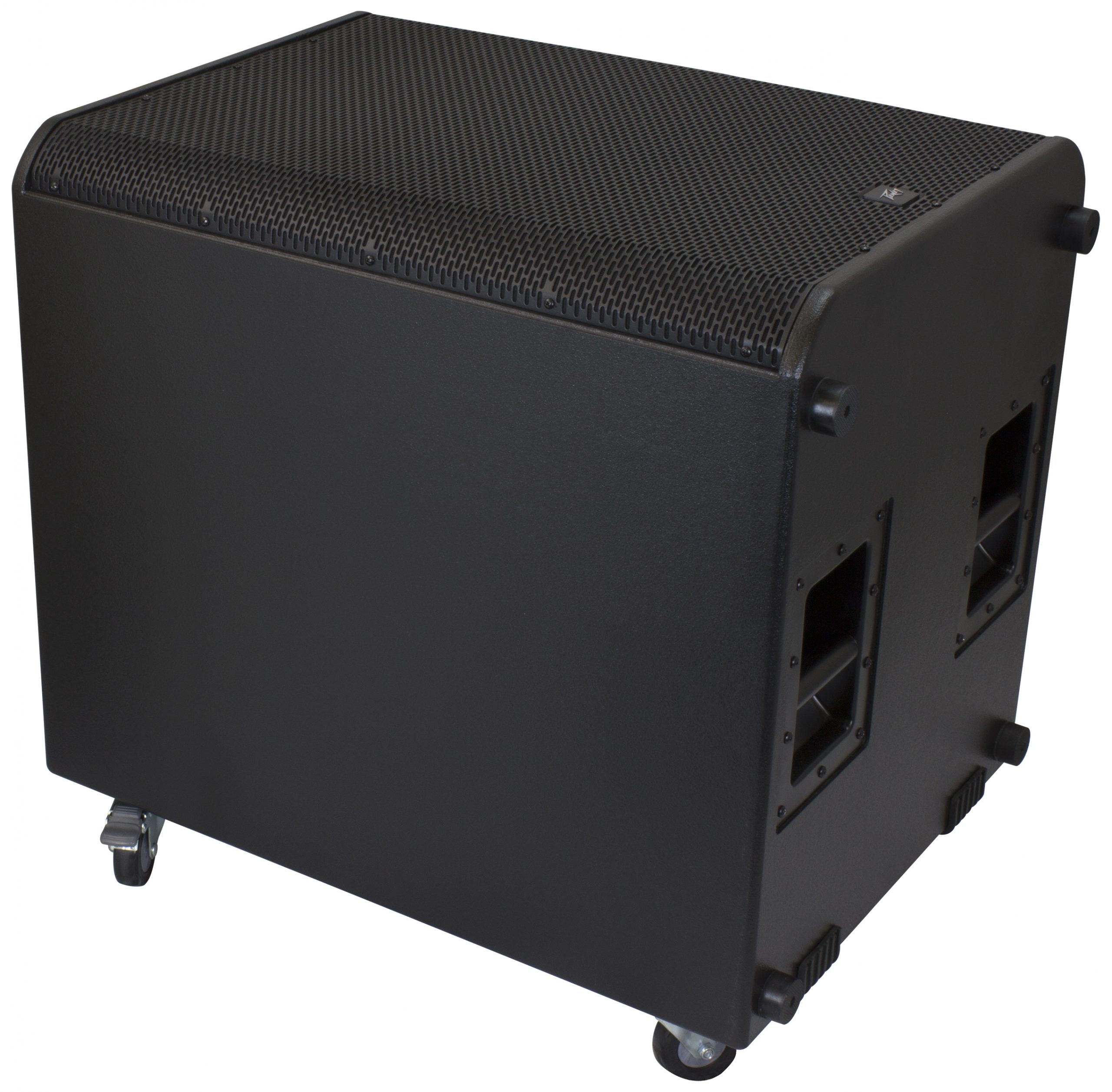

• Large heavy-duty locking casters with damped bearings included

Additional information

Speaker Configuration

Subwoofer

Speaker Type

Powered

DSP On-Board

Yes

Power Program

Power Peak

Sensitivity (1W/1m)

96 dB

Maximum SPL

128 dB

Speaker Frequency Response

38 Hz – 112 Hz

LF Driver

18" Low Rider® Woofer, 4" Voice Coil

Input Connectors

2 x XLR-1/4" Combo & 1 x 3.5 mm Jack

Output Connectors

2 x XLR

Pole Mount

Yes (M20)

Enclosure Material

Baltic Birch Plywood

Color

Net Weight

106.0 lbs (48.30 kg)

Product Height

29.84" (758 mm)

Product Width

22.07" (561 mm)

Product Depth

24.75" (629 mm)

AC Power Input

Dual Voltage – 120 or 220-240VAC 50/60 Hz

SKU

03614700
