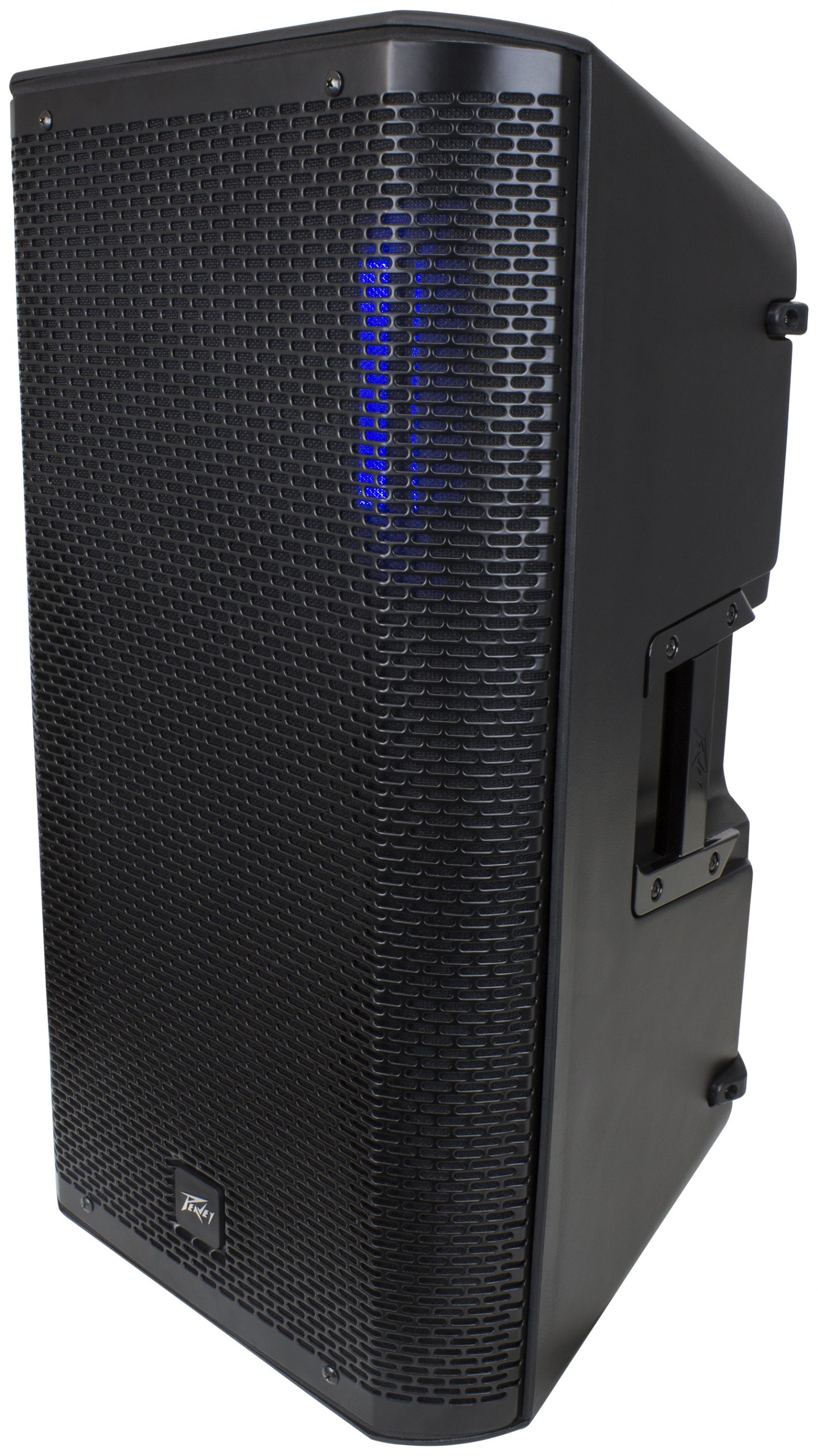

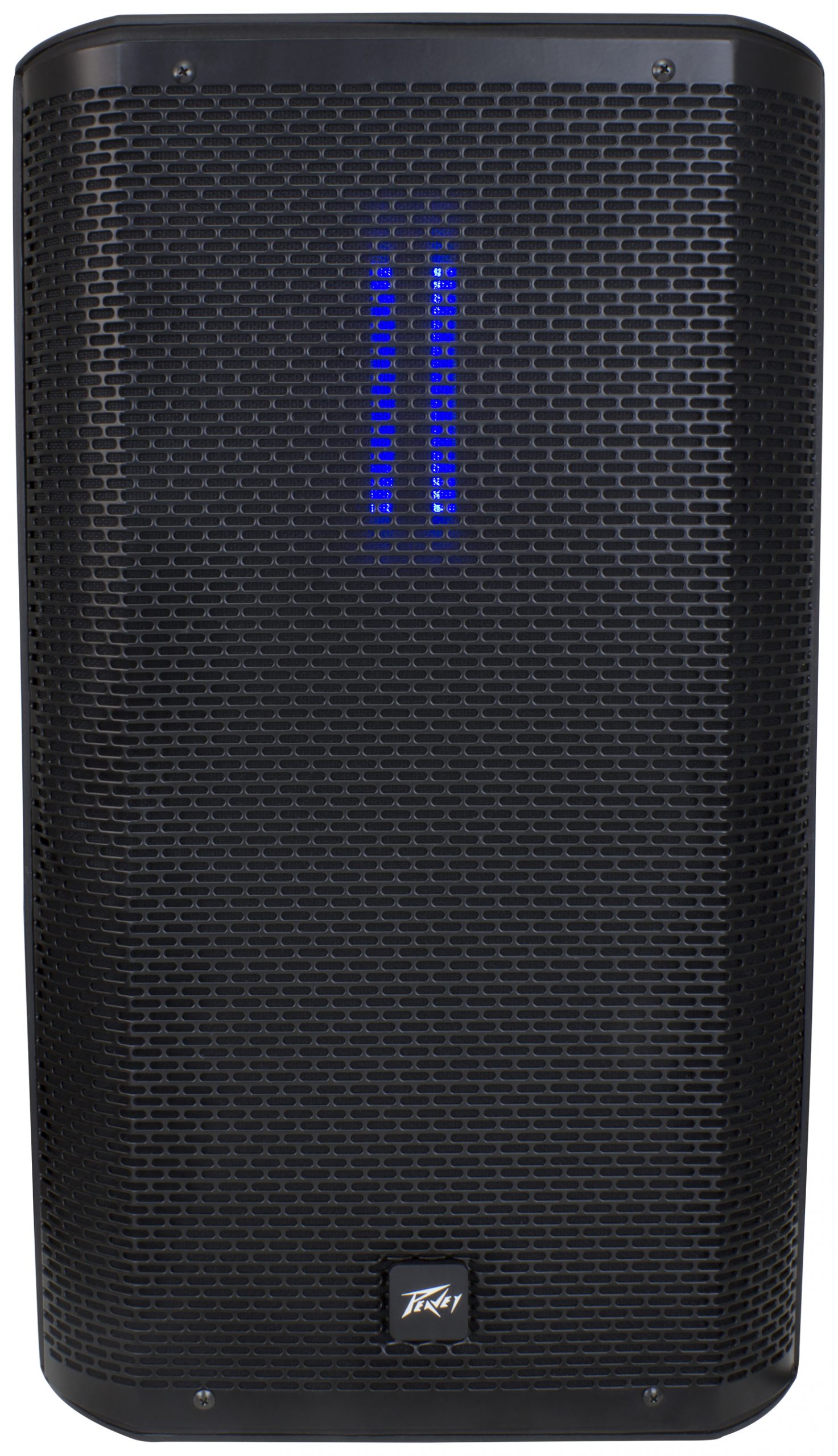

RBN™ 112

12″ Two-Way Powered Ribbon PA Speaker

Description

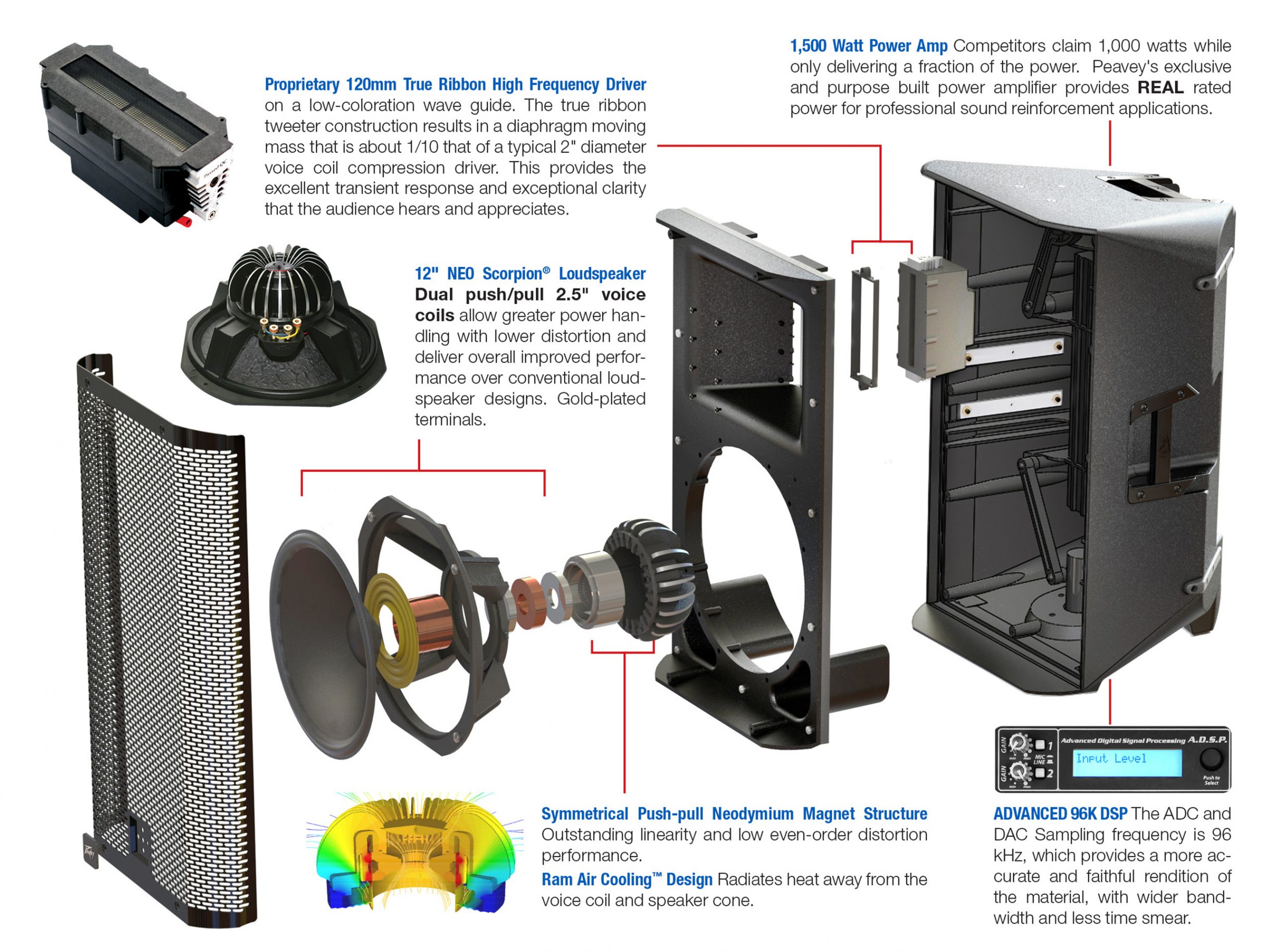

Driven by a highly efficient power amp, RBN™ 112 speaker enclosures combine best-in-class audio quality with Peavey’s legendary reliability. Ribbon drivers have been used in studio environments for decades, and Peavey developed a way to apply this high-quality sound technology to live applications resulting in a crystal-clear sound that no traditional compression driver can rival. To match the high-frequency performance of Peavey’s ribbon driver, RBN 112 enclosures are equipped with dual voice coil neodymium Scorpion® speakers, which feature Peavey’s exclusive field replaceable basket technology. Completely user-friendly, the speaker system features internal presets built into the 96K DSP, allowing users to quickly select the speaker’s application or orientation via the LCD on the rear of the enclosure.

Features RBN 112

• Two-way, bi-amplified, optimized loudspeaker system

• On-board advanced digital signal processing

• Direct-thru output with combine function

• Digital compression/limiting

• Processed-thru output enables DSP to be used with external subwoofer

• Peavey RD™ 2.6 (4,75“ / 120 mm) ribbon high frequency driver on low-coloration wave guide

• Dual voice coil neodymium Scorpion® woofer with field replaceable basket assembly

• Woofer: 500 Watts continuous

• Ribbon: 250 Watts continuous

• 1500 Watts peak power output

• Sensitivity: 99 dB (1W/1m)

• Coverage pattern (HxV): 110° x 30°

• Max. SPL: 130 dB

• Delay 0-150 ms

• Power amp VU meter with LCD display

• 9-band EQ

• Two channel XLR-1/4″ combination inputs

• Bass enhancement

• Setup Wizard for easy configuration

• Mic/line level selection

• Program EQ presets

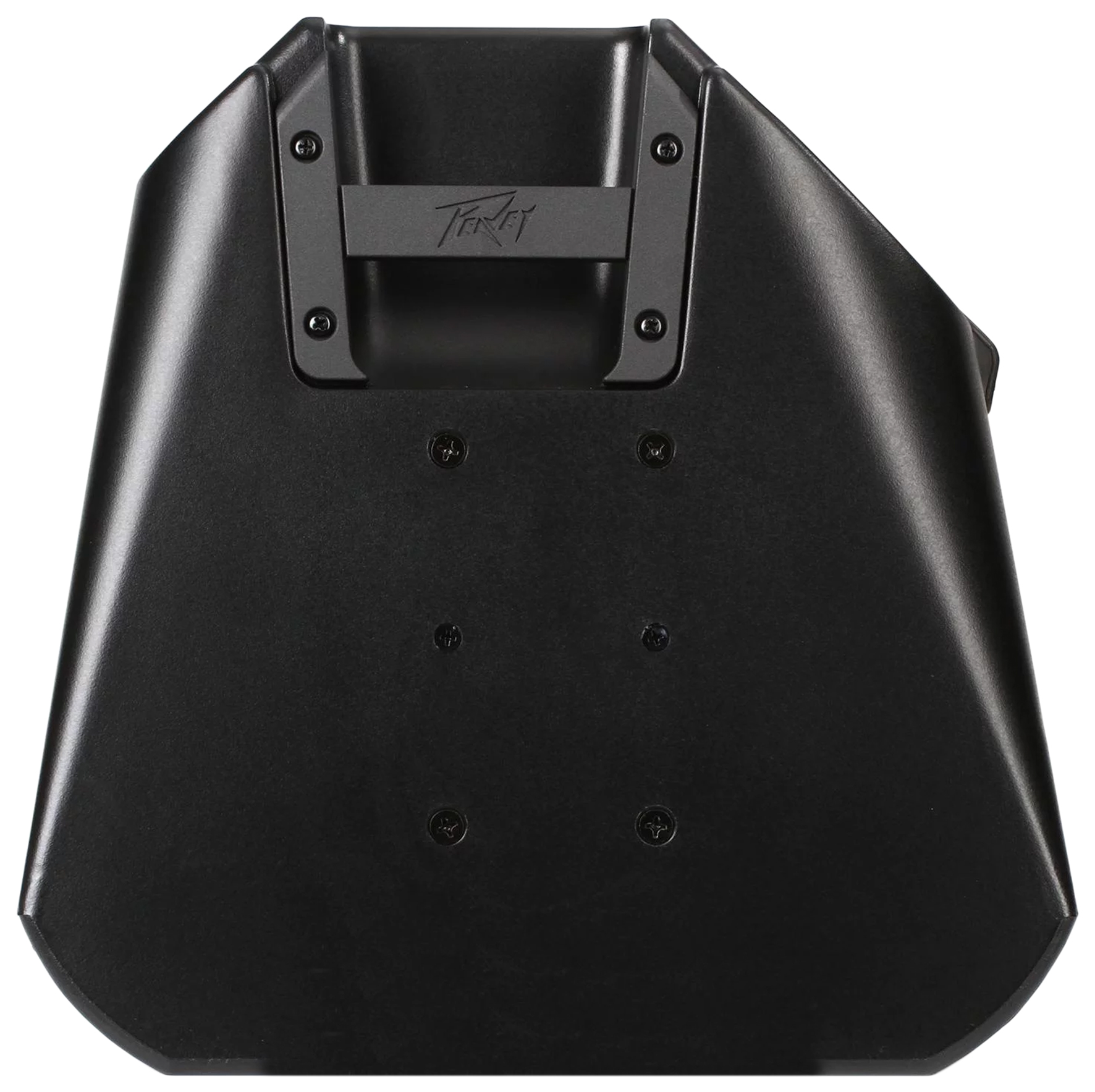

• Side and top handles

• Ultra-braced molded enclosure

• Internal temperature monitor

• Multiple side and top fly points

• Auto-off power/power down

Additional information

Speaker Configuration

Bi-amplified 2-way

Speaker Type

Powered

DSP On-Board

Yes

Power Program

Power Peak

Sensitivity (1W/1m)

99 dB

Maximum SPL

130 dB

Speaker Frequency Response

59 Hz – 20 kHz

Coverage (H x V)

110° x 30°

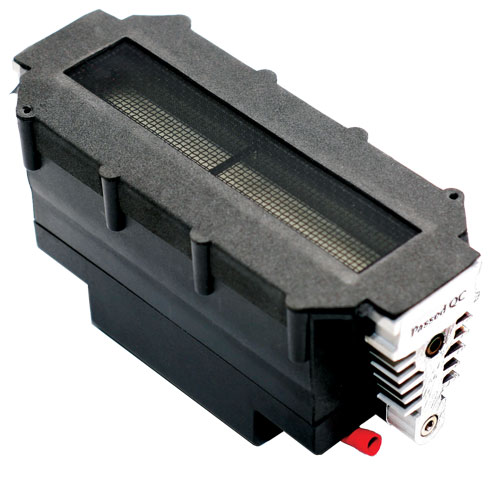

HF Driver

RD™ 2.6 Mk III – 4.75" Ribbon Tweeter

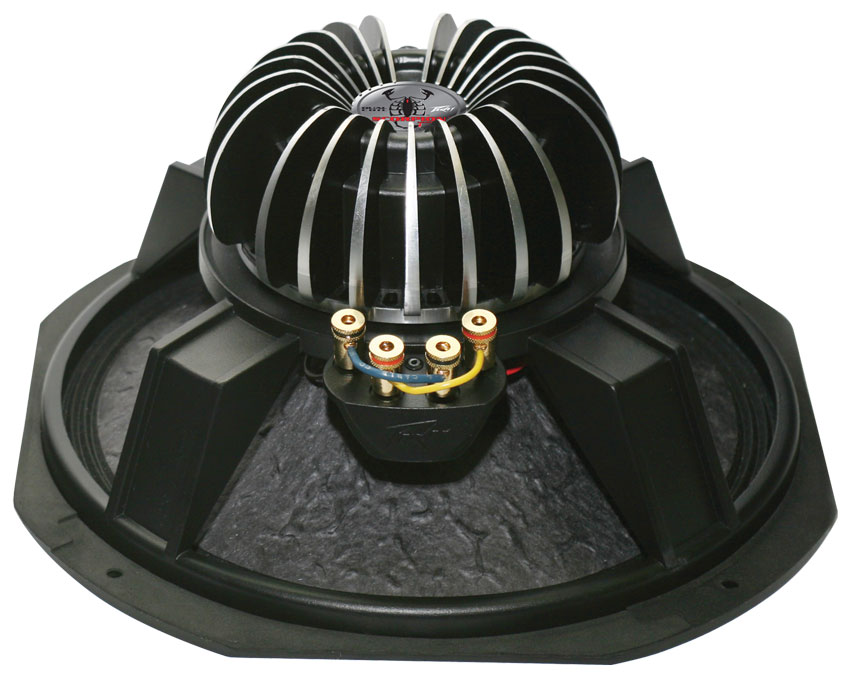

LF Driver

12" Neo Dual Voice Coil Scorpion® Woofer, 4" Voice Coil

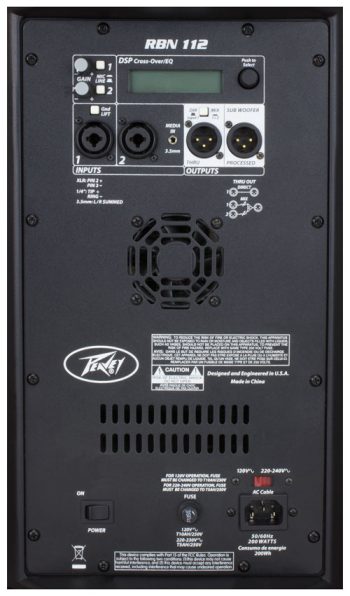

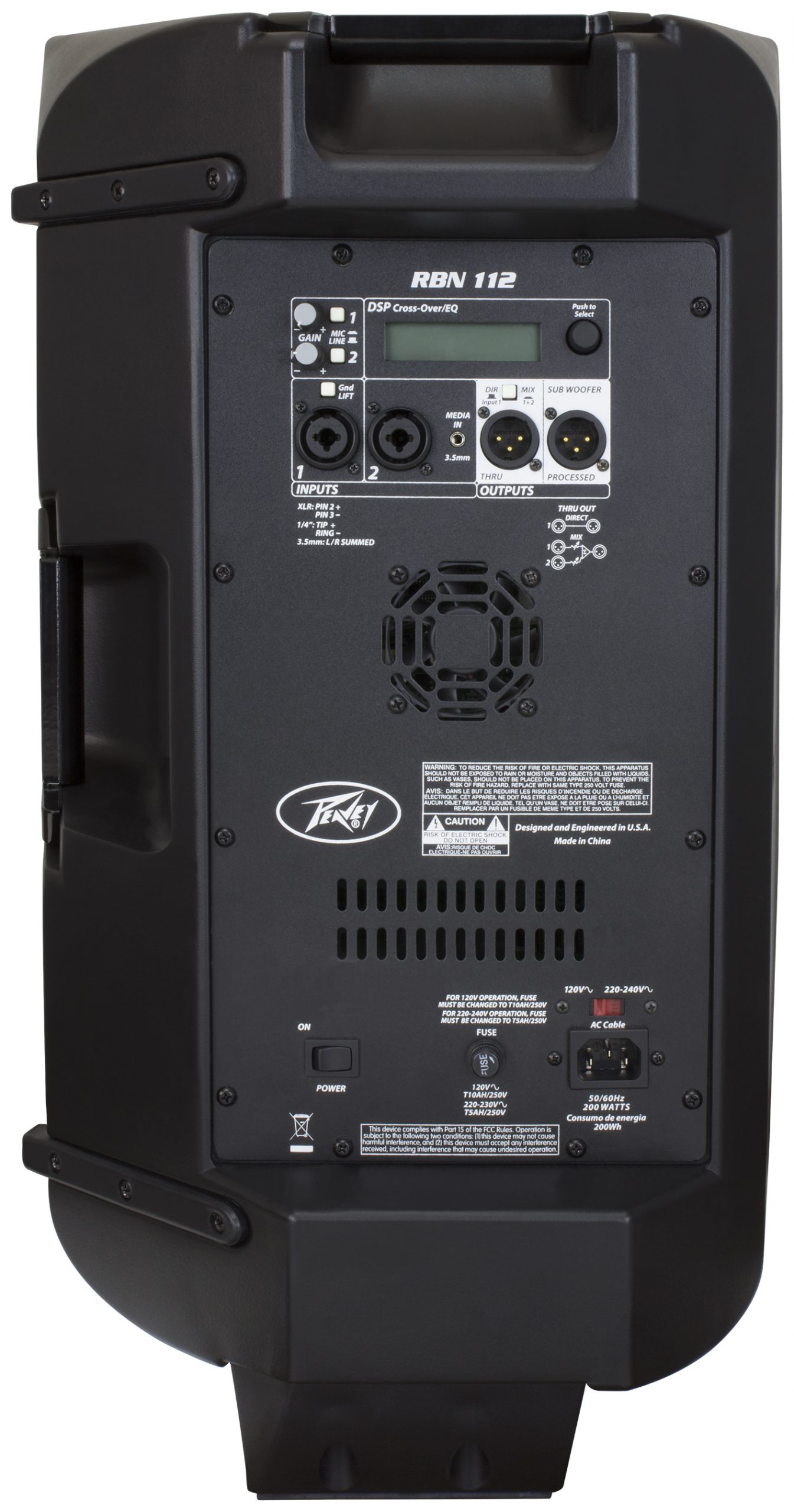

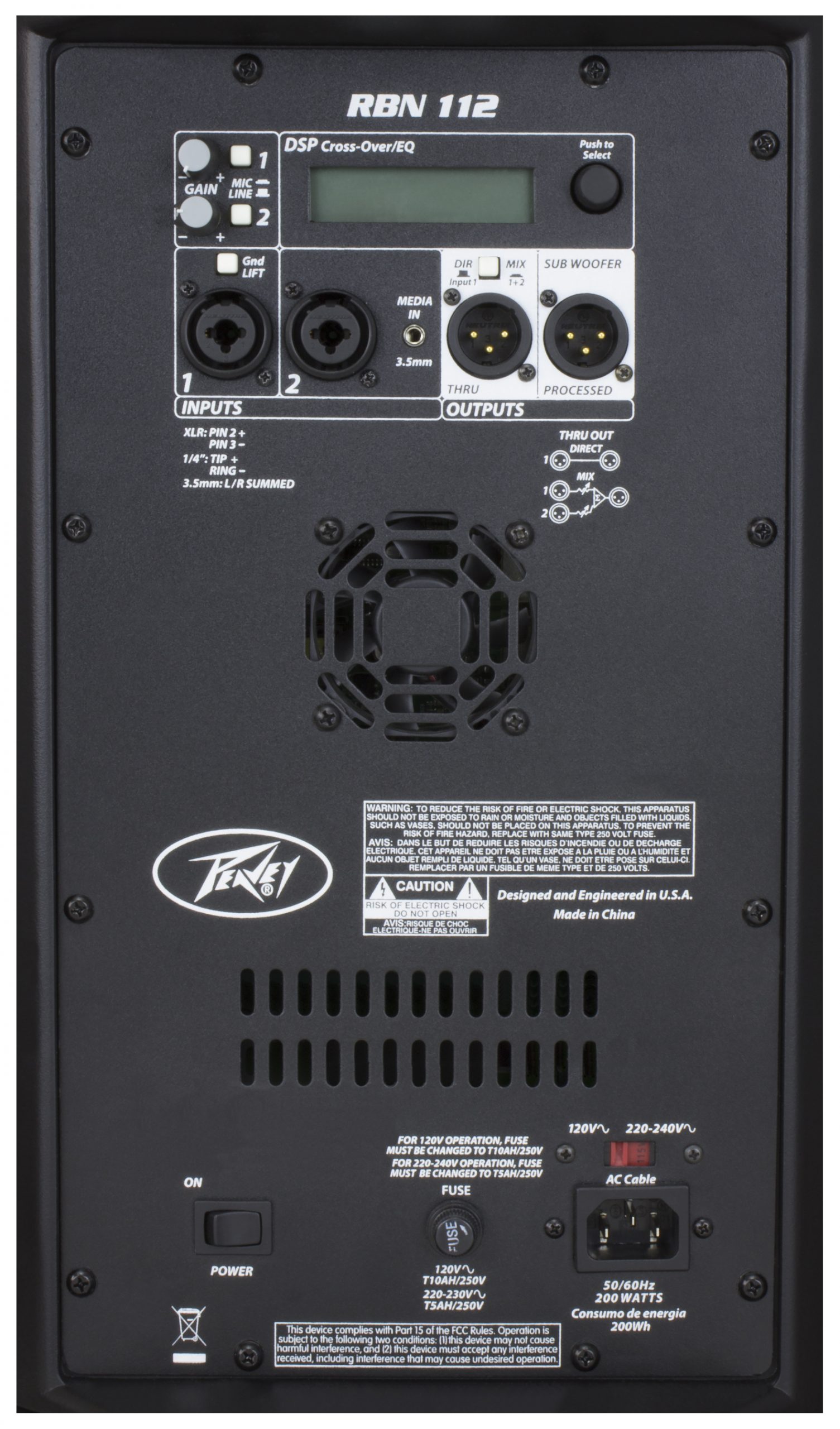

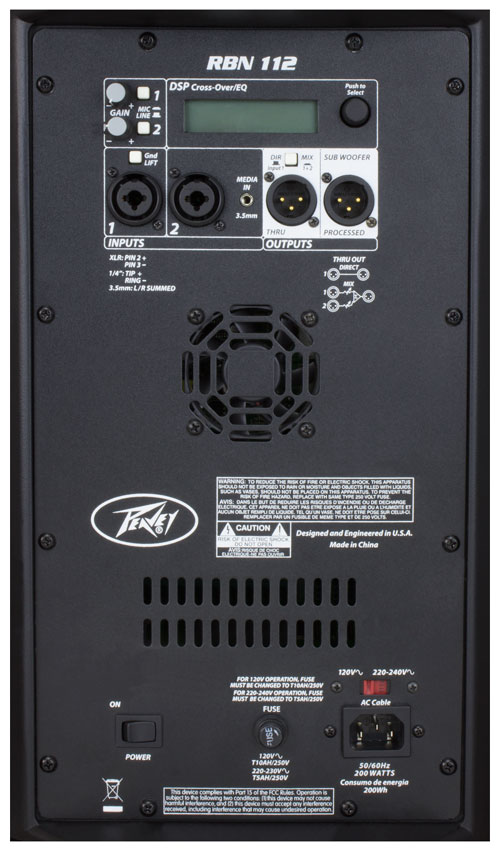

Input Connectors

2 x XLR-1/4" Combo & 1 x 3.5 mm Jack

Output Connectors

2 x XLR

Suspension Points

2 x Versamount 70

Pole Mount

Yes

Enclosure Material

ABS

Color

Net Weight

39.0 lbs (17.70 kg)

Product Height

24.38" (619 mm)

Product Width

14.07" (357 mm)

Product Depth

14.25" (362 mm)

AC Power Input

Dual Voltage – 120 or 220-240VAC 50/60 Hz

SKU

03612690
