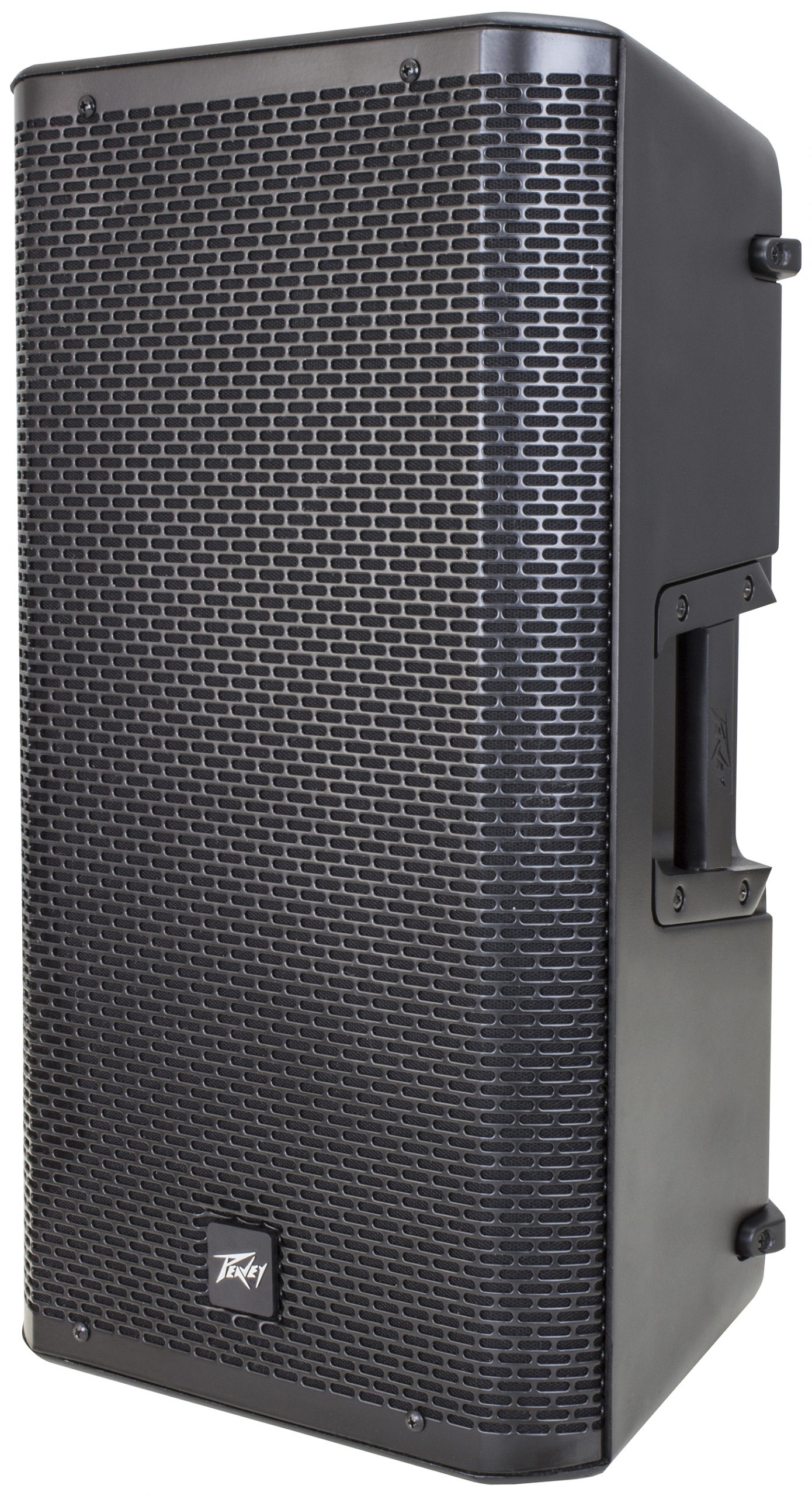

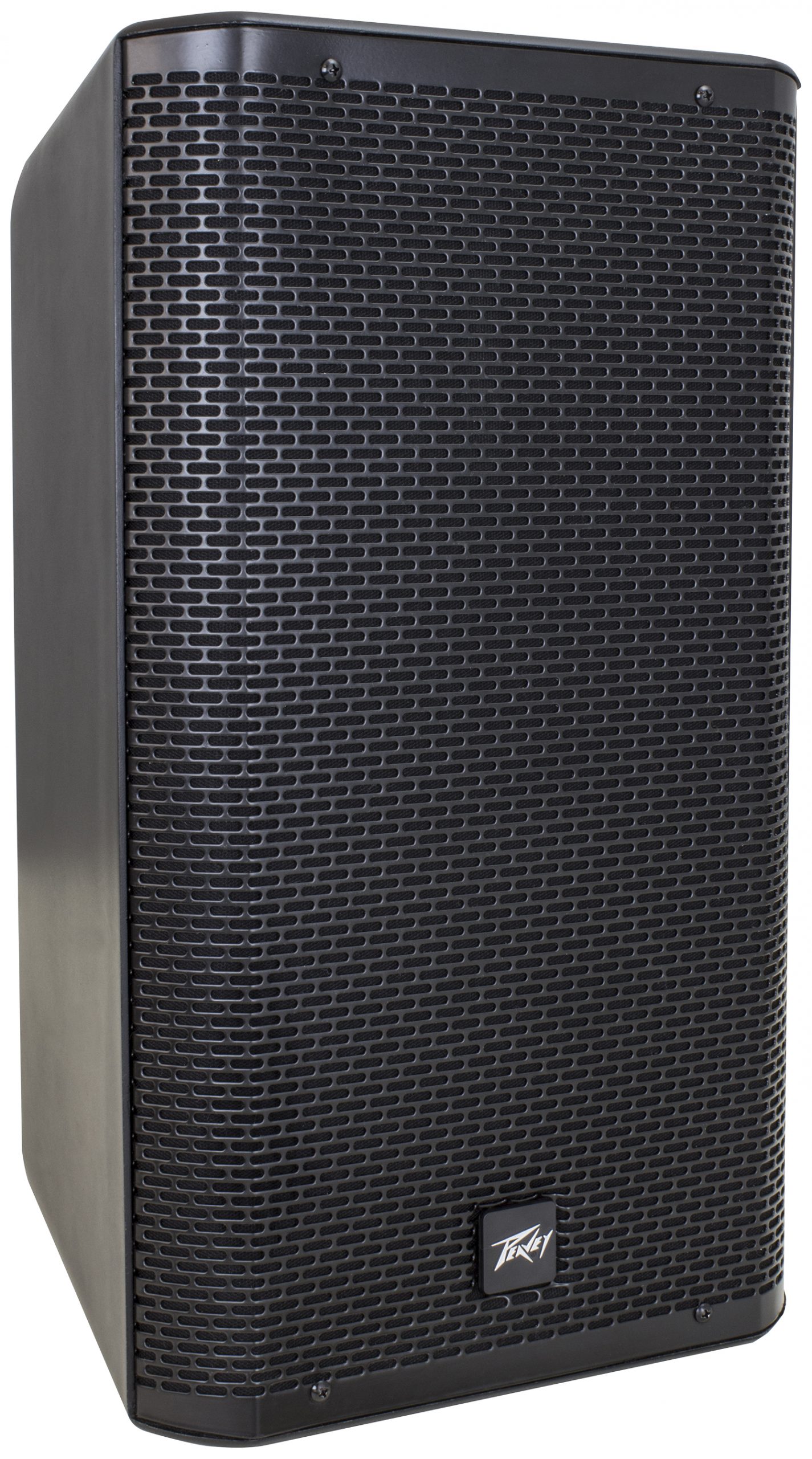

RBN™ 110

10″ Two-Way Powered Ribbon PA Speaker

Description

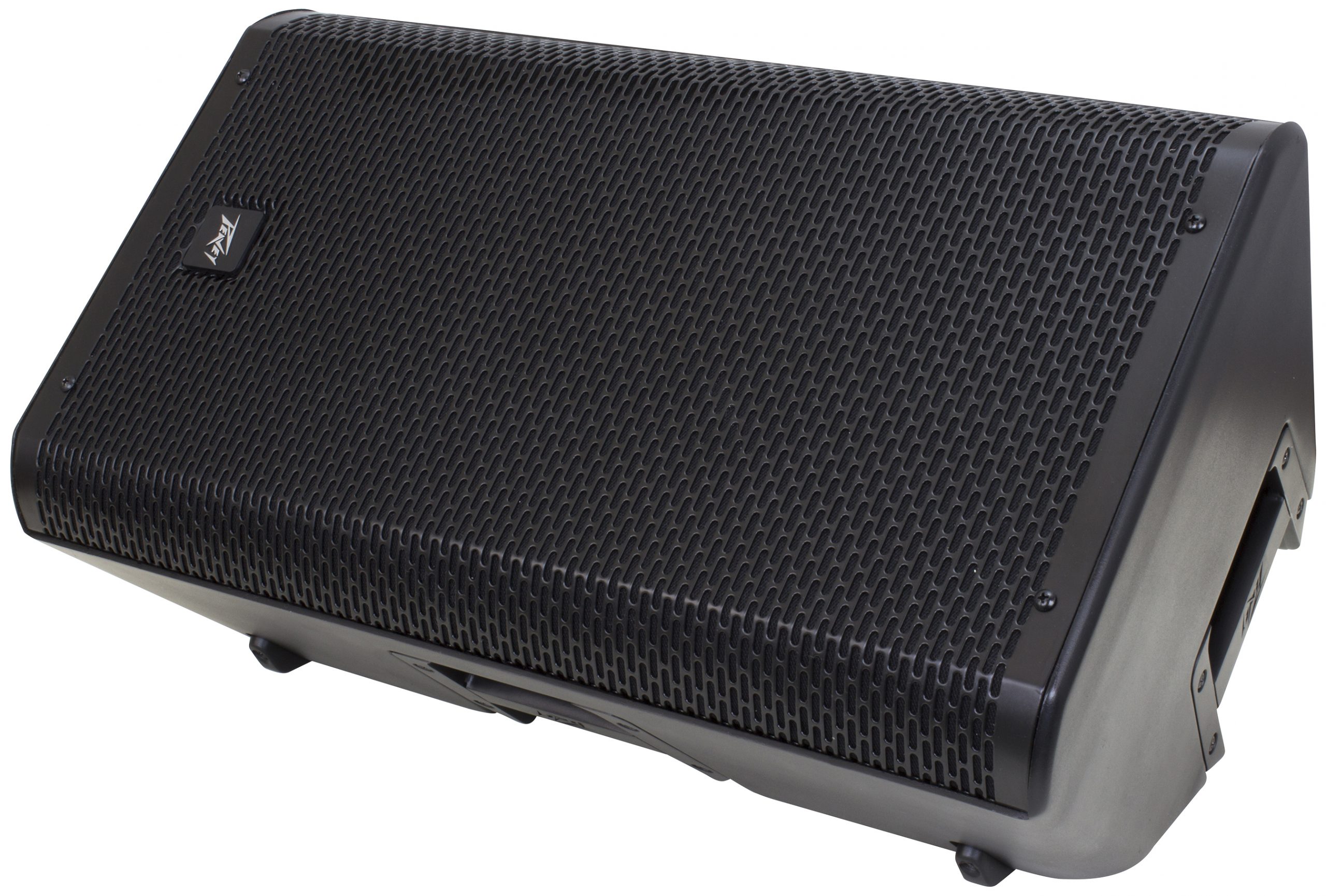

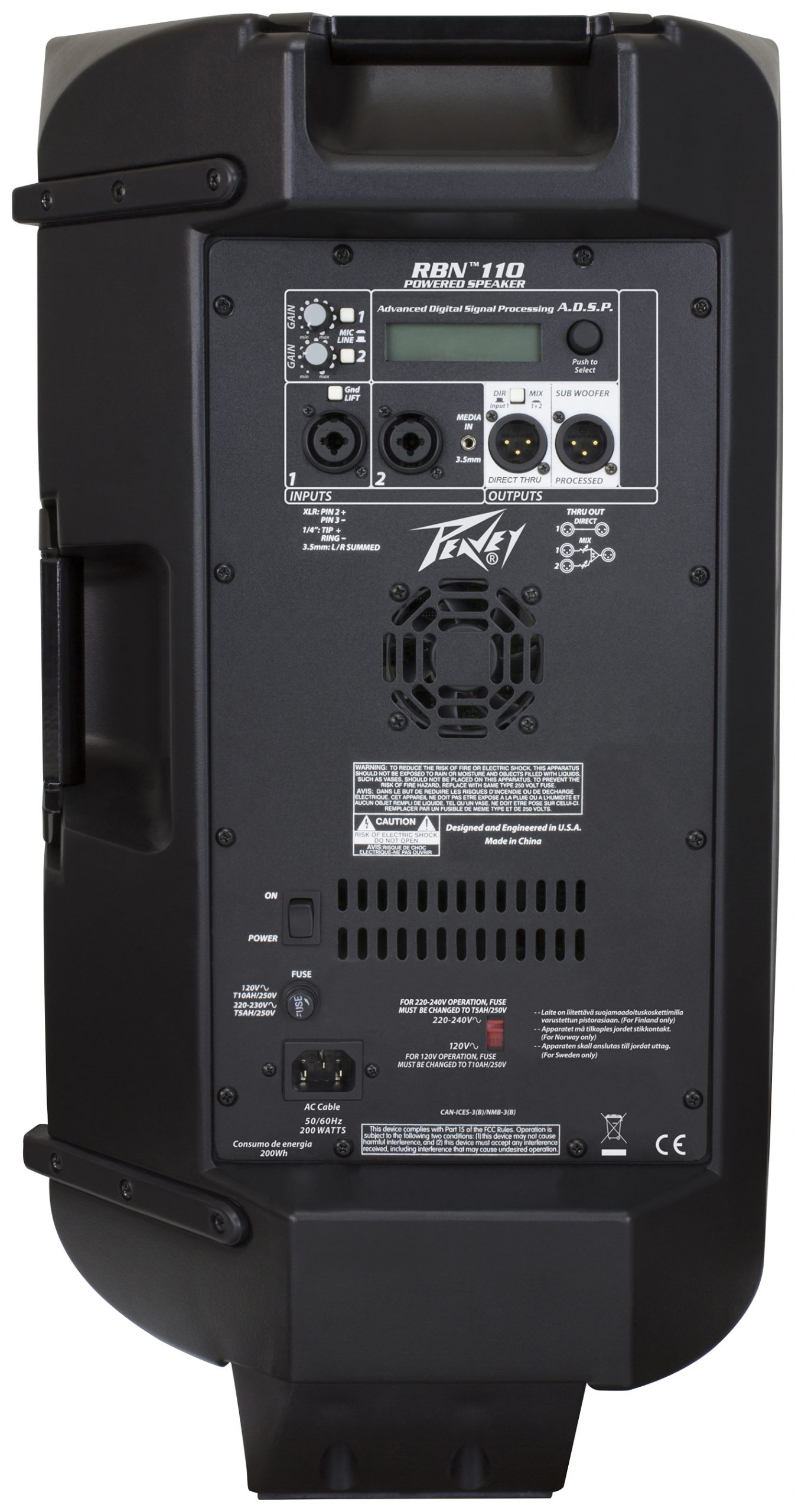

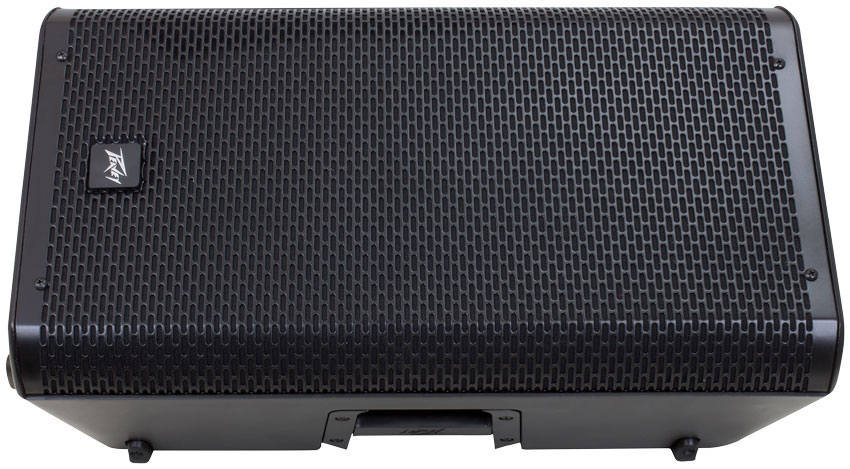

Driven by a highly efficient power amp, RBN™ 110 speaker enclosures combine best-in-class audio quality with Peavey’s legendary reliability. Ribbon drivers have been used in studio environments for decades, and Peavey developed a way to apply this high-quality sound technology to live applications resulting in a crystal-clear sound that no traditional compression driver can rival. To match the high-frequency performance of Peavey’s ribbon driver, RBN 110 enclosures are equipped with 10″ high performance speakers. Completely user-friendly, the speaker system features internal presets built into the 96K DSP, allowing users to quickly select the speaker’s application or orientation via the LCD on the rear of the enclosure.

Features RBN 110

• Two-way, bi-amplified, optimized loudspeaker system

• Peavey RD™ 2.6 (4.75“ / 120 mm) ribbon high frequency driver on low-coloration wave guide

• 10″ high performance speaker

• 1050 Watts peak power output

• Max. SPL 125 dB

• Coverage pattern (HxV): 110° x 30°

• 9-band EQ

• Processed-thru output enables DSP to be used with external subwoofer

• Bass enhancement

• Delay 0-150 ms

• Power amp VU meter with LCD display

• Internal temperature monitor

• Mic/line level selection

• Auto-off power/power down

• Two channel XLR-1/4″ combination inputs

• Setup Wizard for easy configuration

• Digital compression/limiting

• Program EQ presets

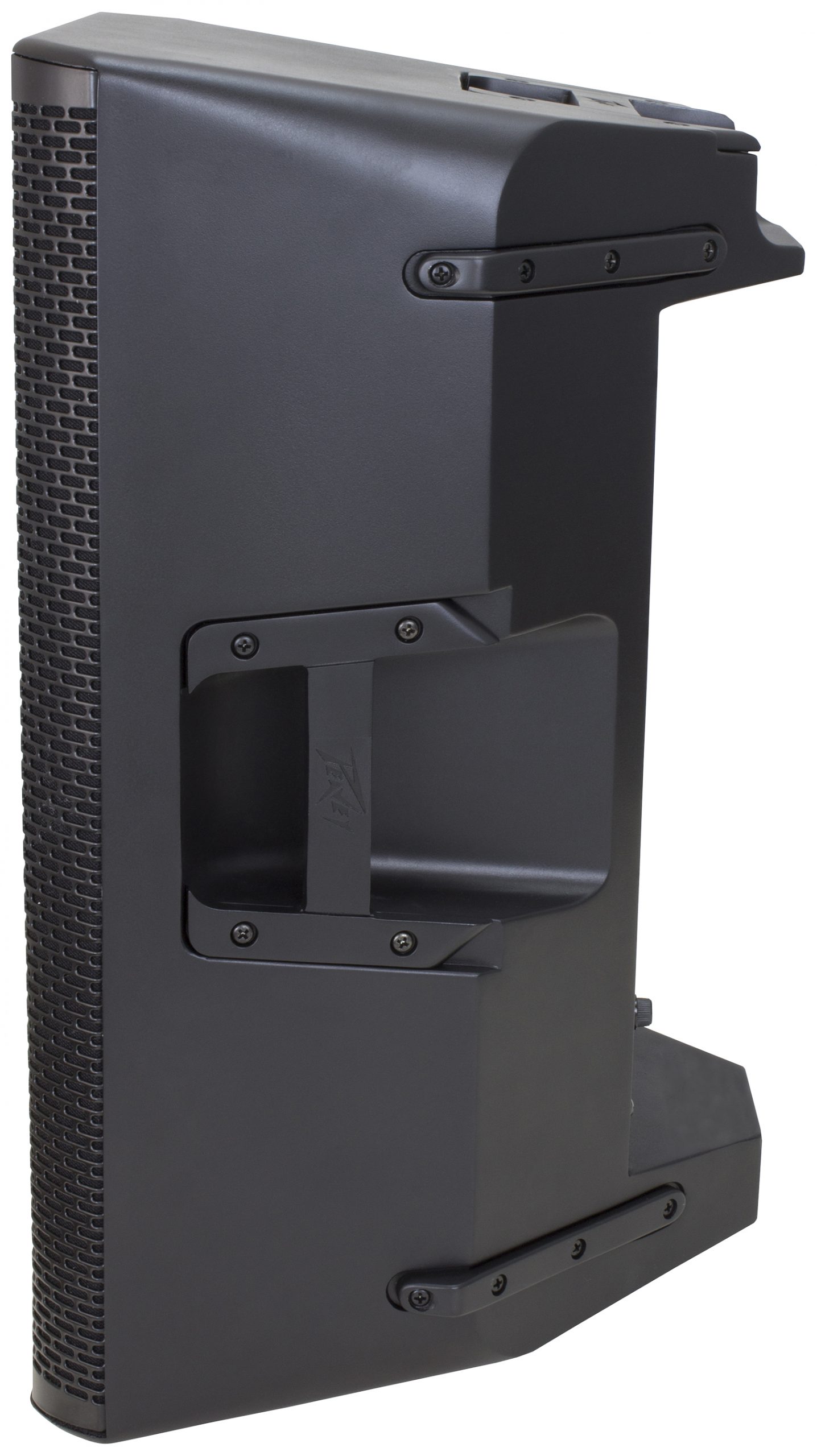

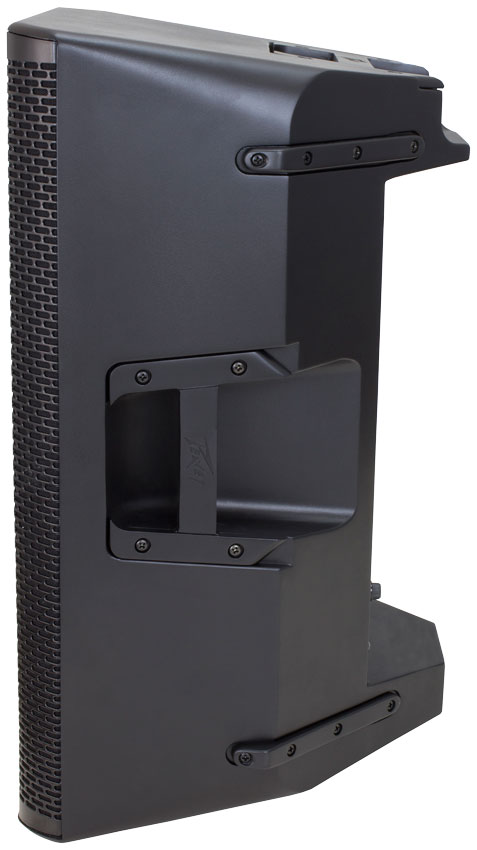

• Side and top handles

• Direct-thru output with combine function

• Ultra-braced molded enclosure

• On-board advanced digital signal processing

• Multiple side and top fly points

Additional information

Speaker Configuration

Bi-amplified 2-way

Speaker Type

Powered

DSP On-Board

Yes

Power Program

Power Peak

Sensitivity (1W/1m)

96 dB

Maximum SPL

125 dB

Speaker Frequency Response

73 Hz – 20 kHz

Coverage (H x V)

110° x 30°

HF Driver

RD™ 2.6 Mk III – 4.75" Ribbon Tweeter

LF Driver

10" Woofer

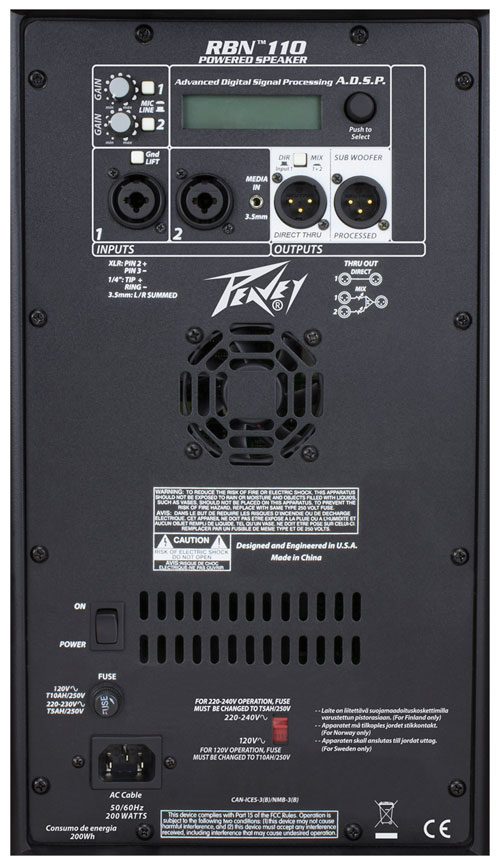

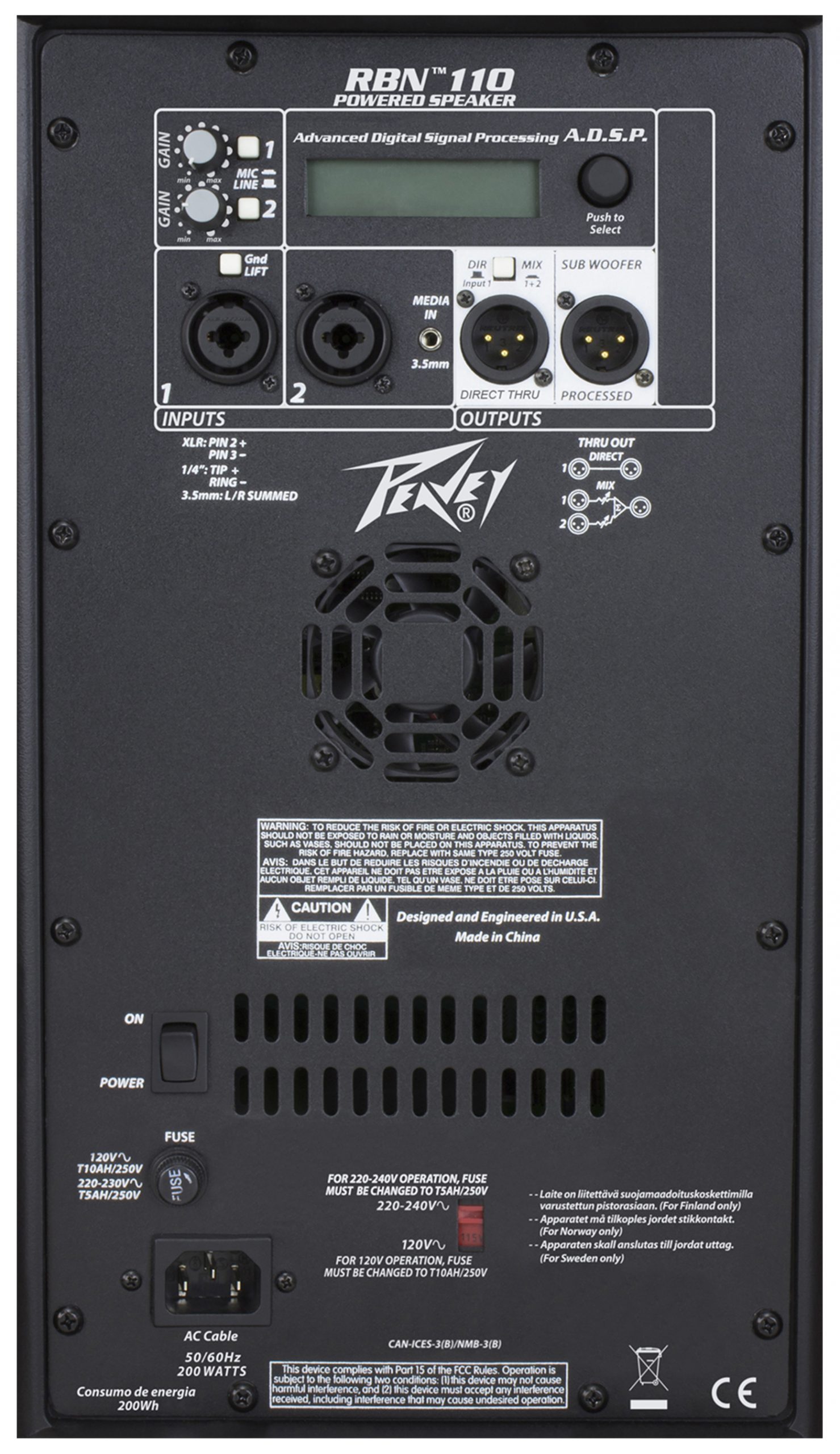

Input Connectors

2 x XLR-1/4" Combo & 1 x 3.5 mm Jack

Output Connectors

2 x XLR

Suspension Points

2 x Versamount 70

Pole Mount

Yes

Enclosure Material

ABS

Color

Net Weight

37.0 lbs (16.80 kg)

Product Height

22.06" (560 mm)

Product Width

12.37" (314 mm)

Product Depth

12.10" (307 mm)

AC Power Input

Dual Voltage – 120 or 220-240VAC 50/60 Hz

SKU

03614720
