QW® ML

15″ Two-Way Floor Monitor (Left Version)

Description

The QW® monitors offer a clean, clear response and reliability in a premium high quality, high power stage monitor system. These are full-range or bi-ampable two-way full-range floor monitor loudspeaker systems with a Pro Rider® 15″ woofer with Kevlar® impregnated cone and 4″ voice coil, a 44XT™ 4″ titanium diaphragm compression driver with ferrofluid, coupled to a CH® 942qt conical horn with Sound Guard™ 44 high frequency protection. The shape of the QW monitor reduces the buildup of standing waves inside the enclosure while the high frequency driver utilizes the patented Radialinear Planar Phase Correction System to provide smoother and extended high frequency response. The CH 942qt conical constant directivity horn provides an even 60° coverage in all directions. Connection is made through two parallel full-range or two parallel bi-amp Neutrik® Speakon® connectors.

Features QW ML

• One Pro Rider 15″ woofer with Kevlar impregnated cone

• 4″ titanium diaphragm compression driver with ferrofluid coupled to a CH 942qt conical horn

• Power Handling: 1000 Watts continuous, 2000 Watts program, 4000 Watts peak

• Impedance: 8 Ω

• Horn on left side

• Sound Guard 44 high frequency driver protection circuit

• Frequency response: 67 Hz – 18 kHz; ±3 dB

• Sensitivity: 97 dB

• Dispersion: 60° x 60°

• Max SPL: 133 dB

• Two full range, two bi-amp Neutrik Speakon connectors

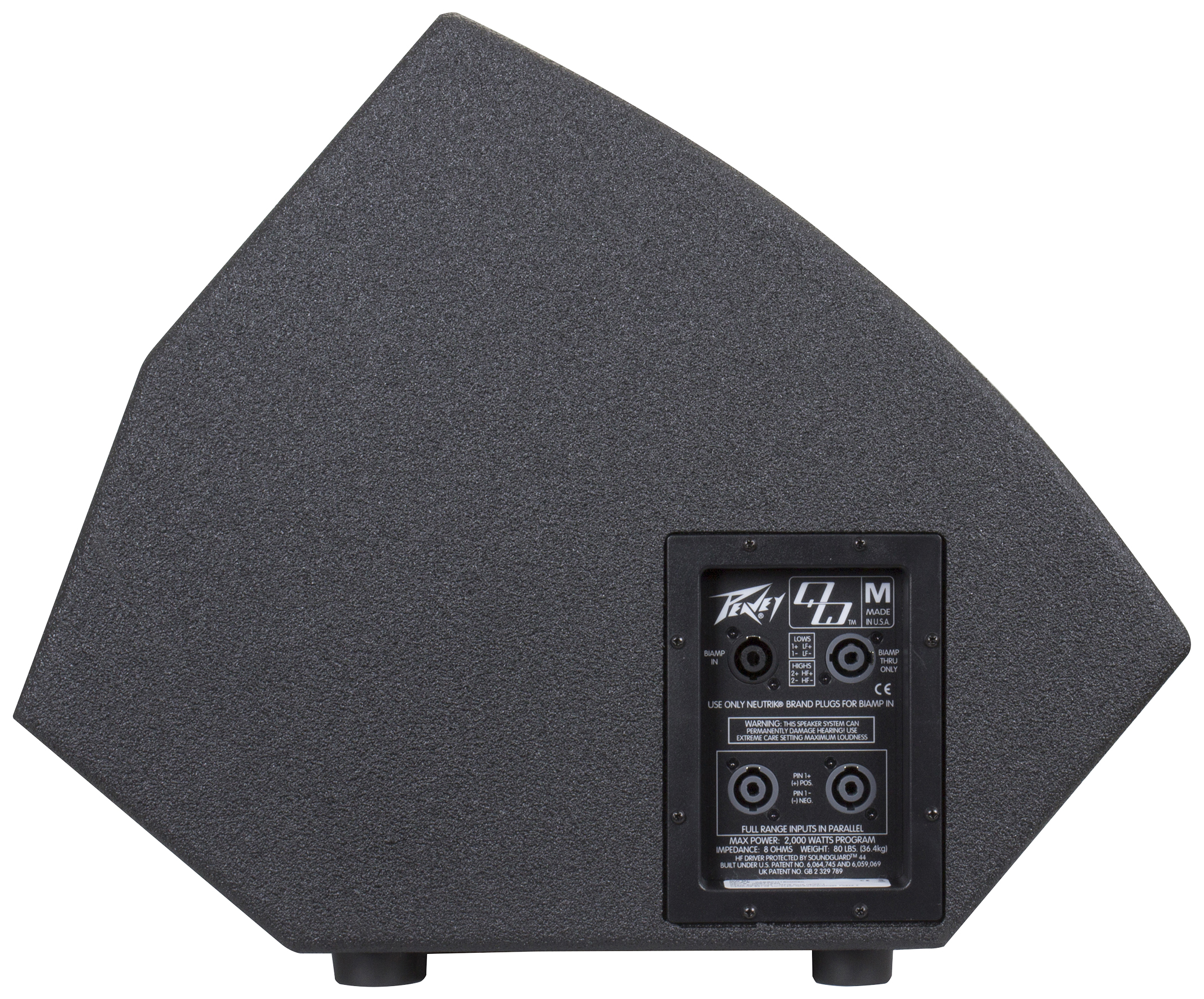

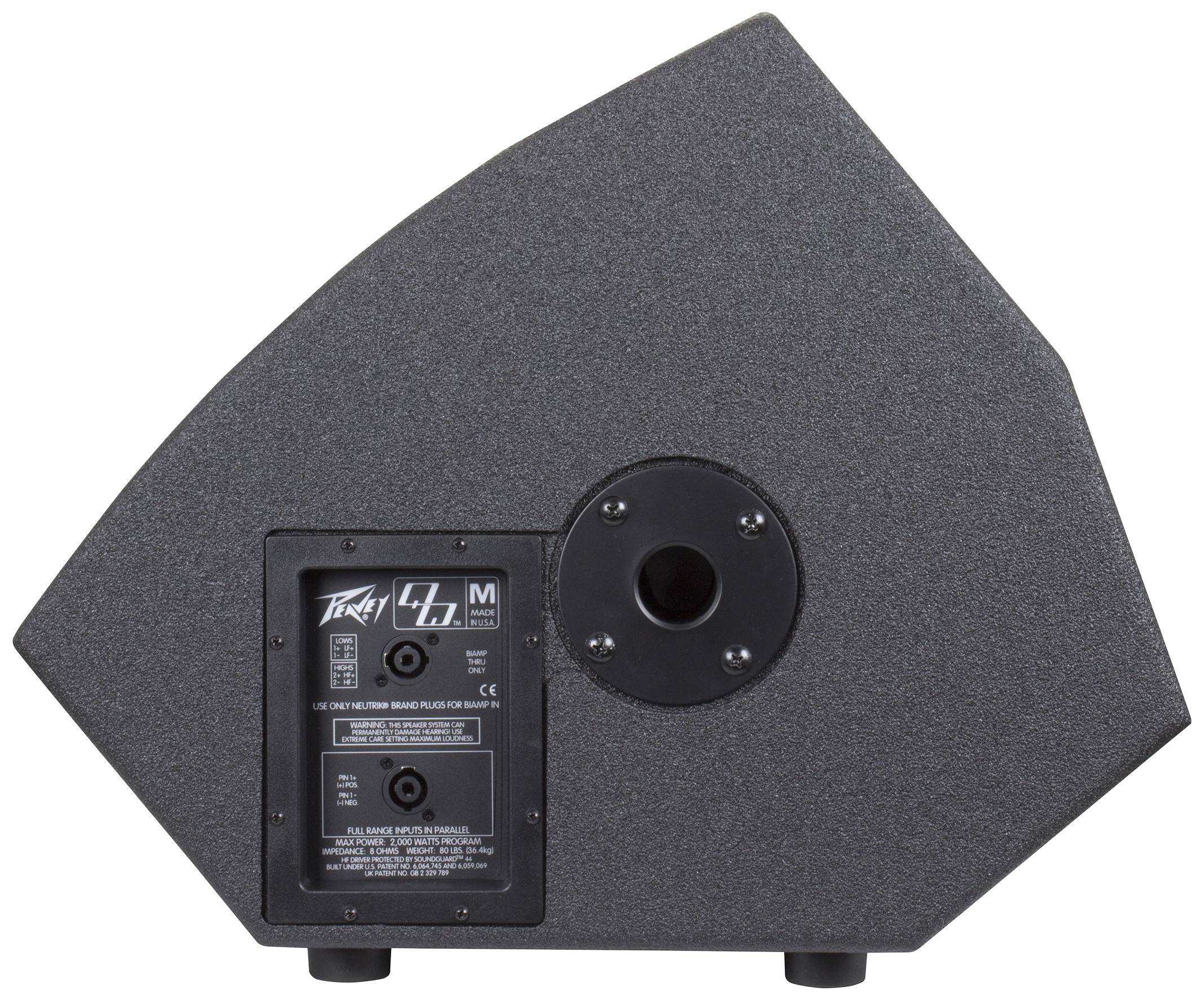

• Throughput panel on opposite end from input panel has one full-range and one bi-amp Neutrik Speakon connector

• SA™ 1 black pole-mount stand adapter

• Durable GatorHyde® finish

Additional information

Speaker Configuration

Floor Monitor 2-way

Speaker Type

Non-Powered

Crossover Modes

Power RMS

1000 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

97 dB

Maximum SPL

133 dB

Speaker Frequency Response

67 Hz – 18 kHz (±3 dB)

Coverage (H x V)

60° x 60° (Conical)

HF Driver

44XT™ – 4" Titanium Diaphragma Compression Driver

LF Driver

15" ProRider® 1508-8 CUCP Woofer, 4" Voice Coil

Input Connectors

4 x Neutrik® Speakon® NL4

Output Connectors

2 x Neutrik® Speakon® NL4

Pole Mount

Yes

Enclosure Material

Plywood

Color

Net Weight

85.0 lbs (38.60 kg)

Product Height

17.75" (451 mm)

Product Width

29.75" (756 mm)

Product Depth

21.25" (540 mm)

SKU

00571320
