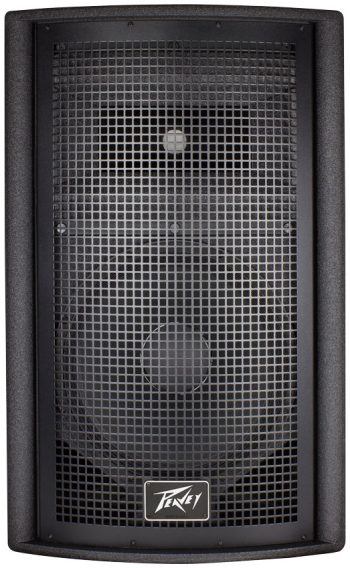

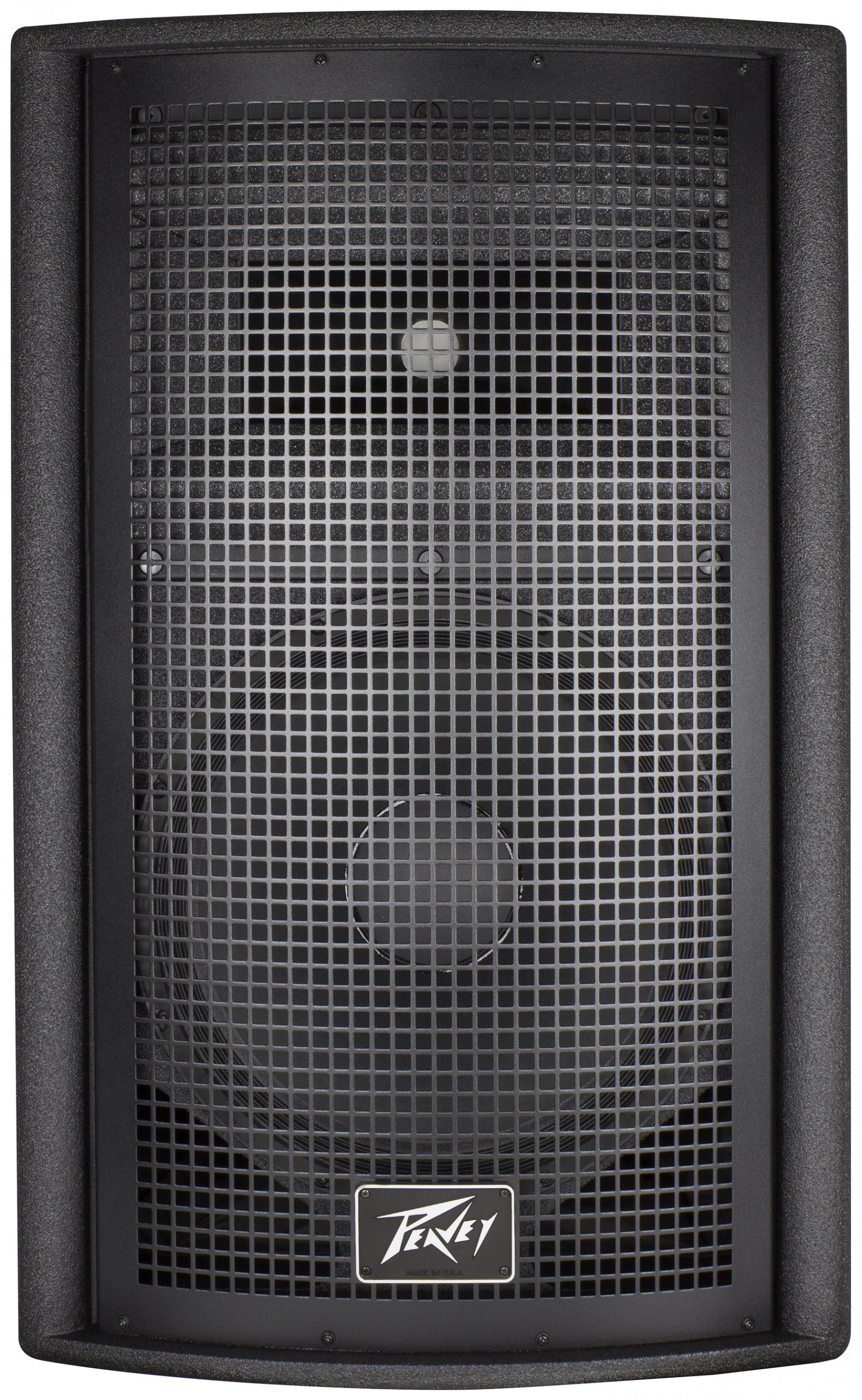

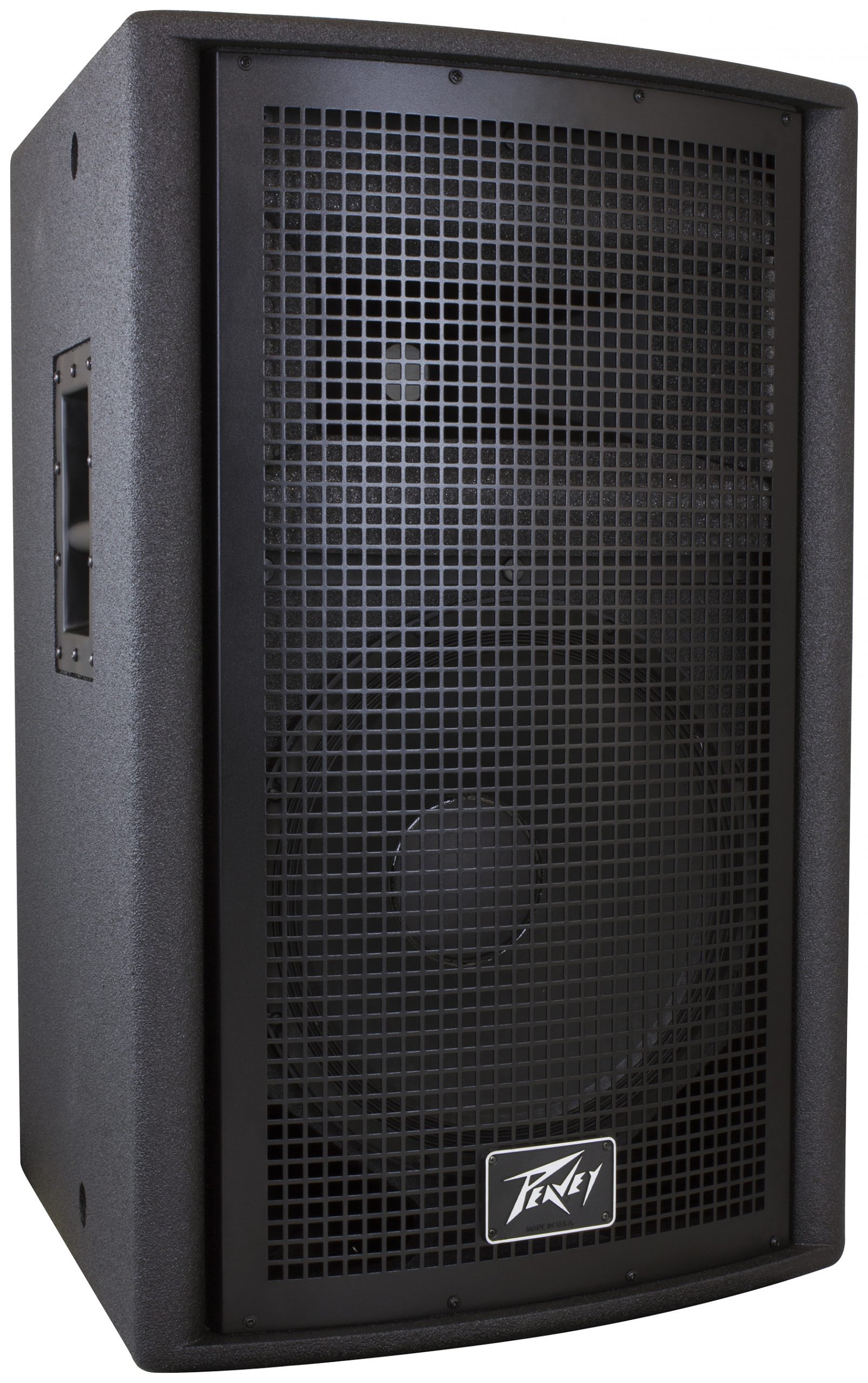

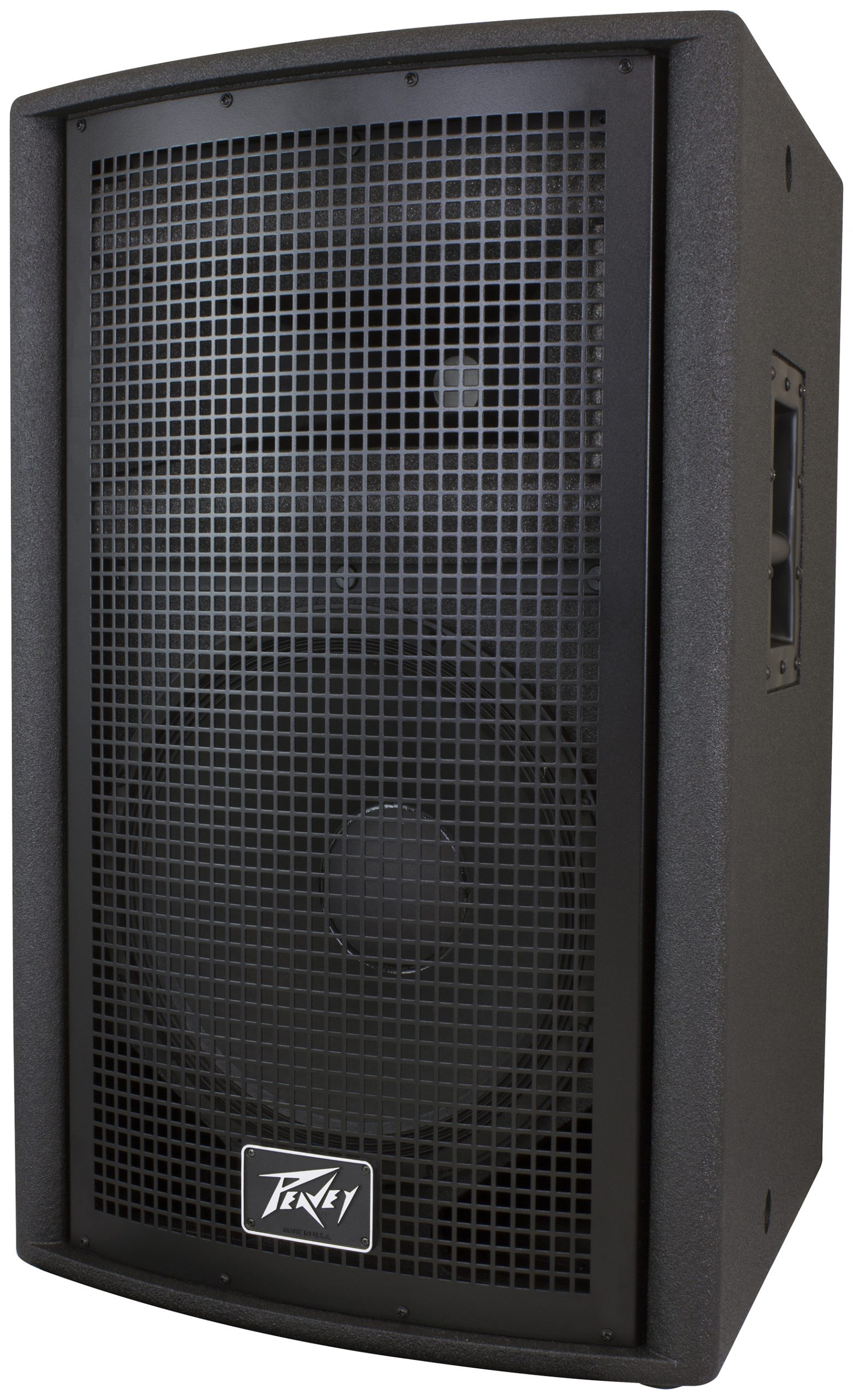

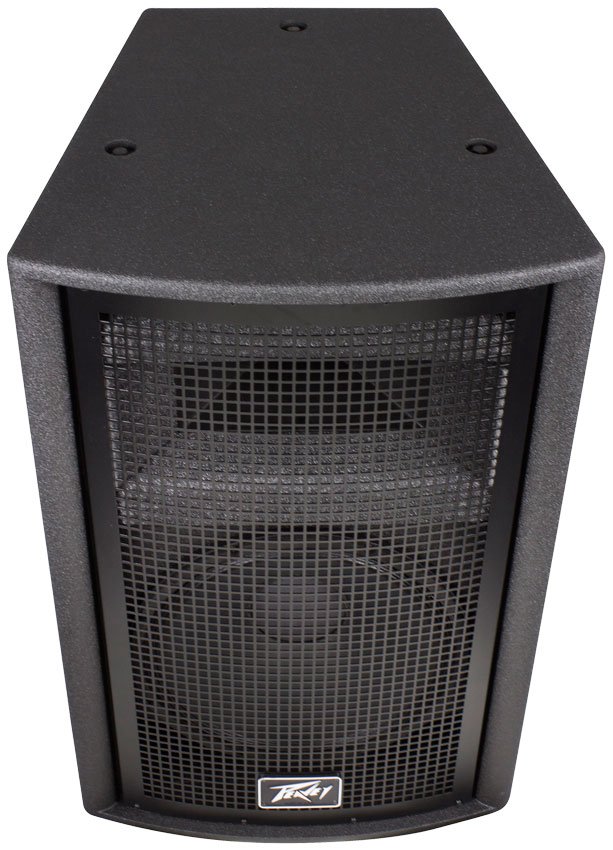

QW® 2F

15″ Two-Way PA Speaker

Description

Peavey designed the QW® Series for pristine audio reproduction in the high-end productions and large venues. QW enclosures include advanced audio technology and components such as our exclusive Quadratic Throat Waveguide™ horn, 44XT™ titanium diaphragm compression driver and Pro Rider® and Low Rider® woofers, plus very low power compression, low distortion at high output levels, GatorHyde® exteriors and 16-gauge powder-coated, perforated steel grilles. All full-range top boxes include versatile flying points.

Features QW 2F

• One Pro Rider 15″ woofer with Kevlar® impregnated cone, 4″ voice coil, cast frame field-replaceable basket

• 44XT 4“ titanium diaphragm compression driver with ferrofluid coupled to a CH®942qt constant directivity horn which employs Peavey patented Quadratic Throat Waveguide technology

• Flexible flying provisions

• Dispersion: 90° x 40°

• Sound Guard™ 44 high frequency driver protection circuit

• Frequency Response: 52 Hz – 18 kHz

• Sensitivity (1W/1m): 97 dB

• Power Handling: 800 Watts continuous, 1600 Watts program, 3200 Watts peak

• Max SPL: 132 dB

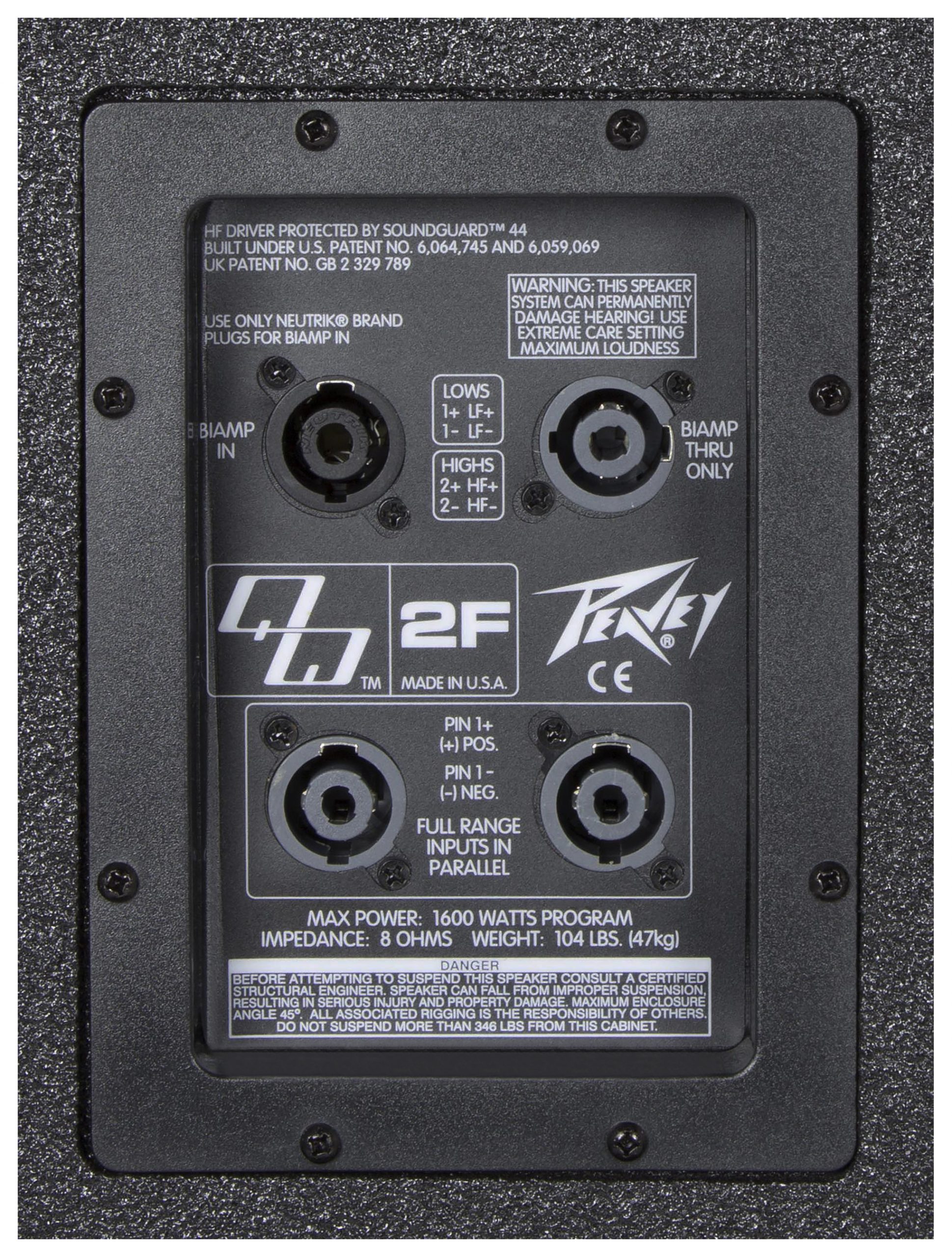

• Two full-range, two bi-amp Neutrik® Speakon® connectors

• SA™-1 pole-mount stand adapter

• Durable GatorHyde finish

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

Crossover Modes

Power RMS

800 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

97 dB

Maximum SPL

132 dB

Speaker Frequency Response

52 Hz – 18 kHz (±3 dB)

Coverage (H x V)

90° x 40°

HF Driver

44XT™ – 4" Titanium Diaphragma Compression Driver

LF Driver

15" ProRider® 1508-8 ALCP Woofer, 4" Voice Coil

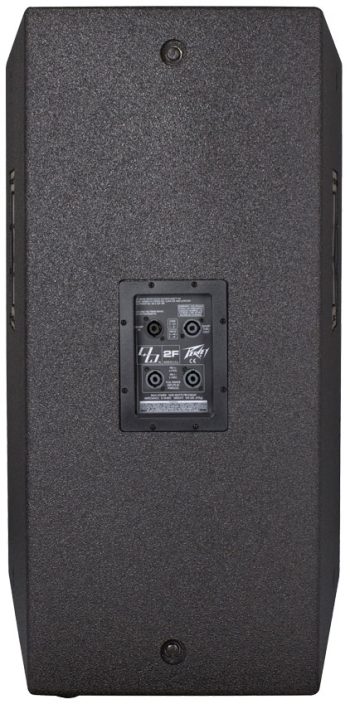

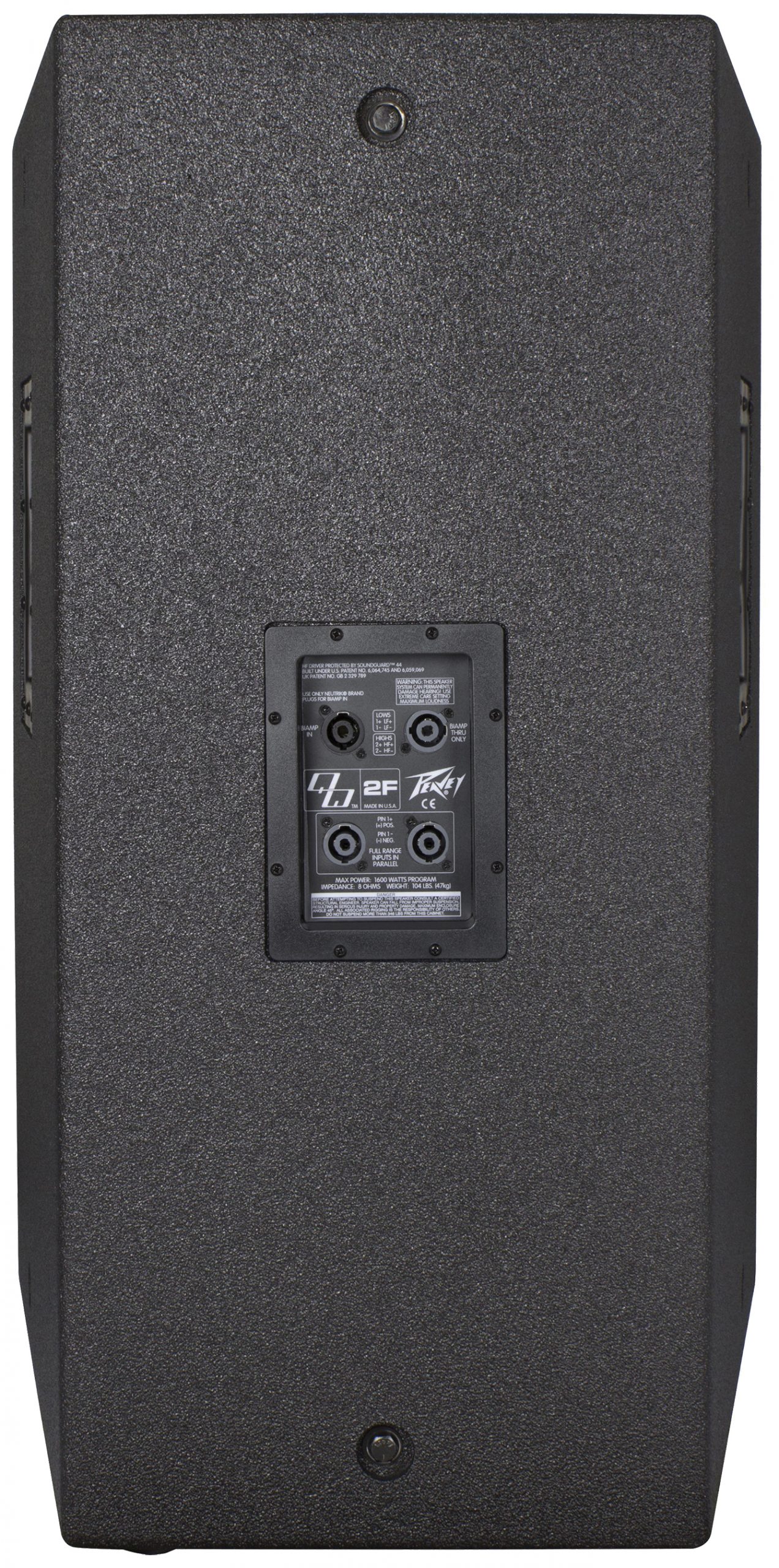

Input Connectors

3 x Neutrik® Speakon® NL4

Output Connectors

1 x Neutrik® Speakon® NL4

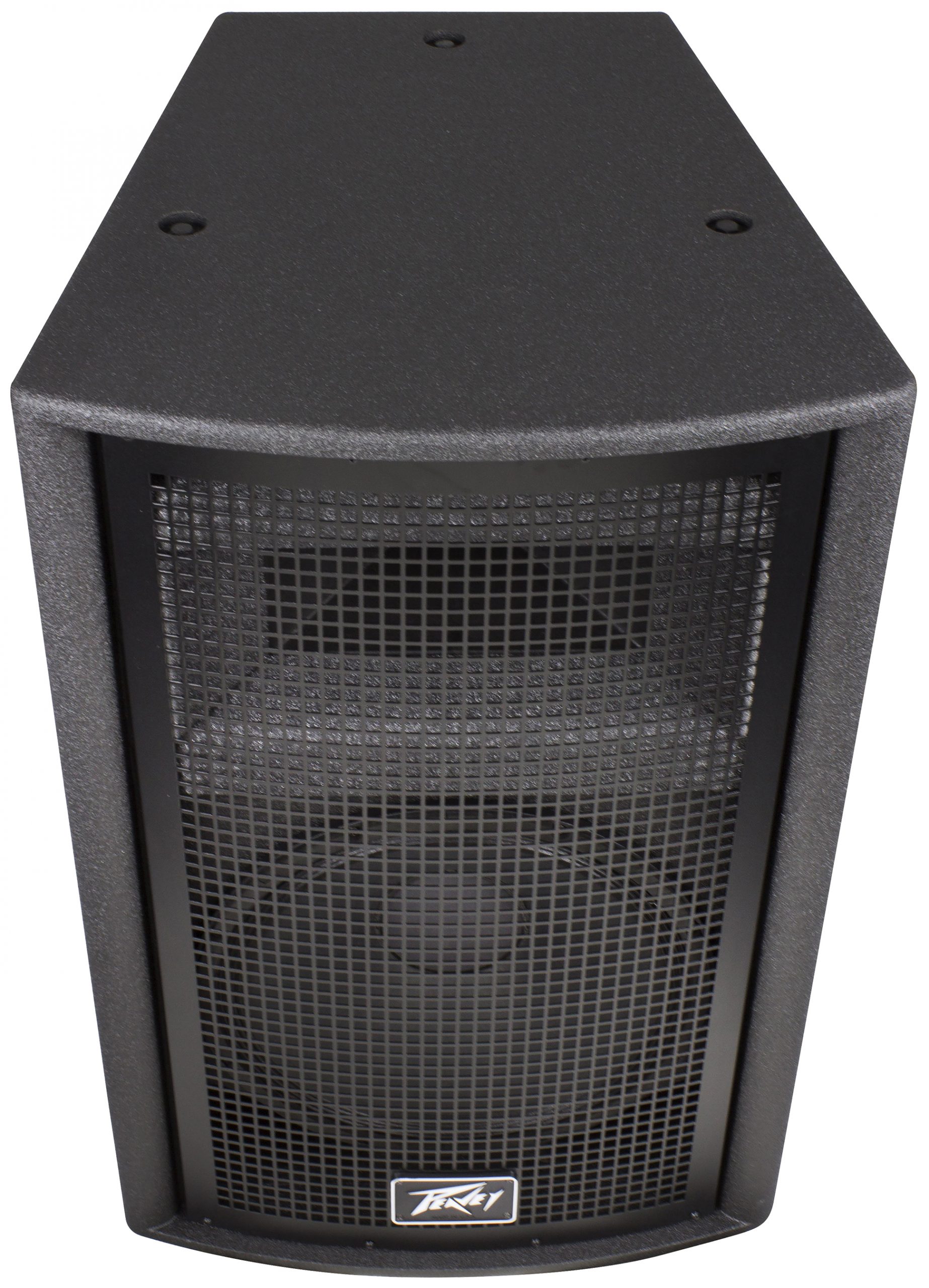

Suspension Points

12 x 3/8"

Pole Mount

Yes

Enclosure Material

Plywood

Color

Net Weight

104.0 lbs (47.30 kg)

Product Height

33.38" (848 mm)

Product Width

21.13" (537 mm)

Product Depth

22.59" (574 mm)

SKU

00571130
