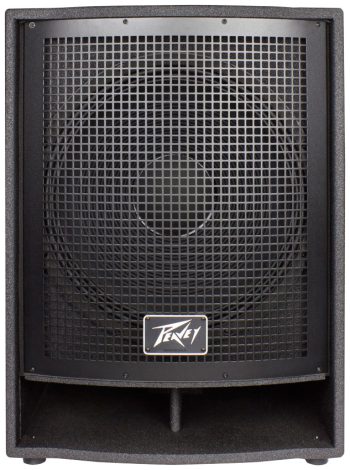

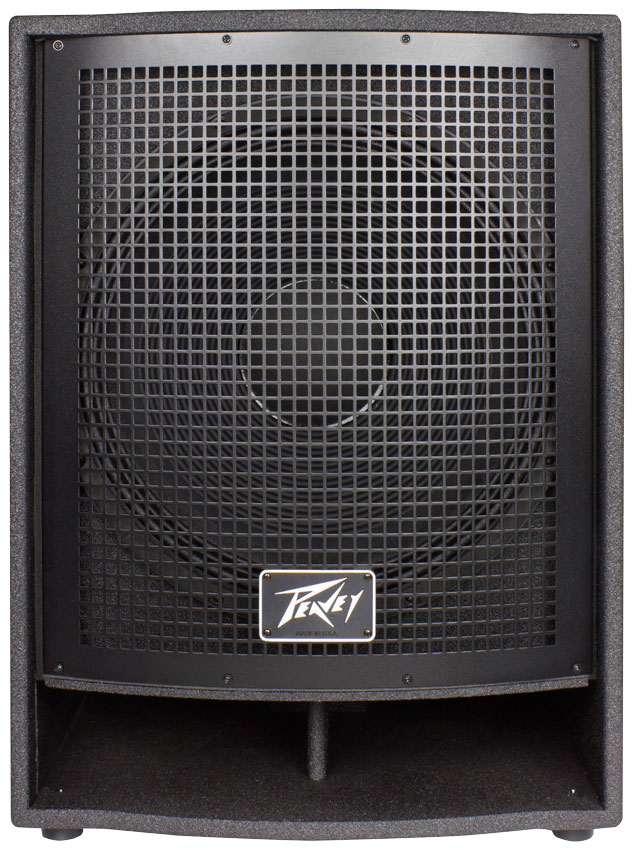

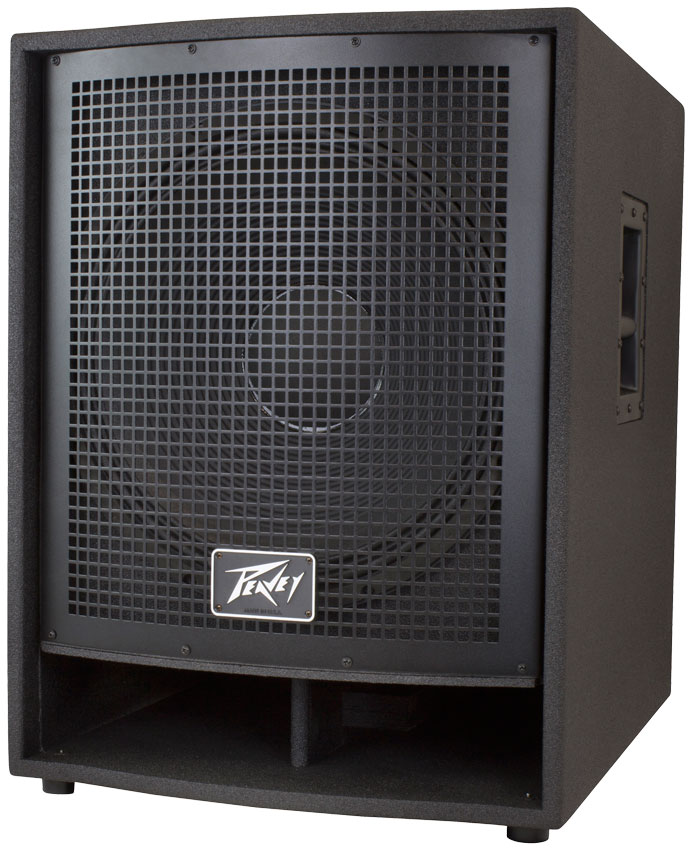

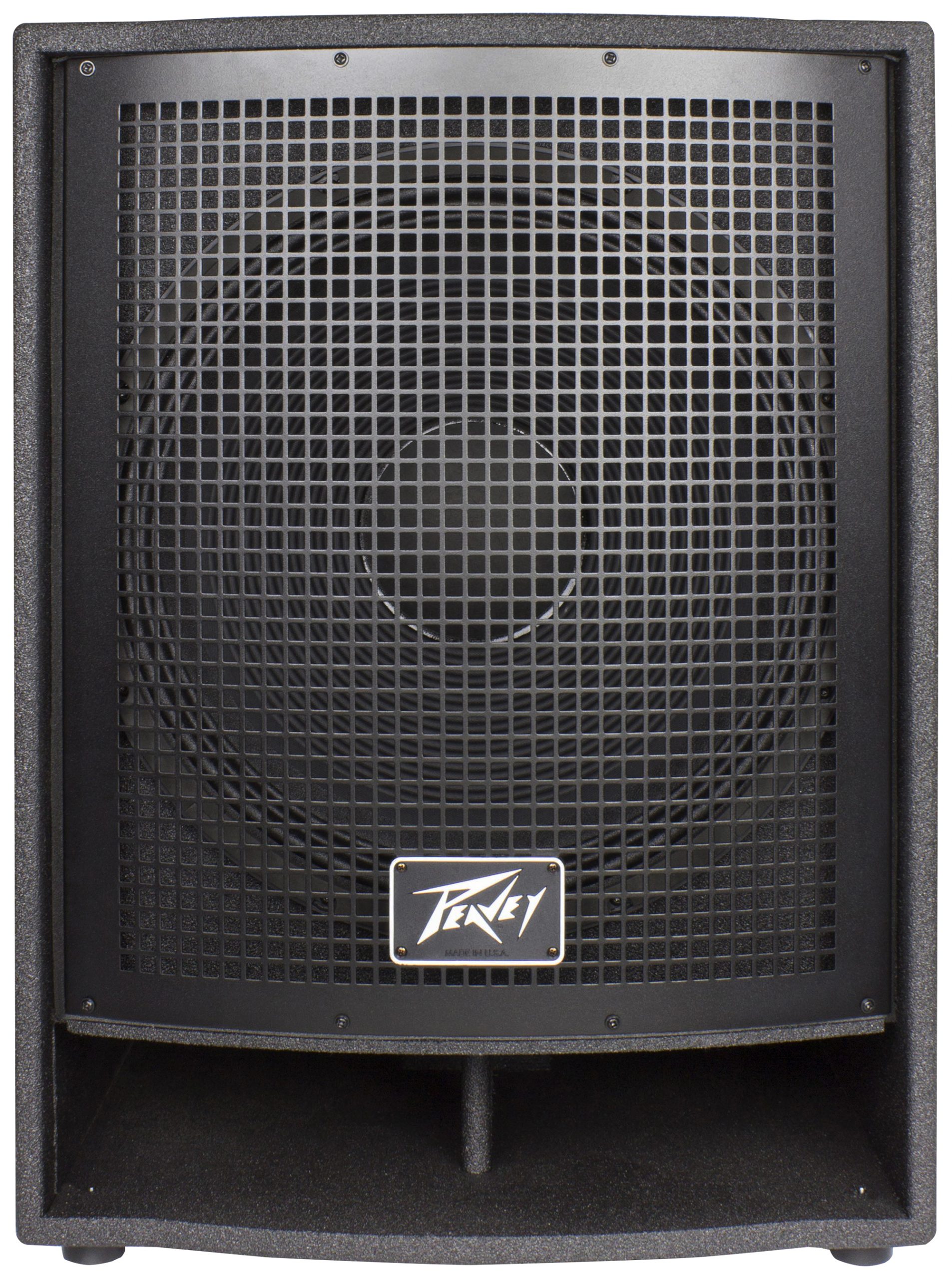

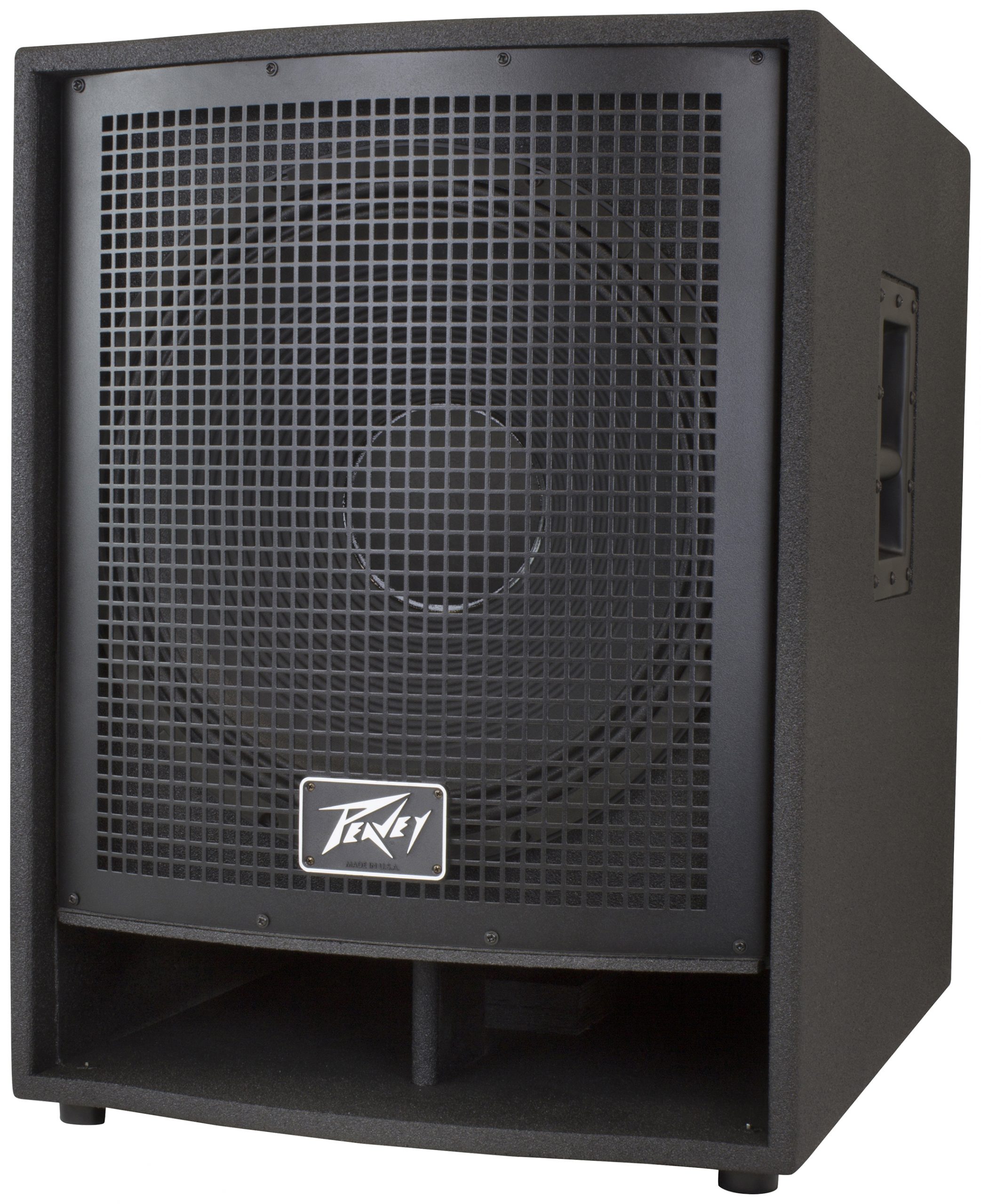

QW® 118 Subwoofer

18″ Subwoofer

Description

The QW® 118 incorporates one of the new extra-high power Low Rider™ 18″ woofers and a new compact cabinet design. The QW 118 is a direct radiator subwoofer designed specifically for the high-end pro audio user.

The new Low Rider 18″ driver is a milestone in high-power subwoofer design. An incredible 1600 Watts program rating and extra-long cone excursion come together to produce amazing new levels of clean, deep bass. This makes the QW 118 a superior choice for the bottom end of any high powered sound system.

The QW 118 is unusually compact for its power handling, SPL output, distortion performance and bass extension. This is made possible by special characteristics designed into the Low Rider woofer.

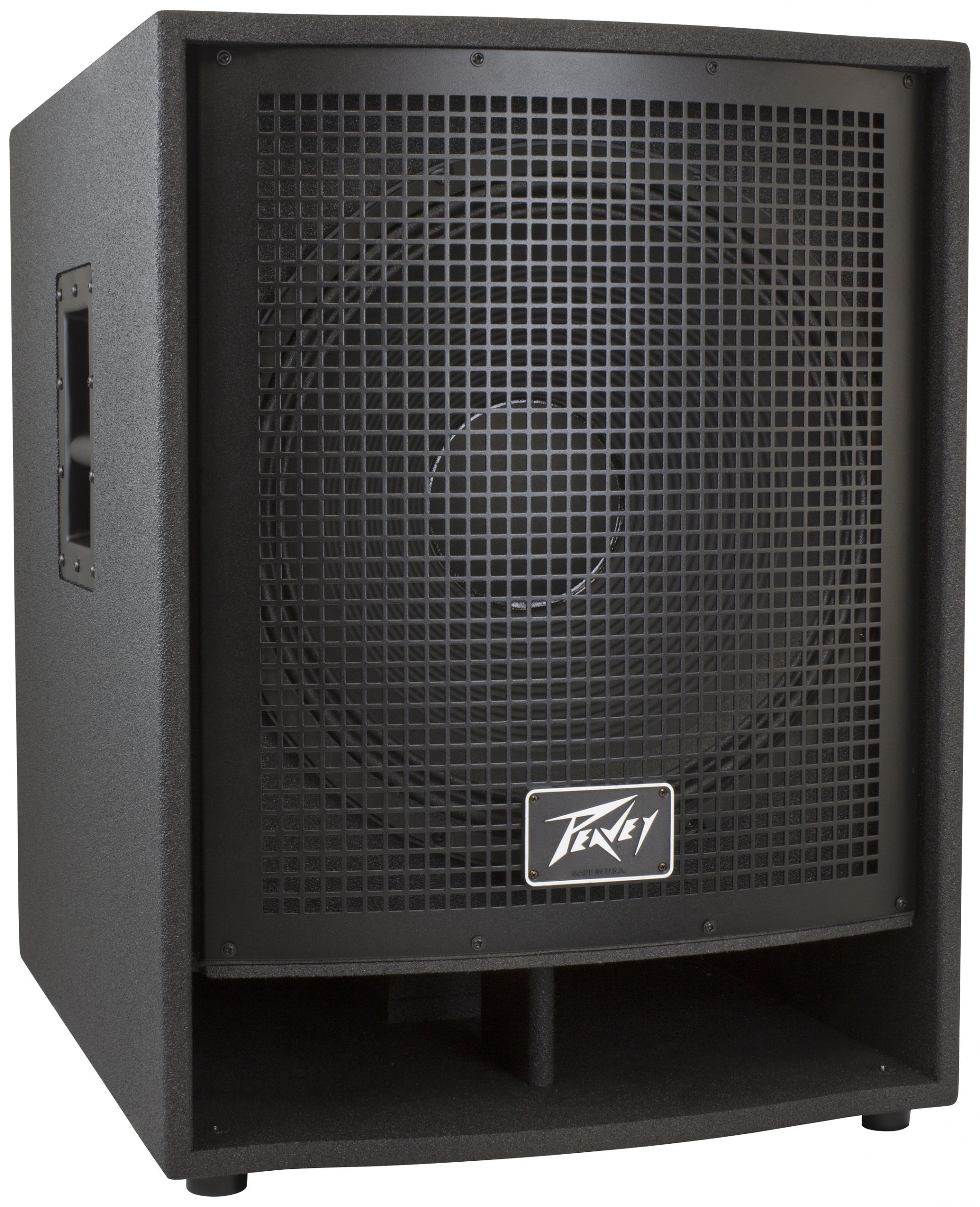

The QW 118 is well braced and very stiff, as internal pressures produced by the Low Rider woofer can be very high. The vent design integrated into the enclosure includes a vertical brace to further increase enclosure stiffness.

The QW 118 vent’s large area and long path length allow for a large volume of air to move with very low resistance. This is important due to the massive air flow volumes that the Low Rider woofer can produce.

Features QW 118

• Peavey Low Rider 18″ Subwoofer

• 1600 Watts of program power

• Extreme low frequency response down to 30 Hz (half-space)

• Neutrik® Speakon® professional input connectors

• Very compact design

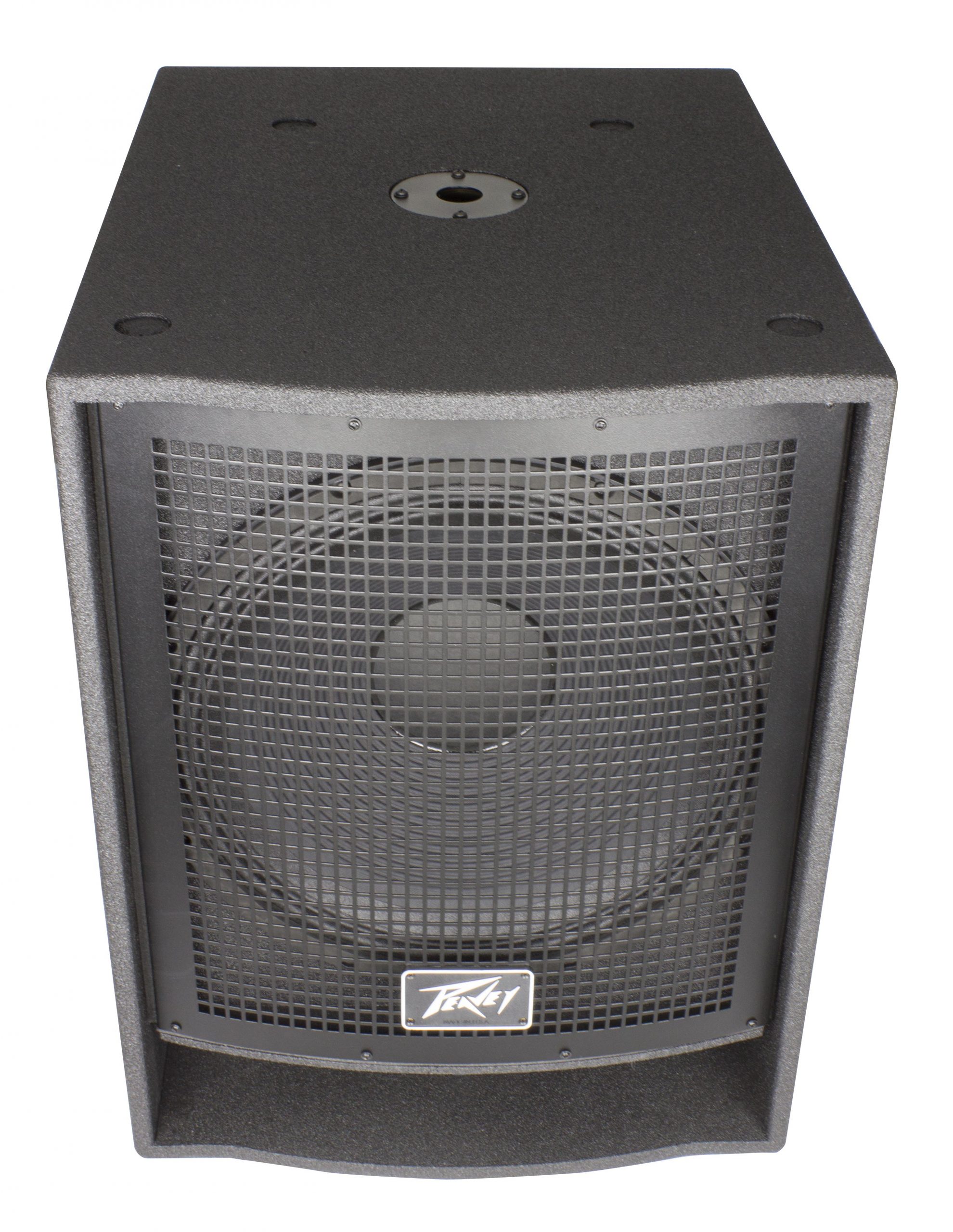

• Speaker stand mount built in

• Black Hammer-Head™ Polyurethane coating

Additional information

Speaker Configuration

Subwoofer

Speaker Type

Non-Powered

Power RMS

800 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

97 dB

Maximum SPL

132 dB

Speaker Frequency Response

47 Hz – 1.5 kHz (±3 dB)

LF Driver

18" Low Rider® Woofer, 4" Voice Coil

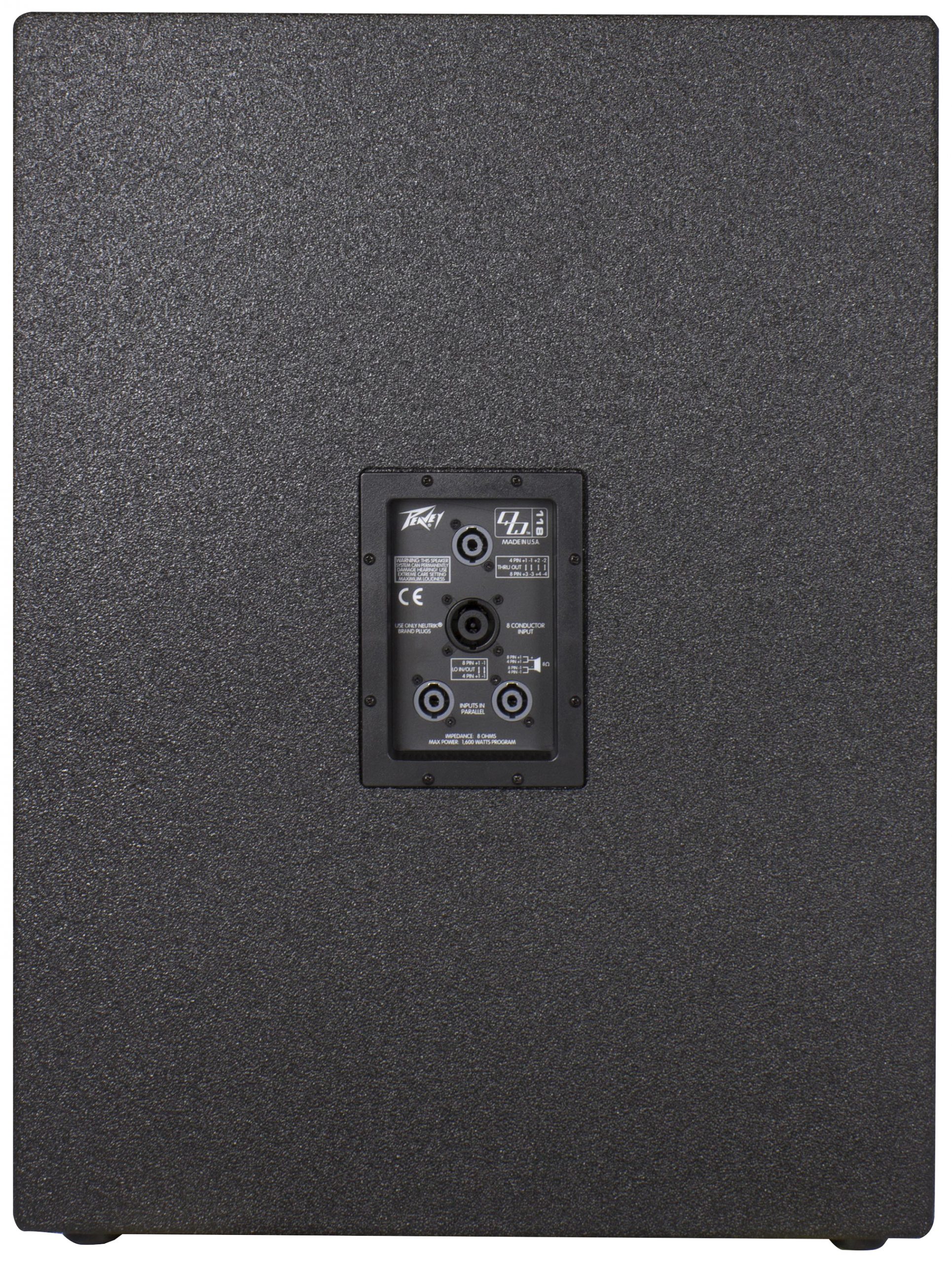

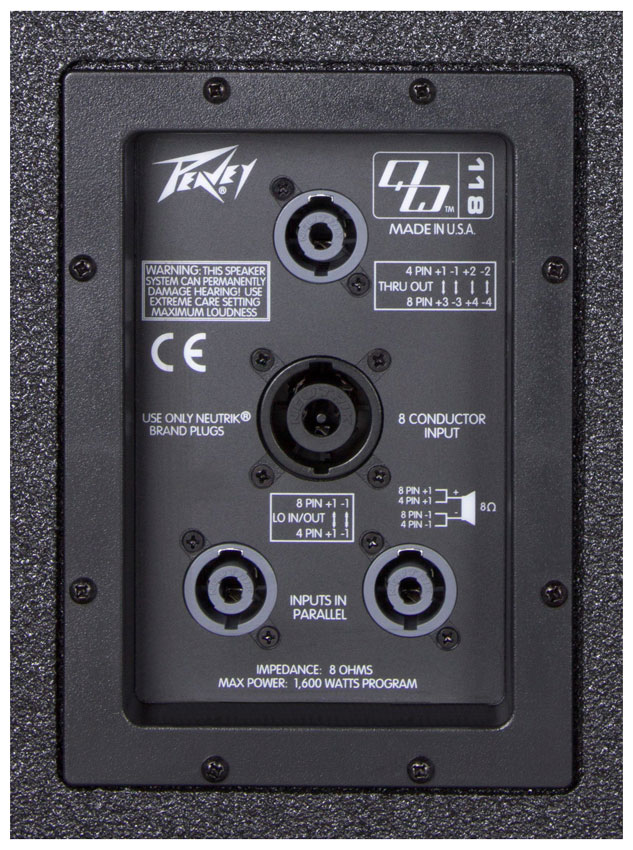

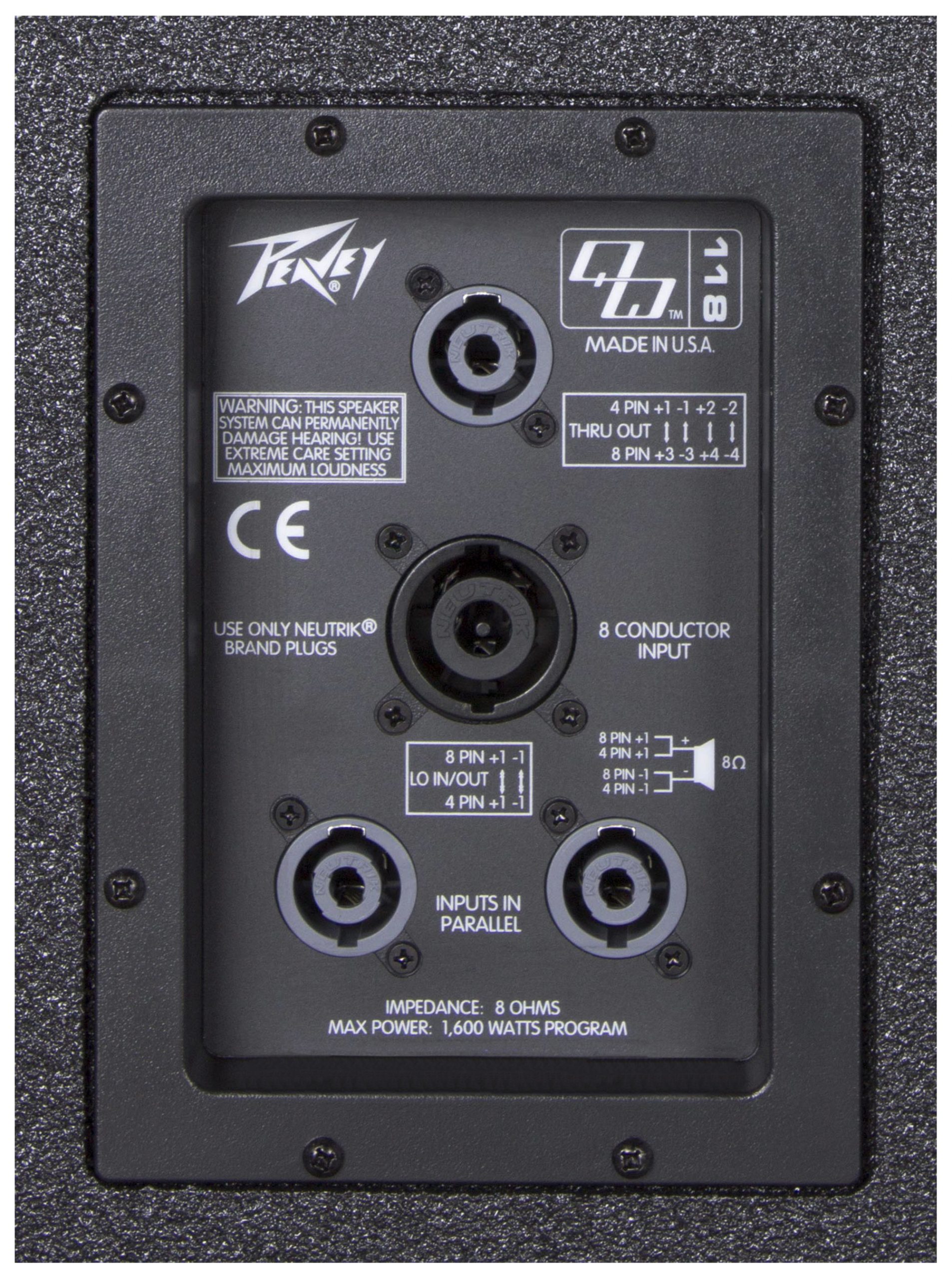

Input Connectors

2 x Neutrik® Speakon® NL4 & 1 x Neutrik Speakon NL8

Output Connectors

1 x Neutrik® Speakon® NL4

Pole Mount

Yes

Enclosure Material

Plywood

Color

Net Weight

85.0 lbs (38.70 kg)

Product Height

28.38" (721 mm)

Product Width

21.00" (533 mm)

Product Depth

26.75" (679 mm)

SKU

00571290
