Quadra™ 12 - Black

12″ Two-Way PA Speaker

Description

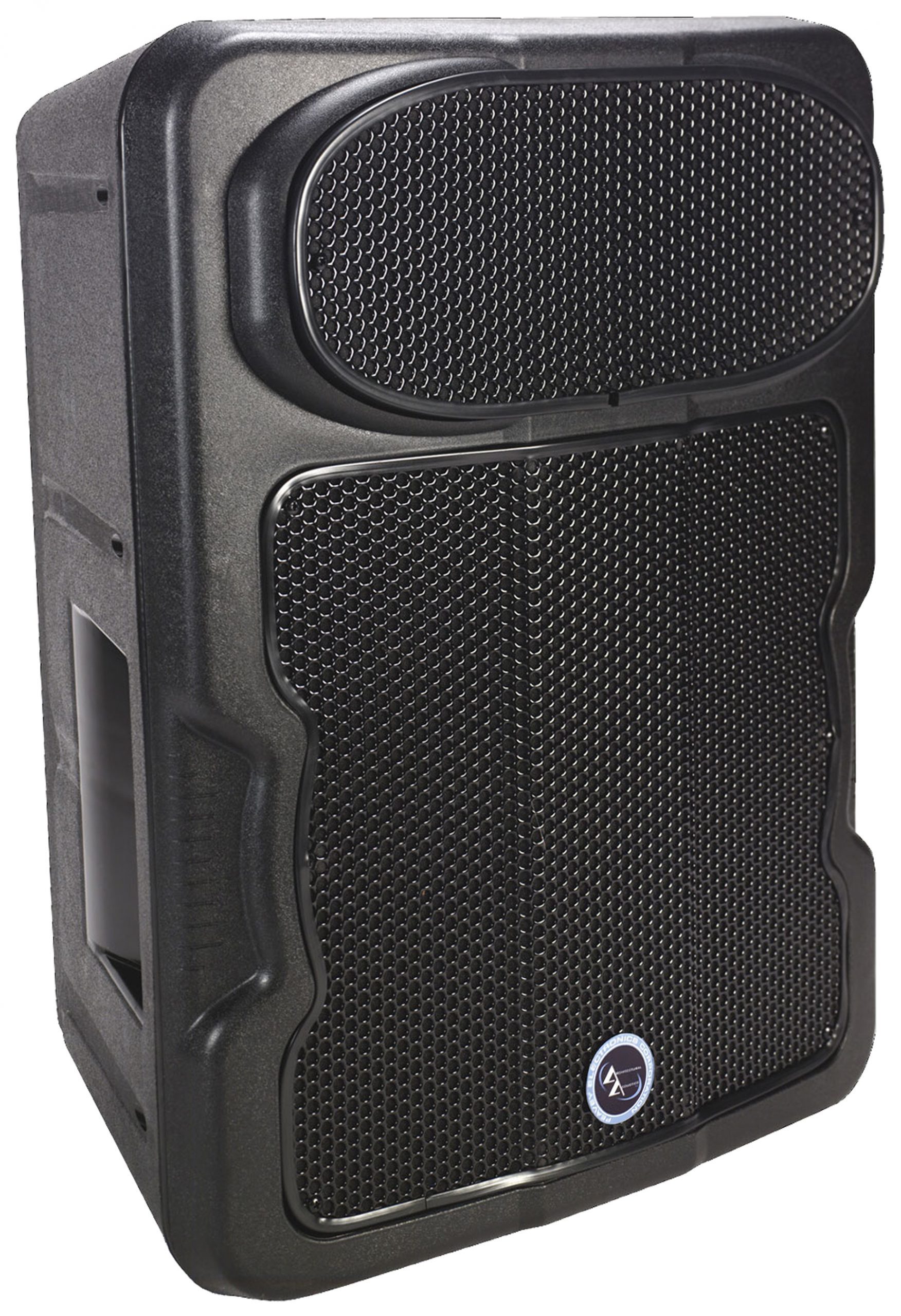

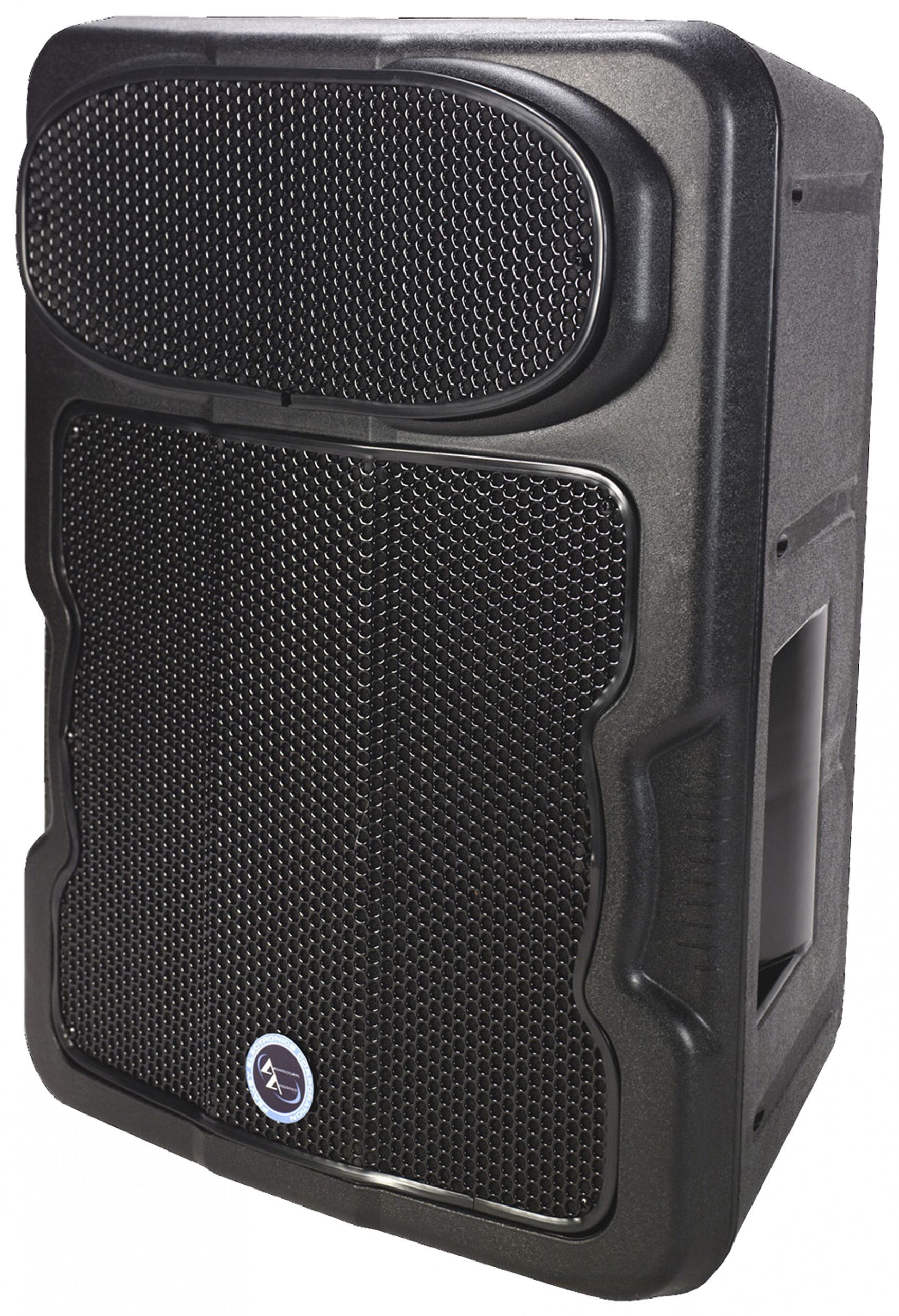

The Quadra™ 12 is an injection-molded, two-way speaker system, engineered in the Peavey tradition to provide superior performance from a compact and durable package. The enclosure is made from very high impact injection-molded polypropylene in a trapezoidal shape, with extensive ribbing and bracing, and the grilles utilize perforated metal protected by a high quality vinyl coating process, and has an integral foam inner layer for environmental protection. The two-way system is comprised of a 12″ BWX Black Widow® woofer with a 4″ voice coil, and a water-resistant treated cone and dust cap for superior environmental stability. The high frequencies are handled by an RX™22 2″ titanium diaphragm compression driver utilizing ferrofluid, coupled to a 1″ Quadratic Throat Geometry Horn, molded integral to the cabinet. This horn provides outstanding dispersion coupled with a well-controlled pattern, and a smooth, even response.

Features Quadra 12

• Quadratic Throat Geometry Horn

• Power Handling: 1000 Watts program /  2000 Watts peak

• SoundGuard™ III tweeter protection

• 12″ BWX Black Widow 4″ VC woofer

• RX22 2″ titanium compression driver

• Top, bottom and rear flying point inserts

• Multiple handles and bottom stand mount

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

Crossover Modes

Power RMS

500 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

99 dB

Maximum SPL

134 dB

Speaker Frequency Response

76 Hz – 18 kHz (±3 dB)

Coverage (H x V)

90° x 40°

HF Driver

RX™ 22 – 2" Titanium Diaphragma Compression Driver

LF Driver

12" Black Widow® 1208-8 SPS Woofer, 4" Voice Coil

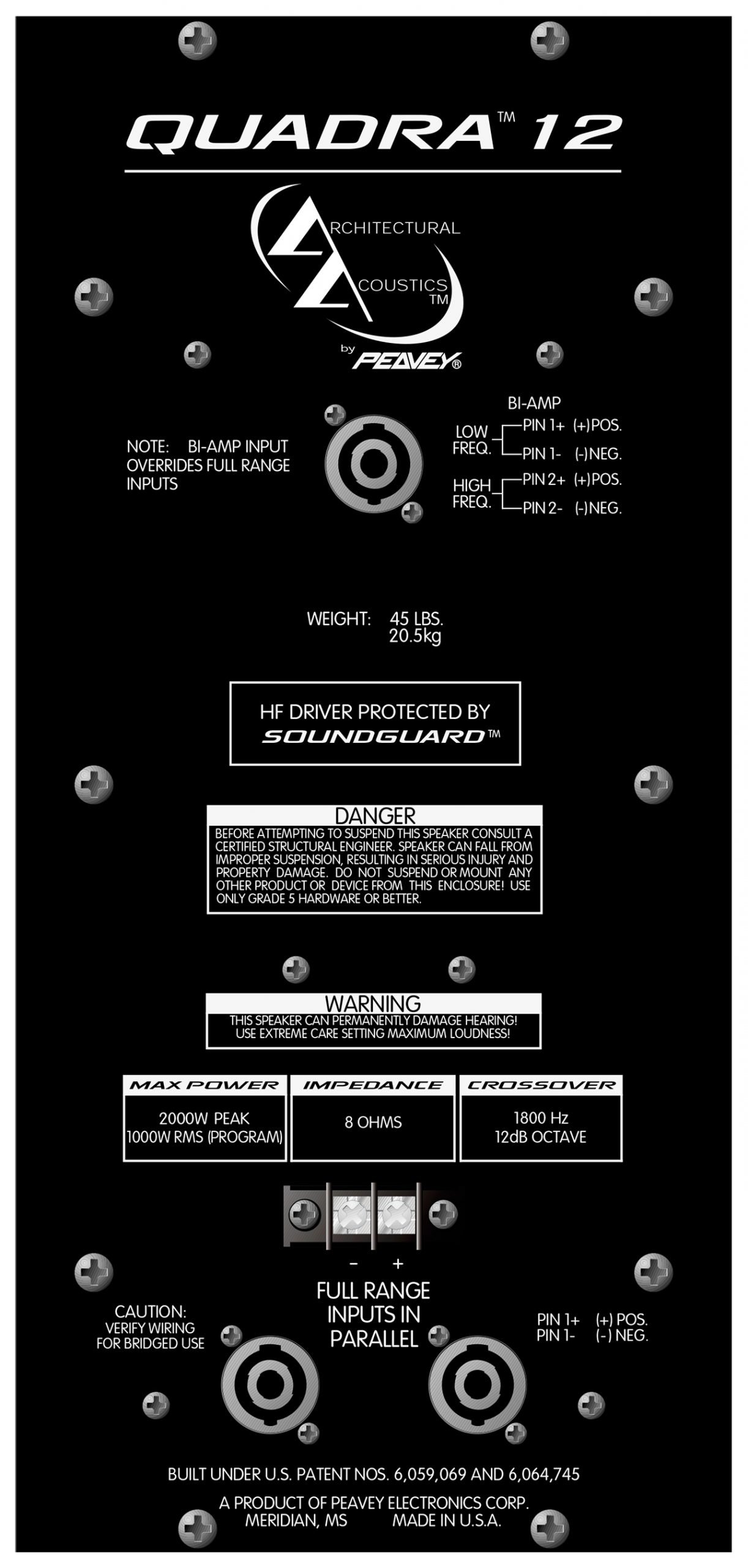

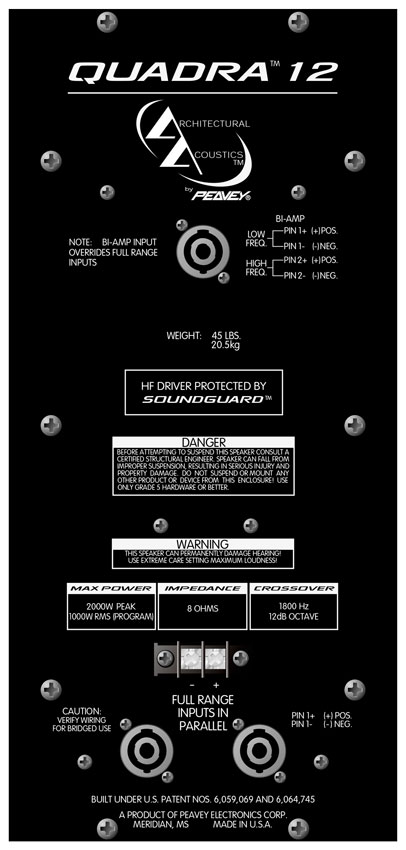

Input Connectors

3 x Neutrik® Speakon® NL4 & Srew Terminal

Suspension Points

12 x 1/4"

Pole Mount

Yes

Enclosure Material

Polypropylene

Color

Net Weight

45.0 lbs (20.50 kg)

Product Height

23.65" (601 mm)

Product Width

17.75" (451 mm)

Product Depth

14.00" (356 mm)

SKU

00479060
