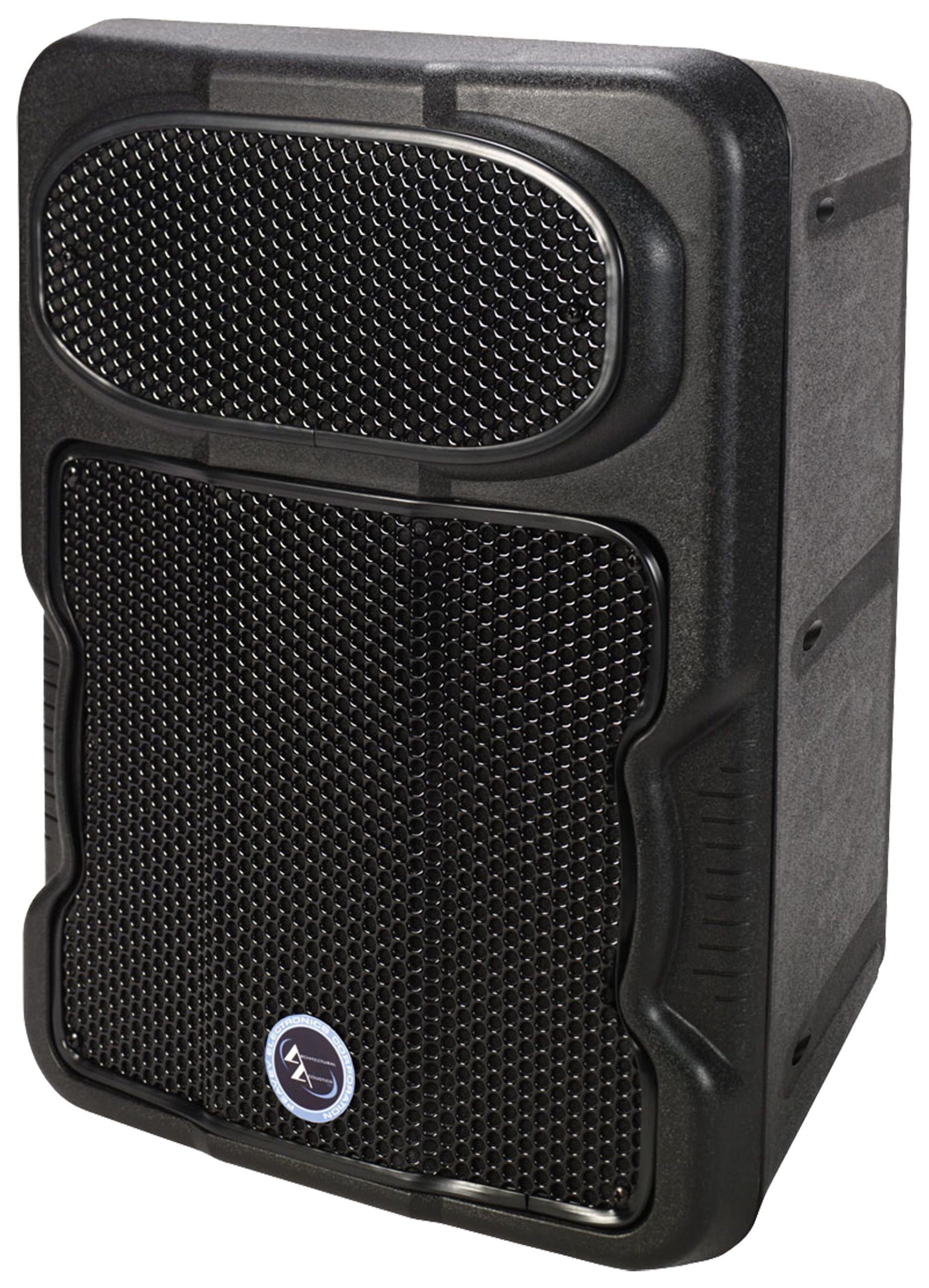

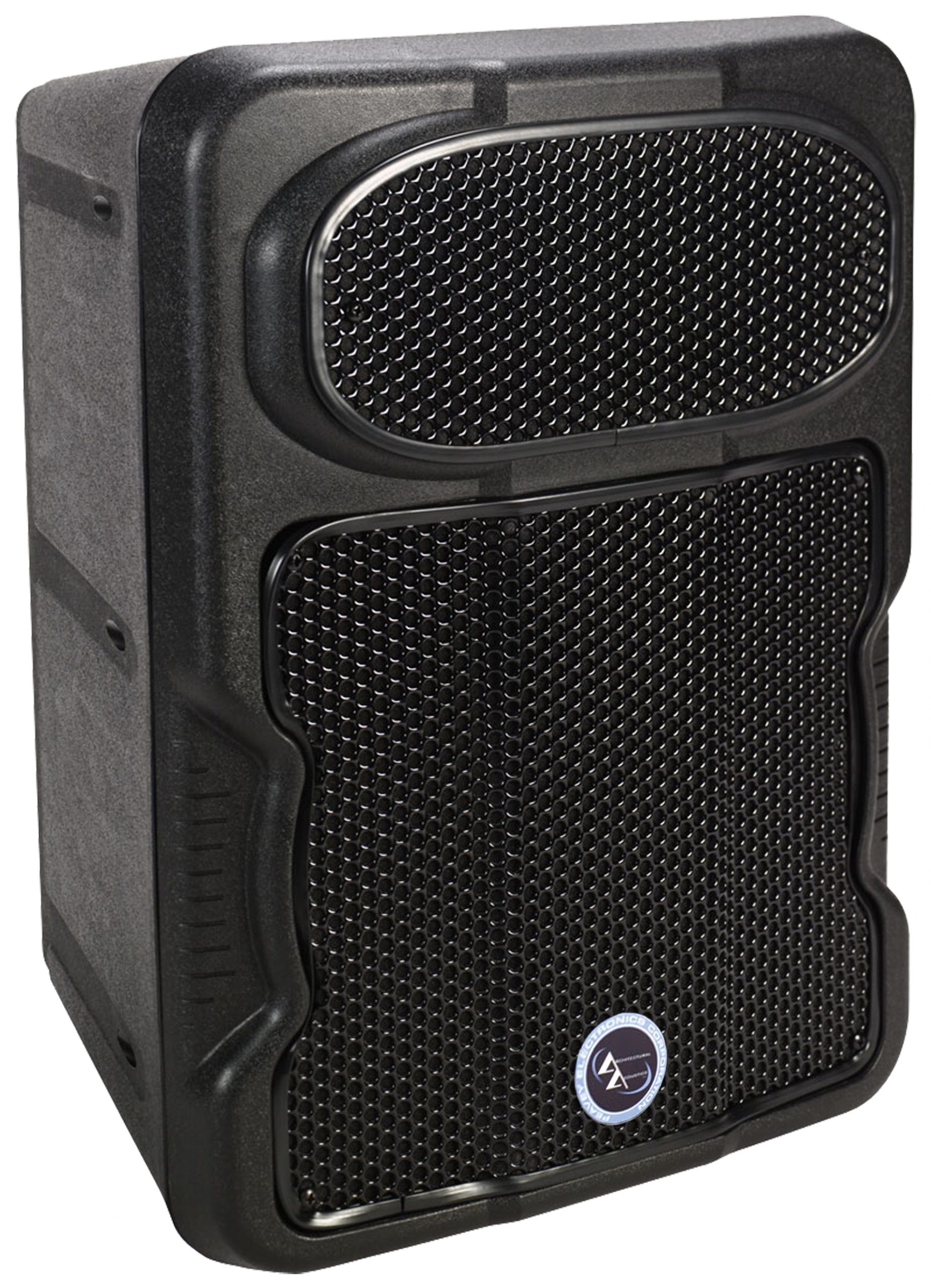

Quadra™ 10 - Black

10″ Two-Way PA Speaker


The Quadra™ 10 is an injection molded, two-way speaker system, engineered in the Peavey tradition to provide superior performance from a compact and durable package. The enclosure is made from very high impact, injection-molded polypropylene in a trapezoidal shape, with extensive ribbing and bracing, and the grills utilize perforated metal protected by a high quality vinyl coating process, and has an integral foam inner layer for environmental protection. The two-way system is comprised of a 10″ long throw heavy-duty woofer, and a water-resistant treated cone and dust cap for superior environmental stability. The high frequencies are handled by a 14XT™ 1.4″ titanium diaphragm compression driver, coupled to a 1″ Quadratic Throat Geometry horn, molded integral to the cabinet. This horn provides outstanding dispersion coupled with a well-controlled pattern, and a smooth, even response.

Features Quadra 10

• Quadratic Throat Geometry horn

• Power Handling: 500 Watts program /  1000 Watts peak

• Sound Guard™ II tweeter protection

• 10″ long throw heavy-duty woofer

• 14XT 1.4″ titanium compression driver

• Top handle and bottom stand mount

• Top, rear and bottom flying point inserts

Additional information

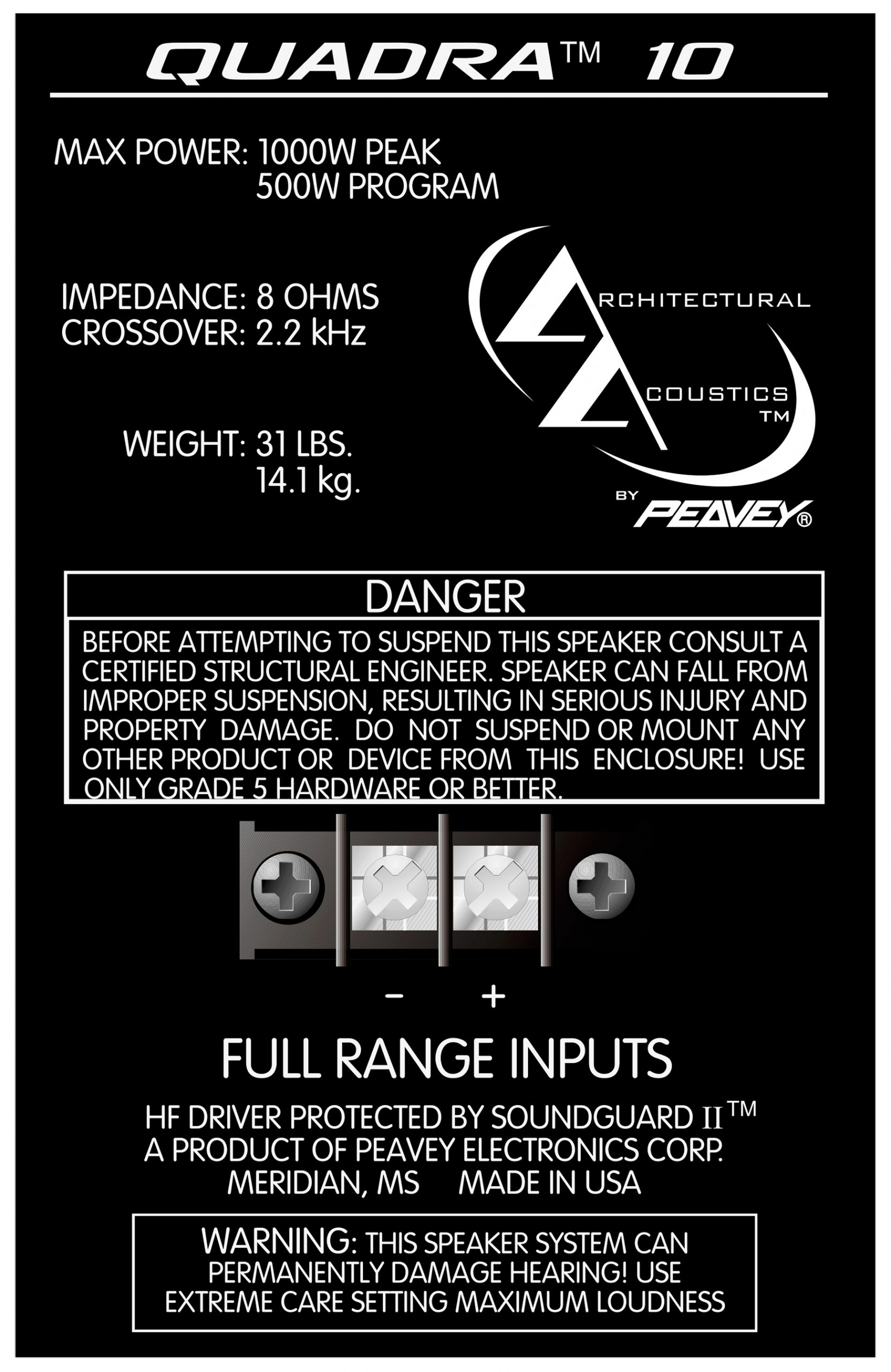

Input Connectors

Srew Terminal

Speaker Configuration

Full Range 2-way

Speaker Type


Power RMS

250 W

Power Program

Power Peak

Sensitivity (1W/1m)

96 dB

Maximum SPL

126 dB

LF Driver

10" Woofer

HF Driver

14XT™ – 1" Titanium Diaphragma Compression Driver

Coverage (H x V)

90° x 40°

Speaker Frequency Response

74 Hz – 18 kHz (±3 dB)

Nominal Impedance

8 Ω

Suspension Points

12 x 1/4"

Pole Mount


Enclosure Material



Net Weight

31.0 lbs (14.10 kg)

Product Height

18.75" (486 mm)

Product Width

14.00" (356 mm)

Product Depth

13.19" (335 mm)
