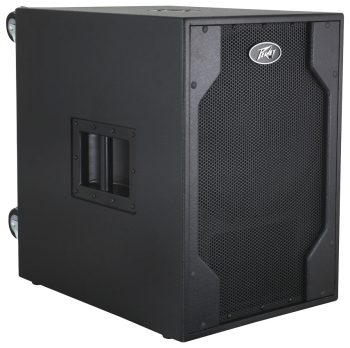

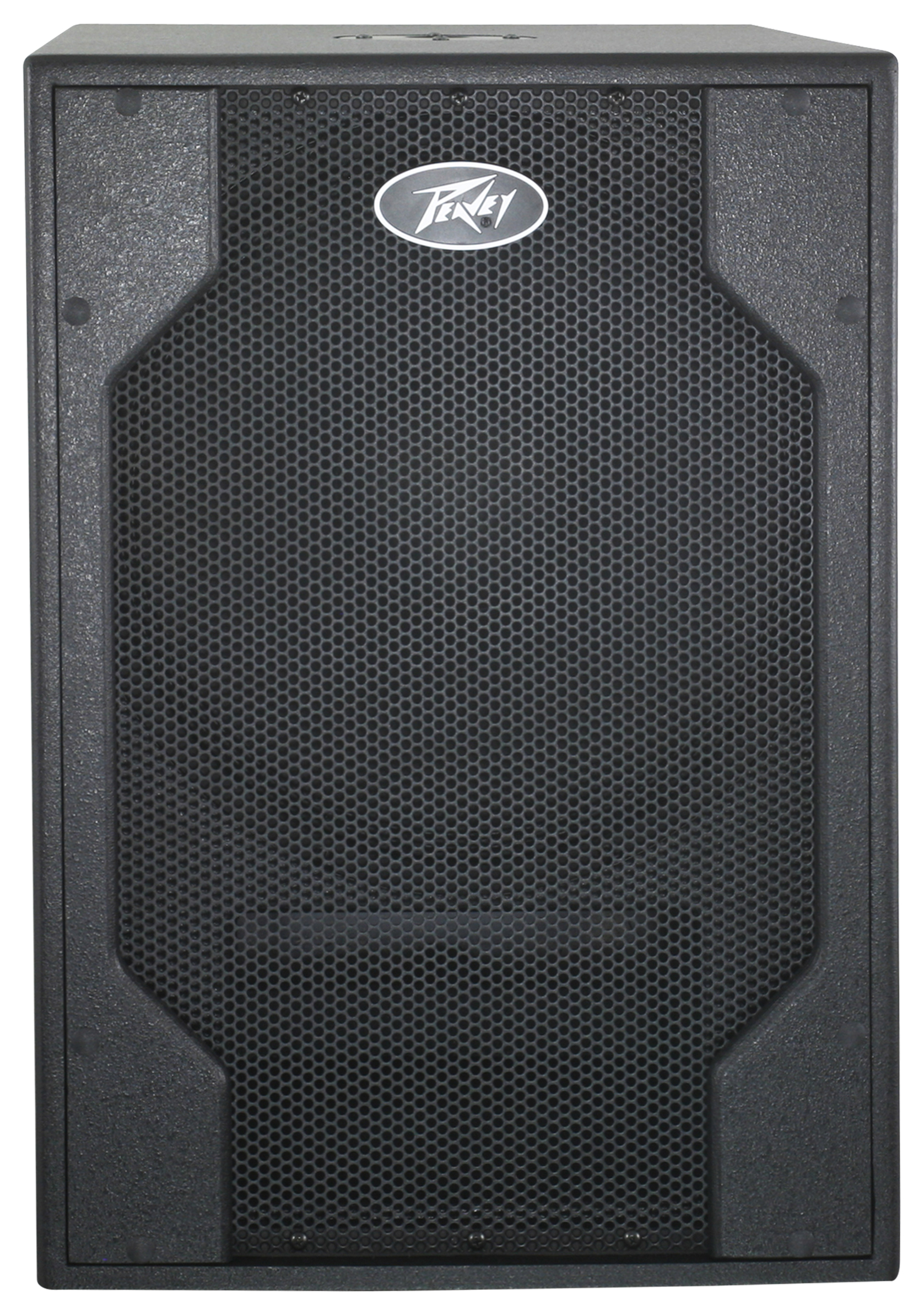

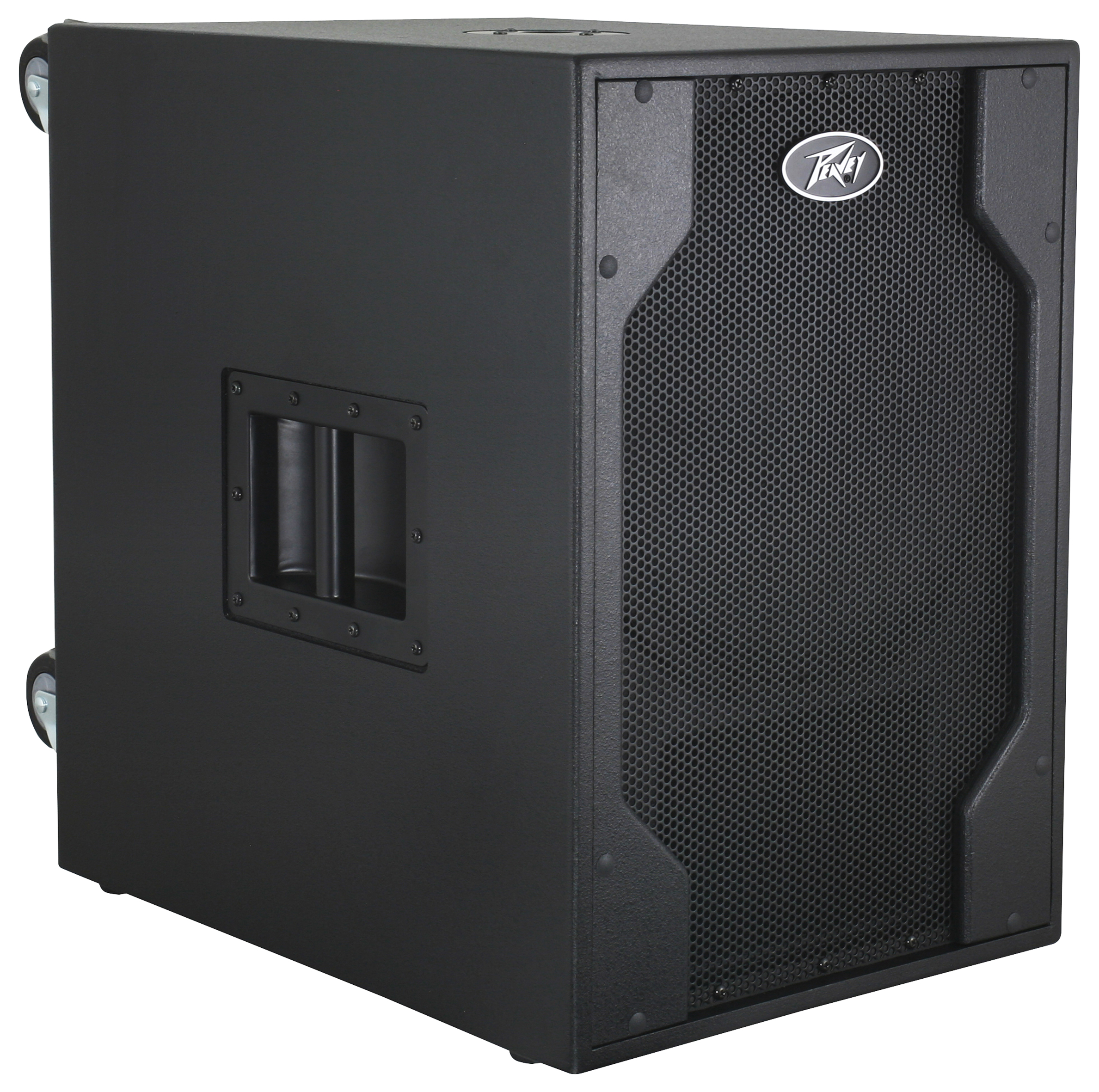

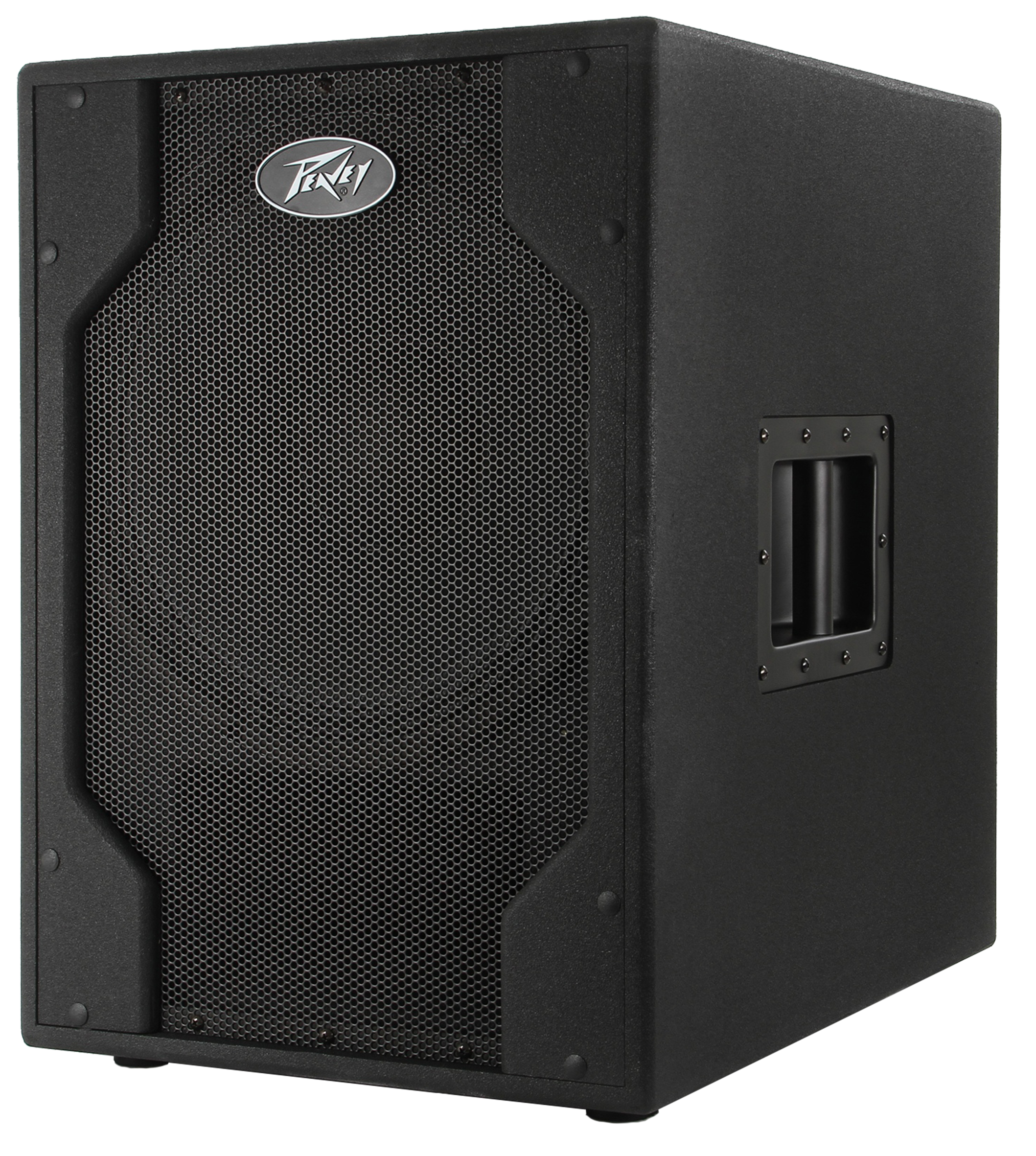

PVX™p Sub

15″ Powered Subwoofer

Description

Peavey Electronics® set the standard for affordable, feature-packed powered P.A. solutions more than four decades ago. The new Peavey PVX™ Series of active and passive loudspeakers are the culmination of decades of R&D and experience building the best portable, all-in-one audio solutions–bringing legendary Peavey performance and reliability to audio pros and musicians of all levels.

Continuing the PVX Series, the PVXp™ Sub from Peavey features an ultra-reliable power section that provides a total of 800 Watts of peak available power with DDT™ compression. This powered enclosure also features a 15″ heavy-duty woofer with a 3″ voice coil. The PVXp Sub provides a balanced input via a combination jack that accepts balanced TRS 1/4″ input as well as a balanced XLR input. There are two balanced thru high pass XLR outputs, and a Full-Range XLR output. There is an adjustable Level control, as well as a combination LED indicator, that illuminates when power is on and when the “soft-limiting” DDT™ circuit is activated.

Peavey PVXp Sub is housed in a durable enclosure that includes a pole mount for additional PVX speakers, a black powder-coated steel grille provides driver protection and a clean, professional appearance.

Features PVXp Sub

• 15″ heavy-duty woofer

• Internal line level low-pass/high-pass crossover network

• Fully adjustable KOSMOS® C for increased bass impact

• XLR/one quarter inch combo jack input

• Power amp has forced air cooling for maximum reliability

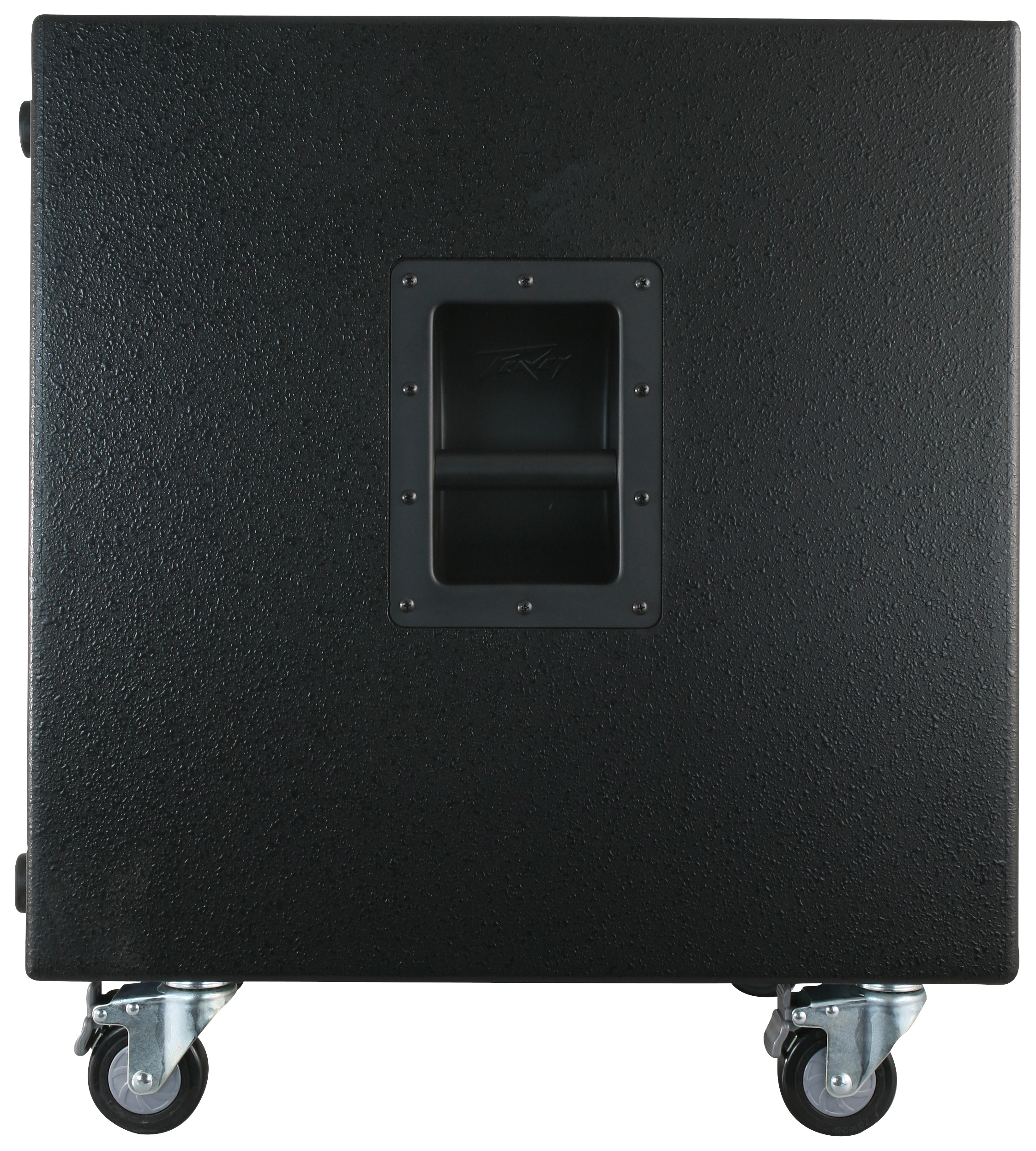

• Large heavy-duty locking casters

• Perforated steel grill

• Steel handles

• T-nut woofer mounting

• Rugged dado and rabbet construction plus internal braces for lightweight yet strong cabinet

• 850 Watts peak available power

• Compact dimensions for a 15″ woofer based sub

• Threaded pole for top speaker mount

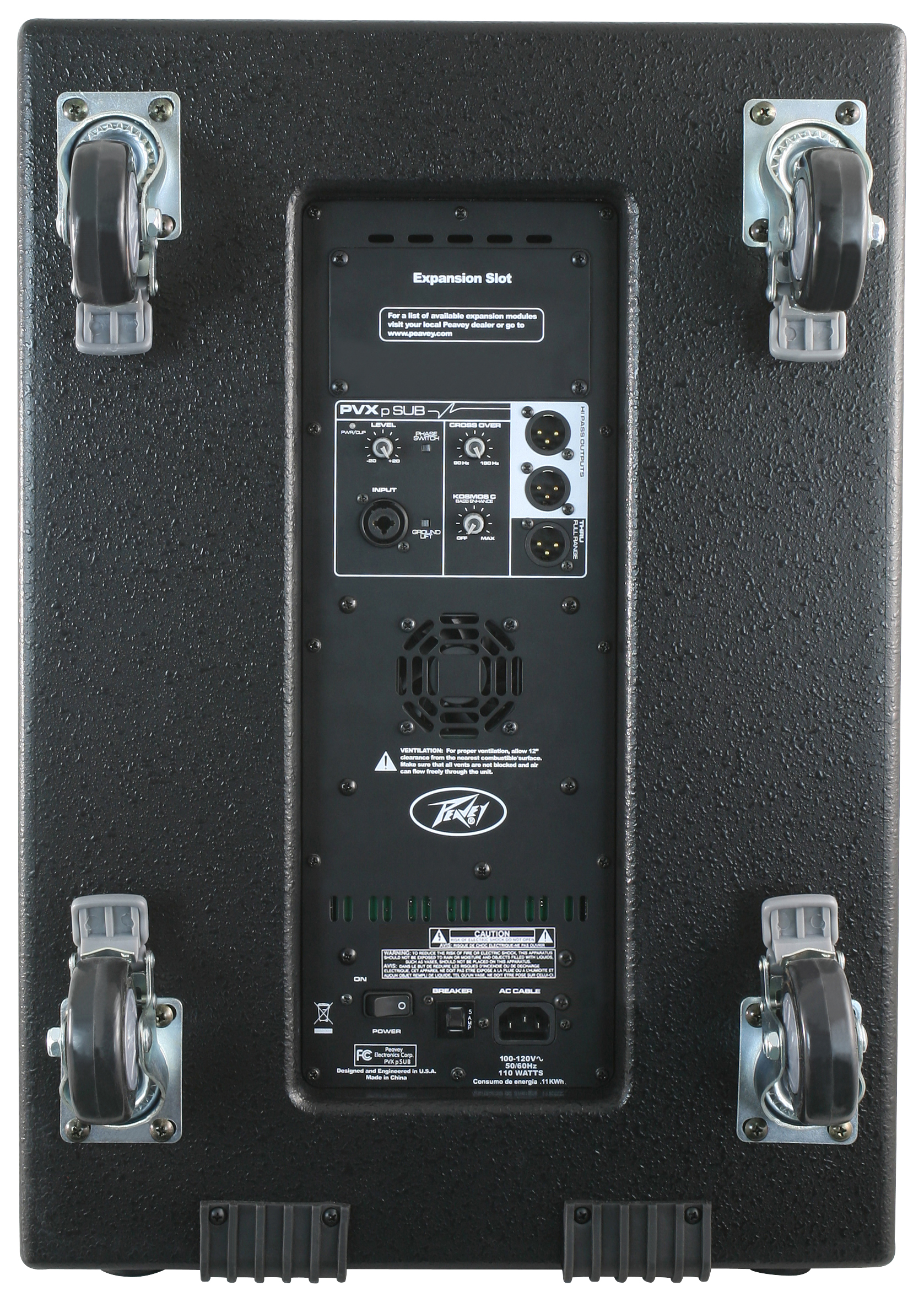

• Two high-pass XLR outputs, one full range thru XLR output

• Speaker pole included

Additional information

Speaker Configuration

Subwoofer

Speaker Type

Powered

Power Program

Power Peak

Sensitivity (1W/1m)

97 dB

Maximum SPL

127 dB

Speaker Frequency Response

48 Hz – 138 Hz (-6 dB)

LF Driver

15" Woofer, 3" Voice Coil

Input Connectors

1 x XLR-1/4" Combo

Output Connectors

3 x XLR

Pole Mount

Yes (M20)

Enclosure Material

MDF

Color

Net Weight

76.0 lbs (34.50 kg)

Product Height

24.25" (616 mm)

Product Width

16.75" (426 mm)

Product Depth

23.00" (584 mm)

AC Power Input

100-120VAC, 50-60 Hz & 220-240VAC, 50-60 Hz version available

SKU

03611330
