PVX™p 12 DSP

12″ Two-Way Powered PA Speaker

Description

The PVXp™ 12 DSP features a reliable bi-amped power section that provides a total of 830 Watts of peak available dynamic power. With that much available power, speaker protection is critical. Advanced digital signal compression prevents audible overload, protecting the speakers from harmful distortion at high output levels. This powered enclosure also includes heavy duty speaker drivers; it features a 12″ woofer with a 2-3/8″ voice coil and a 50 oz. magnet. This is coupled with the RX™ 14 compression driver that includes a 1.4″ titanium diaphragm on a 100° x 50° vertical pattern asymmetrical horn.

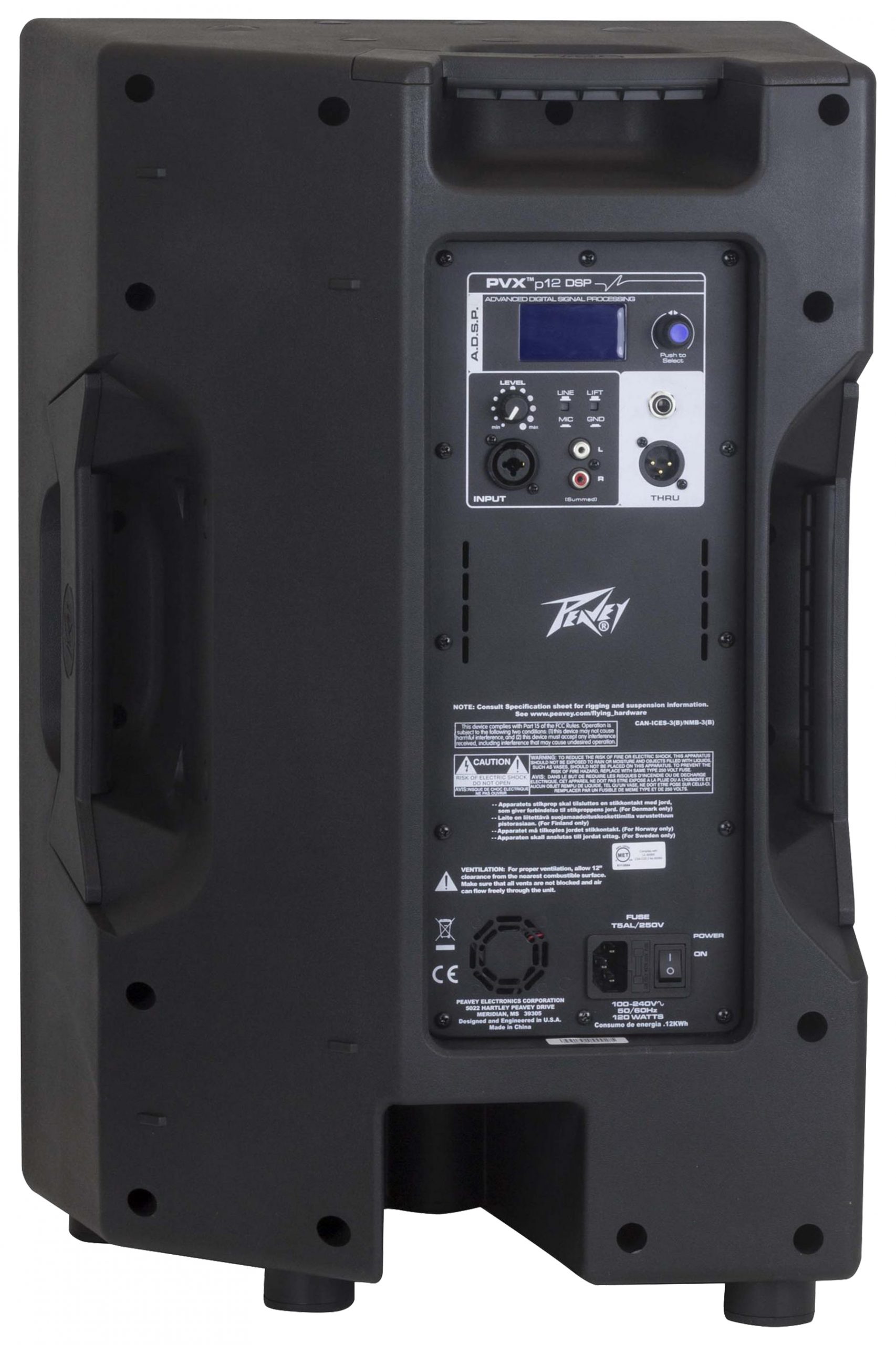

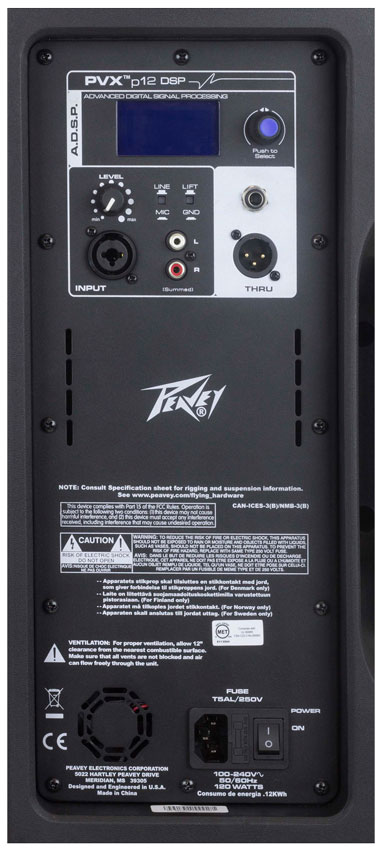

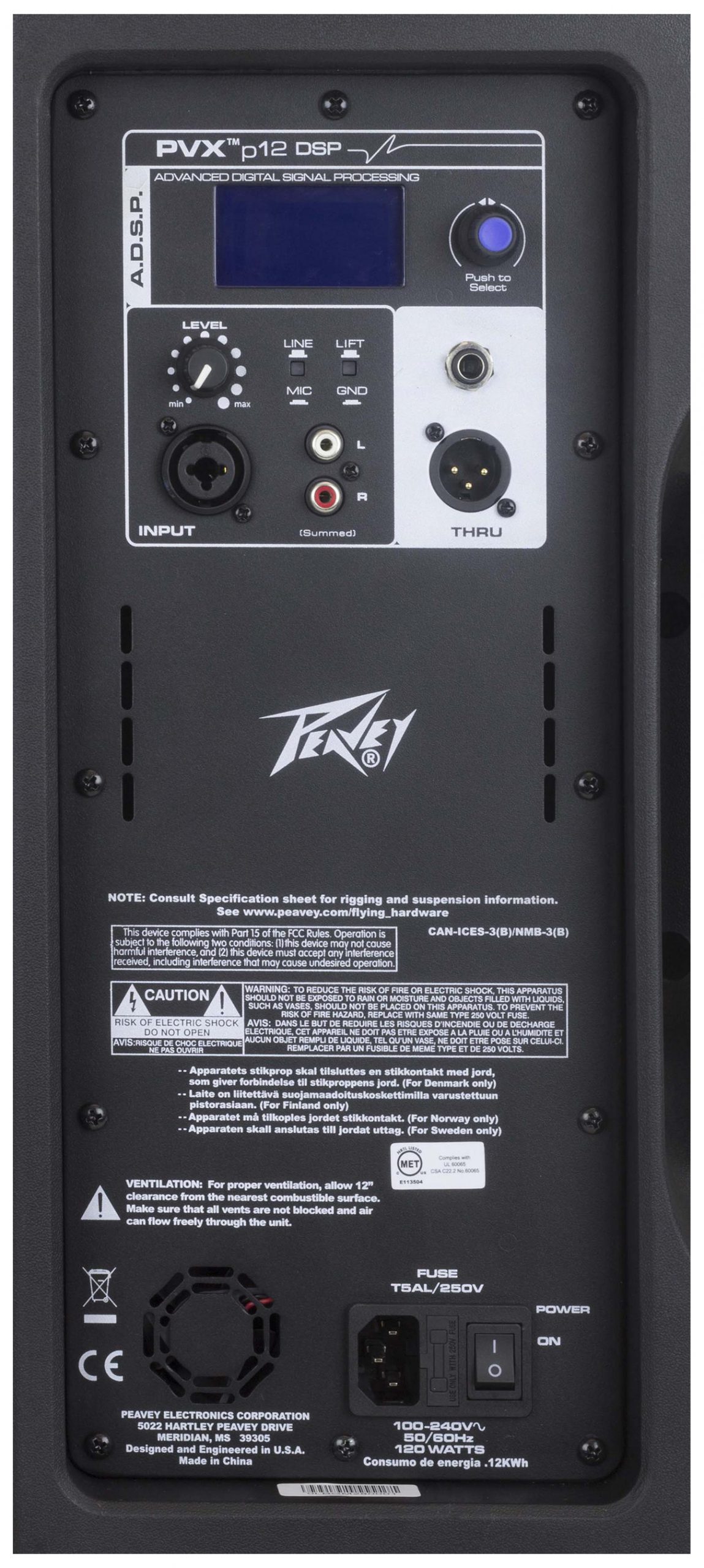

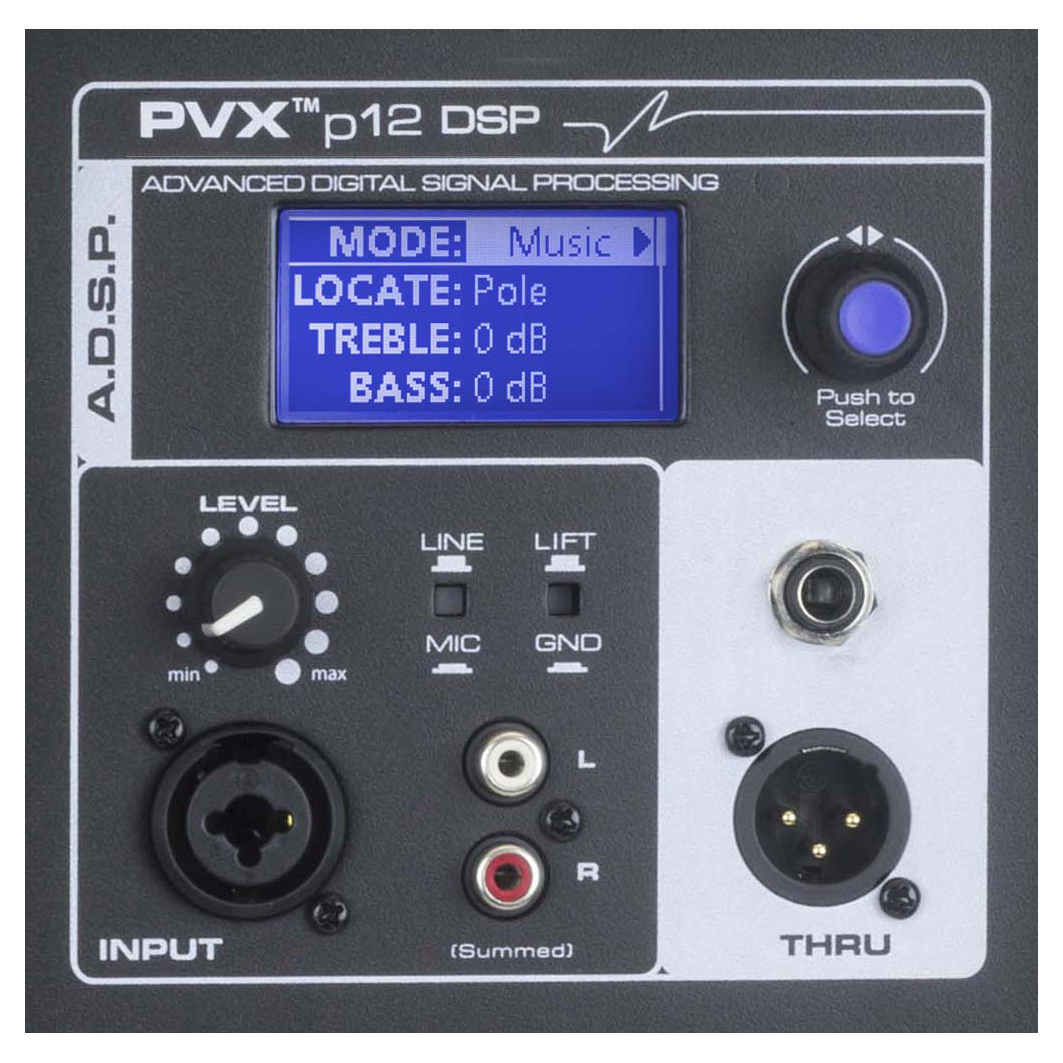

The PVXp 12 DSP provides a balanced input via a combination jack that accepts a balanced TRS 1/4″ input, as well as a balanced XLR input and summed RCA jacks. There are two balanced Thru outputs, a male XLR and a 1/4″ TRS. The LCD display and EQ presets, along with other operating parameters are accessed via a one-knob selector.

Features PVXp 12 DSP

• Two-way bi-amplified analog amp powered speaker system

• DSP I/O is at 48 kHz and 24-bit, with low-jitter, professional grade components

• Fan cooled for maximum reliability

• Peavey Exclusive Quadratic Throat Waveguide™ technology, 100° x 50° coverage

• DSP processing is 64-bit double-precision

• Input is via a combo female XLR and 1/4″ TRS phone jack with balanced input

• A Mic/Line switch provides for two different gain settings

• Thru output is via a male XLR jack and 1/4″ TRS phone jack

• Multiple Factory Preset EQ settings

• Rugged plastic injection-molded trapezoidal enclosure

• 630 Watts peak dynamic woofer power, 200 Watts peak dynamic tweeter power

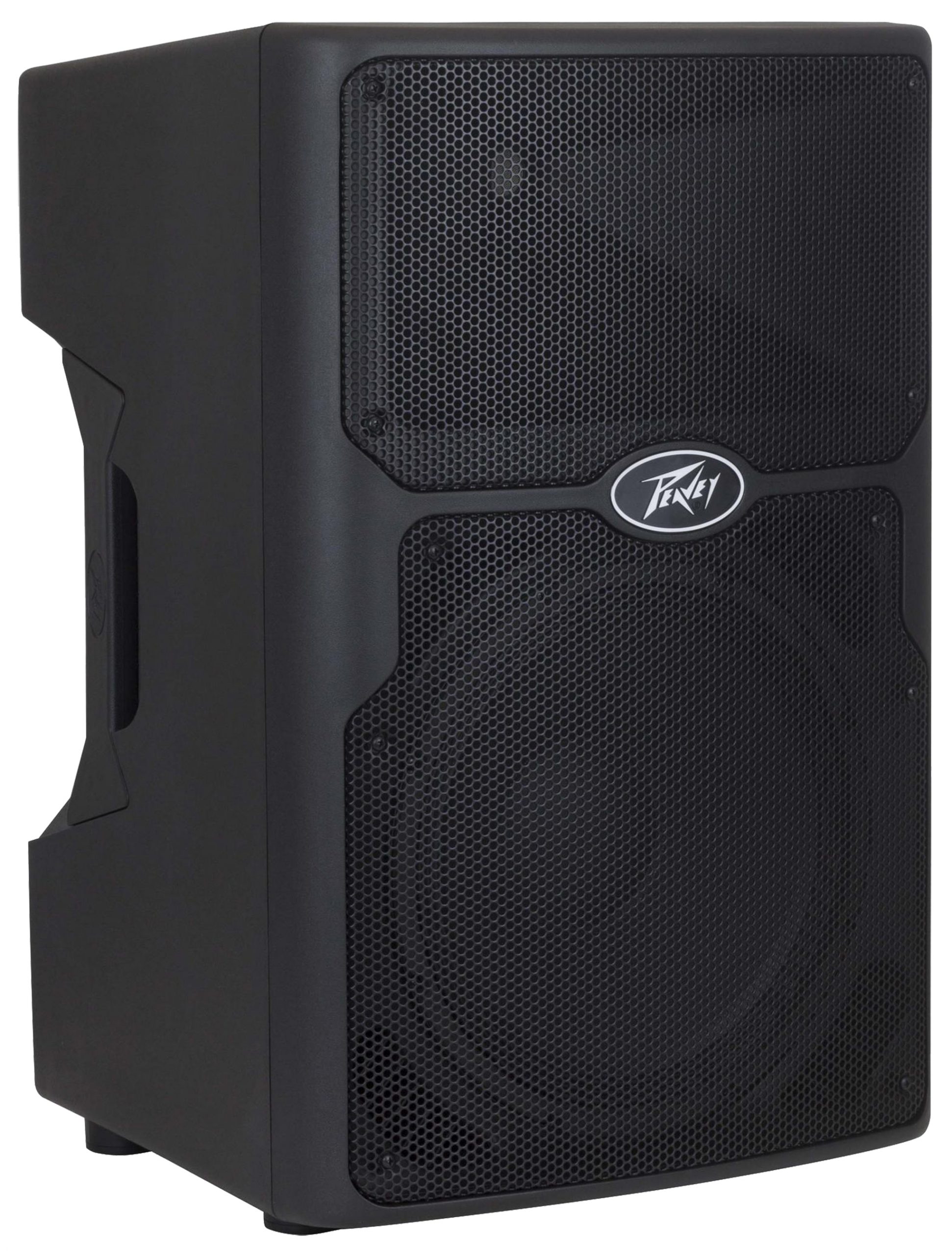

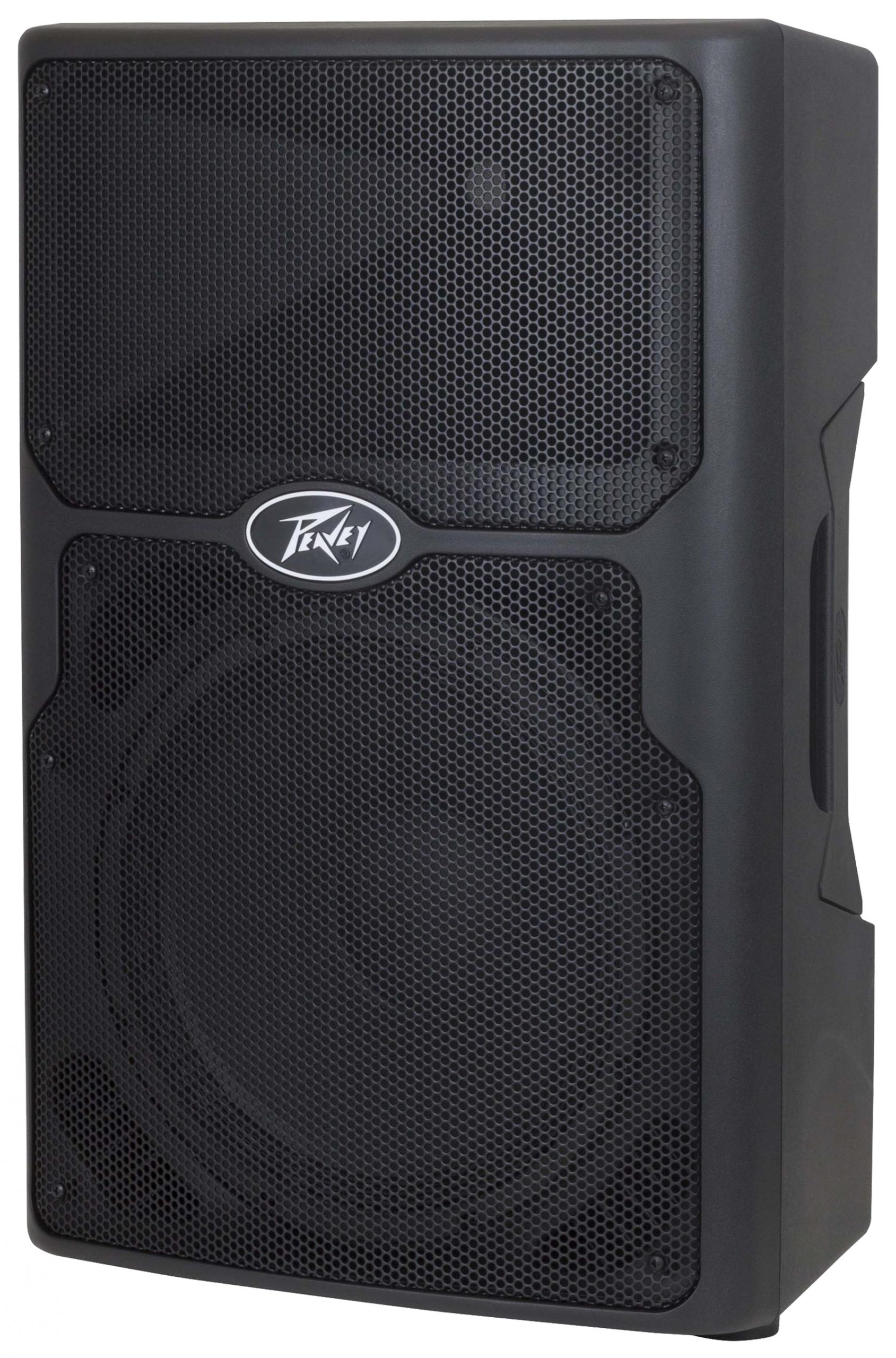

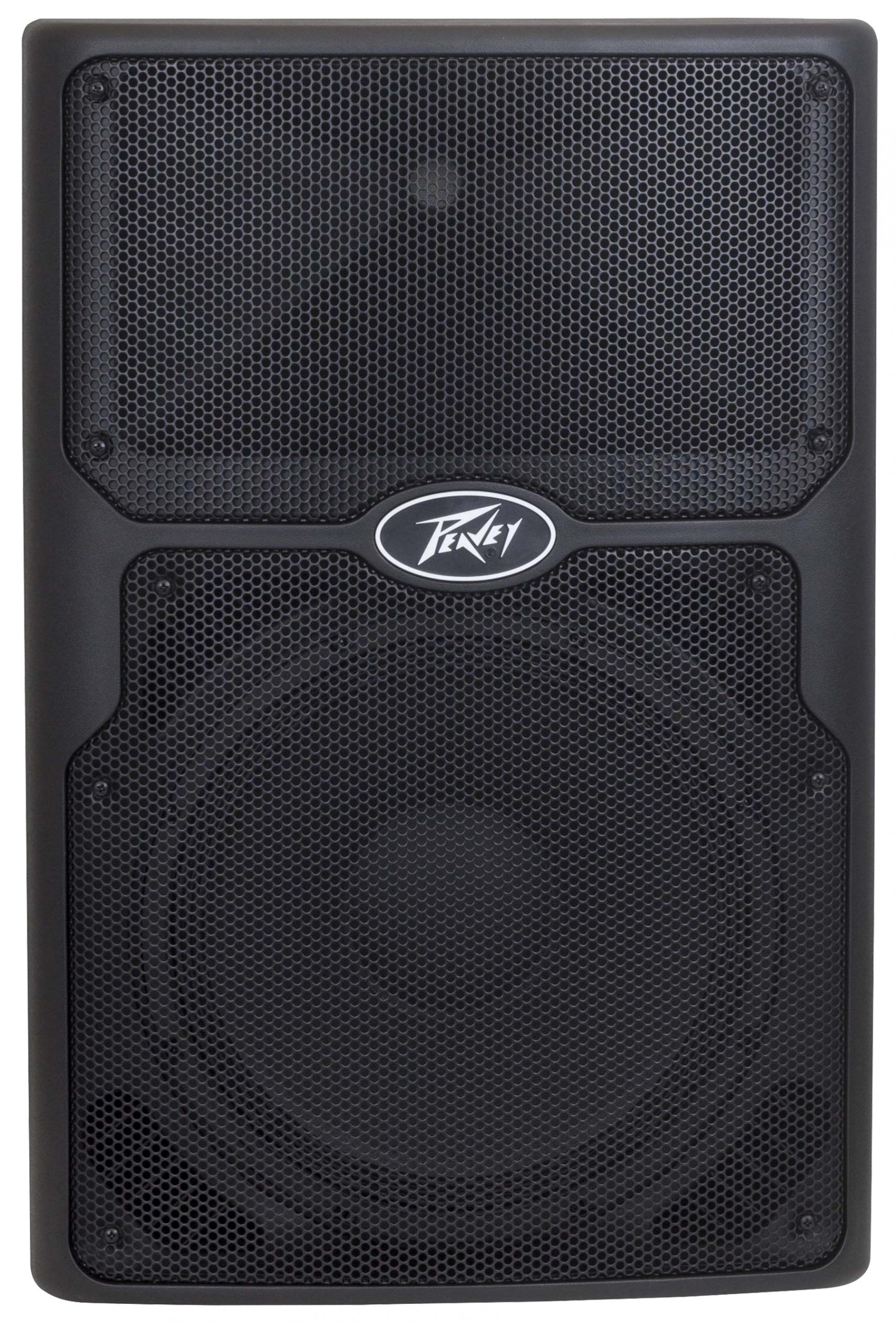

• Full-coverage perforated steel grille, with powder coat finish

• RX 14 compression driver, with 1.4 inch titanium diaphragm

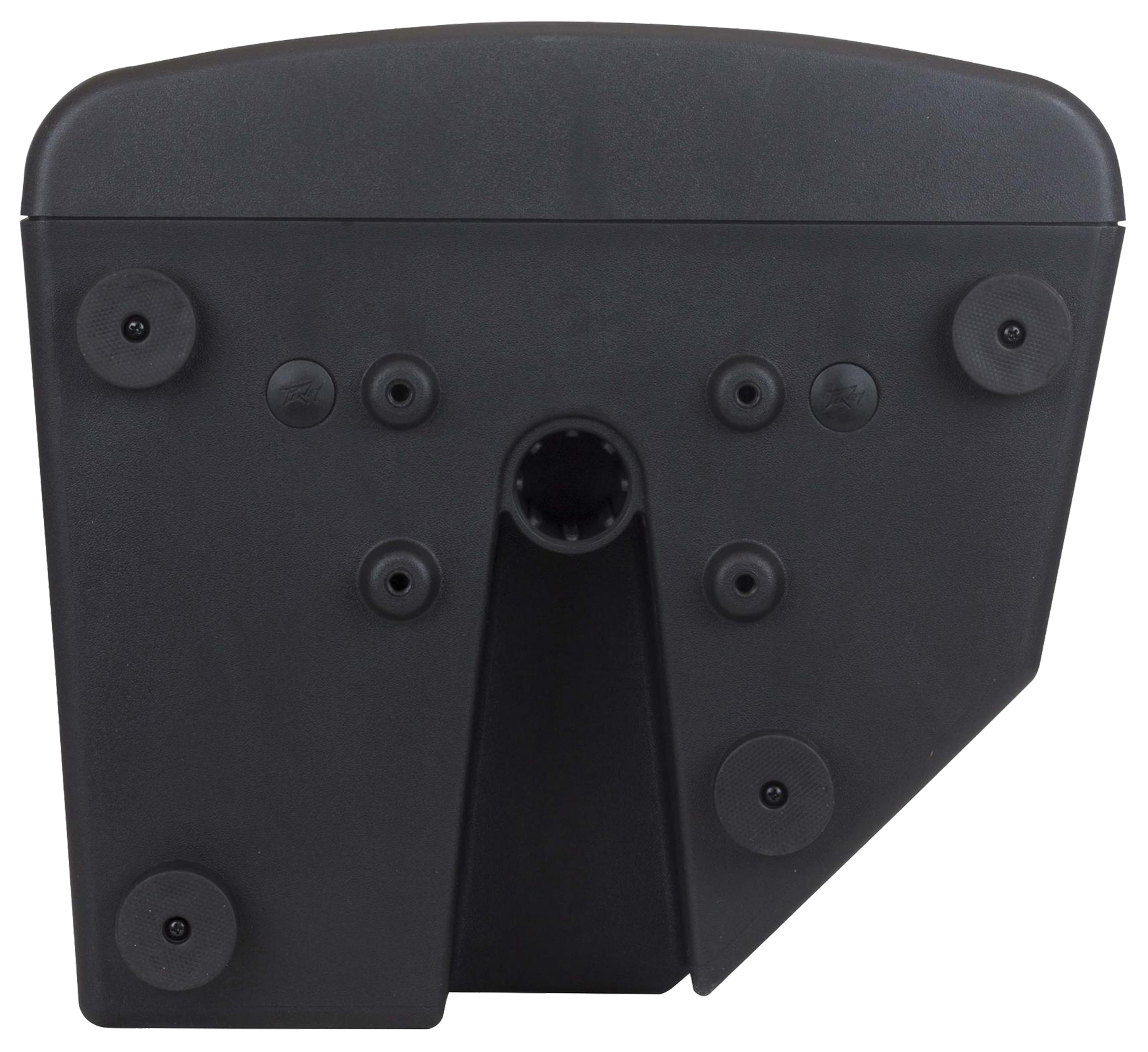

• Pole mount molded-in for 1 3/8″ diameter poles

• 12″ heavy-duty woofer with a 2-3/8″ voice coil & 50 oz. magnet

• Top, bottom and right side flying point inserts

• Asymmetrical horn aims the sound down 10°, at the audience, not over their heads

Additional information

Speaker Configuration

Bi-amplified 2-way

Speaker Type

Powered

DSP On-Board

Yes

Power Program

Power Peak

Sensitivity (1W/1m)

97 dB

Maximum SPL

128 dB

Speaker Frequency Response

60 Hz – 20 kHz (±3 dB)

Coverage (H x V)

100° x 50°

HF Driver

RX™ 14 – 1.4" Titanium Diaphragma Compression Driver

LF Driver

12" Woofer, 2 3/8" Voice Coil

Input Connectors

1 x XLR-1/4" Combo & Dual RCA

Output Connectors

1 x XLR & 1 x 1/4" Jack

Suspension Points

4 x M10 & 2 x VersaMount 70+

Pole Mount

Yes

Enclosure Material

ABS

Color

Net Weight

43.0 lbs (19.50 kg)

Product Height

24.50" (622 mm)

Product Width

16.10" (409 mm)

Product Depth

15.00" (381 mm)

AC Power Input

Universal Power Supply 100-240VAC 50/60 Hz

SKU

03616450
