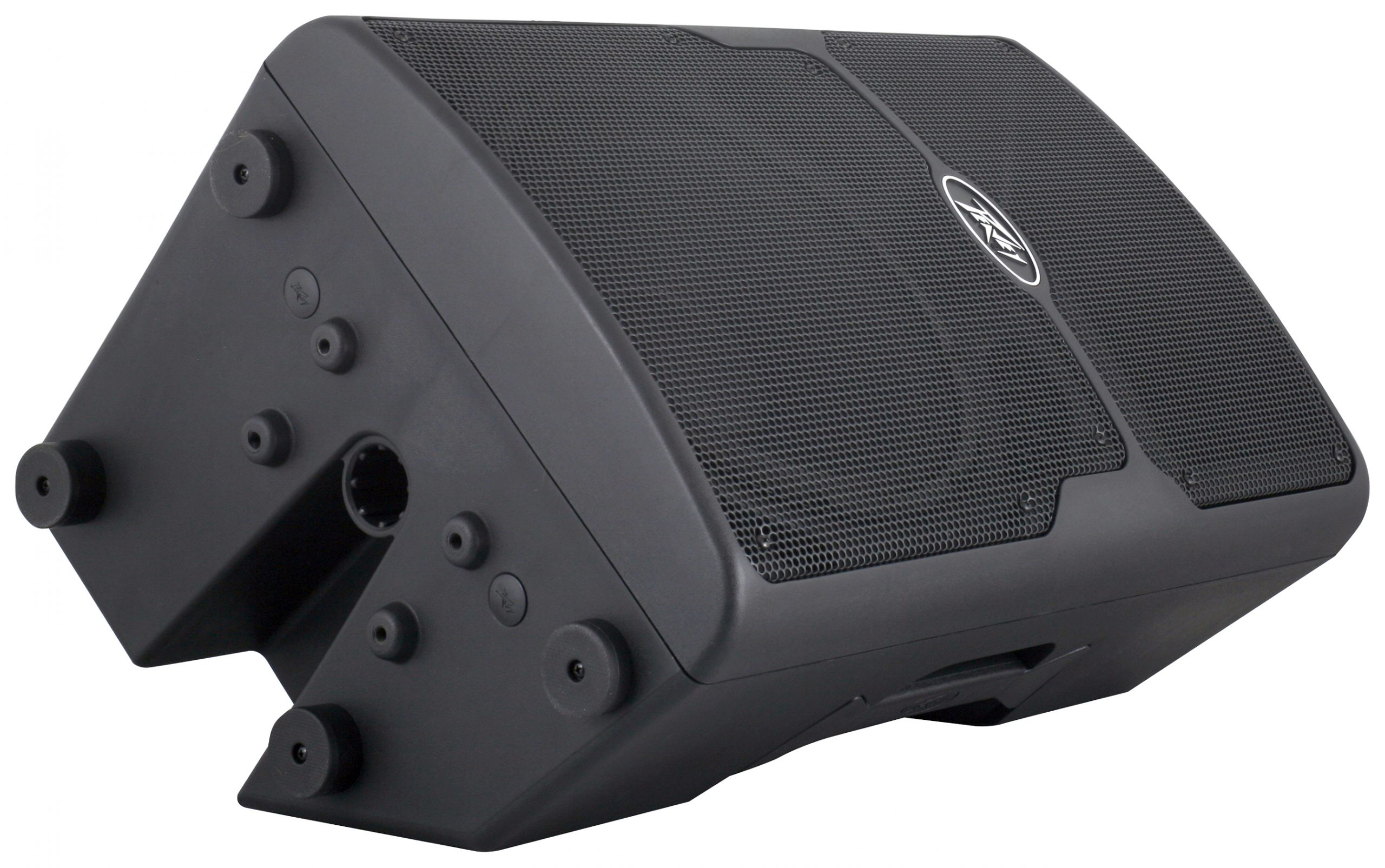

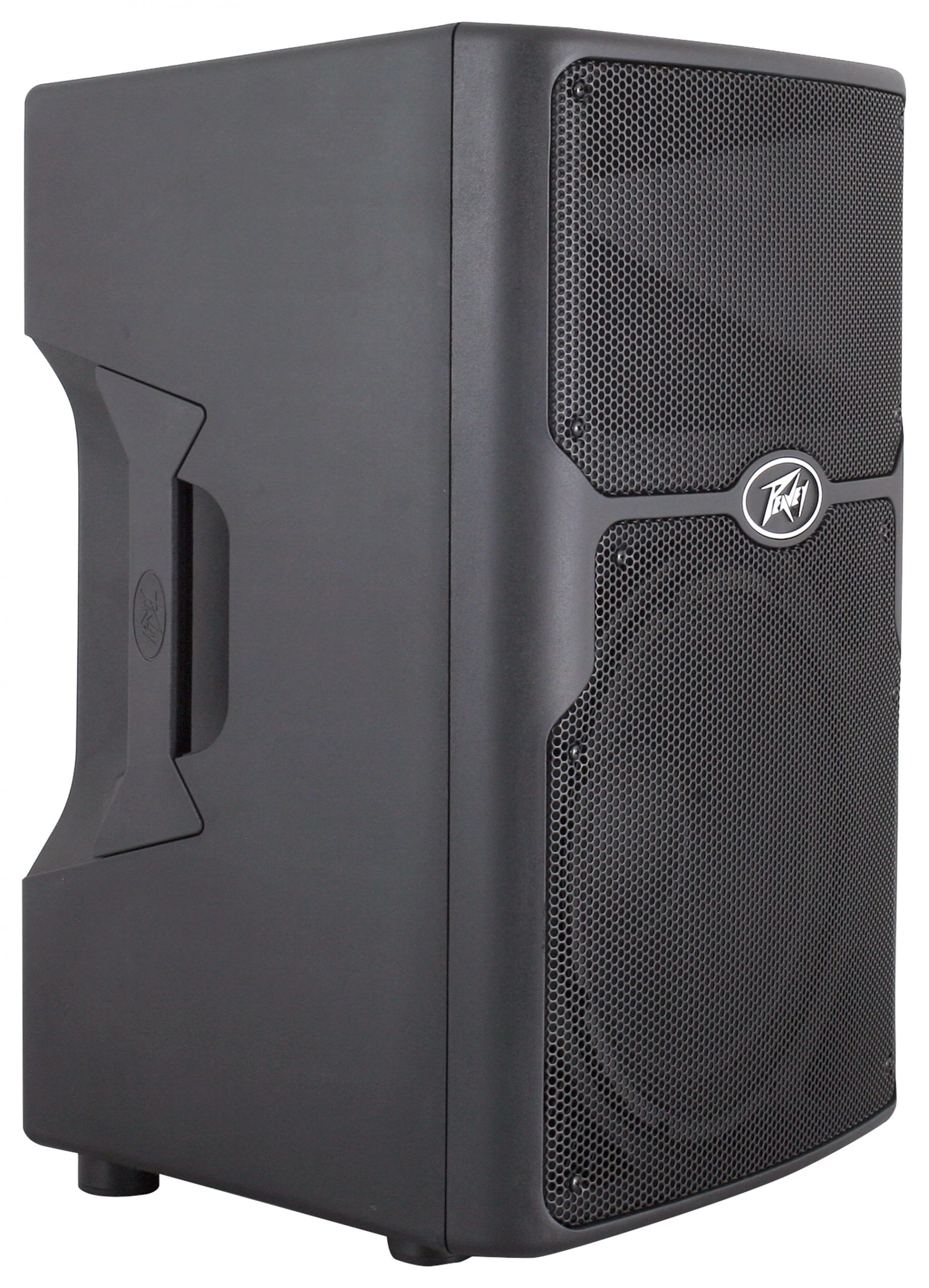

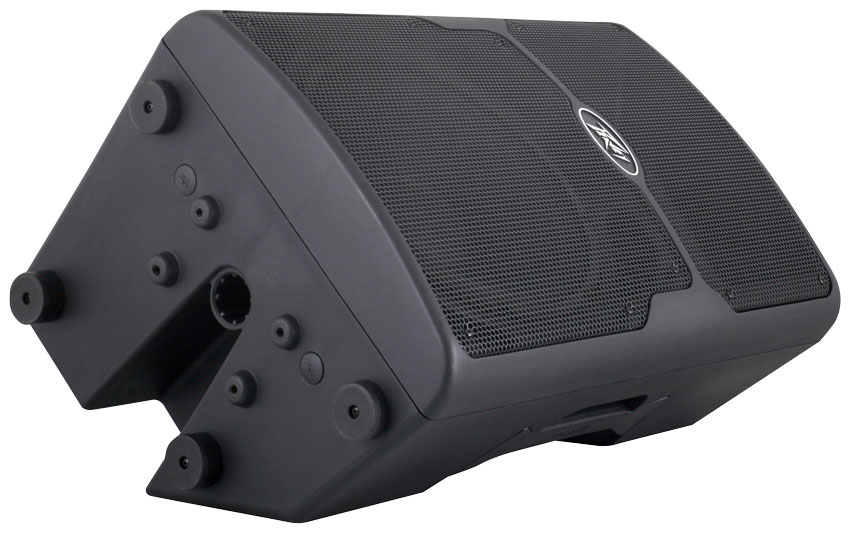

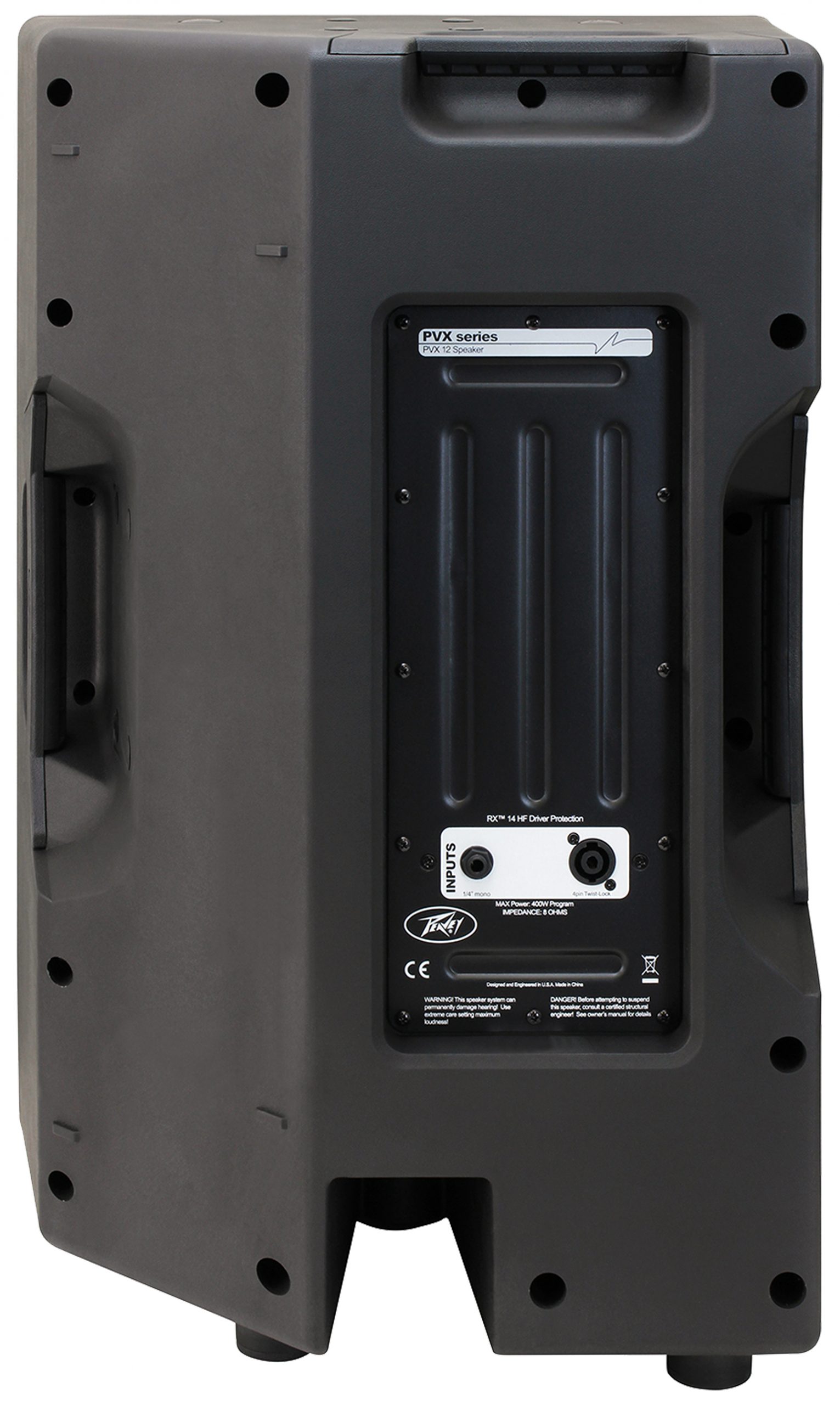

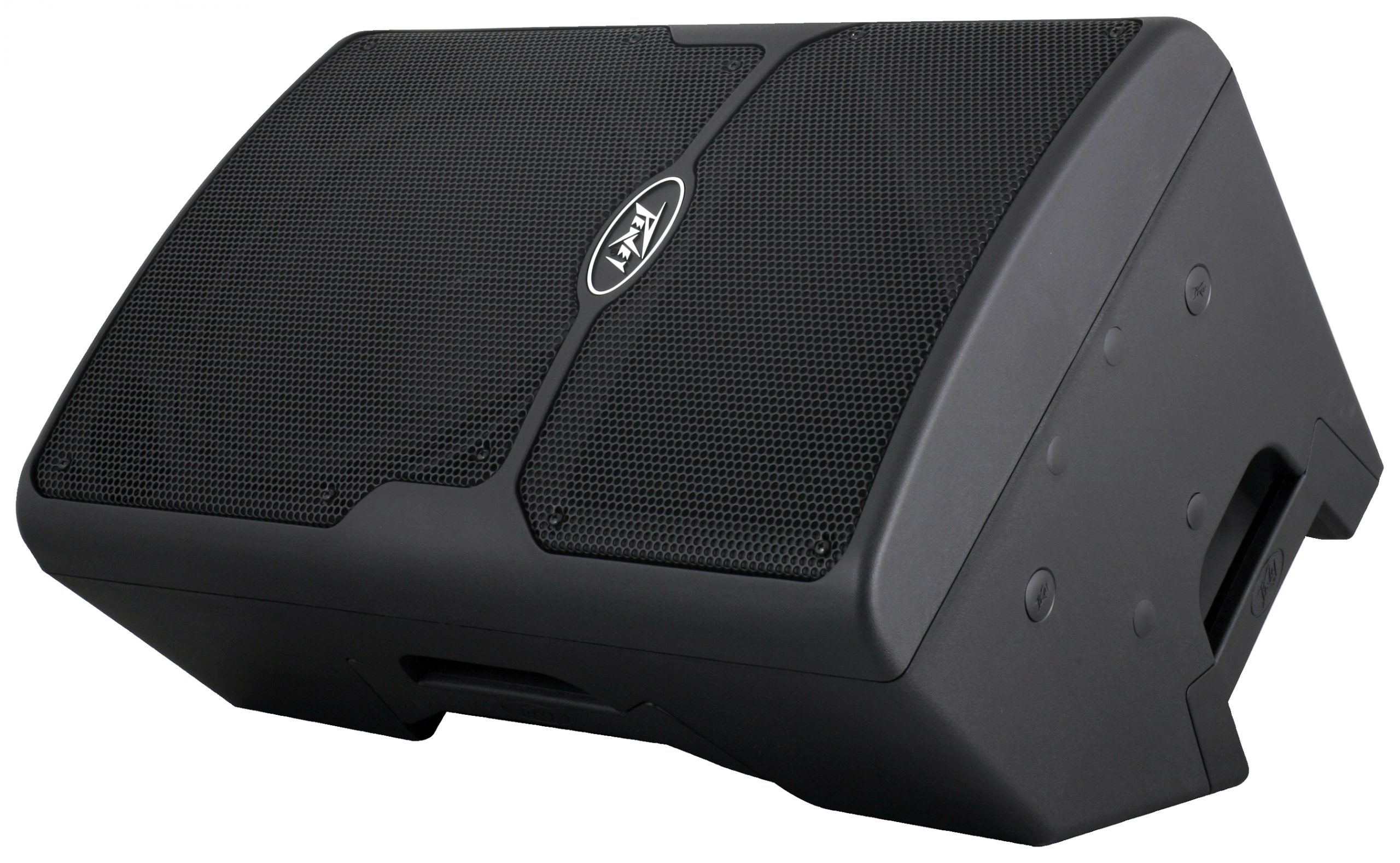

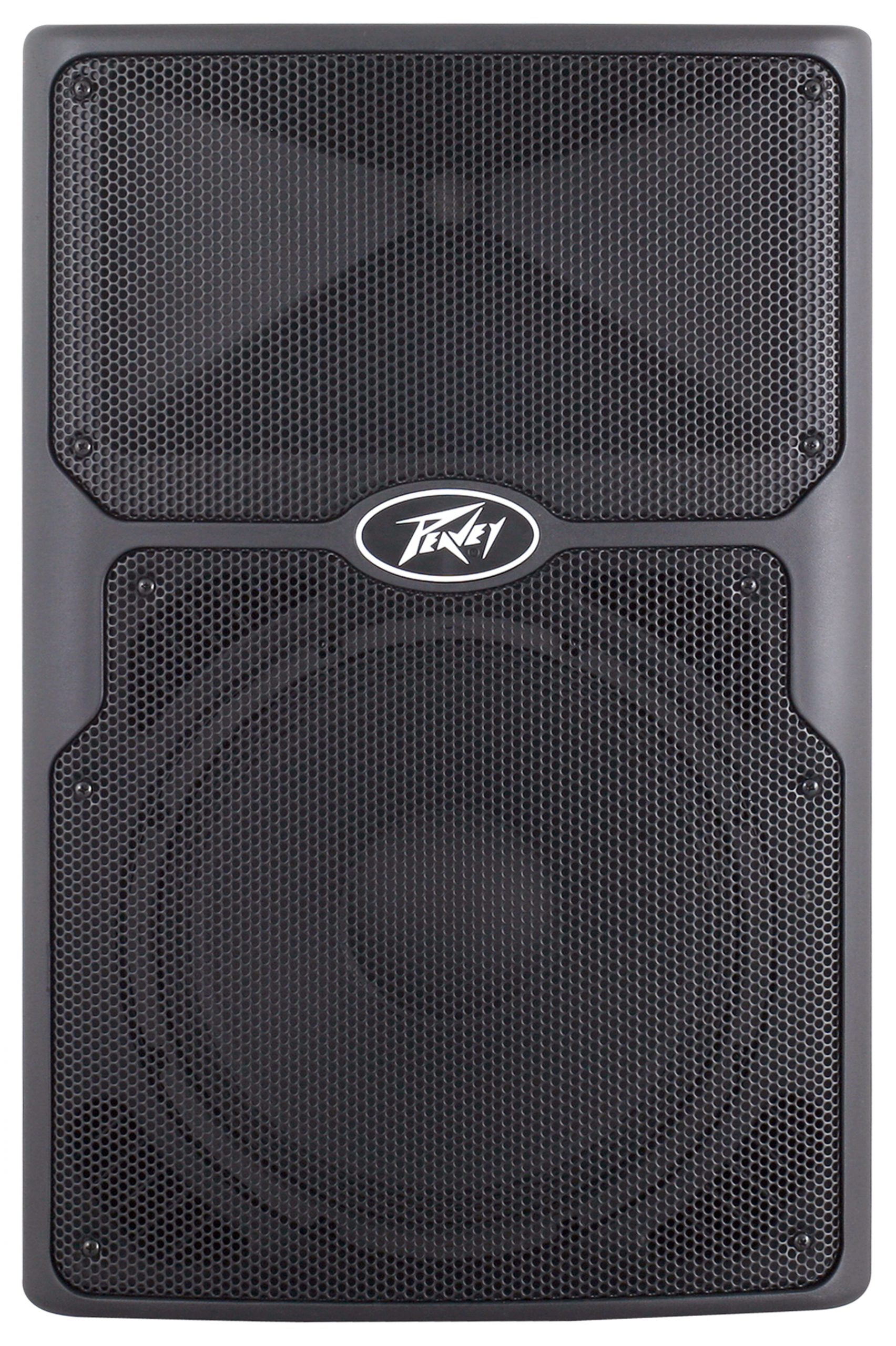

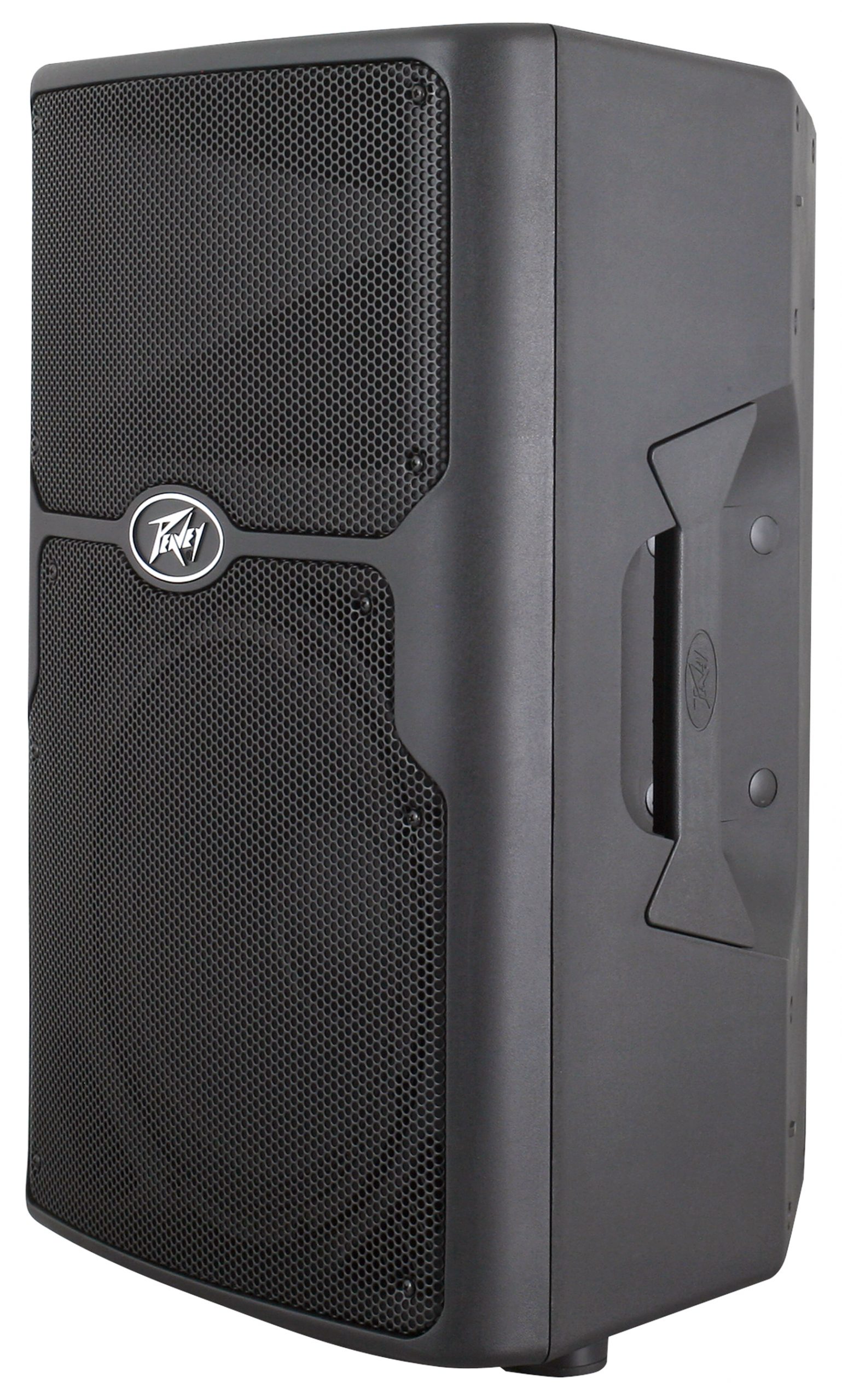

PVX™ 12

12″ Two-Way PA Speaker

Description

The PVX™ 12 passive loudspeakers deliver superior sound quality by utilizing advanced materials like its lightweight, roadworthy molded polypropylene exterior. Lightweight, durable and voiced for live music or speech applications, these two-way speaker systems will handle 400 Watts program and 800 Watts peak power and feature heavy-duty woofers, 2-3/8″ voice coils and the Peavey RX14™ 1.4″ titanium diaphragm compression driver coupled to a constant directivity horn.

Features PVX 12

• Power Handling: 400 Watts program / 800 Watts peak

• Top, bottom and right side flying point inserts

• Full-coverage heavy-duty perforated steel grille, with powder-coat finish

• Rugged construction

• Patented, asymmetrical Quadratic Throat

• Waveguide™ Technology – 100° x 50° coverage

• 15° upward and 35° downward directing sound to your audience

• 12″ heavy-duty woofer, 2-3/8″ voice coil

• RX14 titanium compression driver

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

Power RMS

200 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

96 dB

Maximum SPL

125 dB

Speaker Frequency Response

60 Hz – 20 kHz (±3 dB)

Coverage (H x V)

100° x 50°

HF Driver

RX™ 14 – 1.4" Titanium Diaphragma Compression Driver

LF Driver

12", VC 2 3/8" Woofer

Input Connectors

1 x 4-pin Twist-Lock & 1 x 1/4" Jack

Suspension Points

4 x M10 & 3 x VersaMount 70+

Pole Mount

Yes

Enclosure Material

ABS

Color

Net Weight

37.0 lbs (16.80 kg)

Product Height

24.50" (622 mm)

Product Width

16.10" (409 mm)

Product Depth

15.00" (381 mm)

SKU

03602440
