PVX™ 10

10″ Two-Way PA Speaker

Description

The PVX™ 10 is a two-way sound reinforcement system based on a heavy-duty 10″ woofer and a RX™ 10N titanium diaphragm dynamic compression driver mounted on a 100° by 60° coverage Quadratic Throat Waveguide™. Its sleek modern appearance coupled with excellent performance offer an outstanding package.

Features PVX 10

• Power Handling: 400 Watts program / 800 Watts peak

• Two-way sound reinforcement enclosure

• Crossover network for driver protection and EQ

• High frequency driver protection

• Durable plastic injection-molded trapezoidal enclosure

• Asymmetrical horn aims the sound down 10°, at the audience, not over their heads

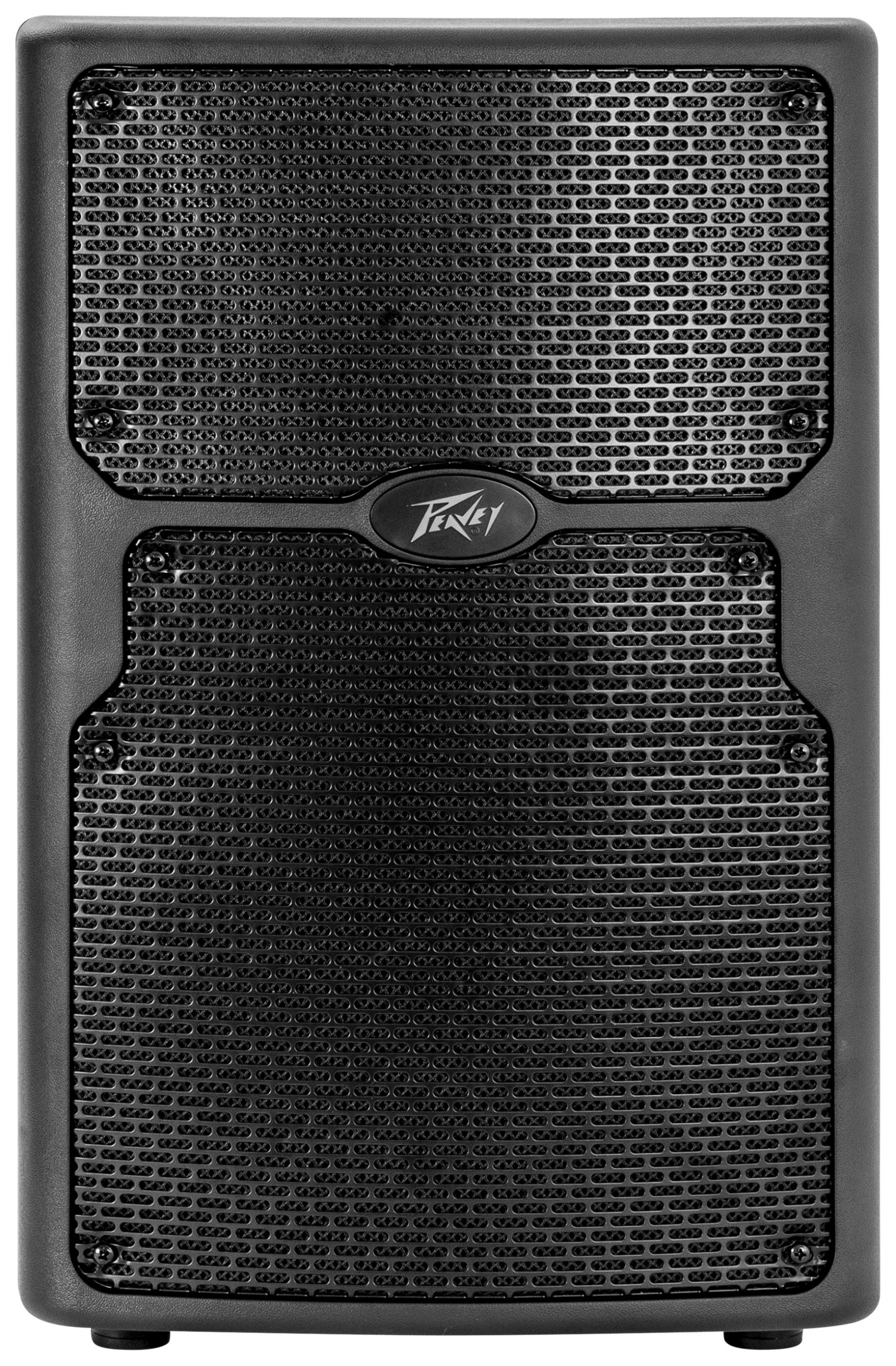

• Full-coverage heavy-duty perforated steel grilles, with powder coat finish

• Pole mount molded-In

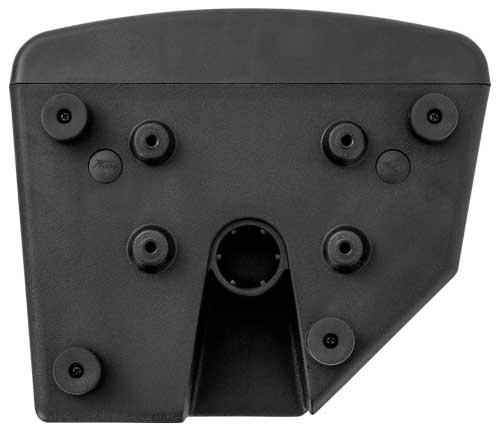

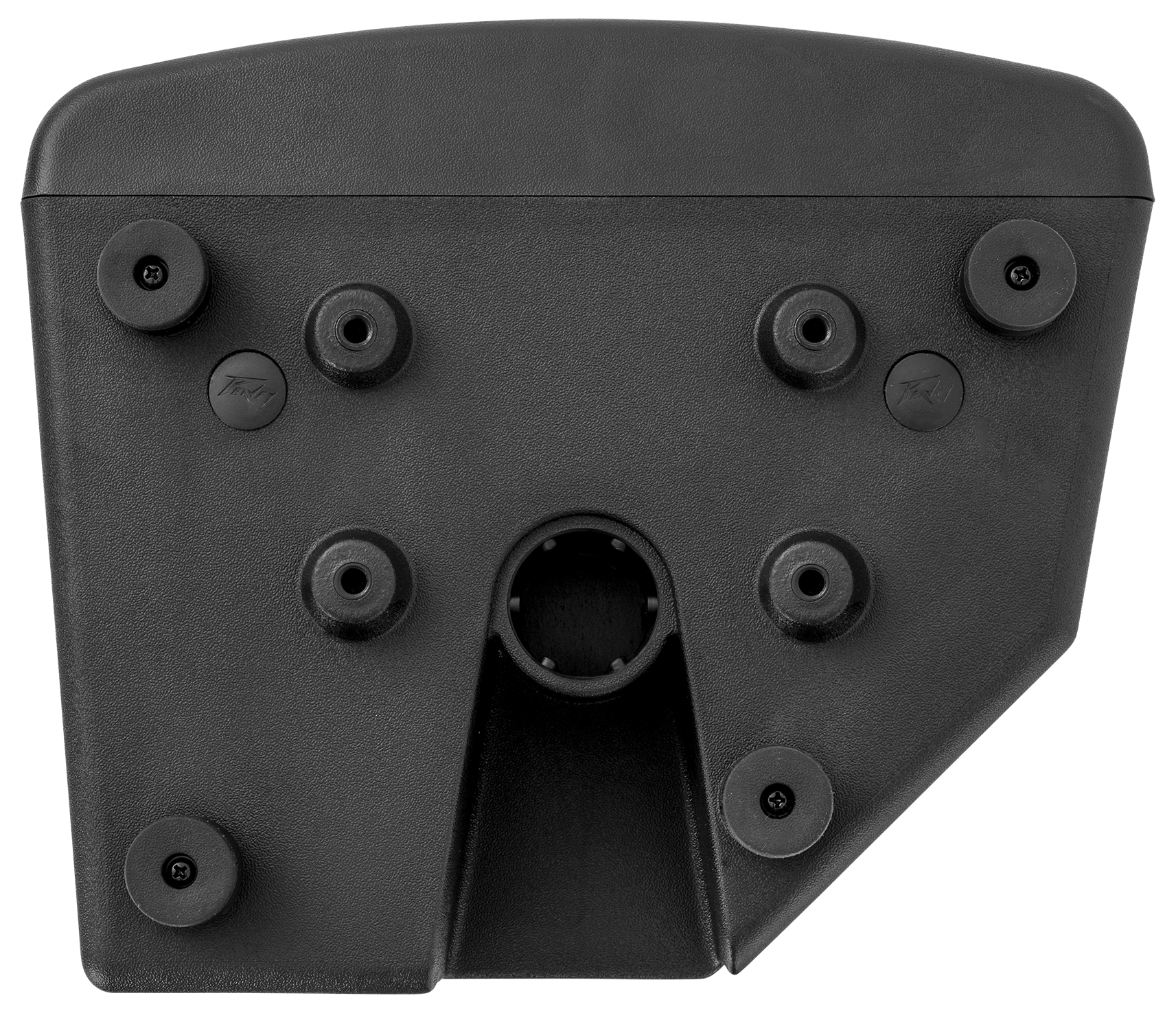

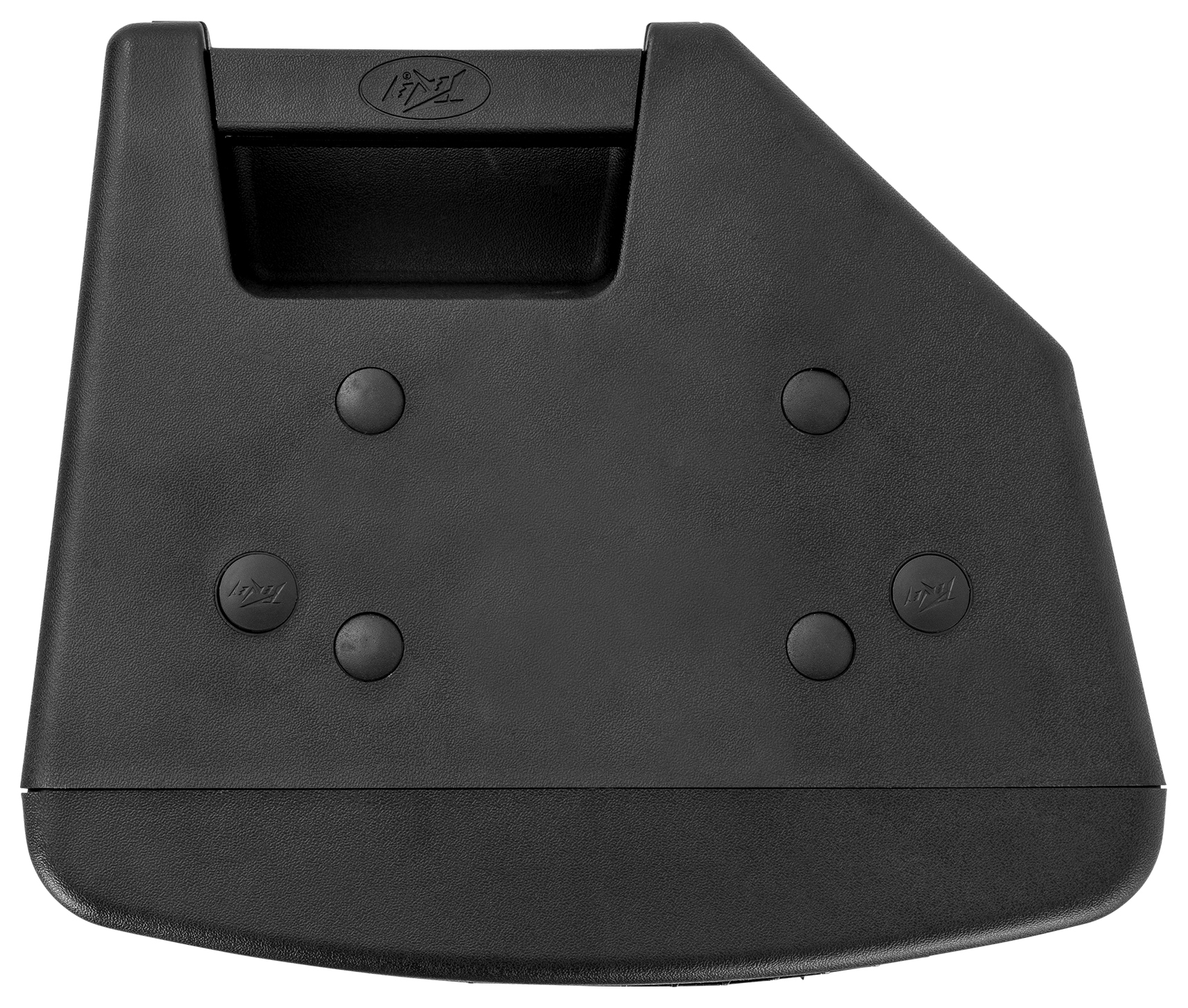

• Top and bottom flying point inserts

• Patented Quadratic Throat Waveguide™ technology, 100° x 60° coverage

• RX 10N compression driver, with 1″ titanium diaphragm

• 10″ heavy-duty woofer with 2 3/8″ voice coil & 50 oz. magnet

• Extra angled section on right side allows floor monitor use

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

Power RMS

200 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

93 dB

Maximum SPL

122 dB

Speaker Frequency Response

74 Hz – 18 kHz (±3 dB)

Coverage (H x V)

100° x 60°

HF Driver

RX™ 10N – 1" Titanium Diaphragma Compression Driver

LF Driver

10", VC 2 3/8" Woofer

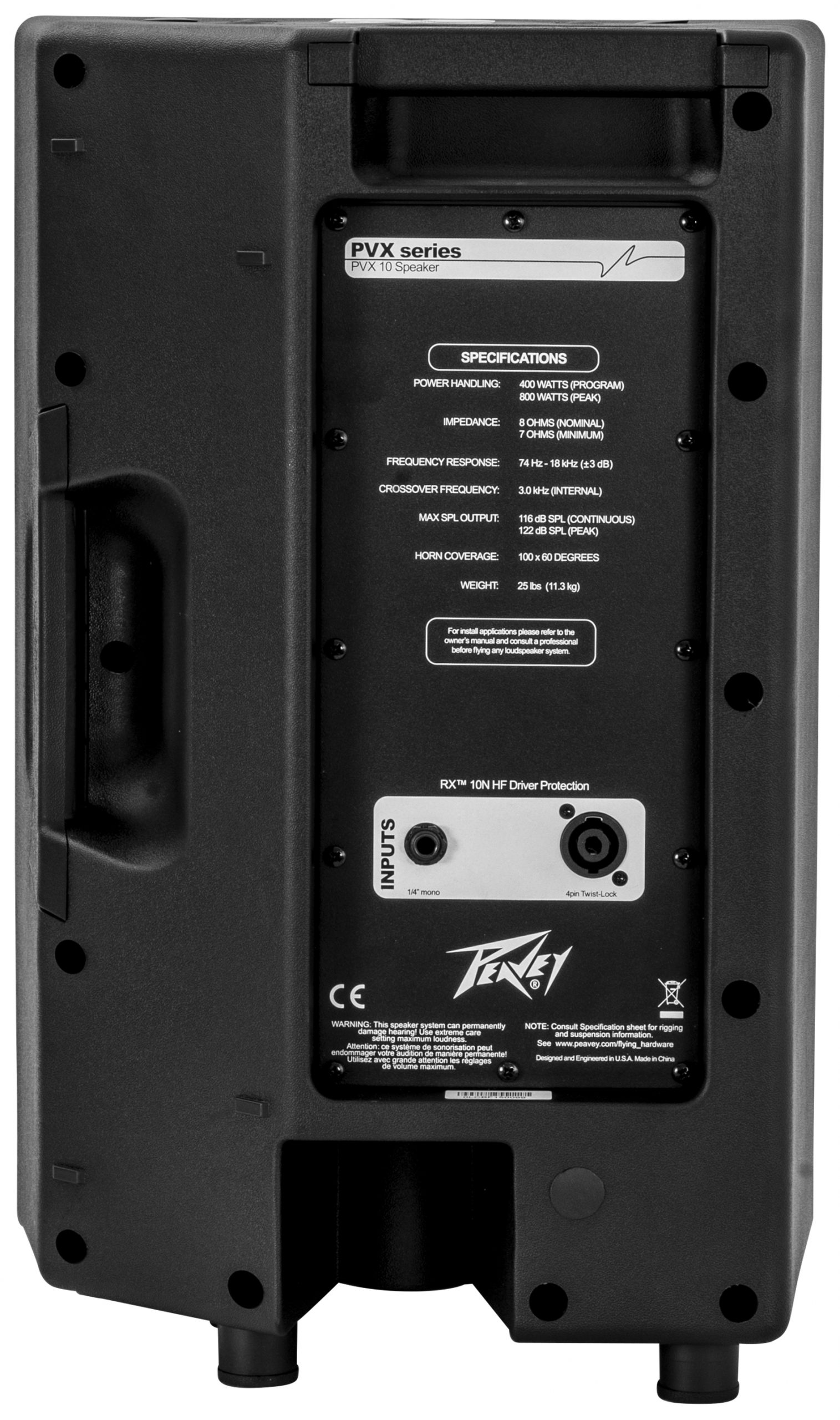

Input Connectors

1 x 4-pin Twist-Lock & 1 x 1/4" Jack

Suspension Points

4 x M10 & 2 x VersaMount 70+

Pole Mount

Yes

Enclosure Material

ABS

Color

Net Weight

25.0 lbs (11.30 kg)

Product Height

20.00" (508 mm)

Product Width

12.69" (322 mm)

Product Depth

11.06" (281 mm)

SKU

03620370
