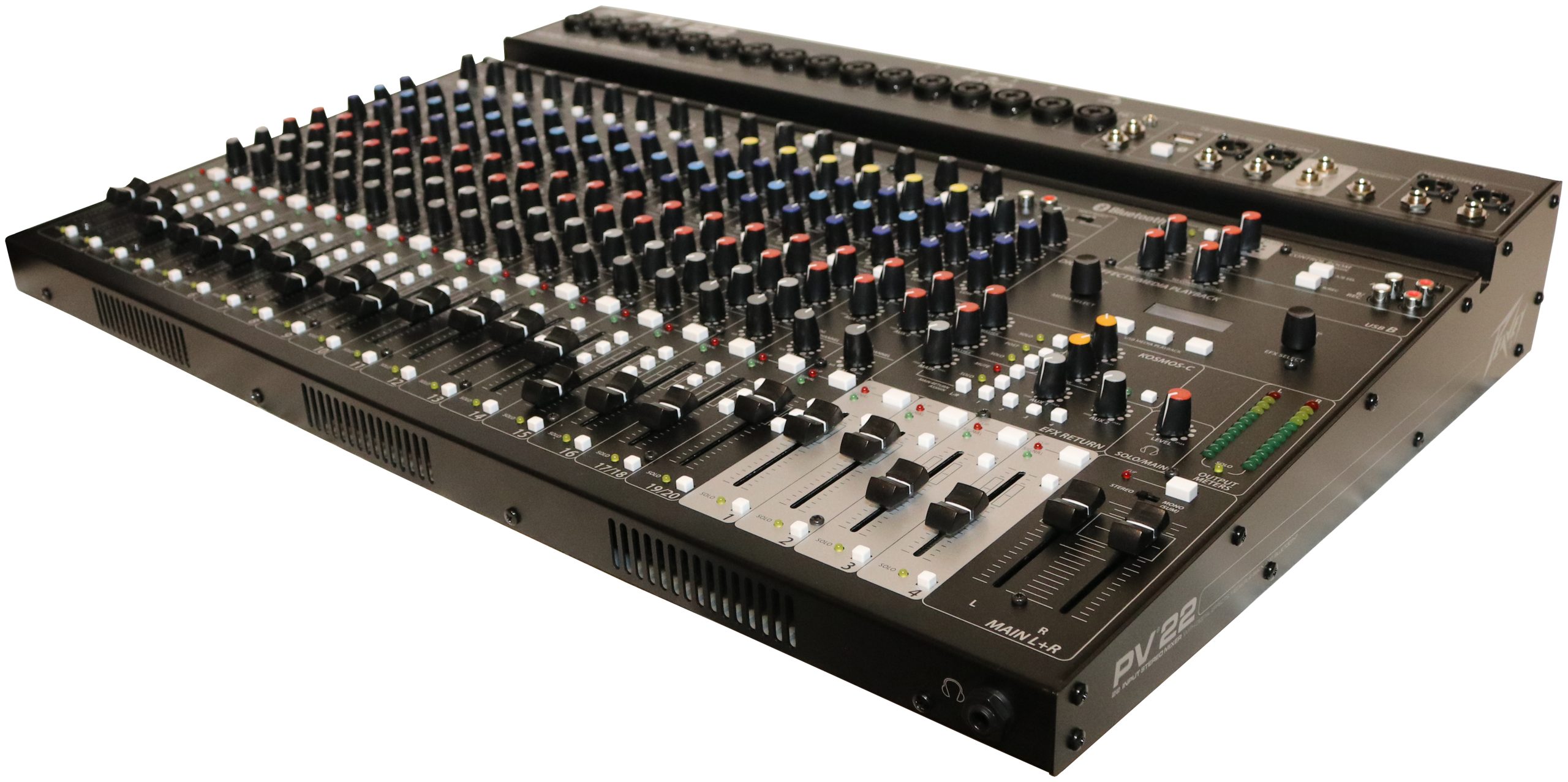

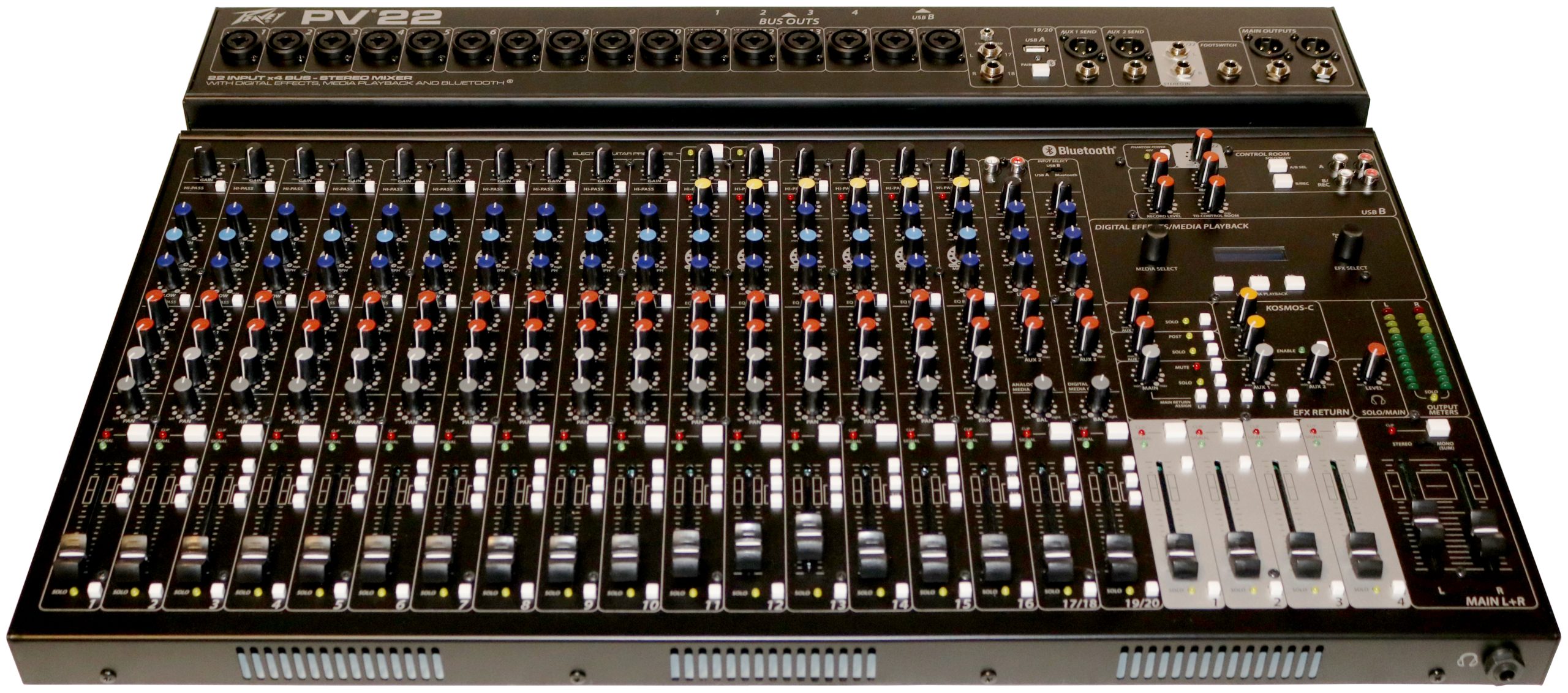

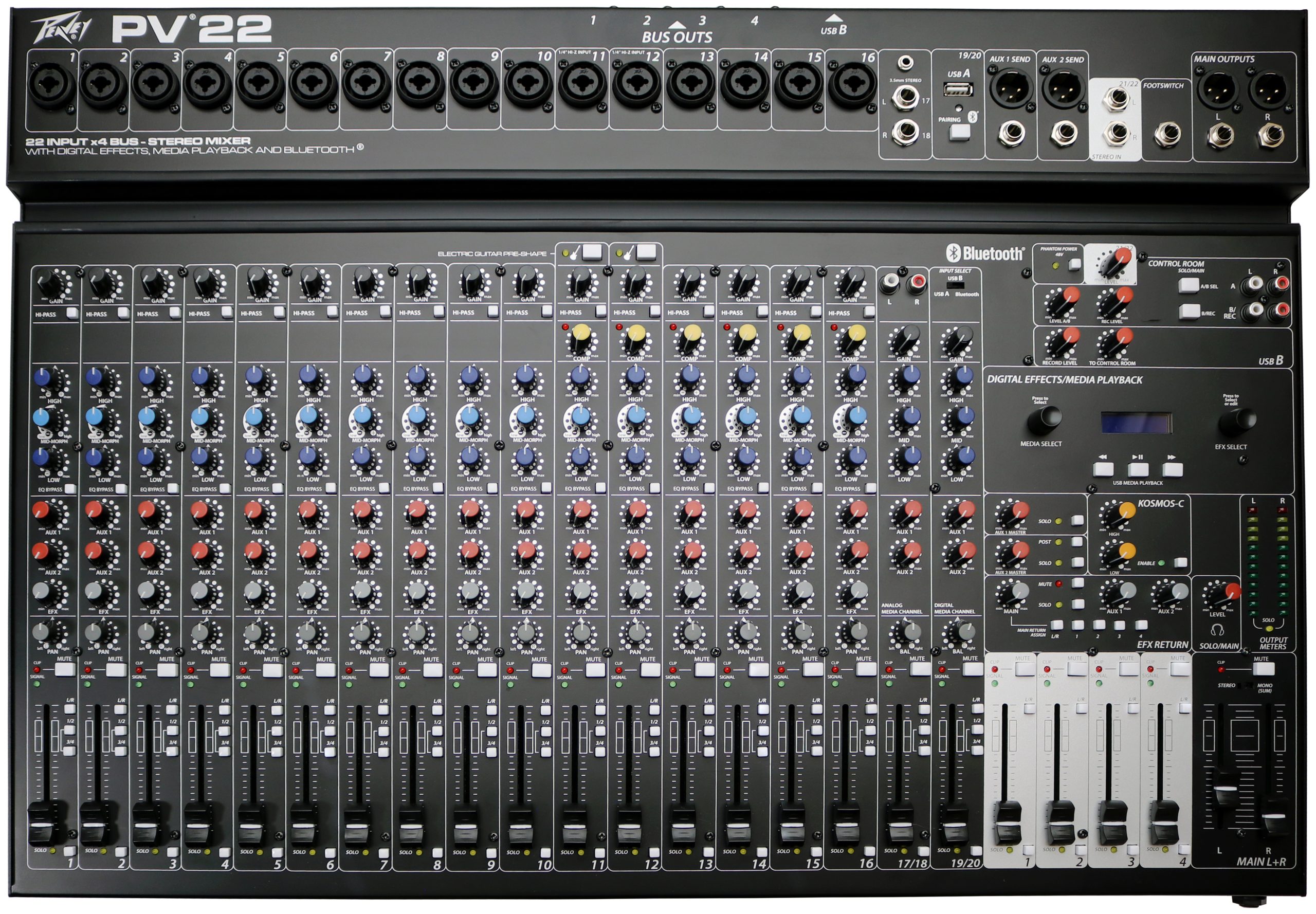

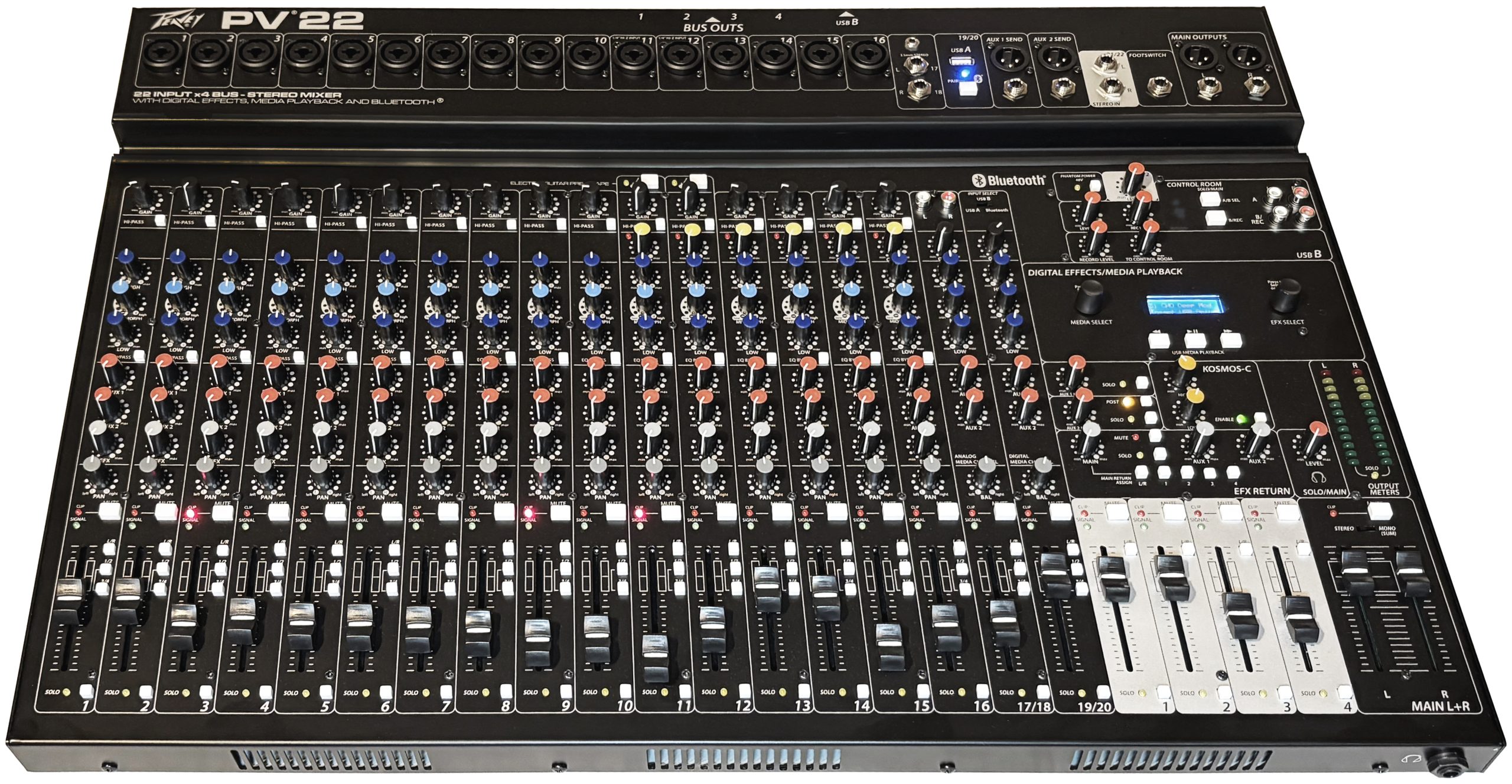

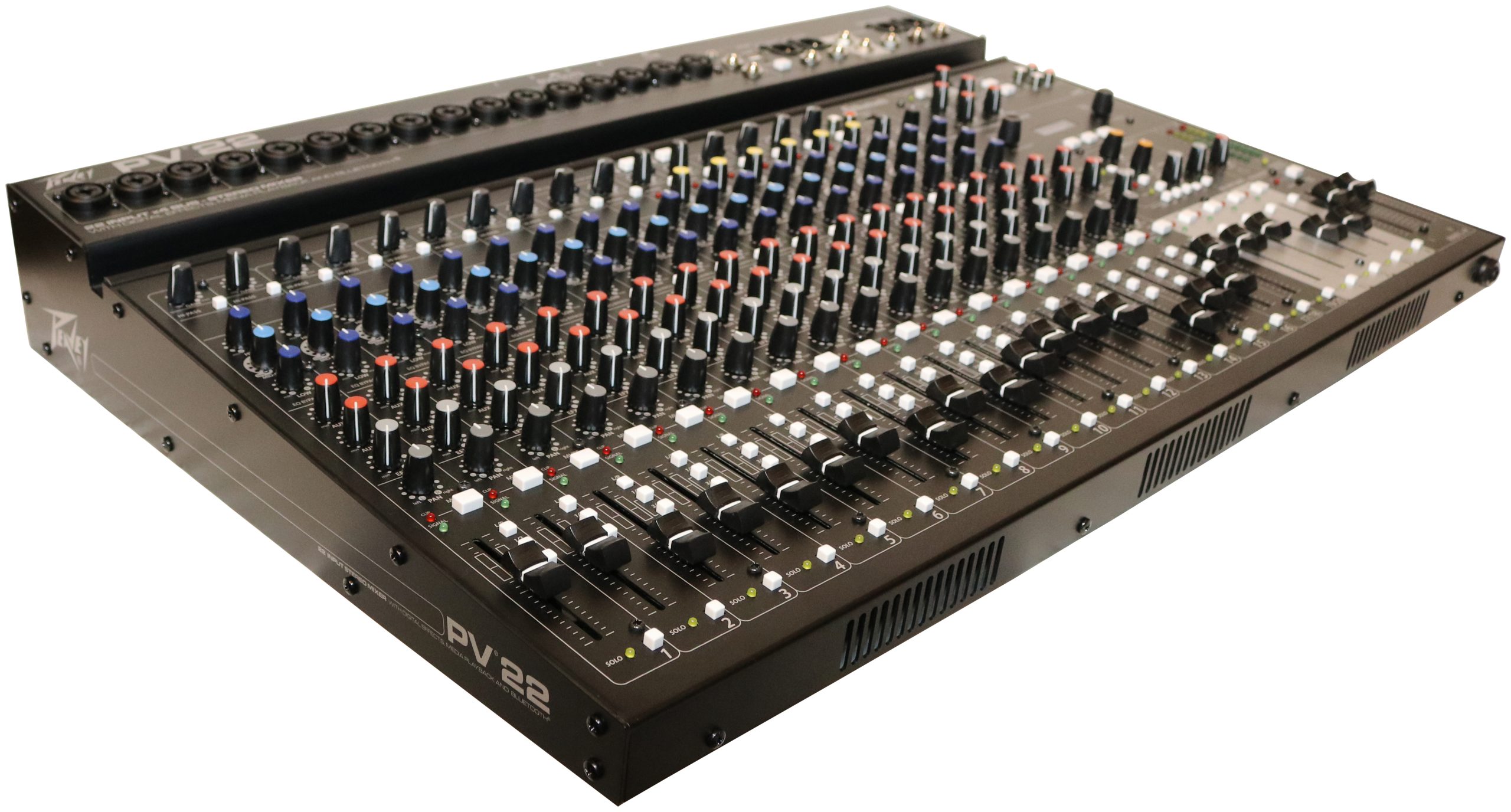

Introducing the next level in world-class non-powered mixer performance. The all new PV 22 mixing console includes Peavey’s reference-quality mic preamps that spec in at an incredible 0.0007% THD, making the PV 22 mixer excellent for live or recording applications.
The PV 22 includes 16 channels of reference quality mic preamps, a stereo channel, media channel with Bluetooth wireless input, high quality digital effects with LCD display, streaming USB out, MP3 playback via USB A input, Peavey’s exclusive Kosmos audio enhancement, 48V phantom power, dual selectable control room outputs, 6 channels of compression, two channels of on board selectable guitar preamp, 3-band EQ per channel with bypass, channel mute buttons, two aux sends, signal clip indicators, four sub groups and a stereo master LED meter bridge. This amazingly versatile mixer is at home both in the studio as well as live applications.
Modern features such as Bluetooth allow seamless connection to almost any “smart” device. The PV 22 can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with MP3 files on it into the USB A port and use the LCD to select and play back music. The Solo feature allows the user to listen to individual channels via headphone or control room outputs, and the EQ bypass allows the user to hear and compare the EQ’d signal to the original signal with the push of a button. 6 channels of compression keep signals with difficult levels under control, and Peavey’s exclusive guitar shape adjusts the EQ and preamp specifically for guitar. Hi pass filters on every channel remove unwanted rumble and noise, and balanced AUX and Master outputs ensure a clean noise-free signal to your powered speakers or power amplifier.
Features

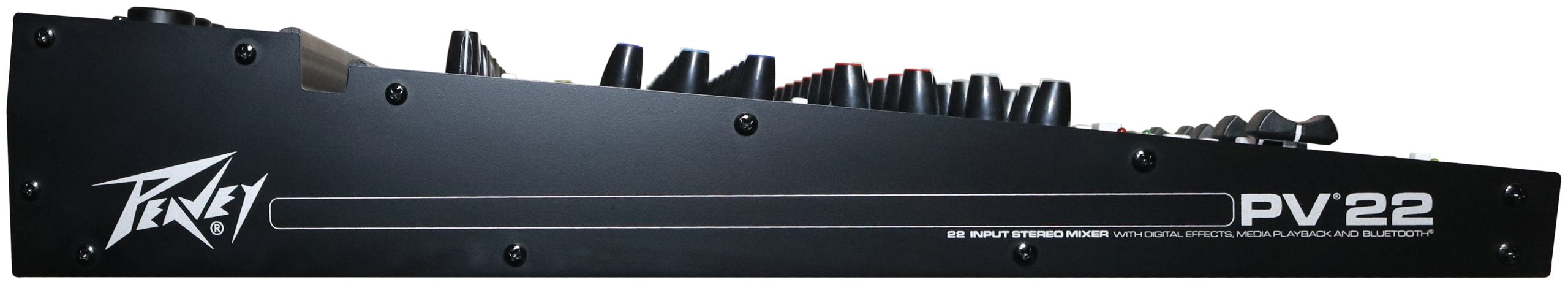

• New rugged, slim, low-profile console design
• Convenient tablet cradle

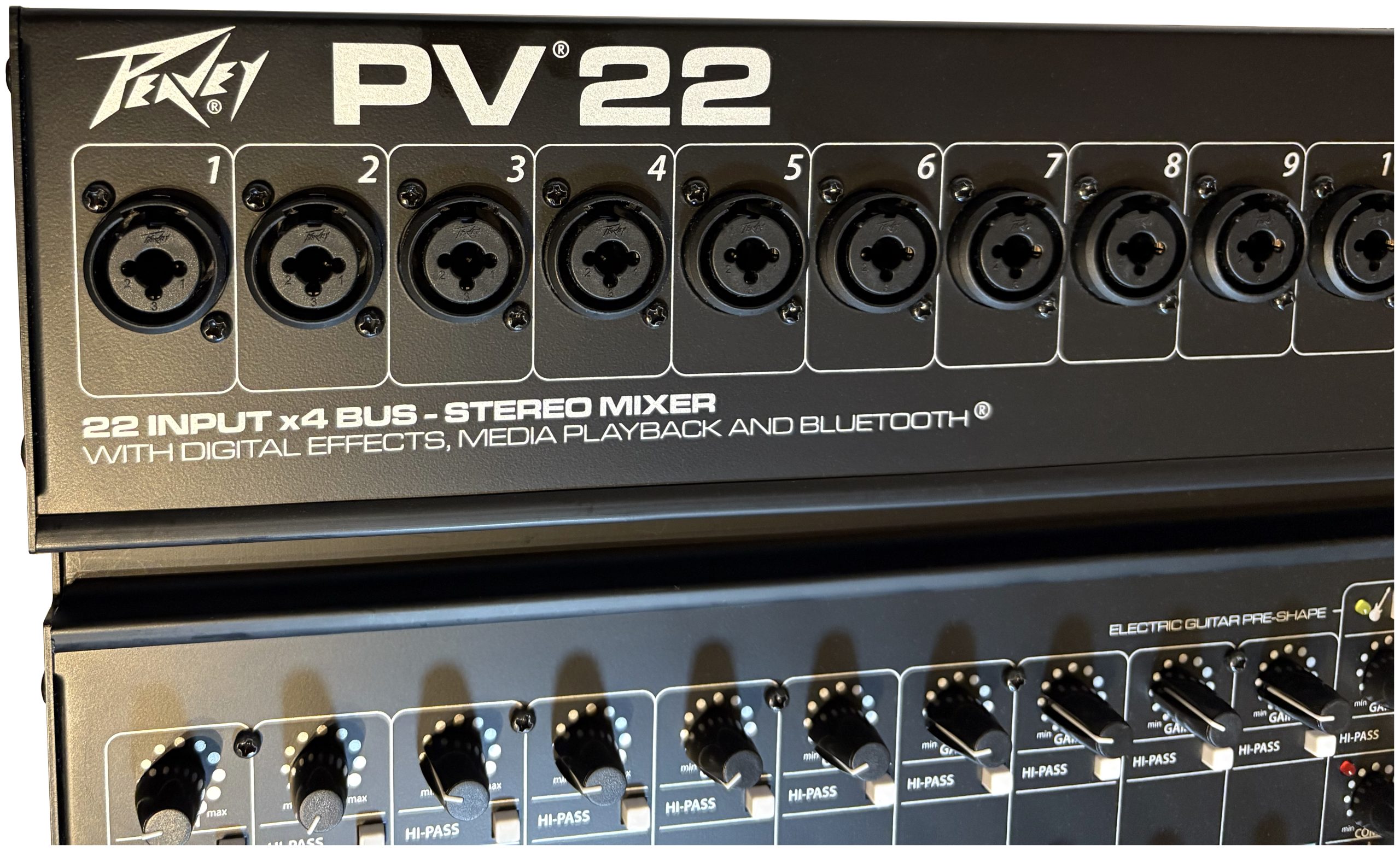

• 16 combination XLR – 1/4″ low noise mic preamps

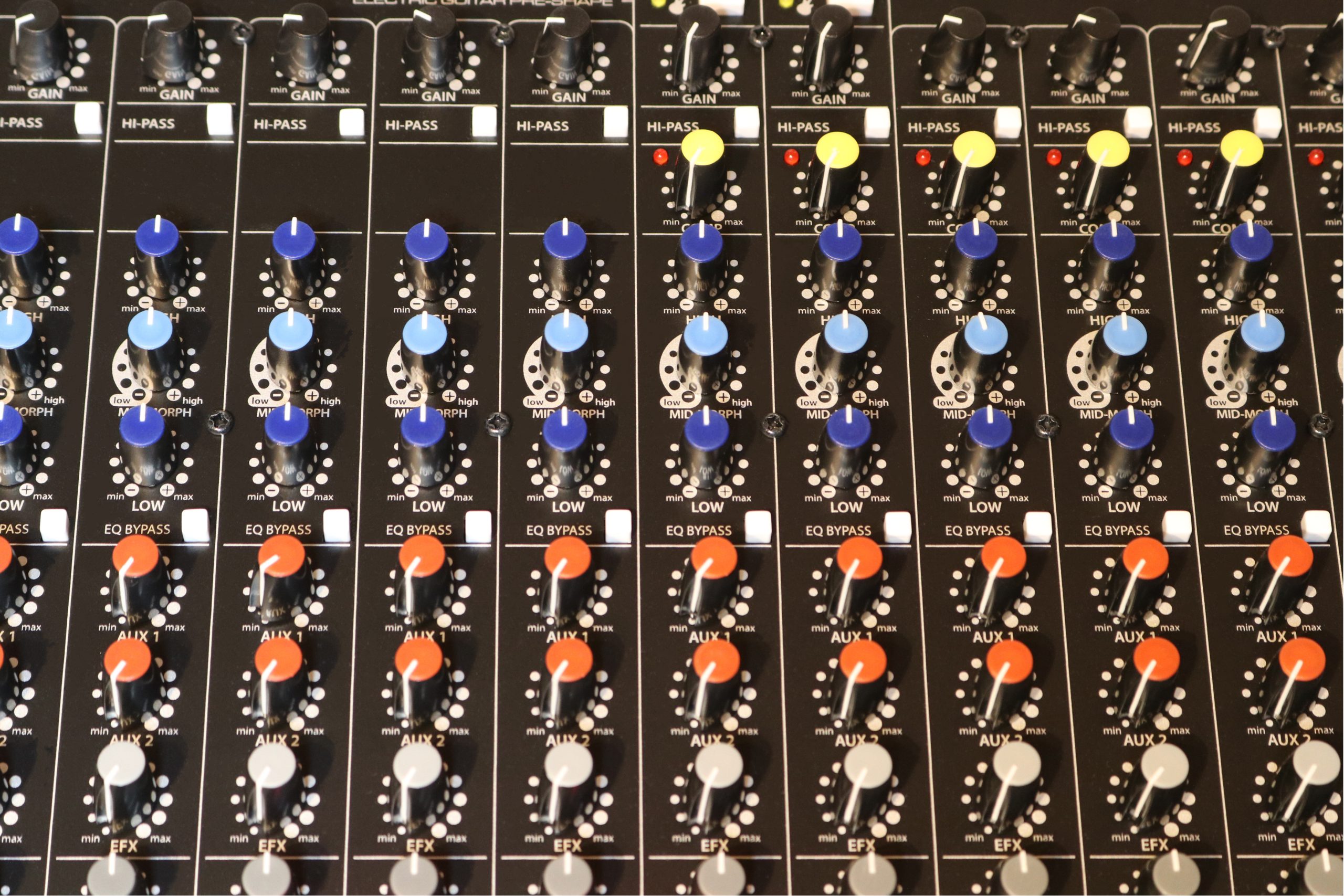

• Selectable Hi Pass filter on first 16 inputs
• 3-band EQ on all channels
• 16 channels of Peavey’s exclusive MidMorph® EQ
• EQ bypass per channel
• Six channels of built-in compression
• Individual channel mutes
• Individual Listen/Solo function
• LED clip and signal present indication
• Stereo pan control per channel
• Channel 17/18 stereo 1/4″, RCA, or 3.5 mm input channel
• Channel 19/20 USB A or Bluetooth input channel
• Channel 21/22 stereo ¼“ input channel
• Dual selectable control room outputs
• Two AUX send (XLR and ¼“)
• KOSMOS® bass and treble enhancement
• Main stereo outputs with 1/4″ unbalanced and balanced XLR connectors

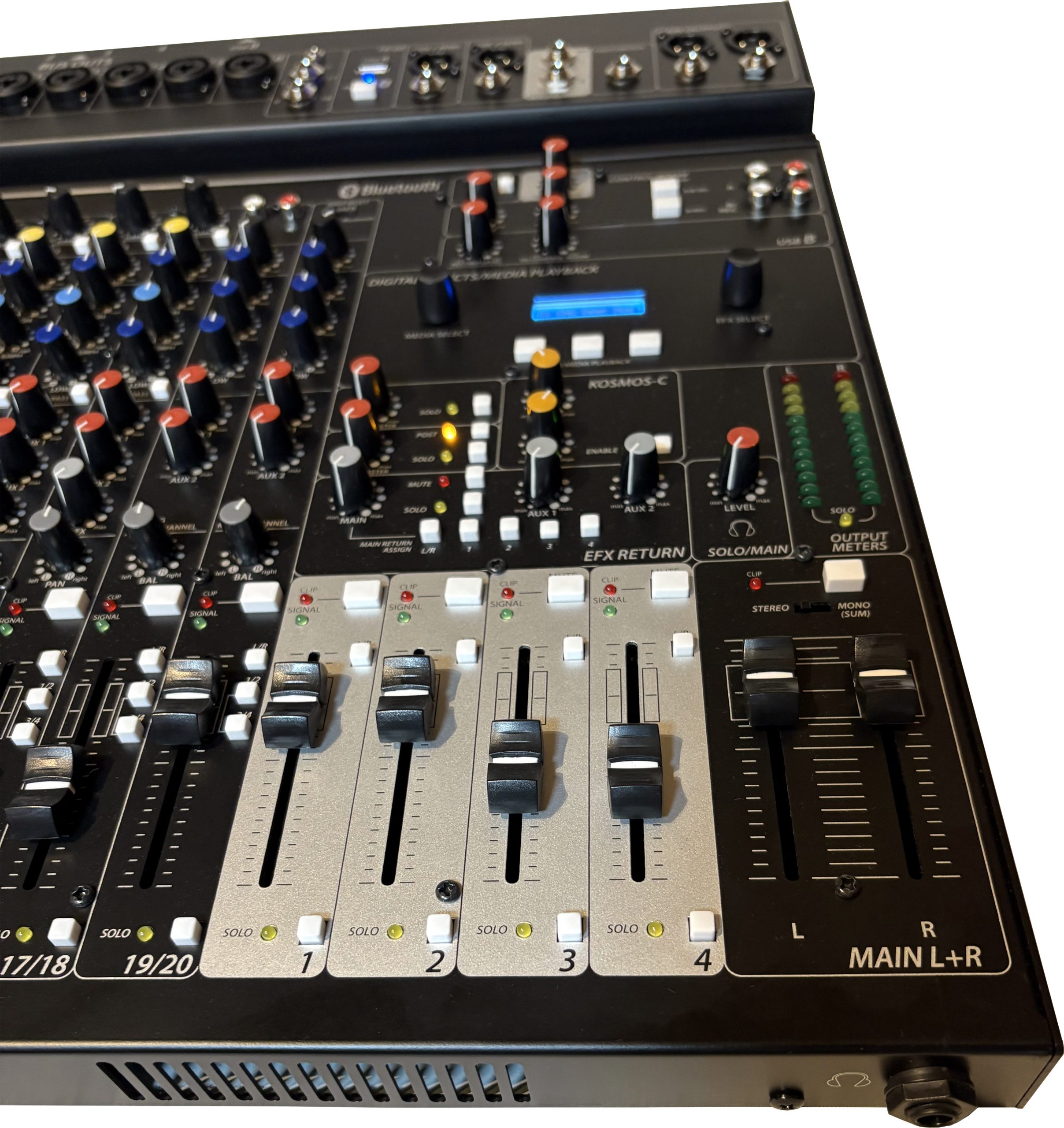

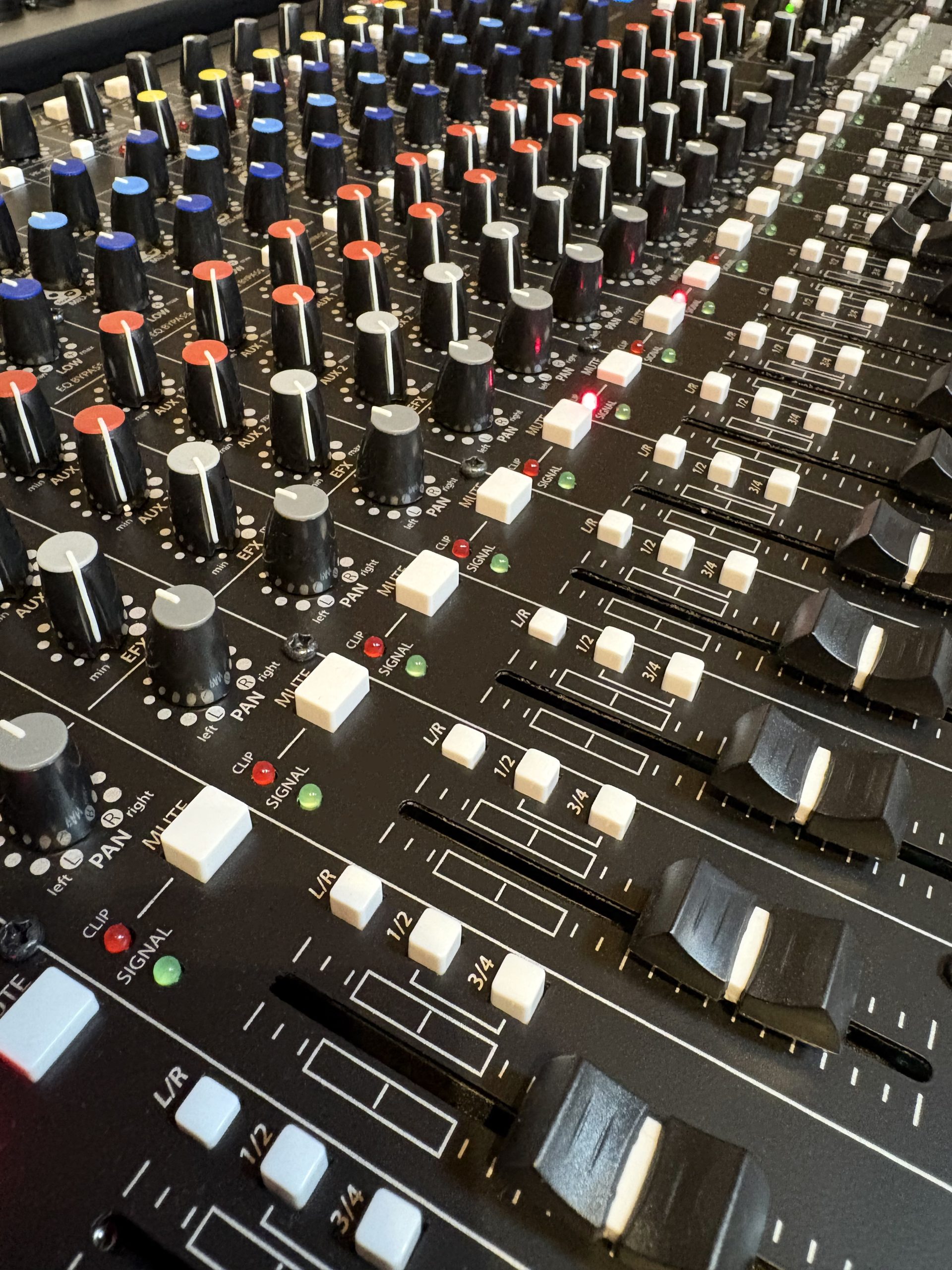

• Precision 60 mm faders
• High quality master LED meter bridge
• Master mic mute
• Studio quality headphone output
• Equipped with Bluetooth wireless connectivity, Bluetooth 3.0 + EDR, A2DP
• On-board USB-A MP3 and WAV playback
• Stereo USB-B streaming audio in and out, 16-bit, up to 48 kHz sample rates

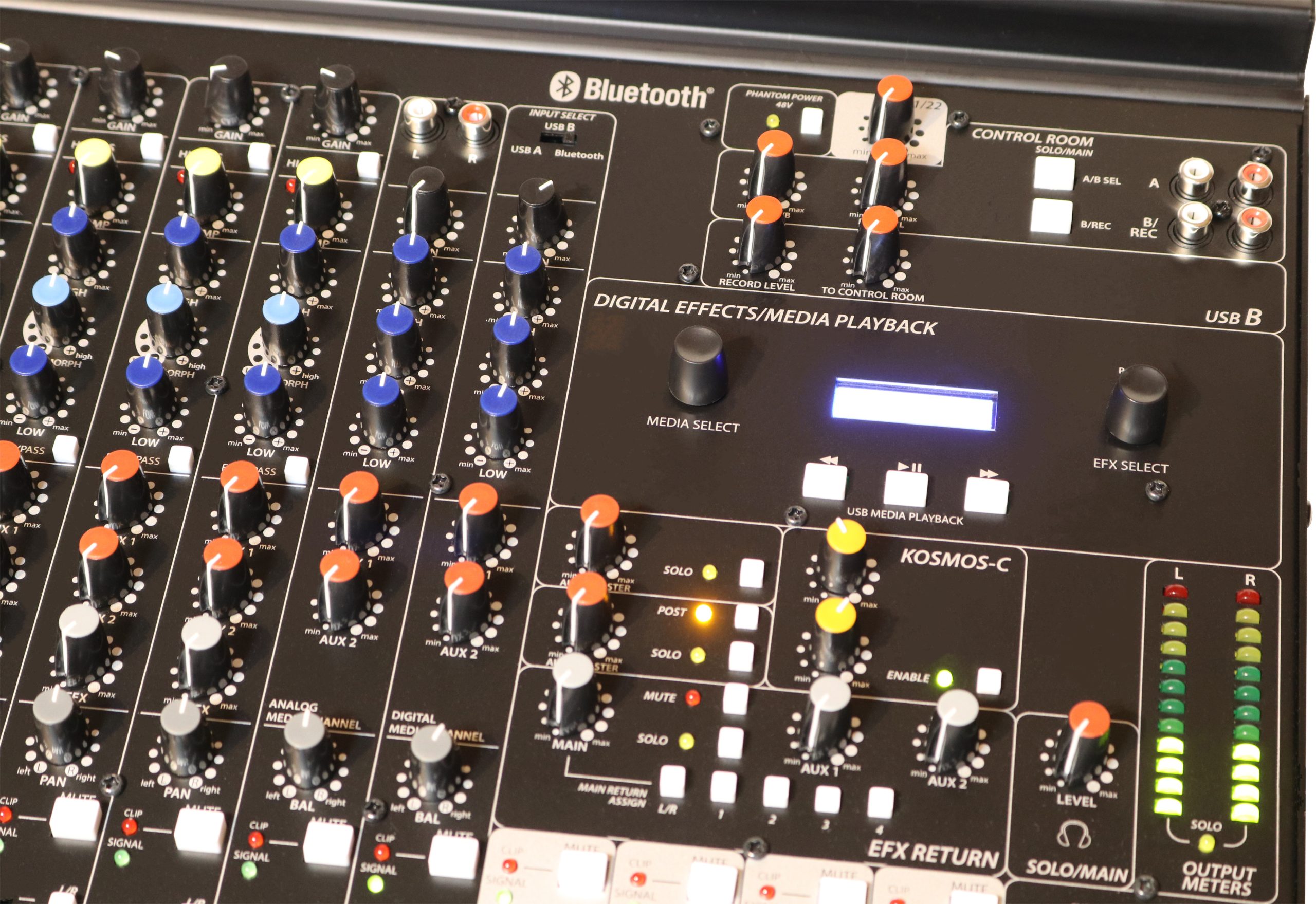

• Built-in Digital Effects with LCD display
• Two channels of Peavey’s exclusive on-board Hi Z guitar input
• Four assignable sub groups

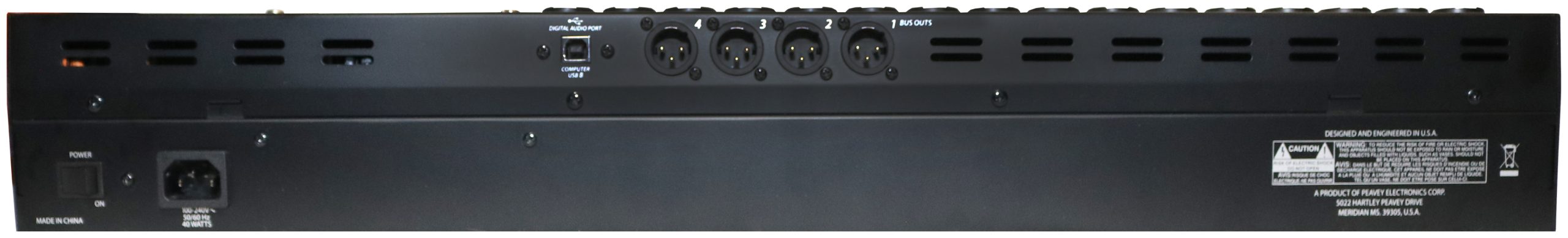

• Four XLR bus outputs
• Global 48V phantom power
