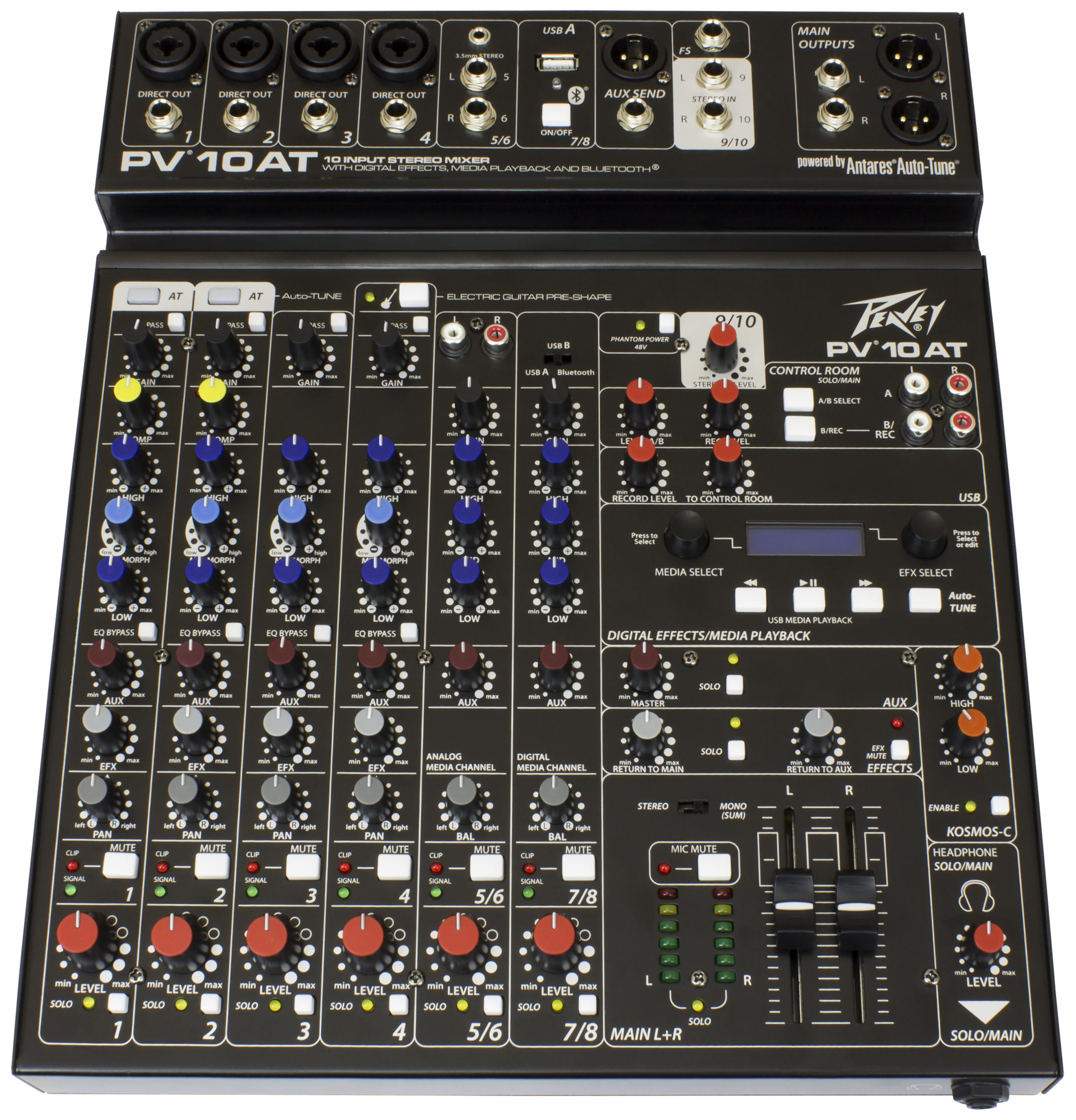

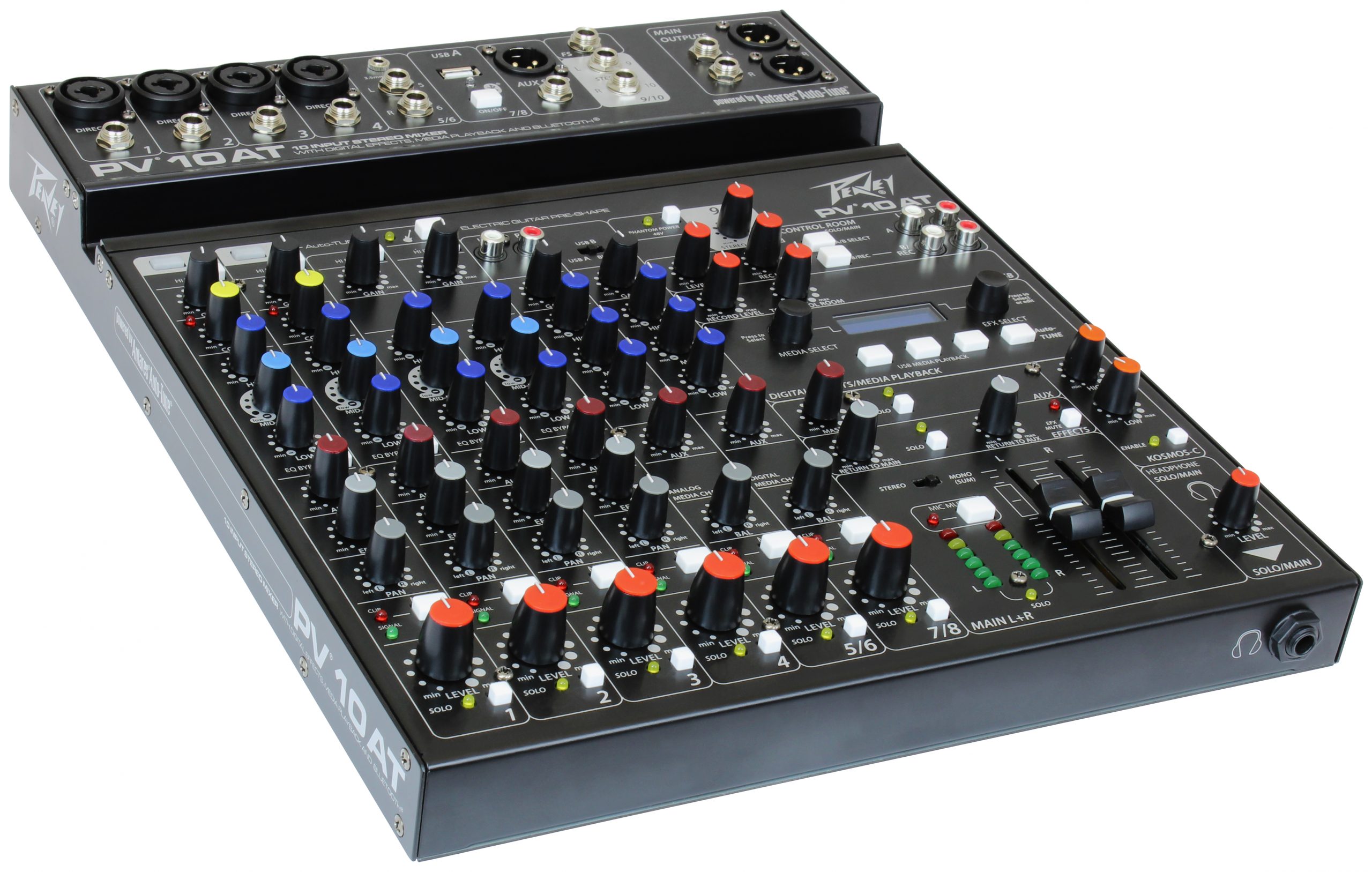

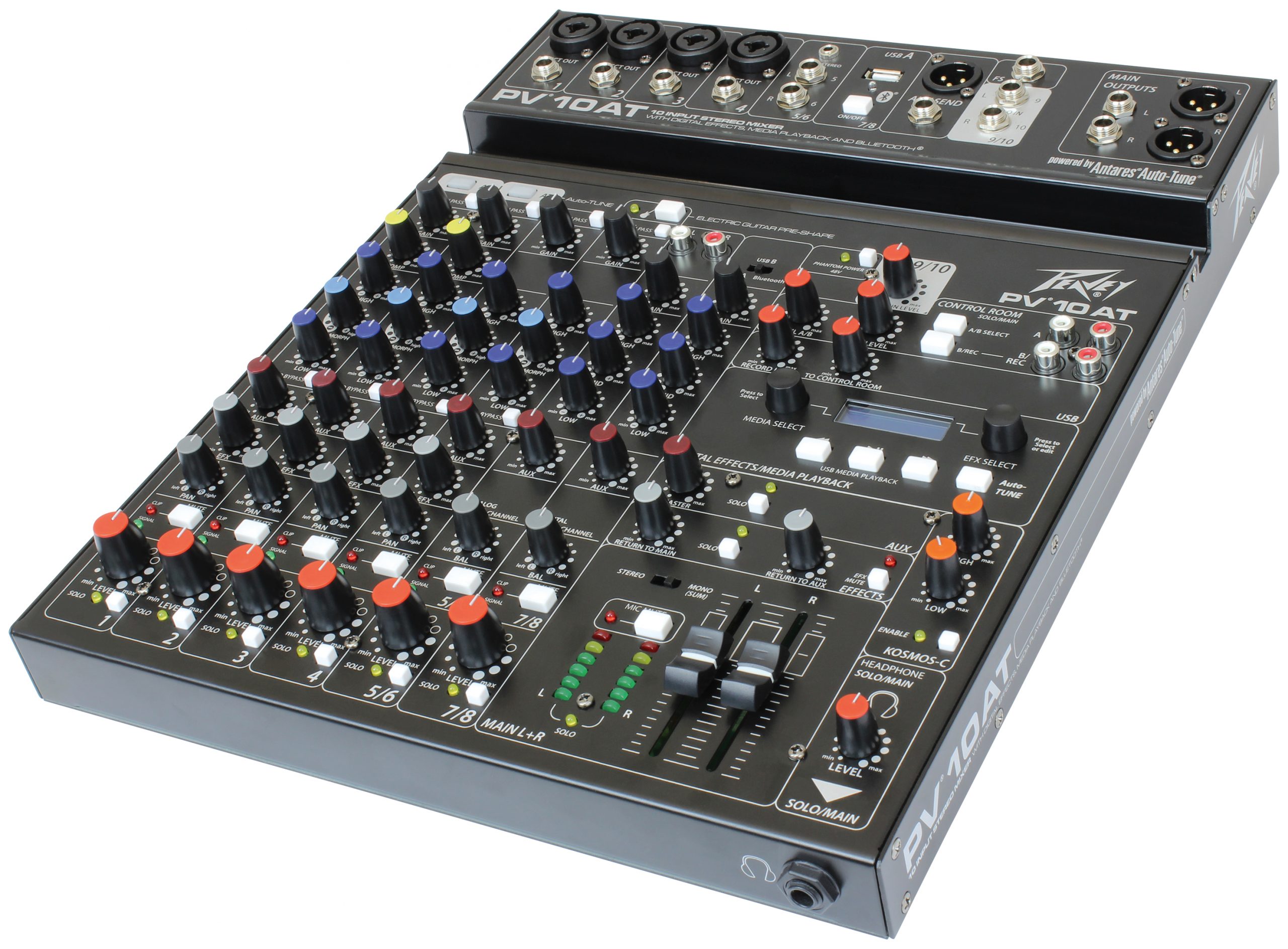

PV® 10 AT

10 Channel Compact Mixer with Bluetooth and Antares Auto-Tune

Description

The all-new PV® 10 AT mixers come equipped with Antares® Auto-Tune® pitch correction, a technology that can literally help anyone sing in key and is used on professional recordings and live performances throughout the world. This technology is incorporated directly into a complete and powerful portable mixing solution, ensuring that your audience will experience perfectly tuned vocals to complement the crystal-clear audio of the mixer.

Features such as Bluetooth® allow seamless connection to almost any “smart” device. Multiple direct outs per channel allow easy connection to most DAW interfaces for recording. In addition, these mixers can stream audio directly to a PC. MP3 playback is also available via USB A port and LCD display.

With a slim, low-profile design, PV AT series mixers are ideal in small to mid-size venues. Key features include two channels of Antares Auto-Tune, four channels of reference-quality mic preamps, four direct outputs for recording, Bluetooth® wireless input, and built-in digital effects with LCD display. These all-new mixers will provide years of hassle-free operation.

Features PV 10 AT

• New rugged, slim, low-profile console design

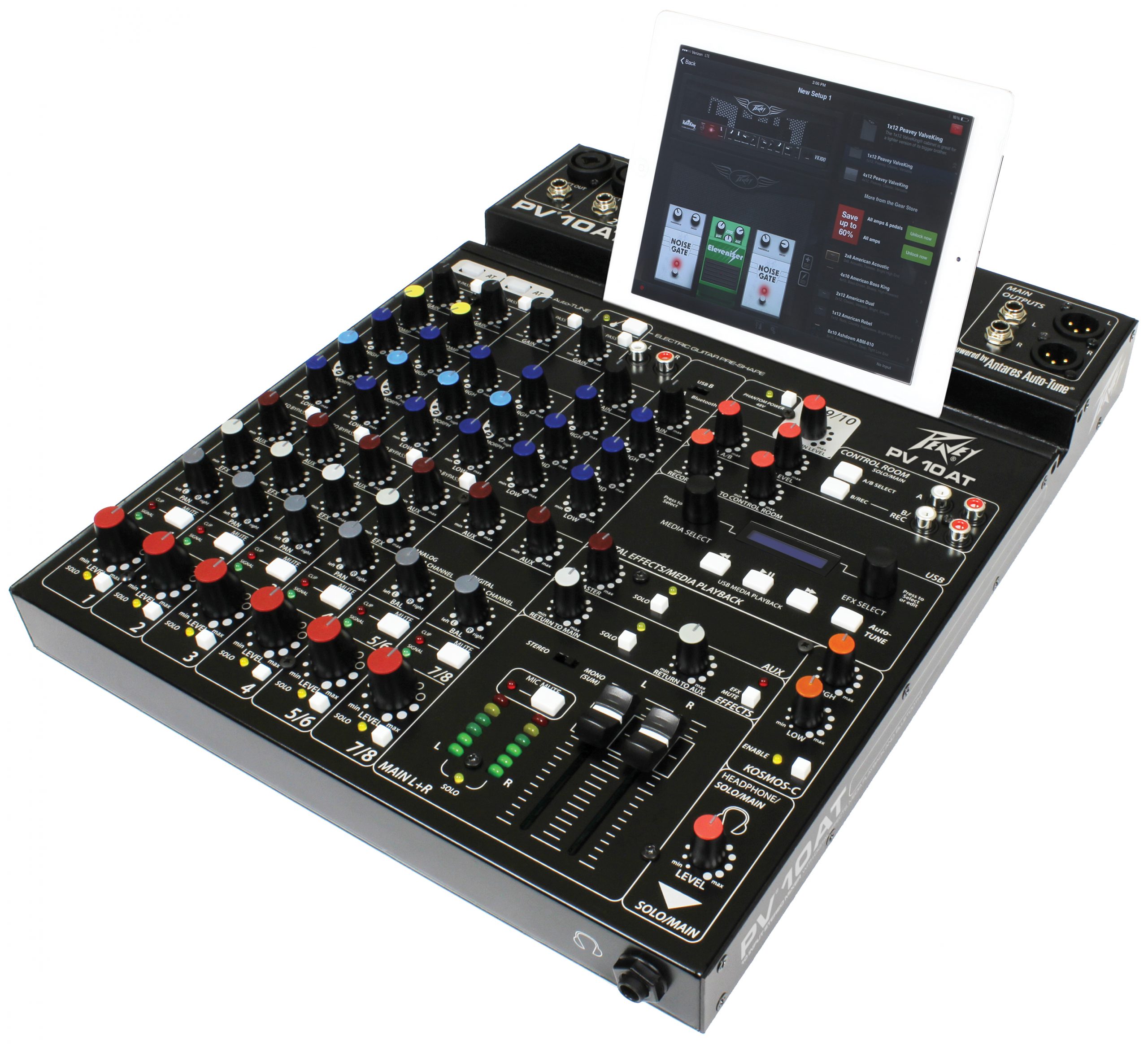

• Convenient tablet cradle

• Two channels of Antares Auto-Tune

• Four combination XLR – 1/4″ low noise mic preamps

• Selectable Hi Pass filter on first 4 inputs

• 3-band EQ on all channels

• Four channels of Peavey’s exclusive MidMorph® EQ

• EQ bypass per channel

• Two channels of built-in compression

• Individual channel mutes

• Individual Listen/Solo function

• LED clip and signal present indication

• Four channels of direct out

• Stereo pan control per channel

• Channel 5/6 stereo 1/4″, RCA, or 3.5 mm input channel

• Dual selectable control room outputs

• One pre-fader AUX send

• KOSMOS® bass and treble enhancement

• Main stereo outputs with 1/4″ unbalanced and balanced XLR connectors

• Precision 60 mm faders on master

• High quality master LED meter bridge

• Master mic mute

• Studio quality headphone output

• Equipped with Bluetooth® wireless connectivity, Bluetooth 3.0 + EDR, A2DP

• On-board USB-A MP3 and WAV playback

• Stereo USB-B streaming audio in and out, 16-bit, up to 48 kHz sample rates

• Built-in digital effects with LCD display

• Peavey’s exclusive on-board Hi Z guitar input

• Global 48V phantom power

Additional information

Channels (Input)

10

Channels (Output)

5

Bluetooth

Yes

USB Playback & Record

Yes

Internal Effects Engines

Yes

Input Connectors

1 x 3.5 mm Stereo Jack, 1 x Dual RCA & 1 x USB A, 2 x 1/4" Stereo Jack, 4 x XLR Combo

Output Connectors

1 x Dual RCA, 3 x 1/4" Jack, 3 x XLR

Footswitch

Yes

AUX Out

Yes (1 x XLR & 1 x 1/4" Jack)

Main Out

2 x XLR & 2 x 1/4" Jack

Phantom Power

Yes (48V)

Headphones Output

Yes (1 x 1/4" with level control)

Rack Mount (19")

Optional

Color

Net Weight

8.3 lbs (3.75 kg)

Product Height

2.19" (56 mm)

Product Width

12.75" (324 mm)

Product Depth

15.10" (384 mm)

AC Power Input

Universal Power Supply 100-240VAC 50/60 Hz

SKU

03612610
