PSM™ 3 - Black

Boundary Microphone

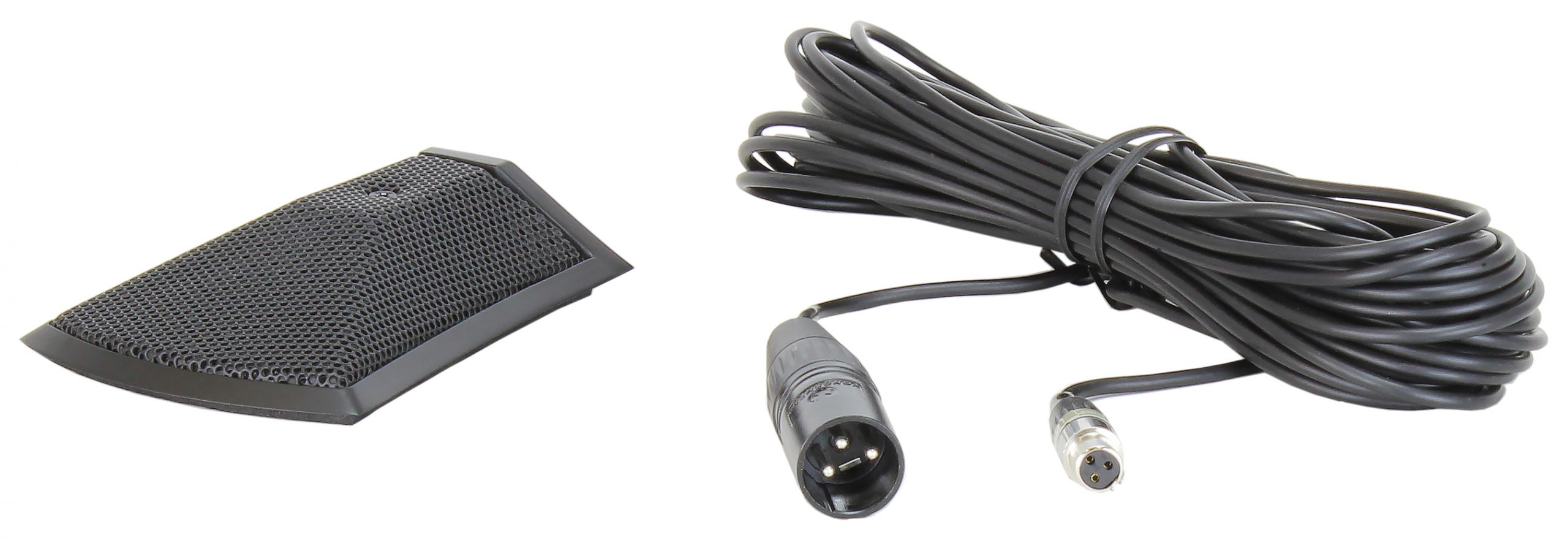

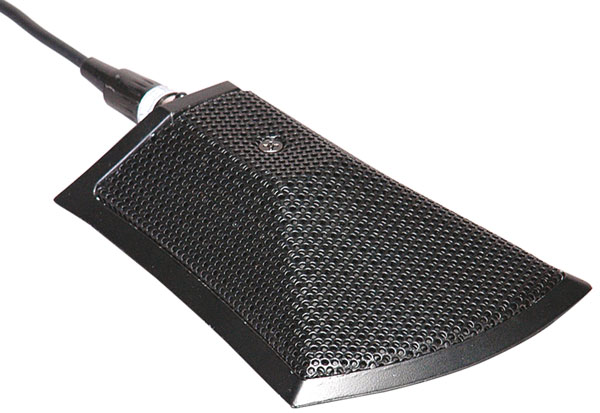

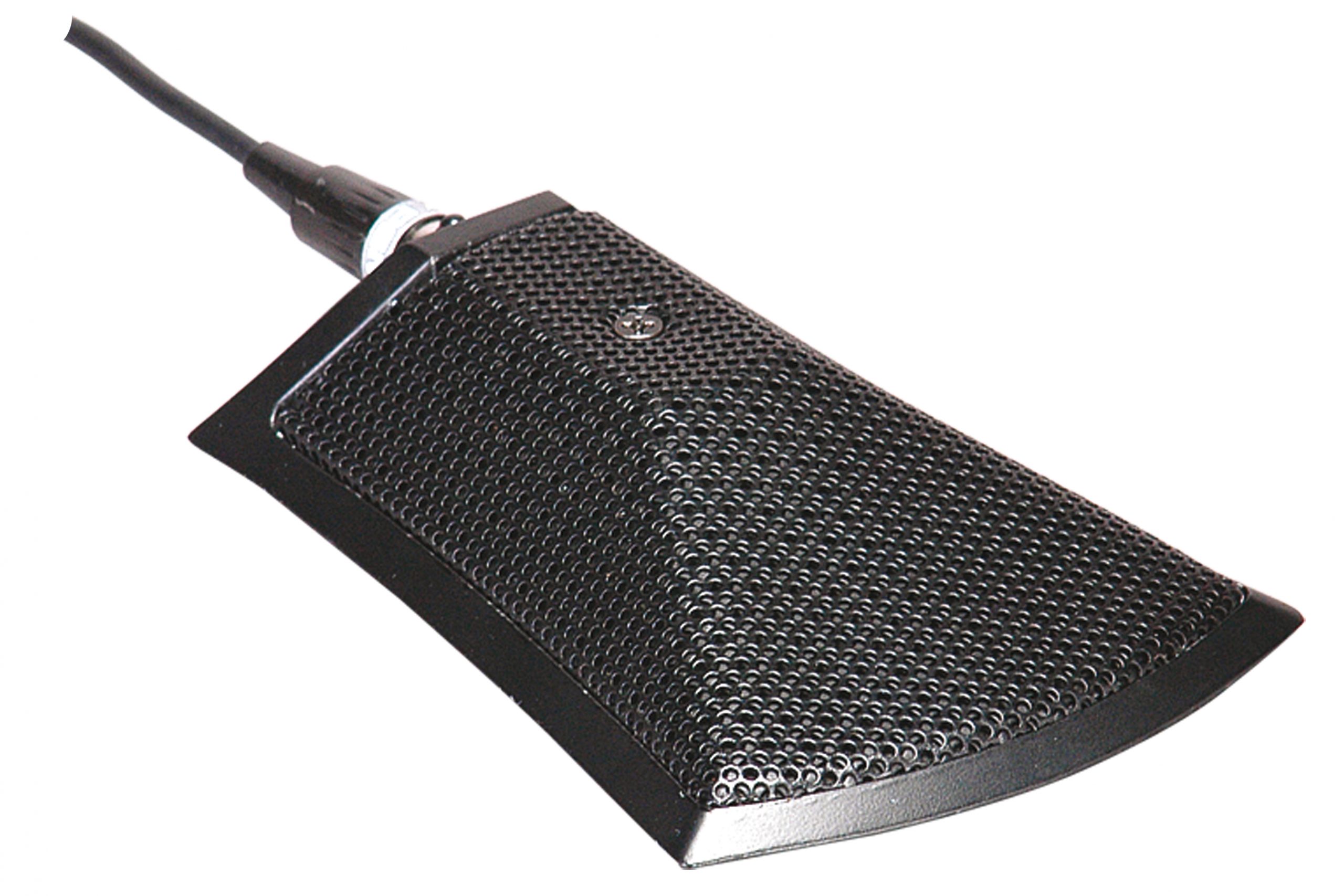

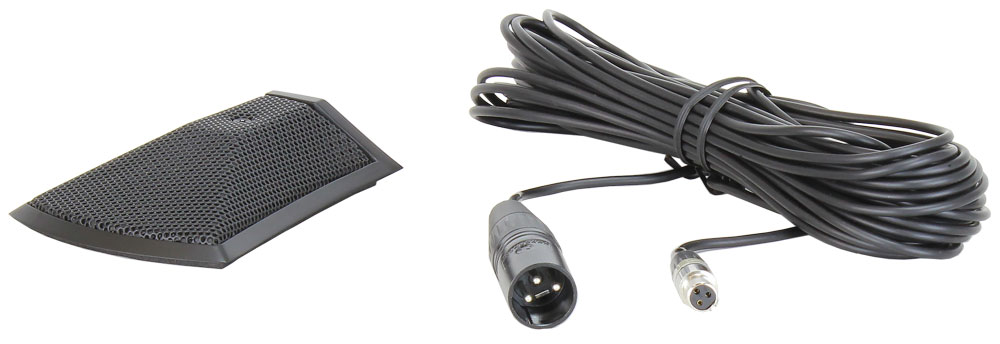

Specifically designed for a low profile, surface-mounted configuration, the PSM™ 3 is ideally suited for stage performances as well as video conferencing and other boundary applications. The PSM 3 contains a wide range of unidirectional condenser capsules mounted in its rugged housing, allowing it to become part of the acoustical boundary when placed on a flat, reflective surface. The PSM 3 is available in black or white, and includes a windscreen, mounting bracket and 10′ (3 m) cable.

Features PSM 3

• Back-electret condenserelement

• Unidirectional (half-cardioid above boundary)

• Compact, low profile design

• Rugged construction

• Shock-absorbing mountingpad, quiet operation

• Black non-reflecting finish

• Detachable 10′ cable

• Operational from 9 to 52V DC phantom power source

Additional information

Element Type

Back-Electret Condenser

Pattern Type


Frequency Response

50 Hz – 20 kHz


Maximum SPL

130 dB

Nominal Impedance

50 Ω

Phantom Power

Yes (9 – 52V)

Input Connectors

TA3F to 3-pin XLR


Net Weight

6.35 oz. (180 g)

Product Height

0.94" (24 mm)

Product Width

3.07" (78 mm)

Product Depth

4.33" (110 mm)
