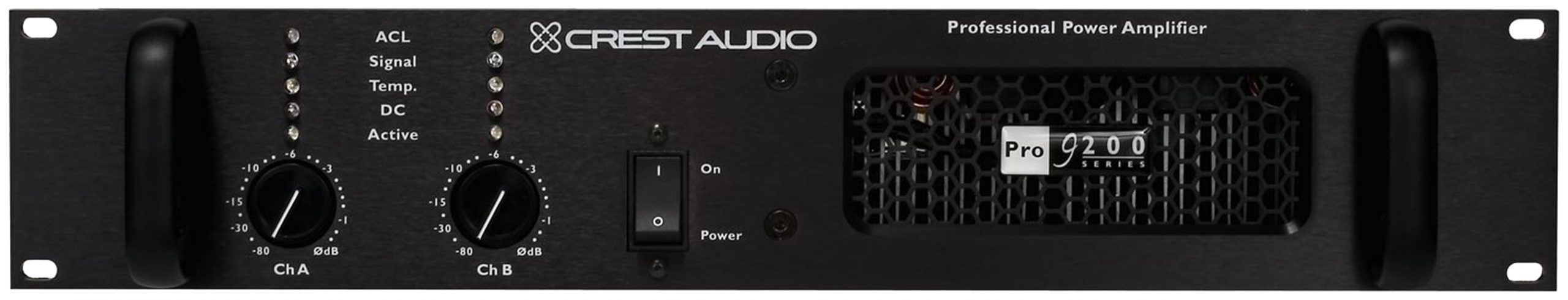

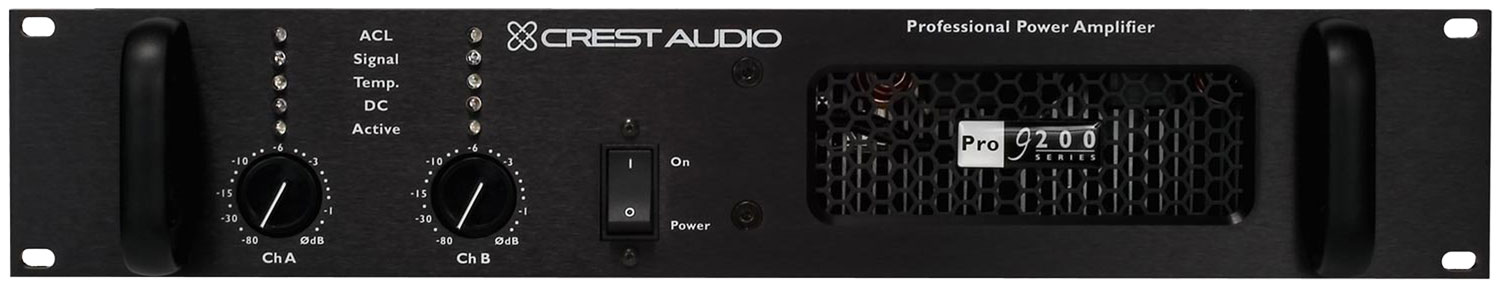

Pro™ 9200

Professional Touring Power Amplifier

Description

Crest Audio® Pro™ 200 Series amplifiers are designed to achieve unsurpassed sonic performance and long-term reliability under extreme stress in touring or fixed installation applications.

Absolute sonic accuracy is the hallmark of every Crest amplifier. Bass is solid and defined to the limits of audibility with ample current reserves. Wide-bandwidth output devices ensure detailed, transparent high frequency response. And, thanks to Crest’s exclusive IGM™ circuit, the Pro 200 Series will drive 2 Ω loads safely without compromising performance.

Features Pro 9200

• 3250 Watts @ 2 Ω per channel

• 2200 Watts @ 4 Ω per channel

• 1300 Watts @ 8 Ω per channel

• 4400 Watts @ 8 Ω bridged

• 6500 Watts @ 4 Ω bridged

• Dramatically reduced net weight

• Latest generation of high speed, wide-bandwidth output devices

• Dual, variable speed fans

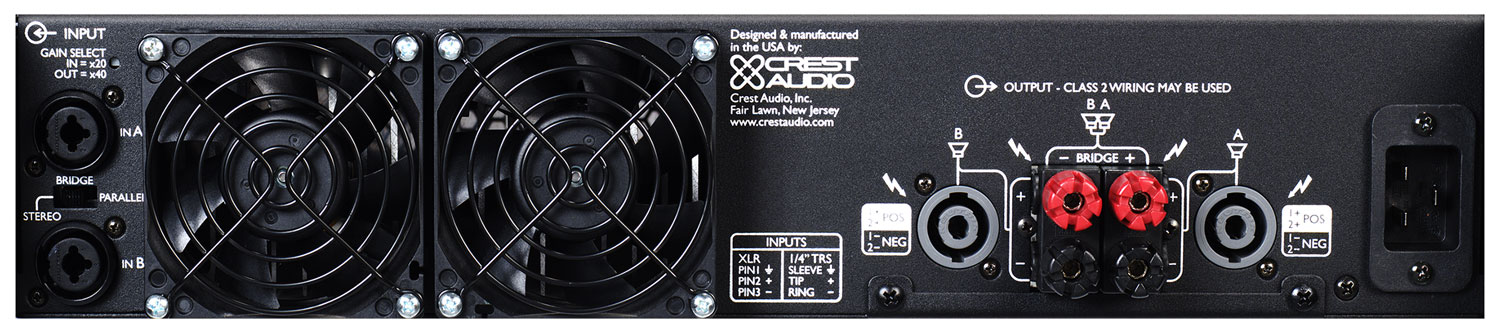

• Balanced XLR inputs

• Speakon® and 5-way binding post speaker outputs

• Mode selector switch for stereo, parallel and bridged-mono operation

• Input sensitivity selection

• Recessed, stepped attenuators

• Front panel circuit – breaker switch

Additional information

Channels (Input)

2

Channels (Output)

2

Power per Channel @ 2 Ω

3250 W

Power per Channel @ 4 Ω

2200 W

Power per Channel @ 8 Ω

1300 W

Power per Channel @ 4 Ω Bridged

6500 W

Power per Channel @ 8 Ω Bridged

4400 W

Topology

Class H

Minimum Load Impedance

2 Ω

Frequency Response

-2 dB, 10 Hz – 100 kHz; +0

Input Connectors

2 x XLR-1/4" Combo

Output Connectors

2 x Neutrik® Speakon® NL4 & 2 x Binding Post

Color

Rack Mount (19")

Yes (2U)

Net Weight

24.0 lbs (10.90 kg)

Product Height

3.50" (89 mm)

Product Width

19.00" (483 mm)

Product Depth

13.75" (349 mm)

AC Power Input

120VAC 60 Hz & 230VAC 50 Hz version available

SKU

01000560
