PHR™ 630 - White

6.5″ Ceiling Full-Range Speaker

Description

Designed to provide high performance in a very compact footprint, the Architectural Acoustics® PHR™ series in-ceiling mountng enclosures appeal to both system designers and architects. PHR in-ceiling mount enclosures are ideal for high-intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications. A tap selector switch allows for easy system tuning and configuration for 70 or 100V distributed systems. A full selection of taps up to 60 Watts (model dependent) and an 8 Ohms transformer bypass setting are included for maximum system versatility. The UL-compliant enclosure is constructed of high-impact, injection-molded plastic and includes a press-fit grille design that blends well with contemporary architecture.

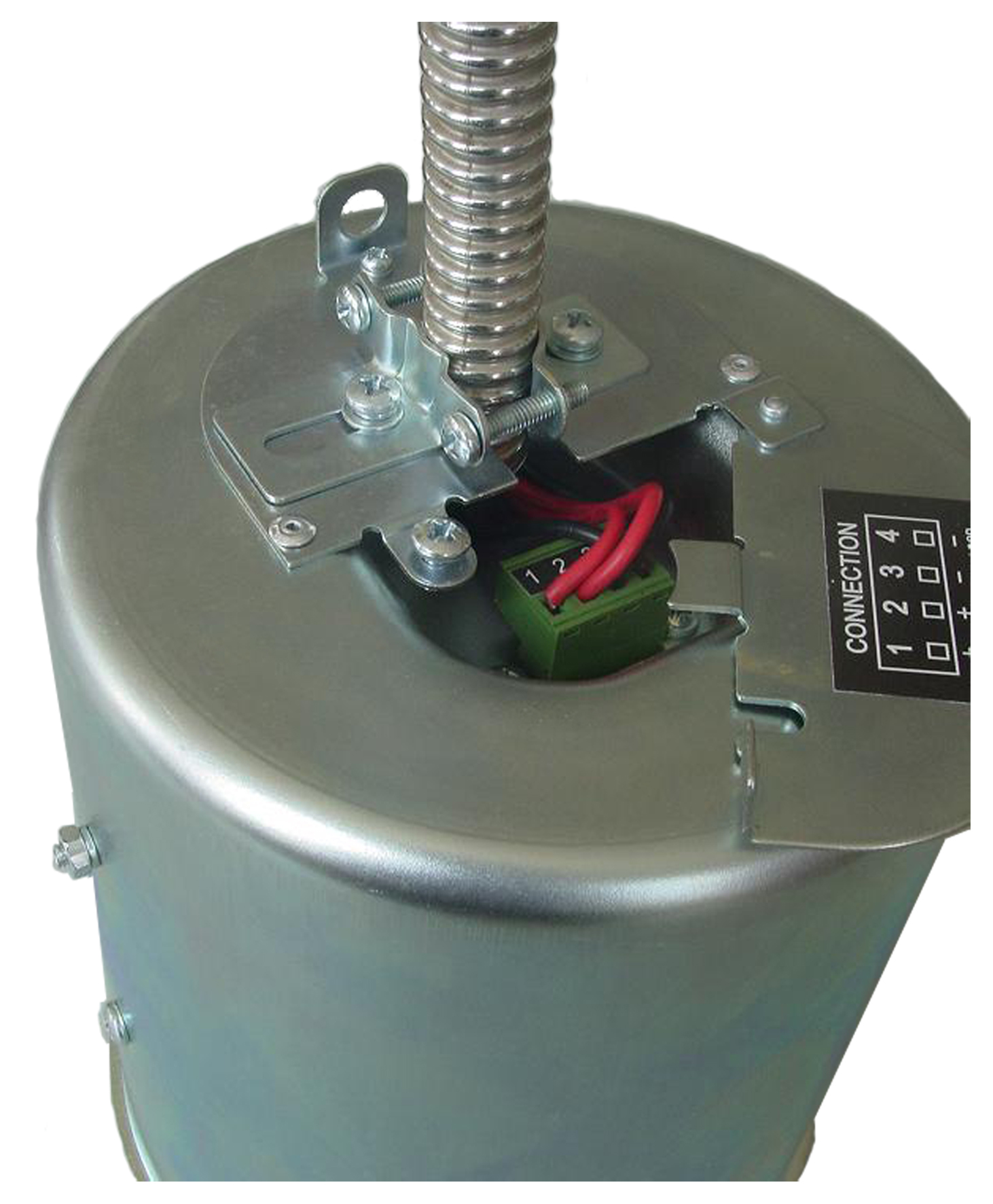

PHR series enclosures are housed in steel backing cans and include two color-coded, screw-locked flying leads in a wiring chamber to allow for easy system wiring and “daisy chain” wiring to additional PHR enclosures.

Features PHR 630

• Frequency Response: 90 Hz to 20 kHz, ±4 dB

• Power Handling: Thru Mode 50 Watts

• Transformer Taps 30W, 15W, 7.5W, 3.75W, 1.9W (70V), 100V capable

• Sensitivity: 89 dB SPL, 1m, 1W (8 Ω nominal inThru Mode)

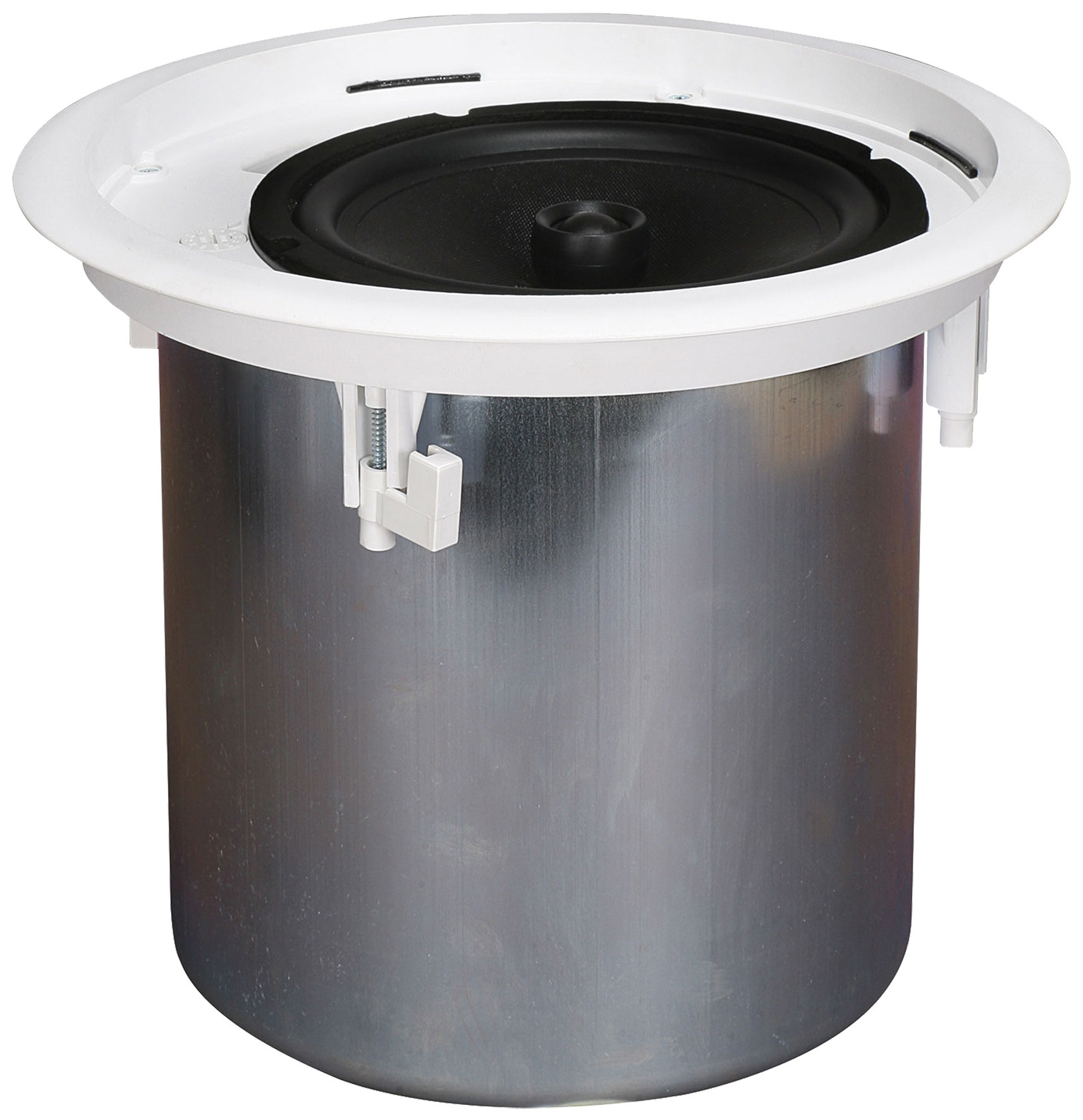

• 6.5” woofer with 1” VC, PP cone and rubber surround

• 3/4” soft dome tweeter

• Crossover Frequency: 4 kHz

• Crossover Slopes: 12 dB/oct. for tweeter, 6 dB/oct. for woofer

• Outside Dimensions: 10.29” x 8.6” (Outermost Diameter x Overall Depth)

• Cutout Diameter: 8.8”

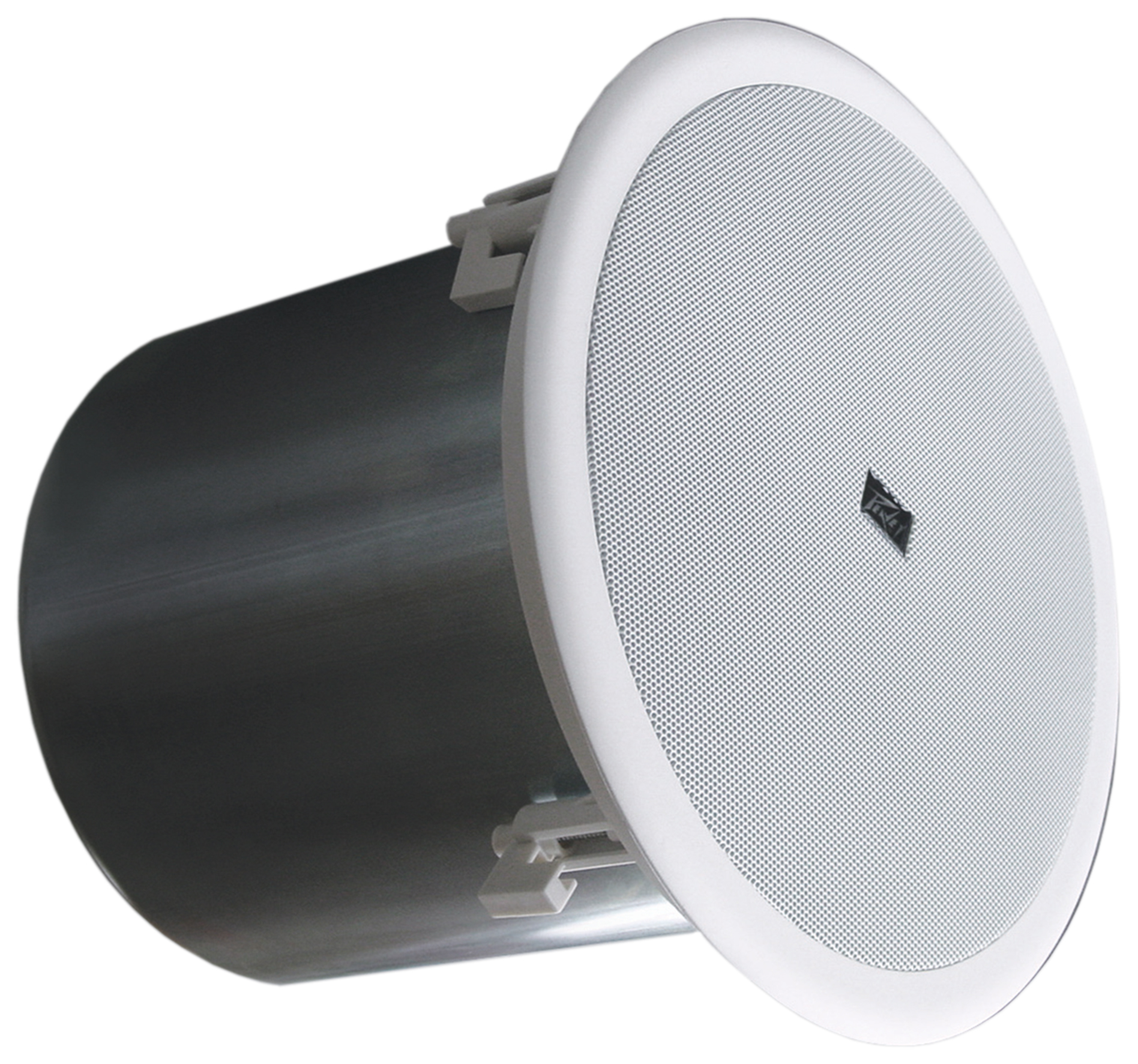

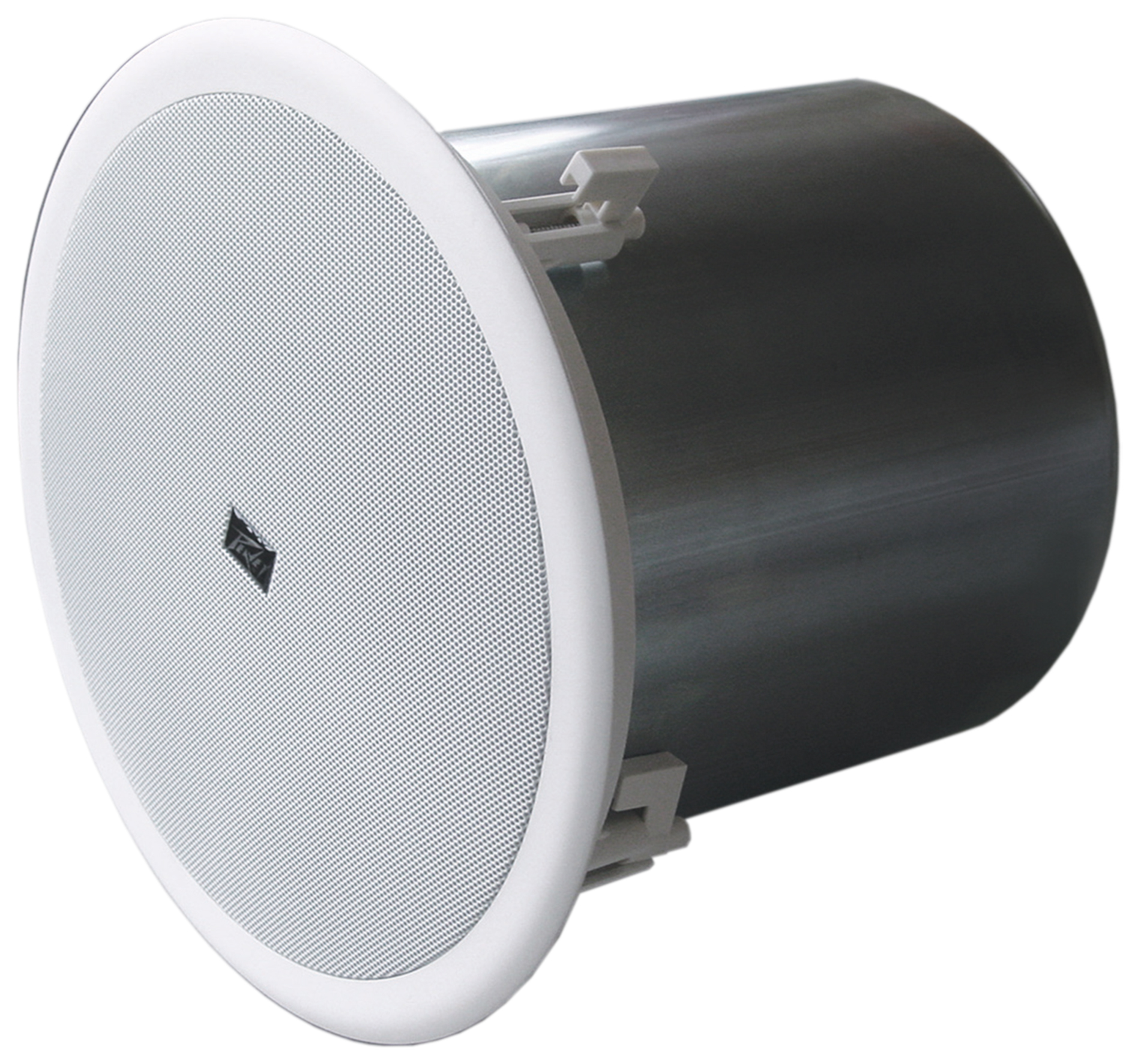

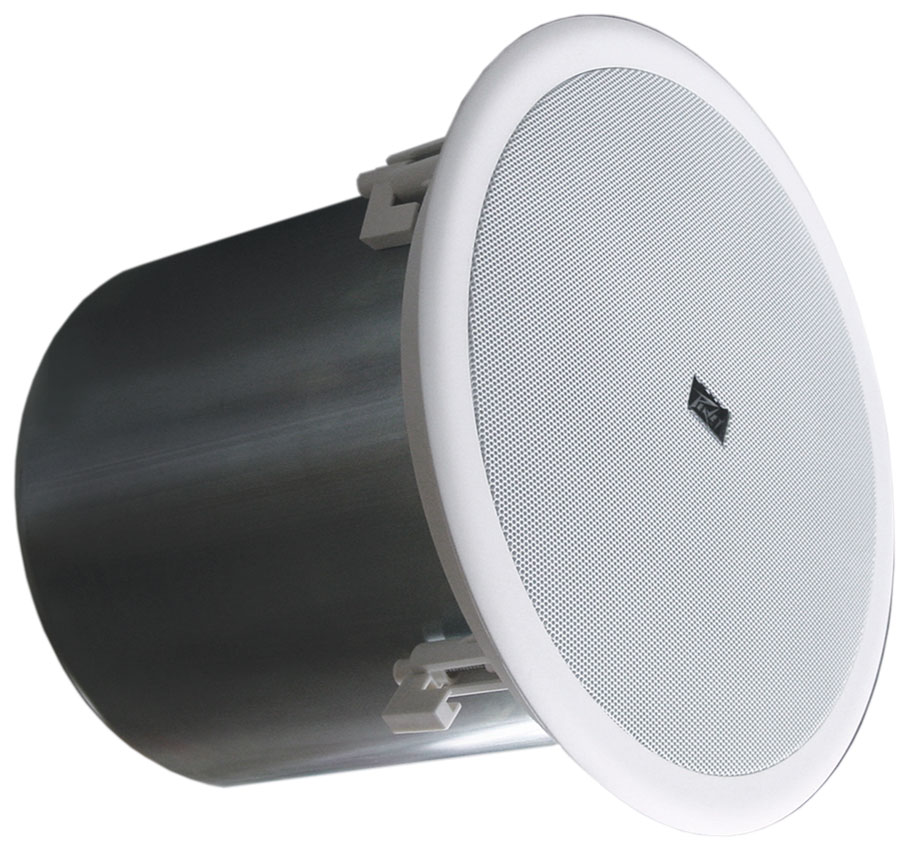

• Enclosure: High-impact polystyrene with removable locking installation arms; back can of formed steel; conduit-capable clamp for wiring; wiring chamber with screw lock; perforated metal grille with inner fabric liner for ‘blackout.’

• C-shaped backing plate support included

• UL compliant

• Quantity per pack – one pair

Additional information

Speaker Configuration

Ceiling Speaker 2-way

Speaker Type

Non-Powered

Power RMS

15, 3.75, 50 W @ 8 Ω – Selectable taps – 30, 7.5, or 1.9 W @ 70/100V

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

86 dB

Speaker Frequency Response

90 Hz – 20 kHz (±4 dB)

HF Driver

3/4" Soft Dome Tweeter

LF Driver

6.5" Woofer

Enclosure Material

Polystyrene & Steel Back Can

Color

Net Weight

7.6 lbs (3.45 kg)

Product Height

8.60" (218 mm)

Product Width

max. Ø 10.20" (259 mm)

SKU

00597680
