Description
Designed to provide high performance in a very compact footprint, the Peavey® PHR™ II series ceiling speakers appeal to both system designers and architects. PHR II ceiling speakers are ideal for high-intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications. A tap selector switch allows for easy system tuning and configuration for 70 or 100V distributed systems. A full selection of taps up to 50 Watts (model dependent) and an 8 Ohms transformer bypass setting are included for maximum system versatility.

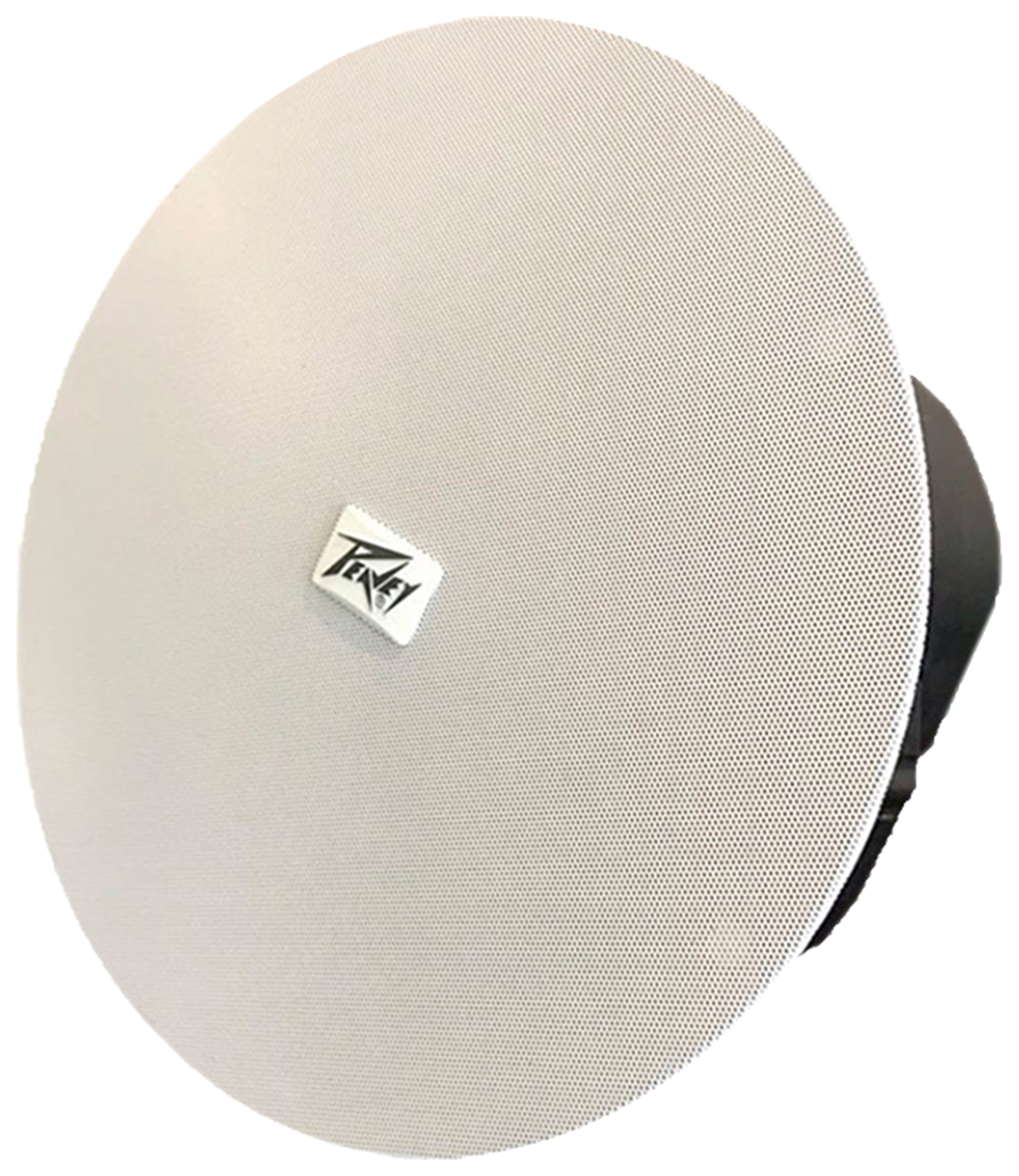

Features PHR 630 II
• Frequency Response: 80 Hz to 20 kHz, – 10 dB
• Power Handling: 50 Watts
• Nominal Impedance: 8 Ω
• Sensitivity: 88 dB ±3dB ,1m,1W
• Advanced crossover network
• Combined 70/100V and low impedance operation
• Transformer Taps 15W, 7.5W, 3.75W, 1.9W, 1W @ 70V
• Transformer Taps 30W, 15W, 7.5W, 3.75W, 1.9W @ 100V
• 6.5″ Woofer, PP cone and rubber surround
• 1″ Soft dome tweeter with Titanium membrane
• Tweeter can be aimed towards listening area
• Crossover Frequency: 4 kHz
• Recommended filter type and point: 24 dB/oct. Linkwitz-Riley at 80 Hz
• Outside Dimensions (Diameter x Depth): 10.83″ (275 mm) x 7.84″ (199 mm)
• Cutout Diameter: 9.57″ (243 mm)
• Connectors: 4-pin screw terminal
• Magnetic front grille
• Logo can rotate 360°
• Steel backcan
• Available in White
