Description

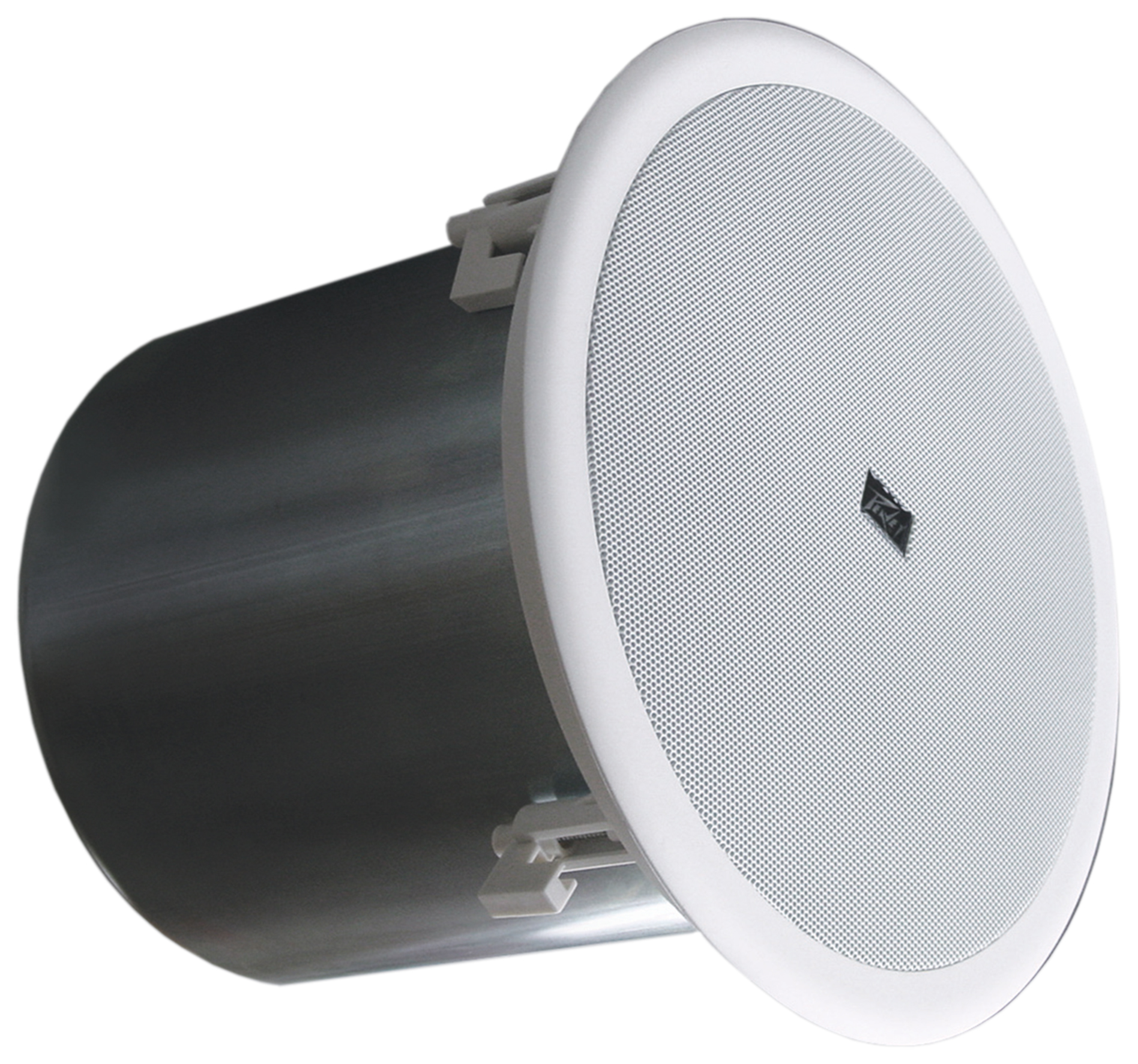

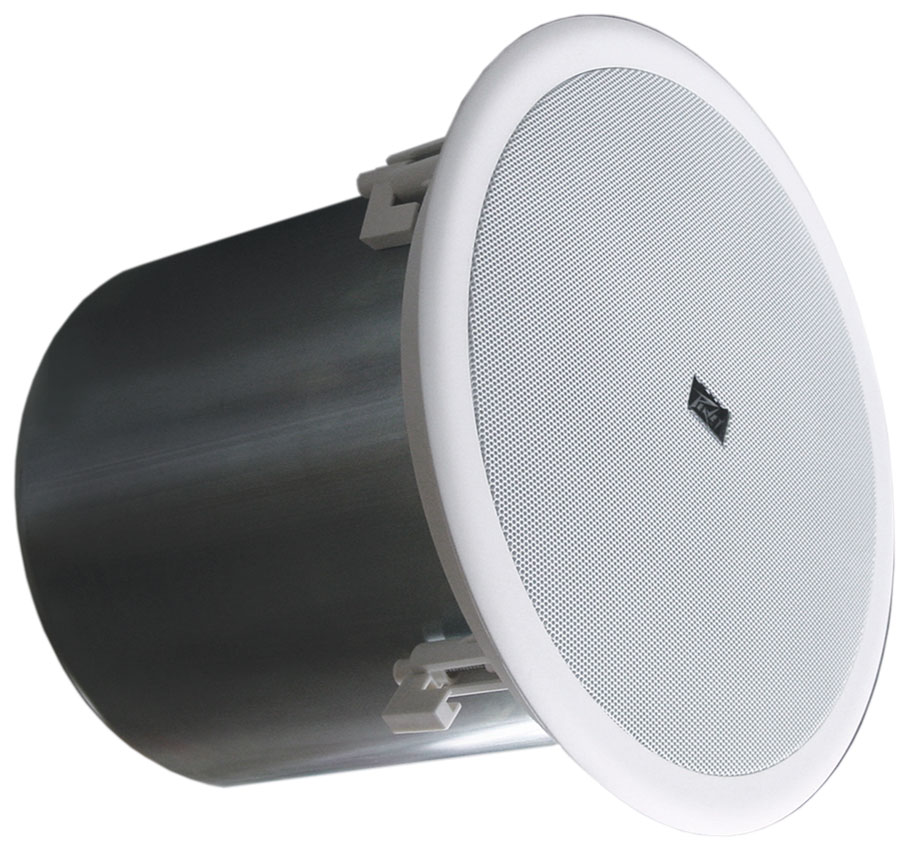

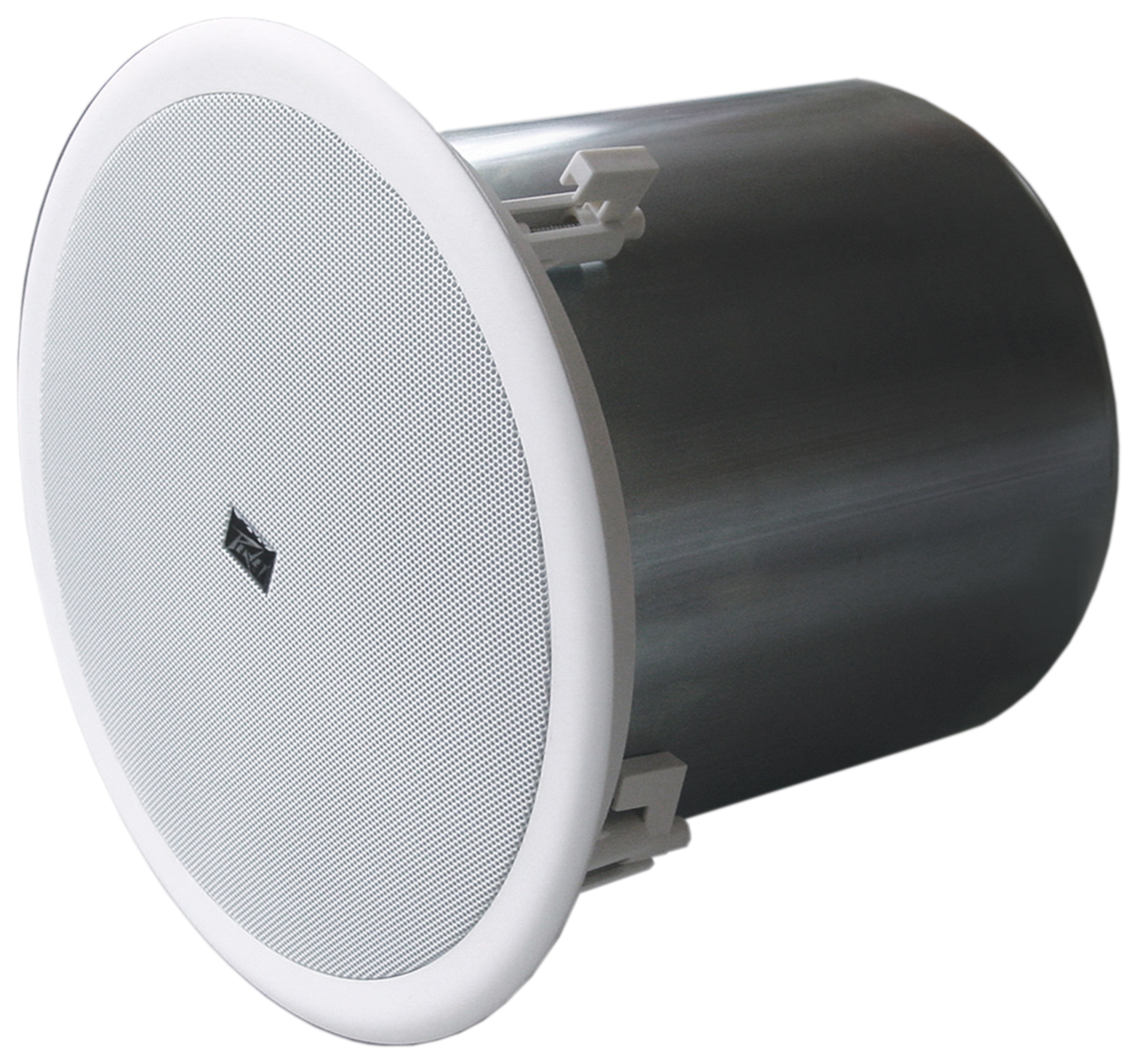

Designed to provide high performance in a very compact footprint, the Architectural Acoustics® PHR™ series in-ceiling mountng enclosures appeal to both system designers and architects. PHR in-ceiling mount enclosures are ideal for high-intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications. A tap selector switch allows for easy system tuning and configuration for 70 or 100V distributed systems. A full selection of taps up to 60 Watts (model dependent) and an 8 Ohms transformer bypass setting are included for maximum system versatility. The UL-compliant enclosure is constructed of high-impact, injection-molded plastic and includes a press-fit grille design that blends well with contemporary architecture.

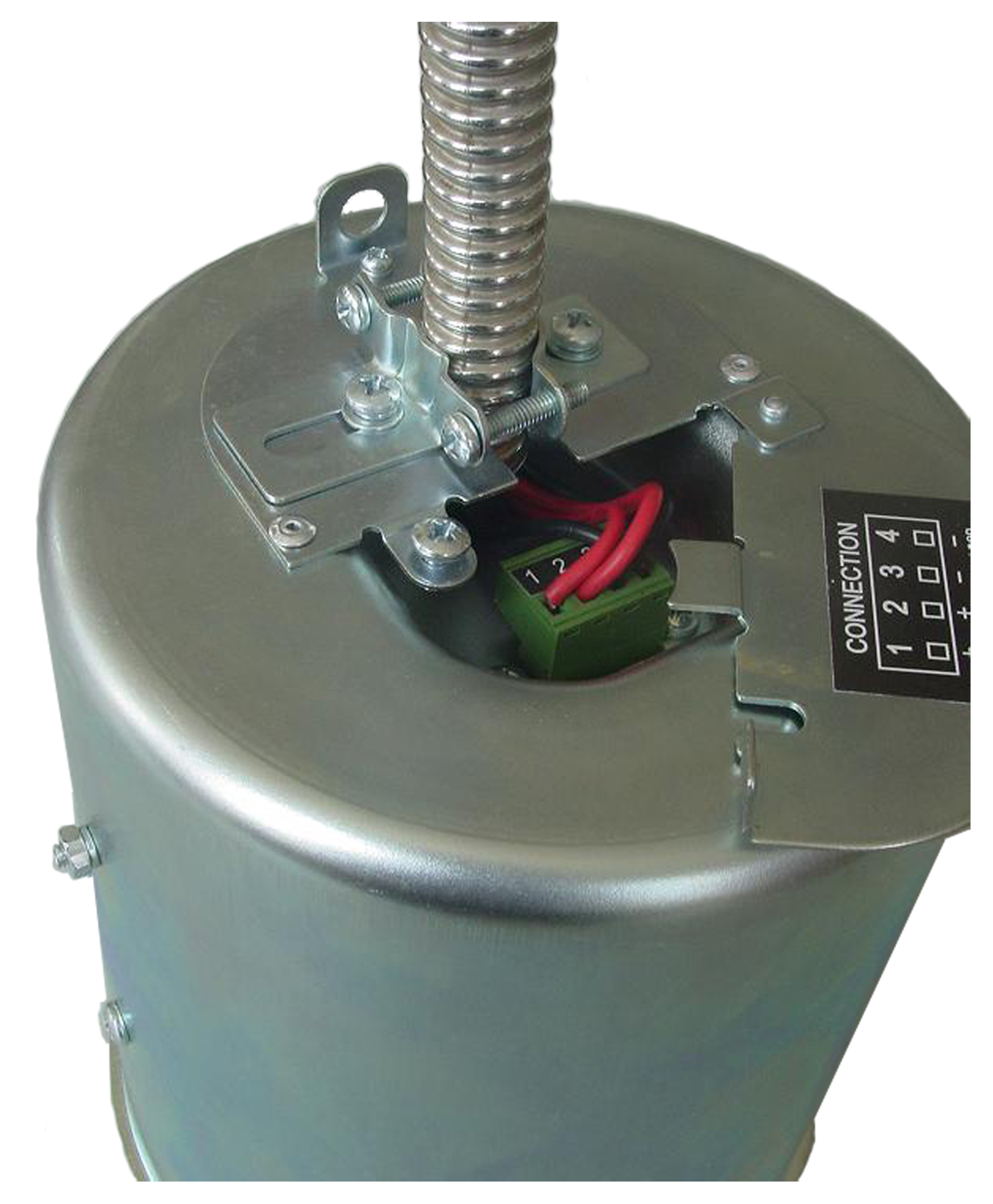

PHR series enclosures are housed in steel backing cans and include two color-coded, screw-locked flying leads in a wiring chamber to allow for easy system wiring and “daisy chain” wiring to additional PHR enclosures.
Features PHR 410
• Frequency Response: 115 Hz to 13.5 kHz, ±4 dB
• Power Handling: Thru Mode 40 Watts
• Transformer Taps 10W, 5W, 2.5W, 1.25W, 0.63W (70V), 100V capable
• Sensitivity: 86 dB SPL, 1m, 1W (8 Ω nominal inThru Mode)

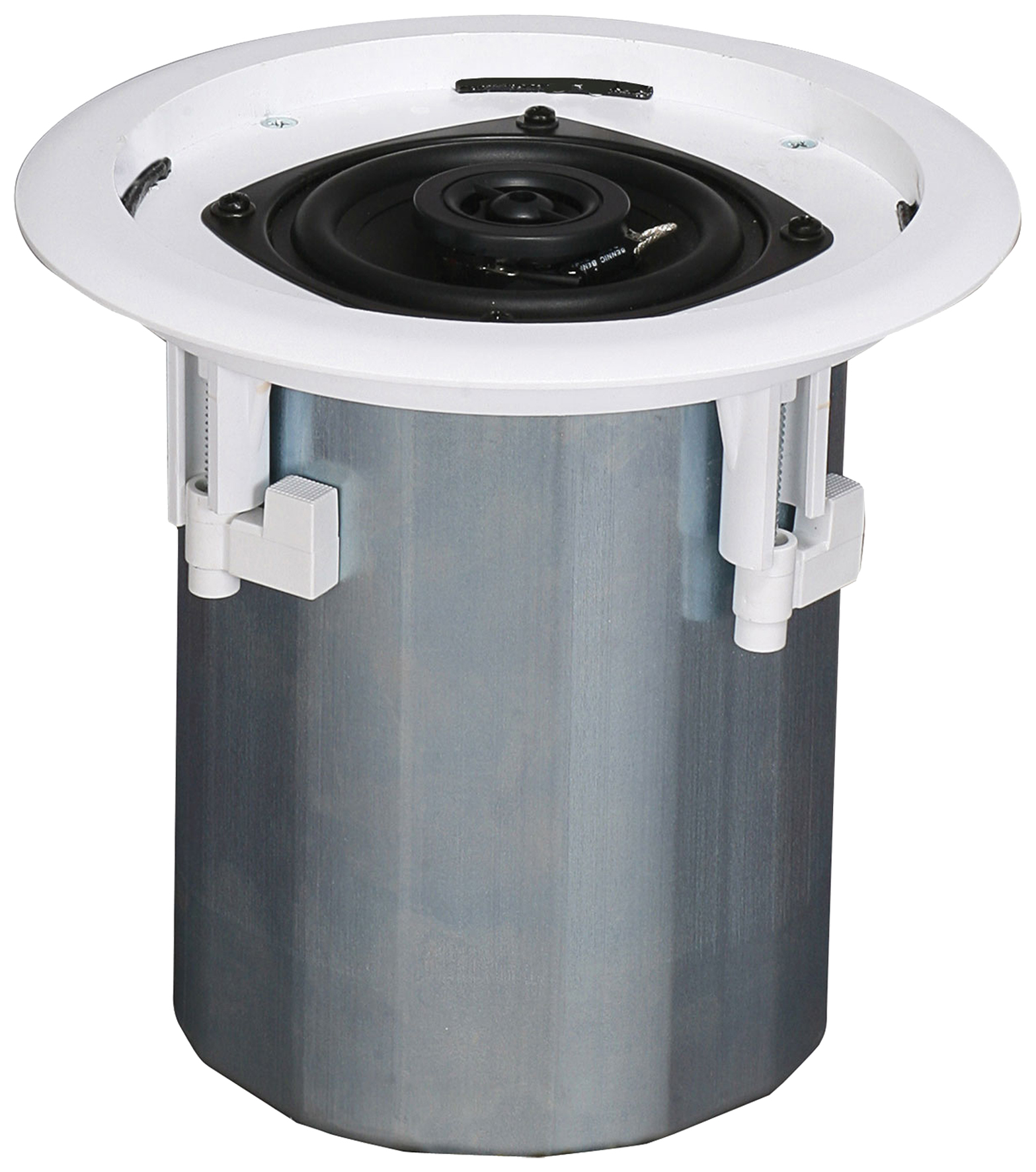

• 4” woofer with 1” VC, PP cone and rubber surround
• 1” duo-dome polymer tweeter with phase plate
• Crossover Frequency: 4 kHz
• Outside Dimensions: 7.9” x 7.87” (Outermost Diameter x Overall Depth)
• Cutout Diameter: 6.57”
• Enclosure: High-impact polystyrene with removable locking installation arms; back can of formed steel; conduit-capable clamp for wiring; wiring chamber with screw lock; perforated metal grille with inner fabric liner for ‘blackout.’
• C-shaped backing plate support included
• UL compliant
• Quantity per pack – one pair
