PageMatrix™ Command Center

Paging Management Server

Description

The PageMatrix™ Command Center is a paging management system which integrates natively with MediaMatrix® NION® frames. With PageMatrix, paging system design is simplified with intuitive cost-effective paging products. A stand-alone software application, paging controller and a host of remote paging stations provide an integrated and flexible approach for many paging applications. With MediaMatrix DSP processing at the core, PageMatrix provides the end user simple, transparent access to MediaMatrix’s powerful routing capabilities.

Features PageMatrix Command Center

• 99 available page zones

• 16 simultaneous pages

• Any combination of four or ten button stations can be used

• All stations feature multi-color LEDs which indicate zone preset status

• Controller features a station power input for remote +24V DC operation

• Phoenix connectors are used to connect paging audio to MediaMatrix BoBs

• Controller supports up to four MediaMatrix systems

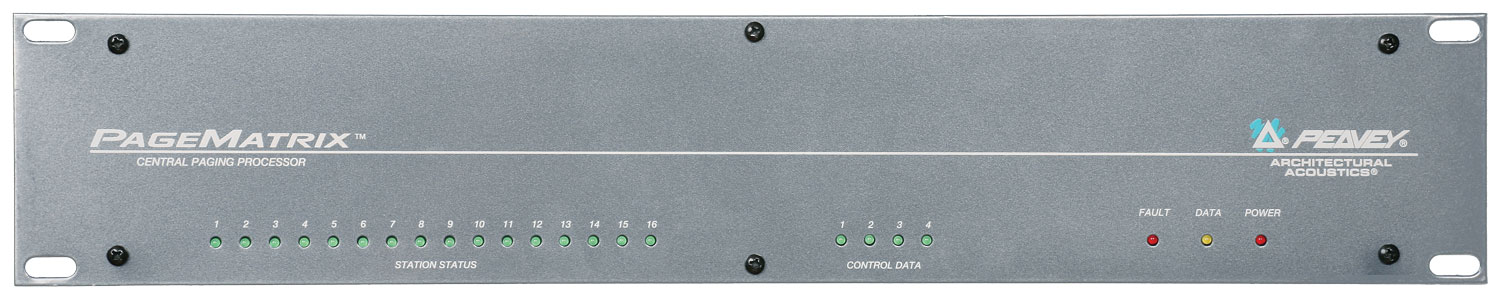

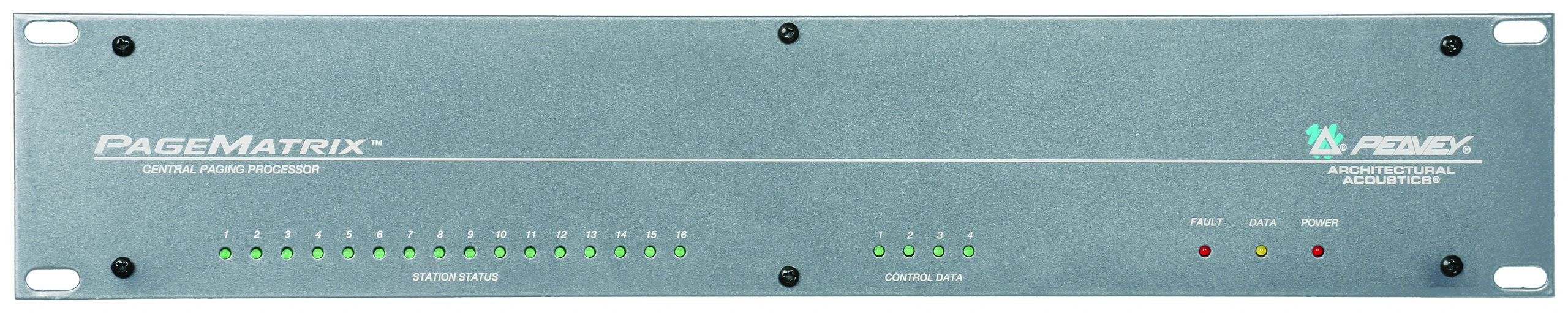

• Controller offers 16 front panel station LEDs which indicate station status

Additional information

Channels (Input)

16 via Nion Series DSP

Channels (Output)

99 via Nion Series DSP

Frequency Response

20 Hz – 20 kHz; ±3 dB

Serial Bridging

Yes

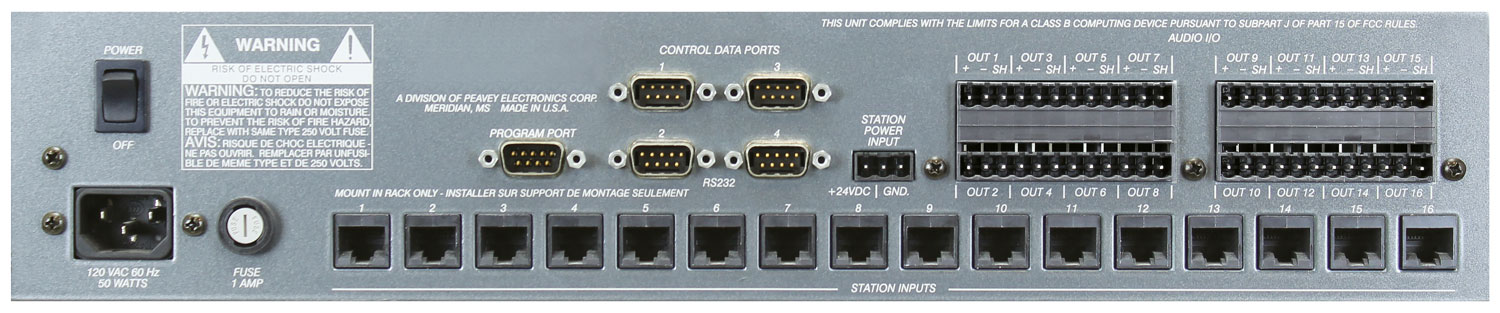

Input Connectors

16 x RJ45 (page station audio & control connectivity)

Output Connectors

via Phoenix/Euro Connector (16 channels balanced audio)

Rack Mount (19")

Yes (2U)

Net Weight

13.7 lbs (6.21 kg)

Product Height

3.50" (89 mm)

Product Width

19.00" (483 mm)

Product Depth

11.69" (297 mm)

AC Power Input

100, 120, 230VAC, 50-60 Hz version available

SKU

00386430
