nWall® 0.2

CobraNet Output Wall Plate

Description

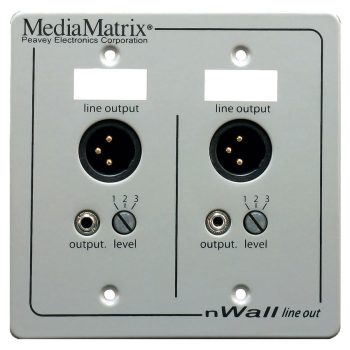

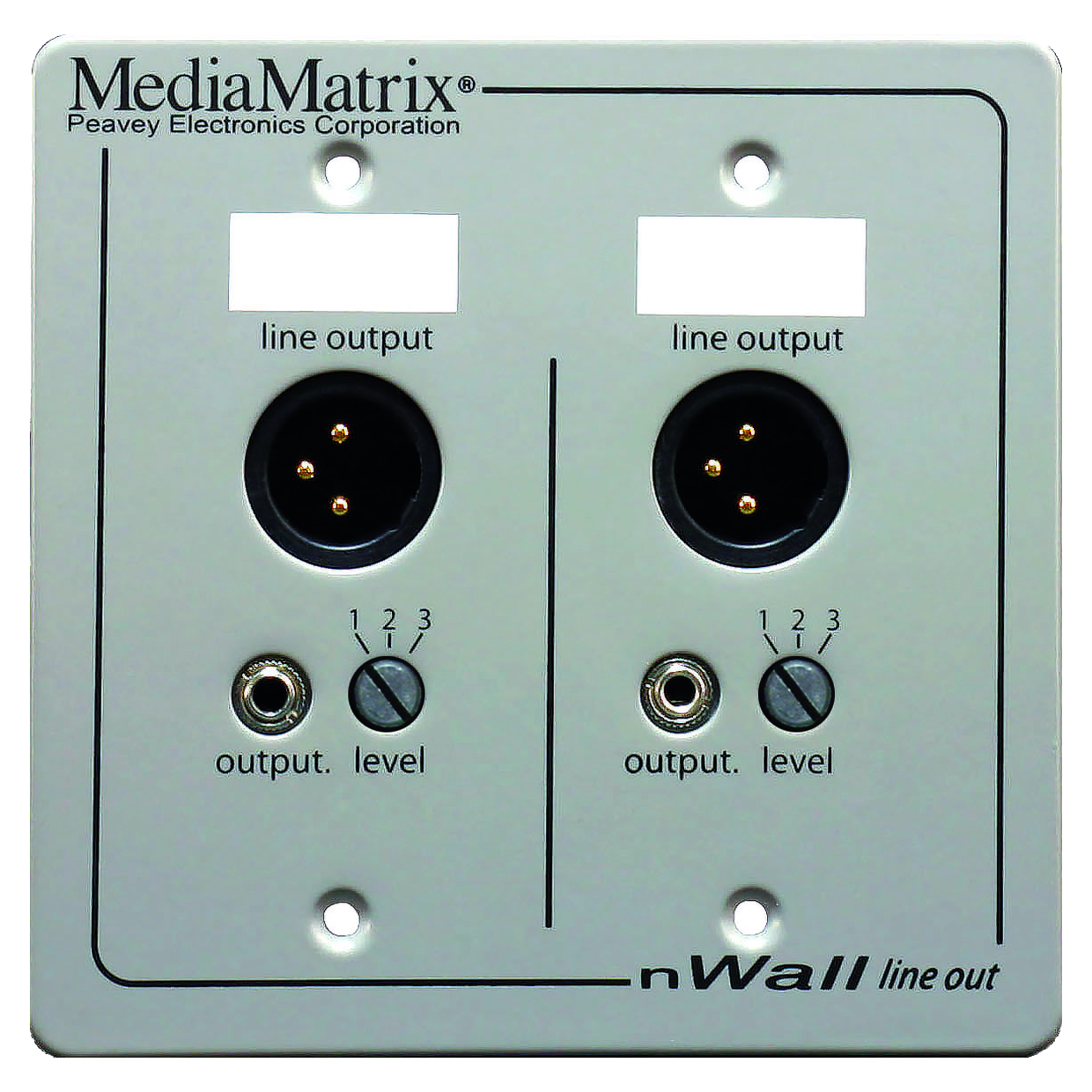

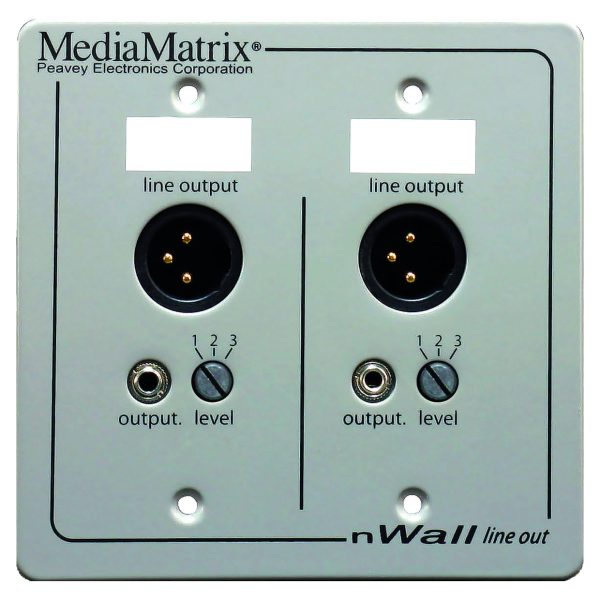

The nWall® 0.2 features two balanced analog outputs converted from a single CobraNet® network connection. The nWall 0.2 provides one XLR connector and one 1/8″ TRS mini jack connector for each output. The level of each output may be adjusted with a three-position rotary switch associated with each output on the face of nWall 0.2 panel.

Additional information

Channels (Output)

2 Line

Frequency Response

20 Hz – 20 kHz; ±3 dB

Nominal Impedance

100 Ω (Output)

Output Connectors

2 x XLR(m) & 2 x 3.5 mm TRS

Color

Net Weight

1.54 lbs (0.70 kg)

Product Height

4.50" (114 mm)

Product Width

4.57" (116 mm)

Product Depth

2.00" (51 mm)

SKU

03609200
