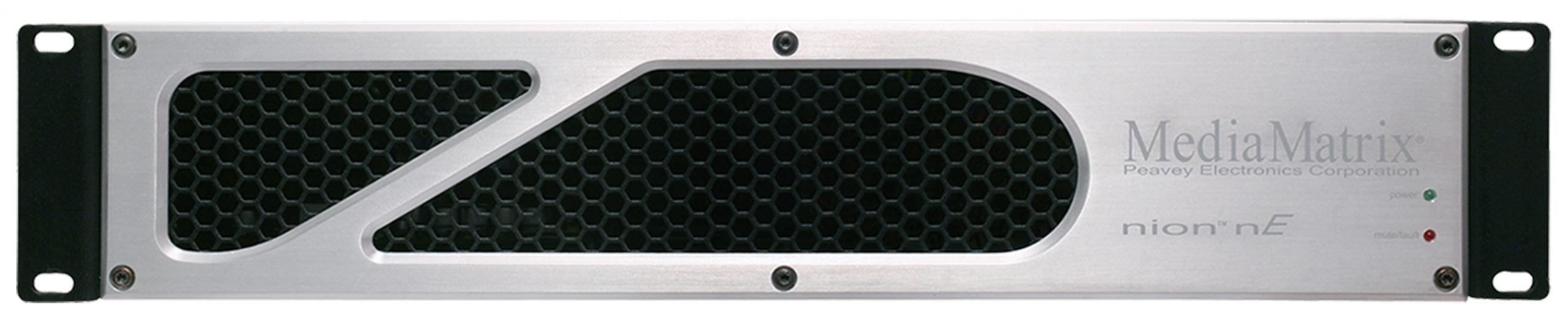

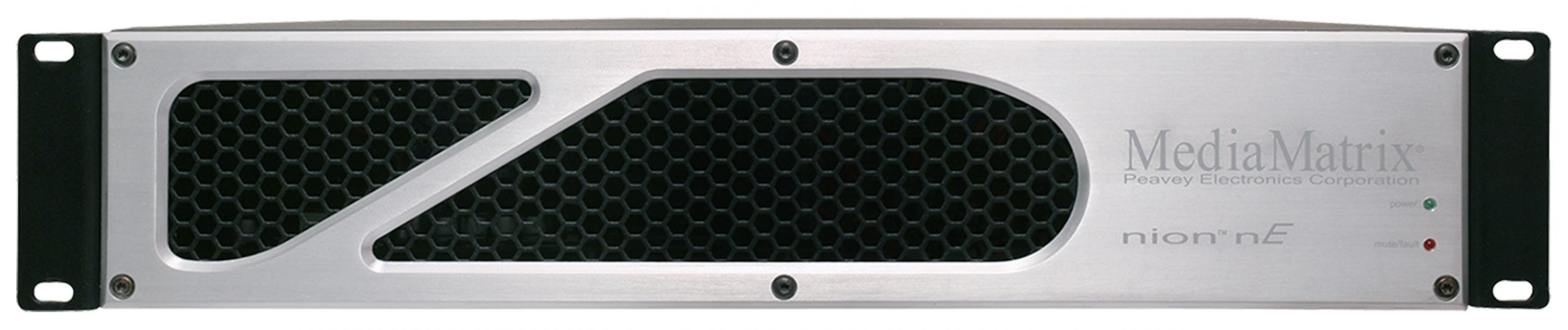

NION® nE

Programmable Digital Audio Processor

Description

NION® nE has been specificaly configured as an entry level professional audio and control DSP processor with the same processing power as its big brother the Nion n3. Rooted in the legacy of the incredible power of MediaMatrix® technology, NION takes the world’s standard for audio processing to higher levels than ever before.

Imagine using just one tool to design, program, and control your entire project! NION will change the way you design audio and control systems forever. The NION system is still today the most powerful configurable DSP core ever built for the commercial, engineered systems marketplace. All units feature a floating point-based DSP engine, coupled with the world’s most extensive, efficient and high performance audio algorithms.

Intuitive network-centric role assignments and extensive transport options make NION an unbeatable product for large and small projects alike.

Features NION nE

• Floating point DSP Engine with 3 DSP chips

• World-famous MediaMatrix audio algorithms

• Up to 128 channels total audio I/O

• 32-bit processing engine

• 24-bit conversion

• Scalable I/O architecture with four NIO-card bays

• Low latency audio performance

• Optional CobraNet or Dante I/O

• Network-centric architecture

• Supports centralized, distributed or hybrid processing; Integrated serial support

• Robust Linux embedded system controller

• Integrated flash-based storage

• Windows configuration and control client

• Full support for SNMP network management tools

• Universal mini-ATX industrial-grade power supply

• Software support for large-scale multi-node systems

• Advanced DSP compiler

• Configurable GPIO (compatible DIN rail package available separately)

• Transparent control grouping across physical nodes

• Supports redundant, self-healing configurations

• Supports a range of sample rates from 22.05 kHz to 96 kHz

• Stand alone or combined operation

Additional information

Channels (Input)

up to 32 channels analog or 64 channels digital plus optional 32 channels via CobraNet or Dante

Channels (Output)

up to 32 channels analog or 64 channels digital plus optional 32 channels via CobraNet or Dante

DSP On-Board

Yes (open architecture)

Networked Audio

Optional (CobraNet or Dante)

Network Control

Yes

Frequency Response

20 Hz – 20 kHz; ±3 dB

GPIO & Relays

25 pins with 16 individually programmable pins, 4 switchable high current outputs, plus 'Form C' fault relay

Serial Bridging

Yes

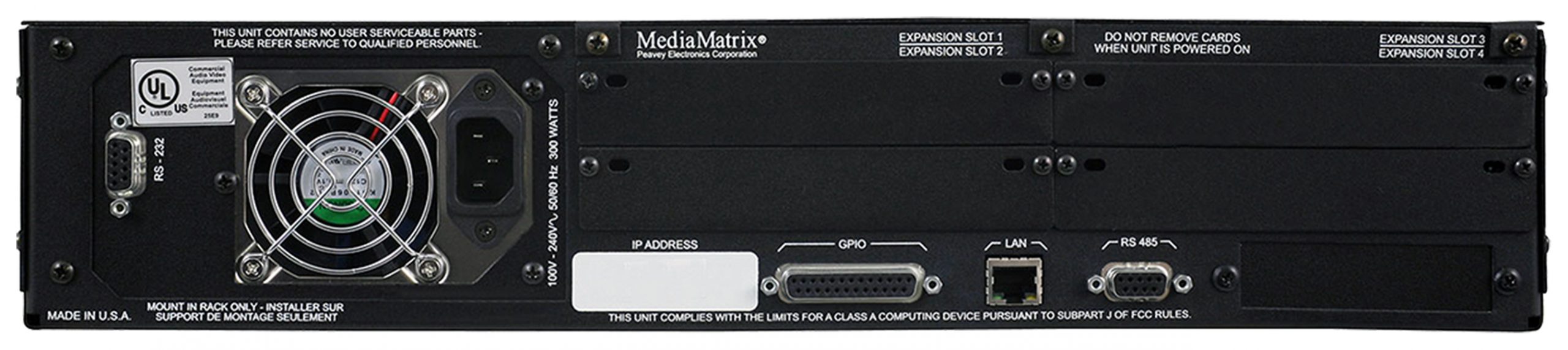

Input Connectors

via Phoenix/Euro Connector (4 x NIO series cards x 8 channels balanced audio); RJ45 via optional CobraNet or Dante Card

Output Connectors

via Phoenix/Euro Connector (4 x NIO series cards x 8 channels balanced audio); RJ45 via optional CobraNet or Dante Card

Rack Mount (19")

Yes (2U)

SKU

03601470
