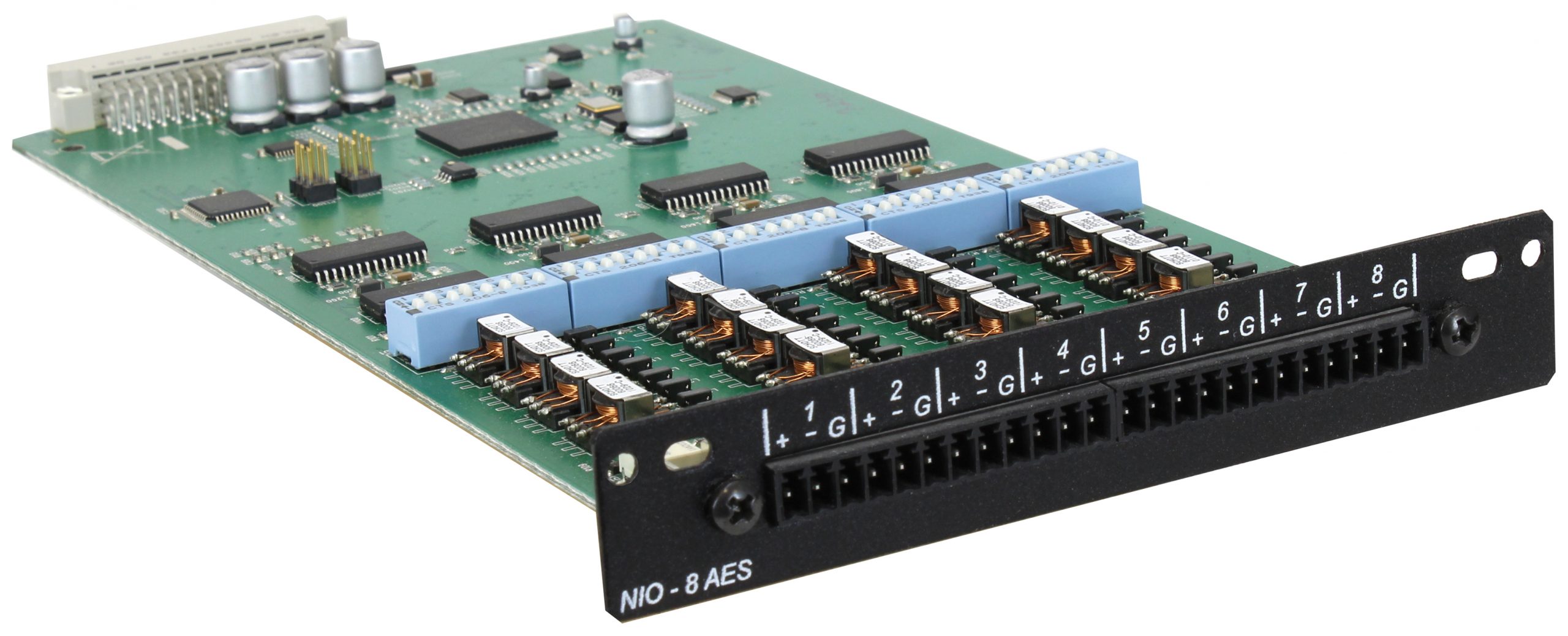

NIO™ AES

8 Channel AES/SPDIF I/O Card for NION

Downloads

Specifications

Product Images

Description

The NIO™ AES Input/Output Card is an AES/EBU configurable as S/PDIF digital audio I/O device configured in eight pairs of channels. Modular digital audio input/output card and sample rate converter for the NION Series of digital audio processing products. The AES I/O device is for use in NION™ DSP nodes.

Features NIO AES

• Eight channel pairs of AES input or output audio channels

• Inputs or output channel pairs may be selected individually in software

• 48 or 96 kHz audio sampling rate supported

• S/PDIF supported, enabled with internal dipswitches

• High reliability DIN connector to backplane, using slide rail for alignment

• Mini-Euro connectors for easy input connection

Additional information

Channels (Input)

up to 8 pairs (16 channels) (Software configured)

Channels (Output)

up to 8 pairs (16 channels) (Software configured)

AES, EBU, S/PDIF

8 (Pairs)

Flexible I/O

8 (Pairs)

Frequency Response

20 Hz – 20 kHz; ±3 dB

Nominal Impedance

110 Ω (Input) / 112 Ω (Output)

Input Connectors

via Phoenix/Euro Connector

Output Connectors

via Phoenix/Euro Connector

SKU

03458400
