NIO™ 8o II

8 Channel Analog Line Output Card for NION

Downloads

Description

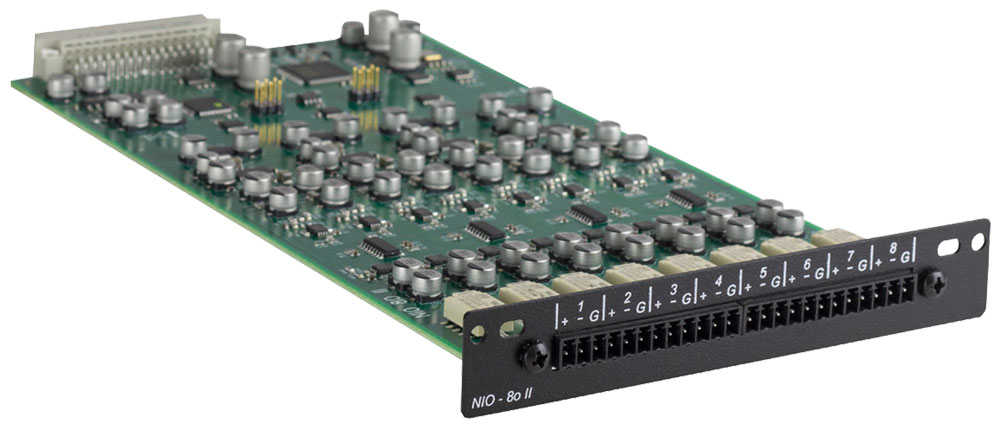

The NIO™ 8o II Line Output Card is an 8 channel line-level analog output device for use in NION™ DSP frames. Modular analog audio output card and digital to analog converter for the NION Series of digital audio processing products. Depending on the NION model up to four NIO 8o II cards may be loaded in a NION DSP.

Features NIO 8o II

• Eight line level output audio channels

• 24-bit A/D

• 48 or 96 kHz audio sampling rate supported

• High reliability DIN connector to backplane, using slide rail for alignment

• Mini-Euro connectors for easy output connection

Additional information

Channels (Output)

8

Line Outputs

8

Frequency Response

20 Hz – 20 kHz; ±3 dB

Nominal Impedance

100 Ω (Output)

Output Connectors

via Phoenix/Euro Connector

SKU

03616520
