NIO™ 8ml II

8 Channel Mic/Line Input Card for NION



Product Images

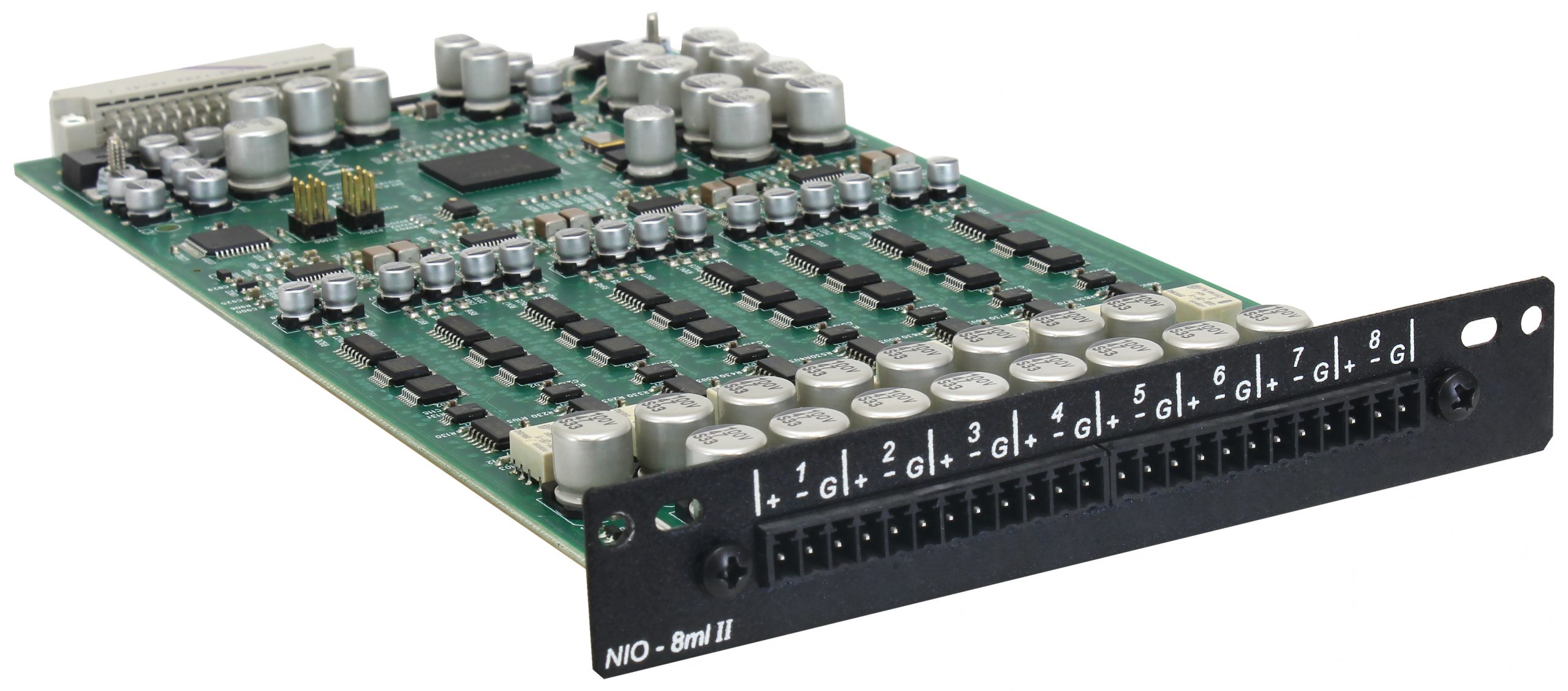

The NIO™ 8ml II mic/line input Card is an eight channel balanced mic/line level input device for use in NION™ DSP frames.

Features NIO 8ml II

• Eight line mic or line level input audio channels

• 24-bit A/D

• 48 or 96 kHz audio sampling rate supported

• High reliability DIN connector to backplane, using slide rail for alignment

• Mini-Euro connectors for easy input connection

Additional information

Channels (Input)


Frequency Response

20 Hz – 20 kHz; ±3 dB

Nominal Impedance

Mic Level: 1.9 kΩ / Line Level: 5.3 kΩ

Phantom Power

Yes (48V)

Mic/Line Input

8 (Mic/Line)

Input Connectors

via Phoenix/Euro Connector
