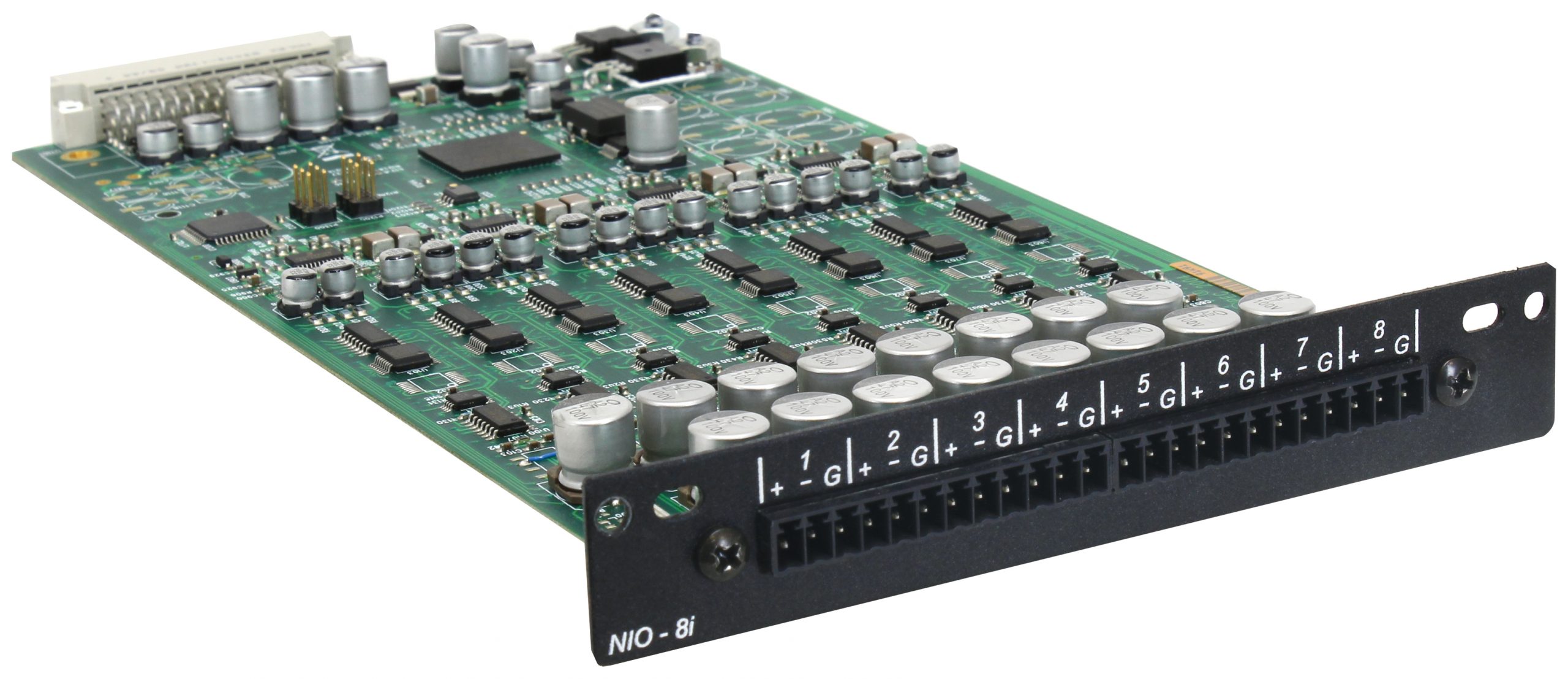

NIO™ 8i

8 Channel Analog Line Input Card for NION

Downloads

Description

The NIO™ 8i is an 8 channel line level input device for use in NION™ DSP frames. Modular analog audio input card and analog to digital converter for the NION Series of digital audio processing products. Up to four NIO 8i cards may be loaded in a NION DSP.

Features NIO 8i

• Eight line level input audio channels

• 24-bit A/D

• 48 or 96 kHz audio sampling rate supported

• High reliability DIN connector to backplane, using slide rail for alignment

• Mini-Euro connectors for easy input connection

Additional information

Channels (Input)

8

Mic/Line Input

8 (Line)

Frequency Response

20 Hz – 20 kHz; ±3 dB

Nominal Impedance

Line Level: 5.3 kΩ

Input Connectors

via Phoenix/Euro Connector

SKU

03311230
