nCIE PILOT™ Universal Power Adapter

Universal Power Adapter for MediaMatrix nCIE PILOT Control Server

Description

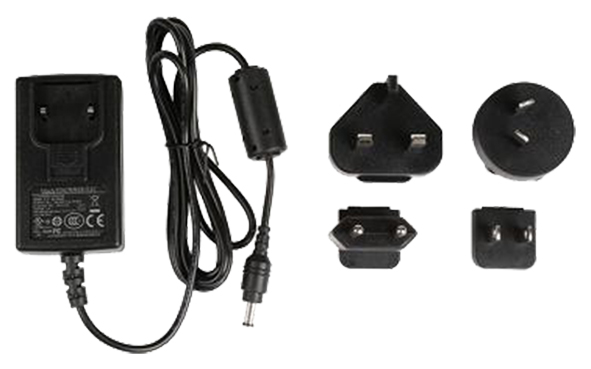

12 Volt, 36 Watts AC adapter for use with the MediaMatrix® nCIE PILOT™ control server.

Convenient, compact power supply with interchangeable plugs for international installations included.

Features nCIE PILOT Universal Power Adapter

• 100-240VAC Universal Input

• Includes North America, EU, UK, Australia plugs

• LPS Compliance

• Protections: Short circuit / Over voltage / Over current

• Energy Efficiency Level VI or Coe Tier II

• No Load Power Consumption: s; 0.1 W (VI), : s; 0.075W (Tier II)

• MTBF > 100,000 hours

Electrical Specification:

Input

• Input Range: 100 to 240 VAC

• Frequency: 50 to 60 Hz

•  Input Current:  ≤1.0A

• Inrush Current: 30A/100VAC 60A/230VAC

• Hold Up Time: ≥8.3ms

• Turn On Time: ≤3s

Output

• Short Circuit Protection: Auto Recovery

• Over Voltage Protection: Latch-off

• Over Current Protection: Auto Recovery

Environment

• Operating Temperature: -5 to 40°C

• Storage Temperature: -20 to 85°C

• Operating Humidity: 10% to 90%

• Storage Humidity: 5% to 95%

Safety

• UUcUL 62368-1 , TUV EN 62368-1, CB IEC 62368-1, FCC, CE, CCC

Additional information

SKU

03620110
