MM™ Mic 4

4 Channel Microphone Input Card for CAB Breakout Boxes

Downloads

Description

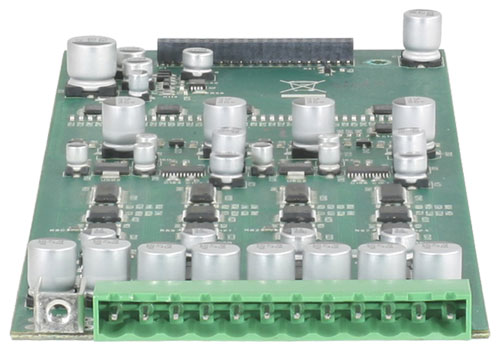

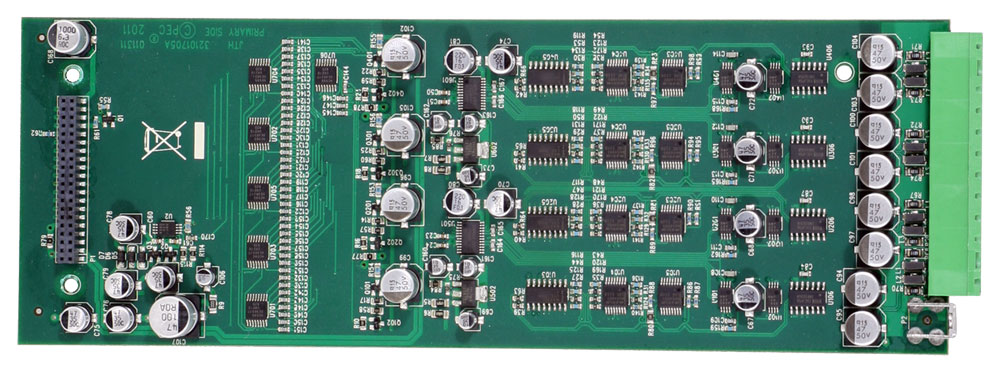

The MM™ Mic 4 card provides four channels of electronically-balanced microphone inputs for the CAB™ breakout boxes.

Features MM Mic 4

• Four channels of electronically balanced microphone inputs

• Each channel software controlled 48V phantom power

• Each channel software controlled analog gain: up to +60 dB

Additional information

Channels (Input)

4

Frequency Response

20 Hz – 20 kHz; ±3 dB

Input Connectors

via Phoenix/Euro Connector

Phantom Power

Yes (48V)

Mic/Line Input

4 (Mic/Line)

SKU

00482590
