LN™ 1263

Column Array Portable PA System

Description

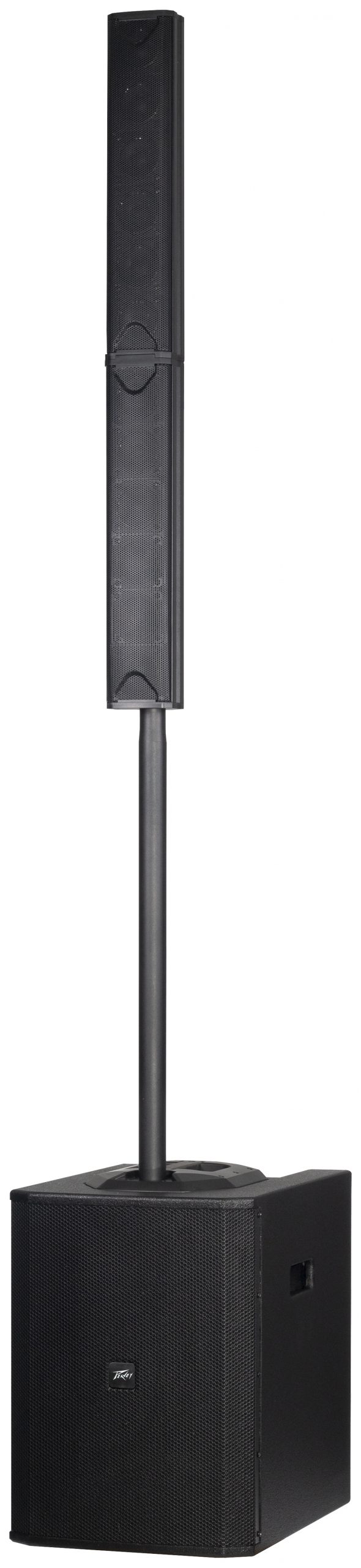

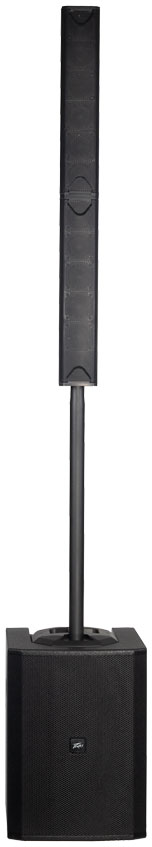

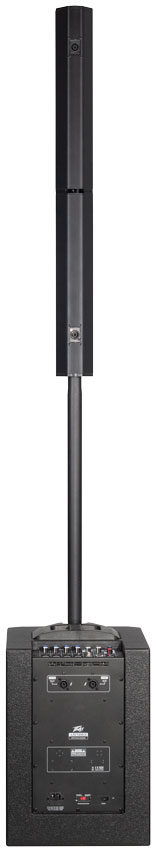

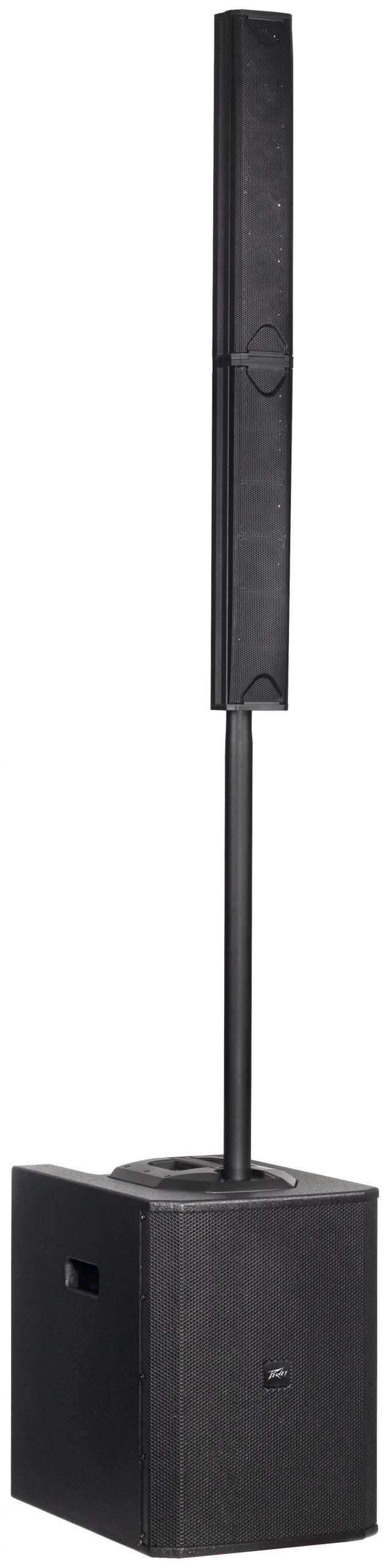

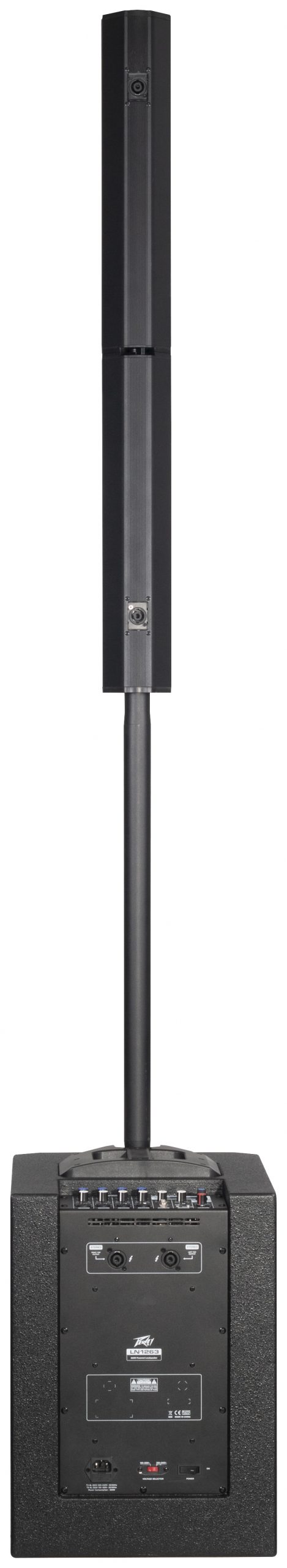

The Peavey® LN™ 1263 is a compact, powerful, portable column array. Utilizing 1,200 Watts of maximum power, the unit contains twelve 2.75″ custom drivers for the columns and a custom 12″ driver for the subwoofer.  Completely self contained, the unit has no visible cables in mono operation.

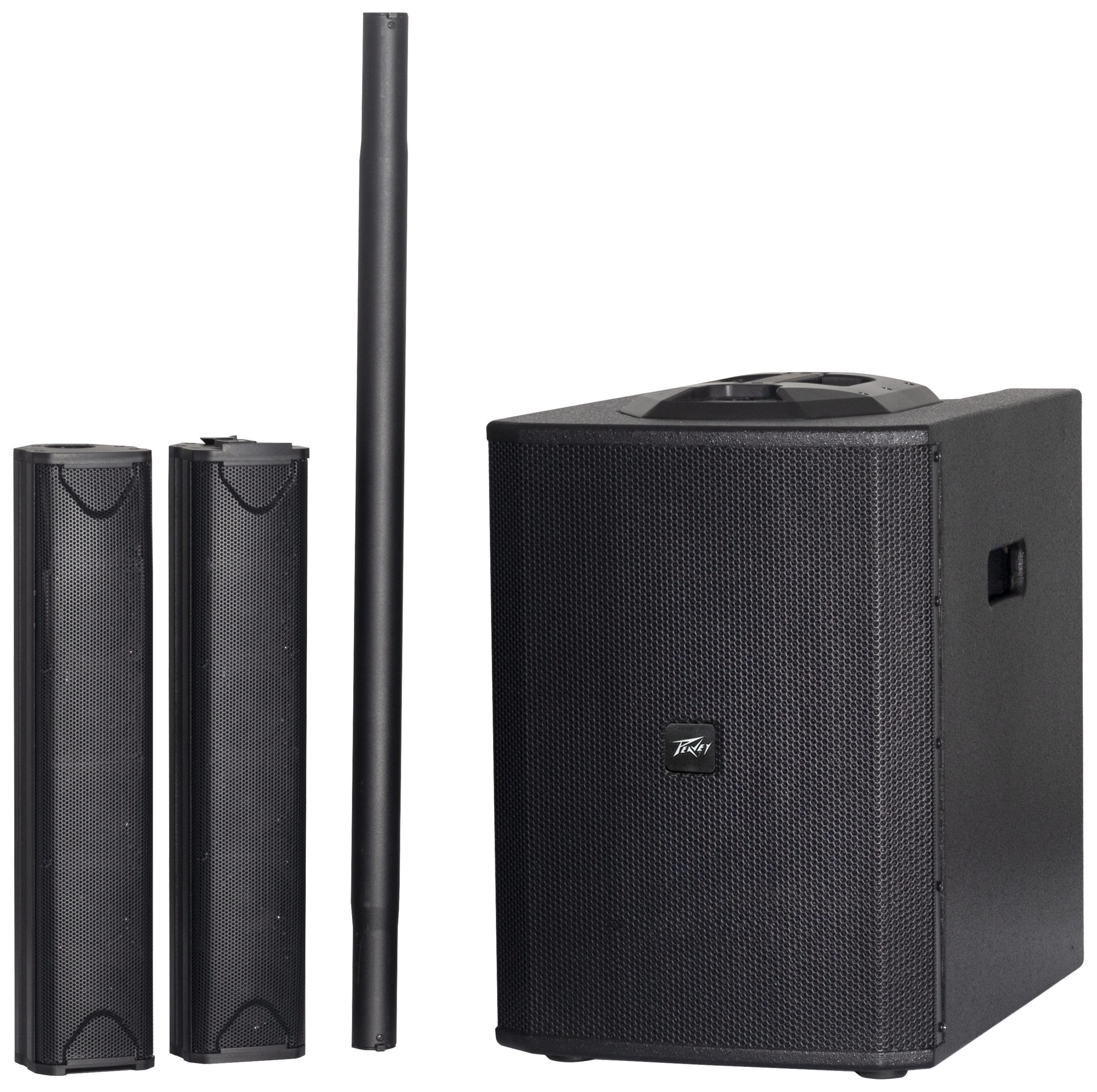

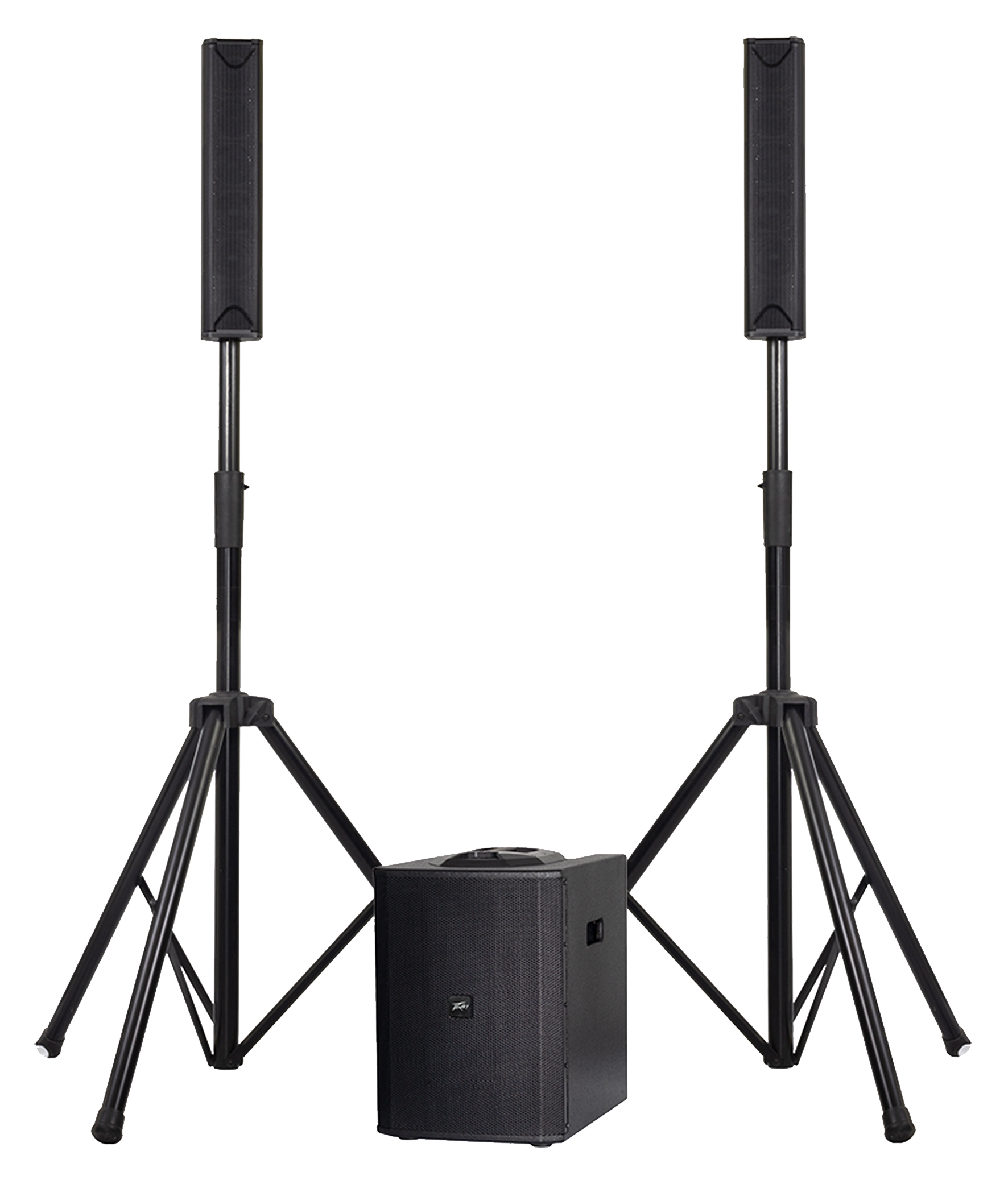

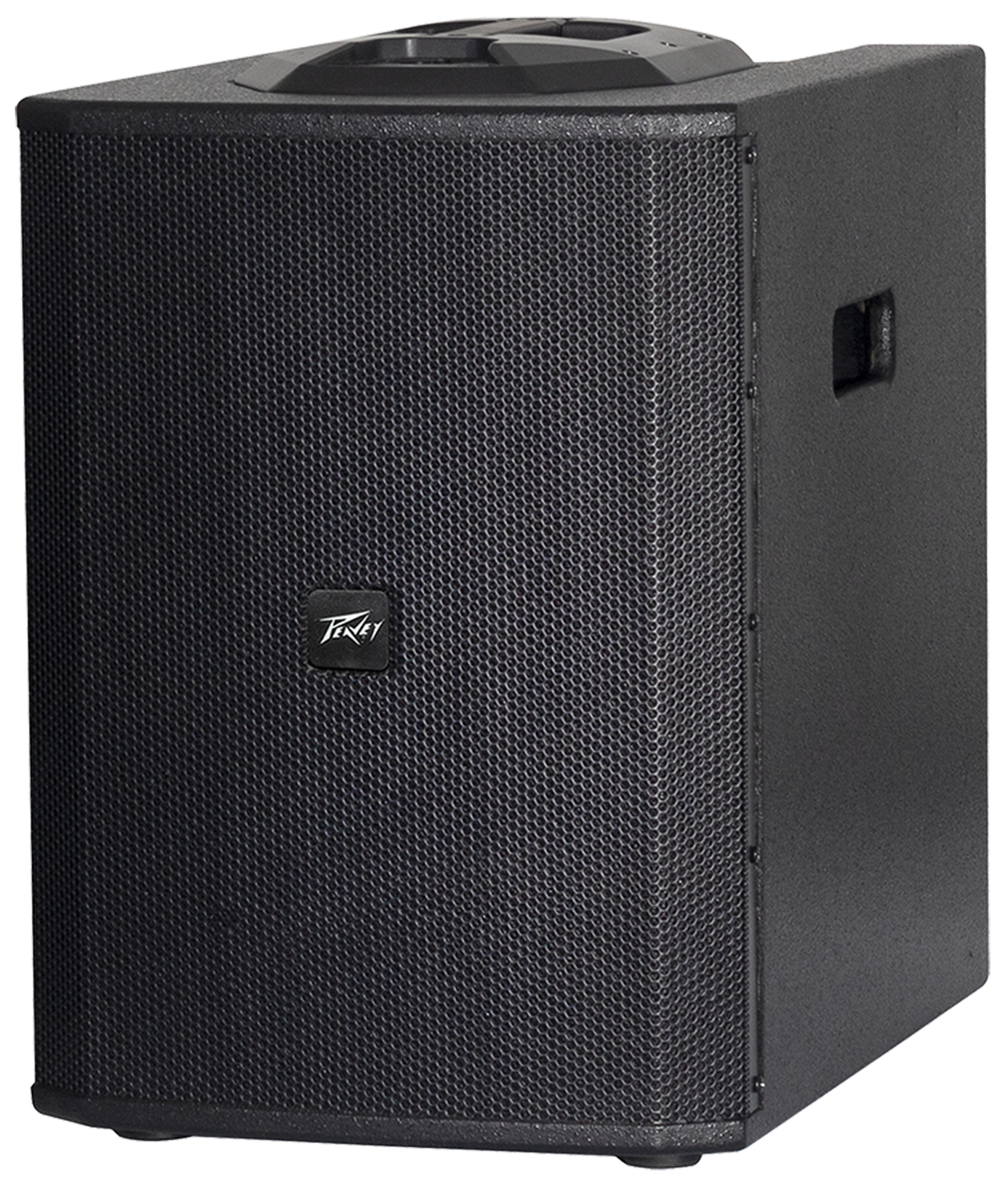

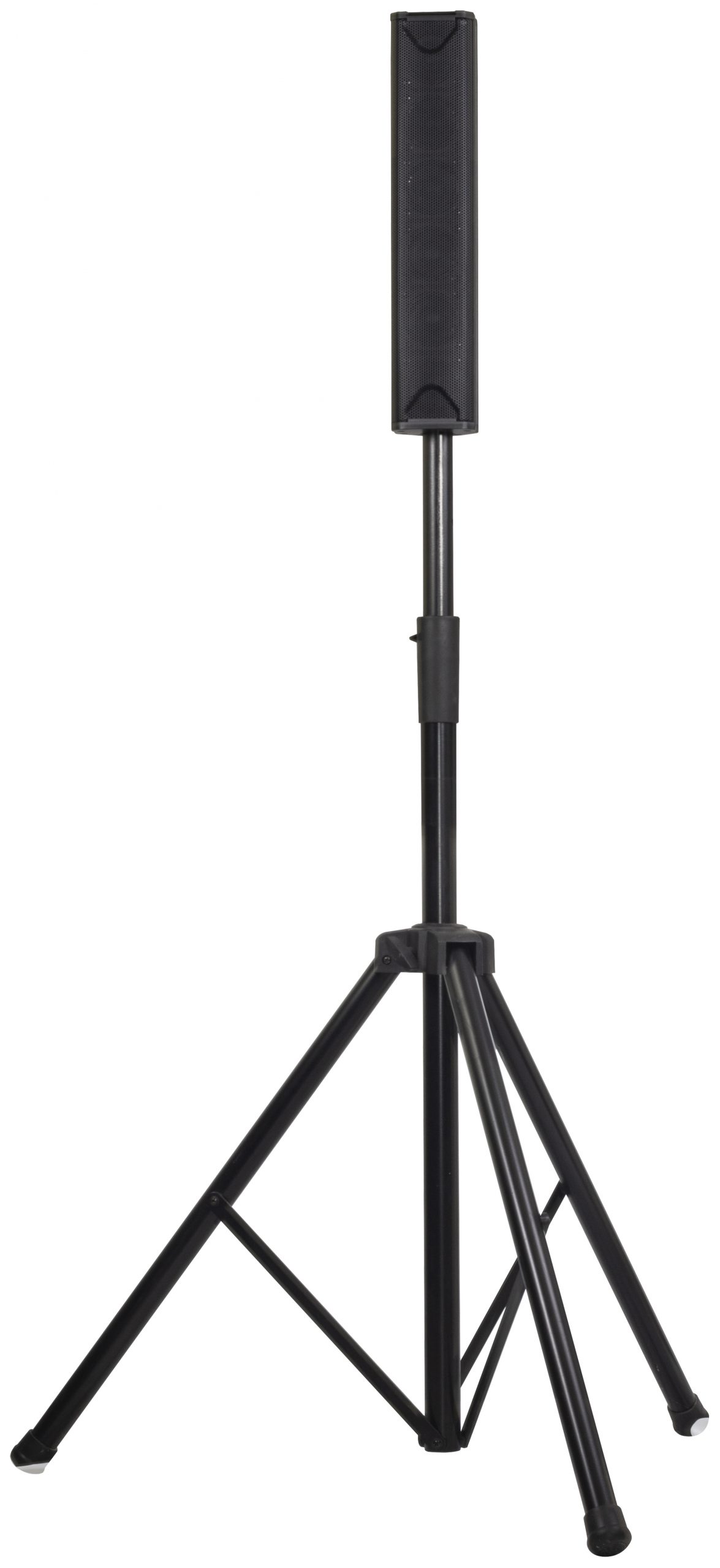

The satellite speakers feature rugged aluminum housing and quick attachment design.  The subwoofer is built from multi-ply birch.  Each satellite features an additional speaker stand and a twist lock speaker cable connection, allowing the satellite to be positioned remotely for stereo configuration.

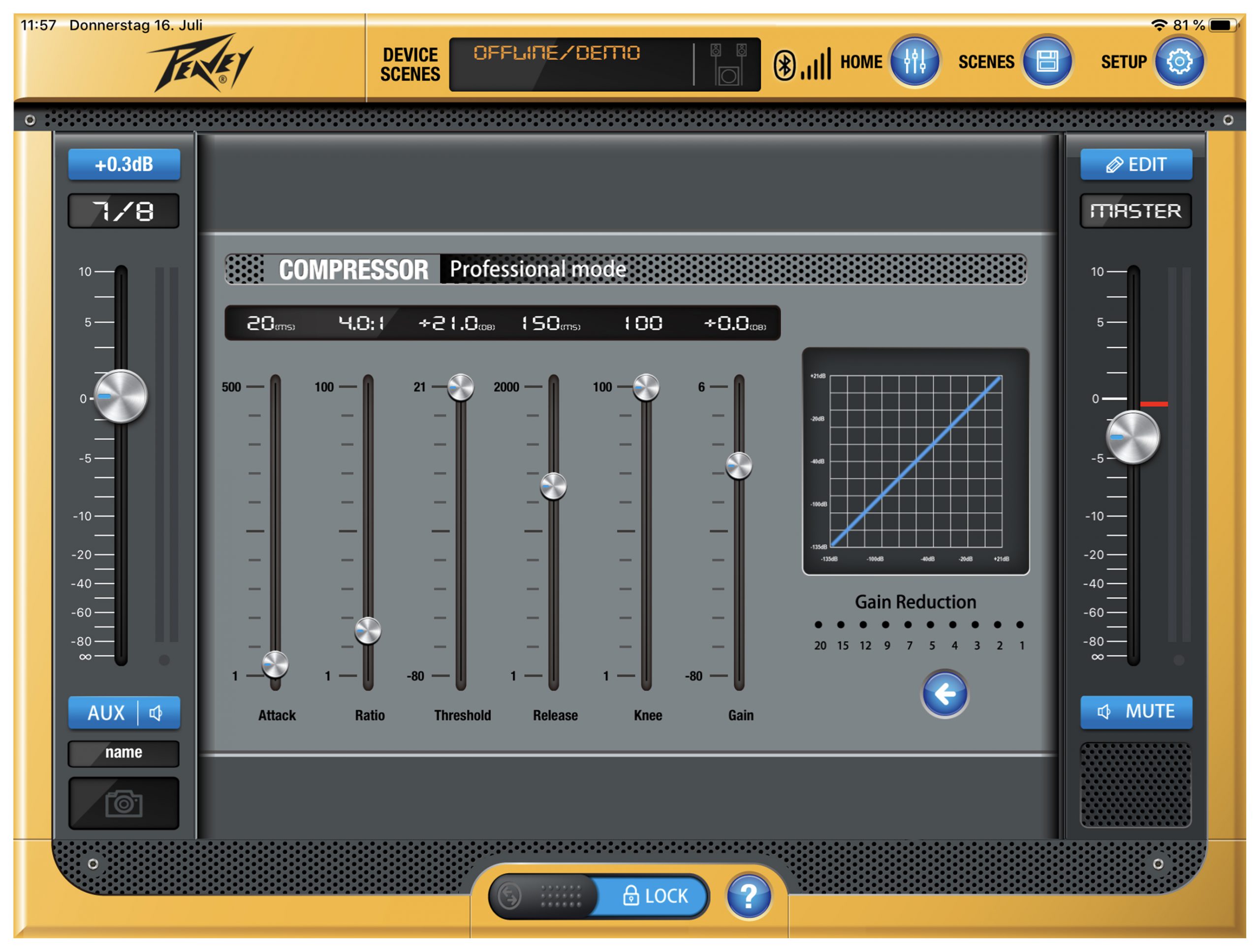

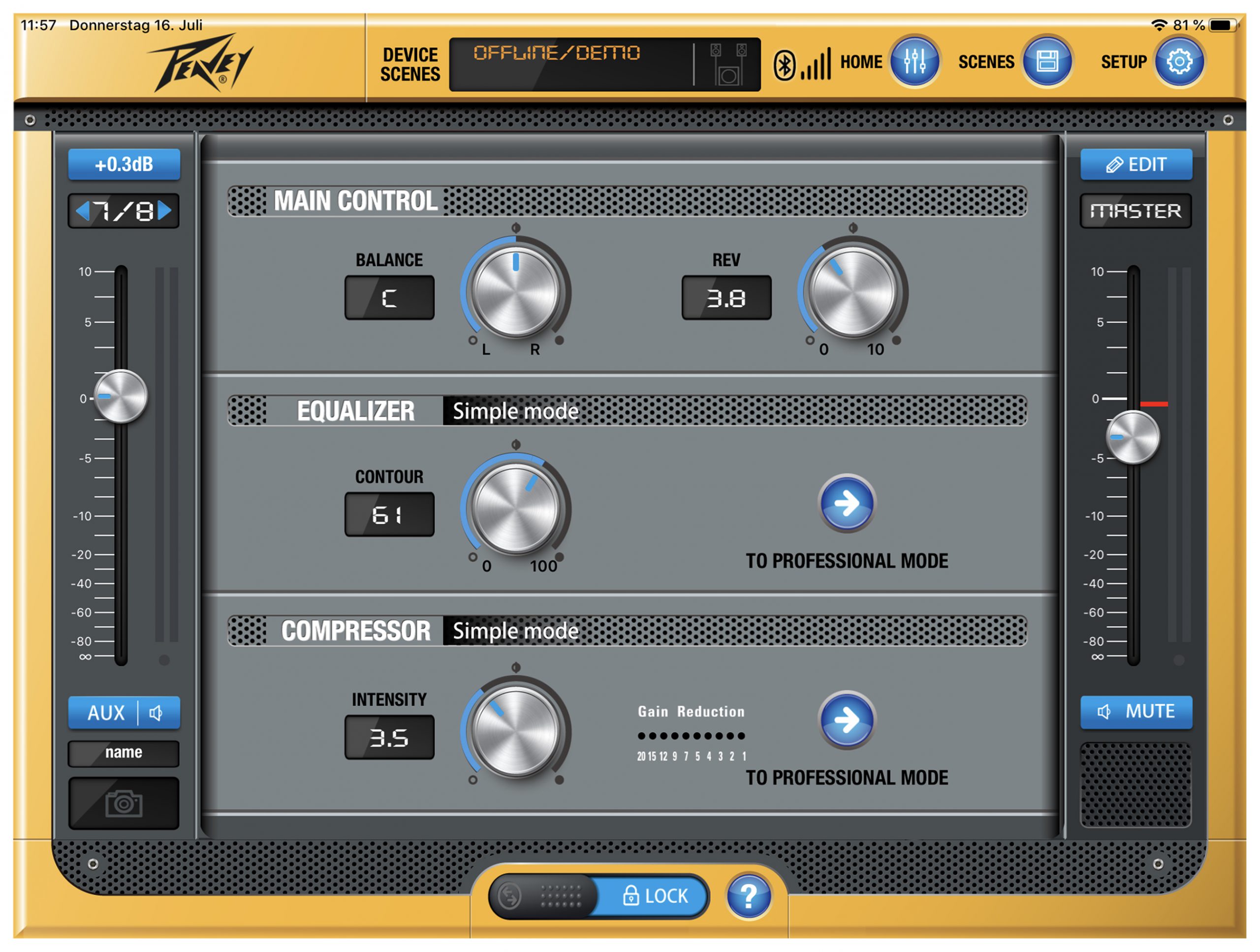

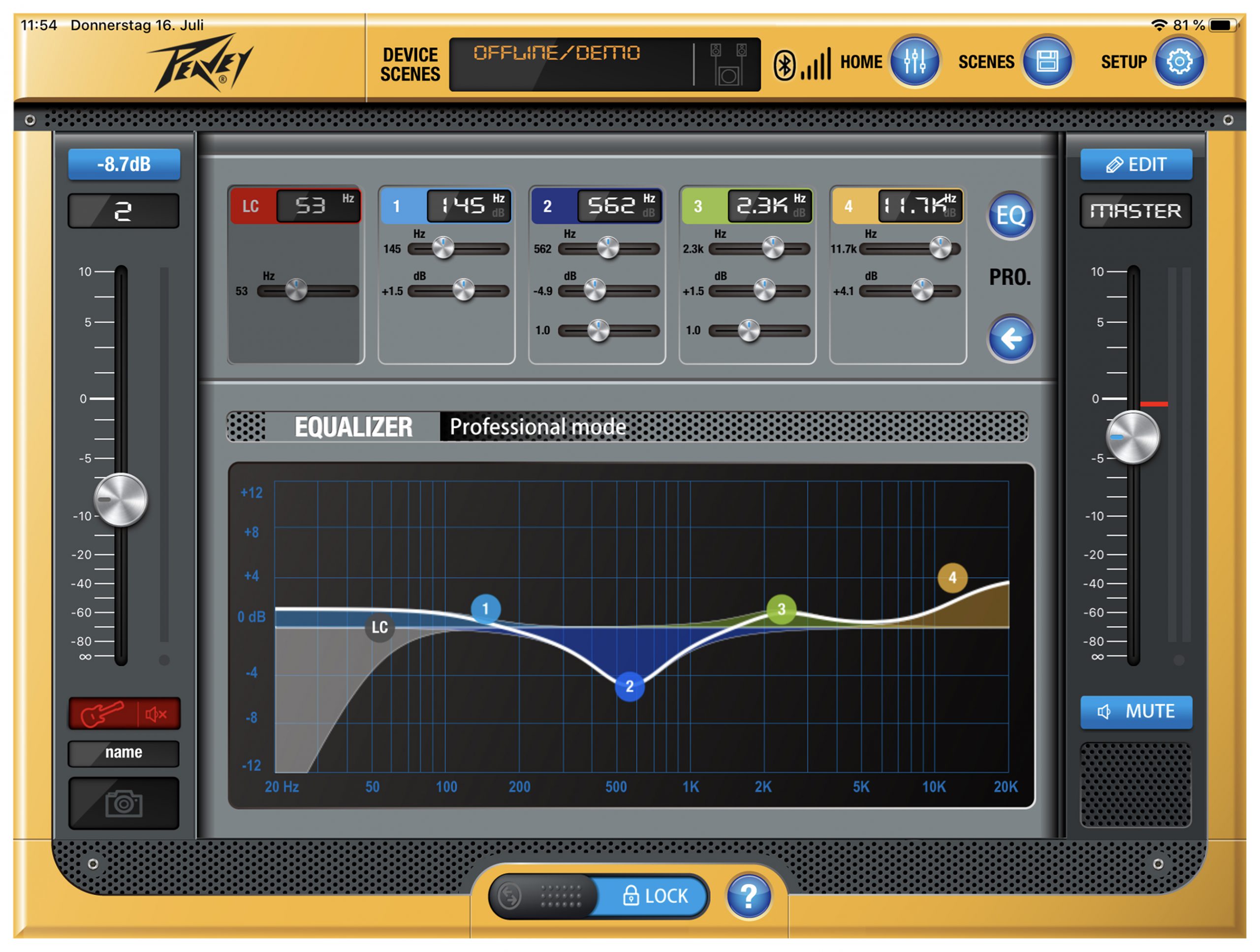

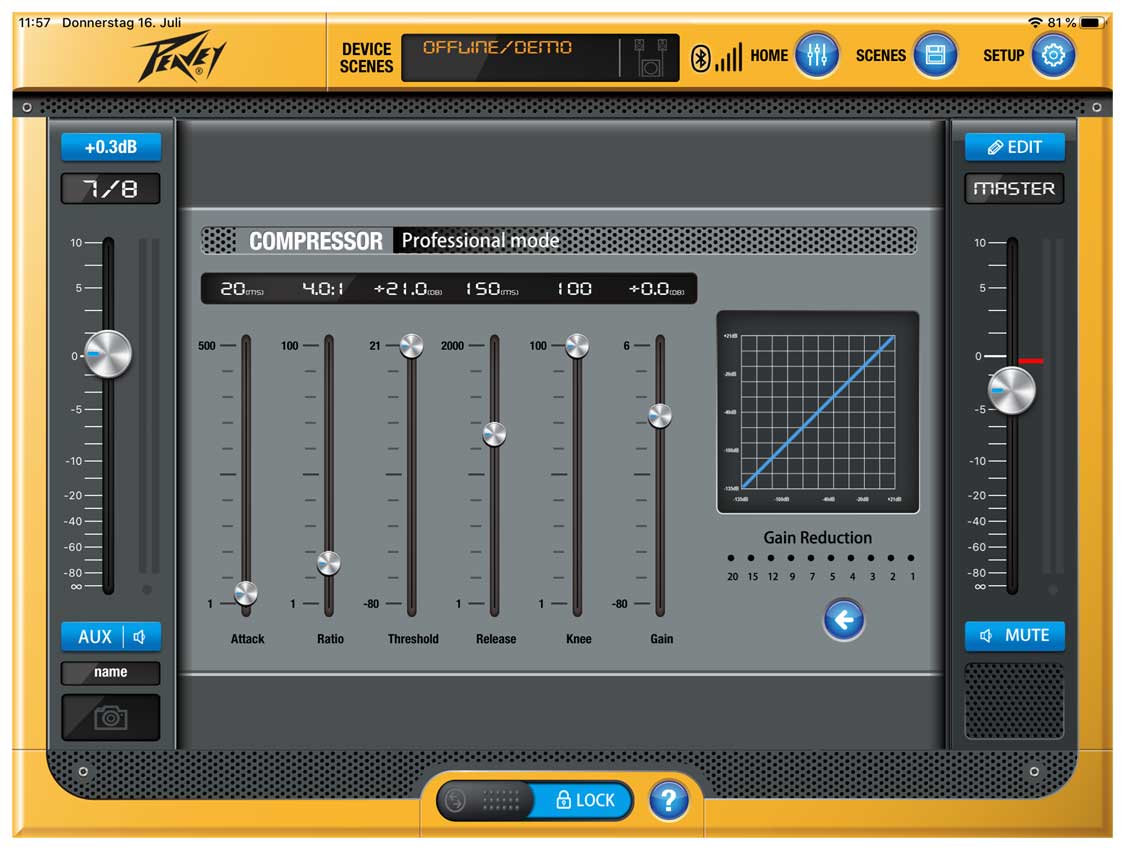

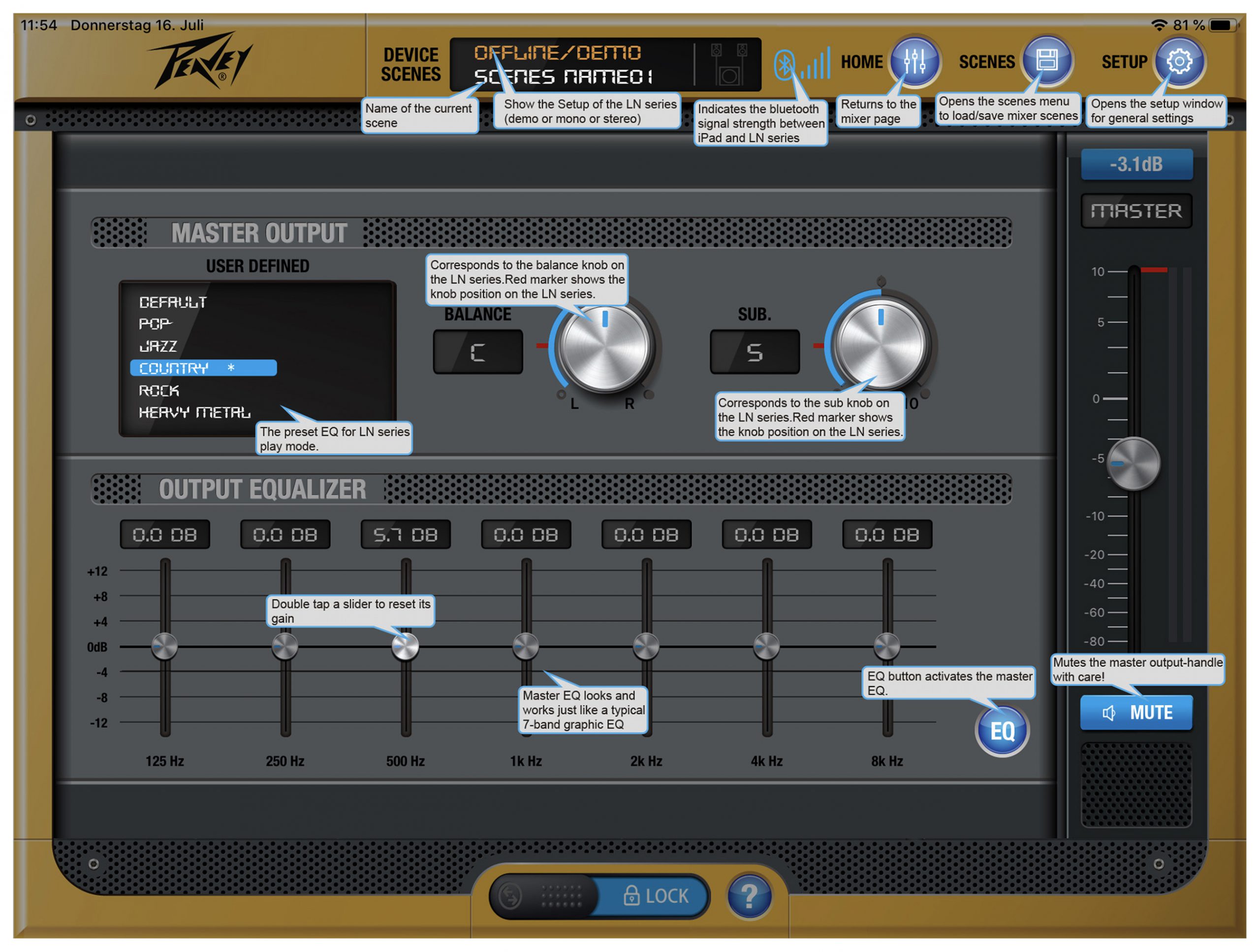

Modern DSP makes this unit extremely easy to use and operate.  Featuring both an onboard LCD screen and remote control via Bluetooth using a custom iOS application for control. In addition to conventional features such as EQ and Effects, the app includes Simple and Professional mode, allowing more advanced users complete control while simplifying features like compression for novice users.

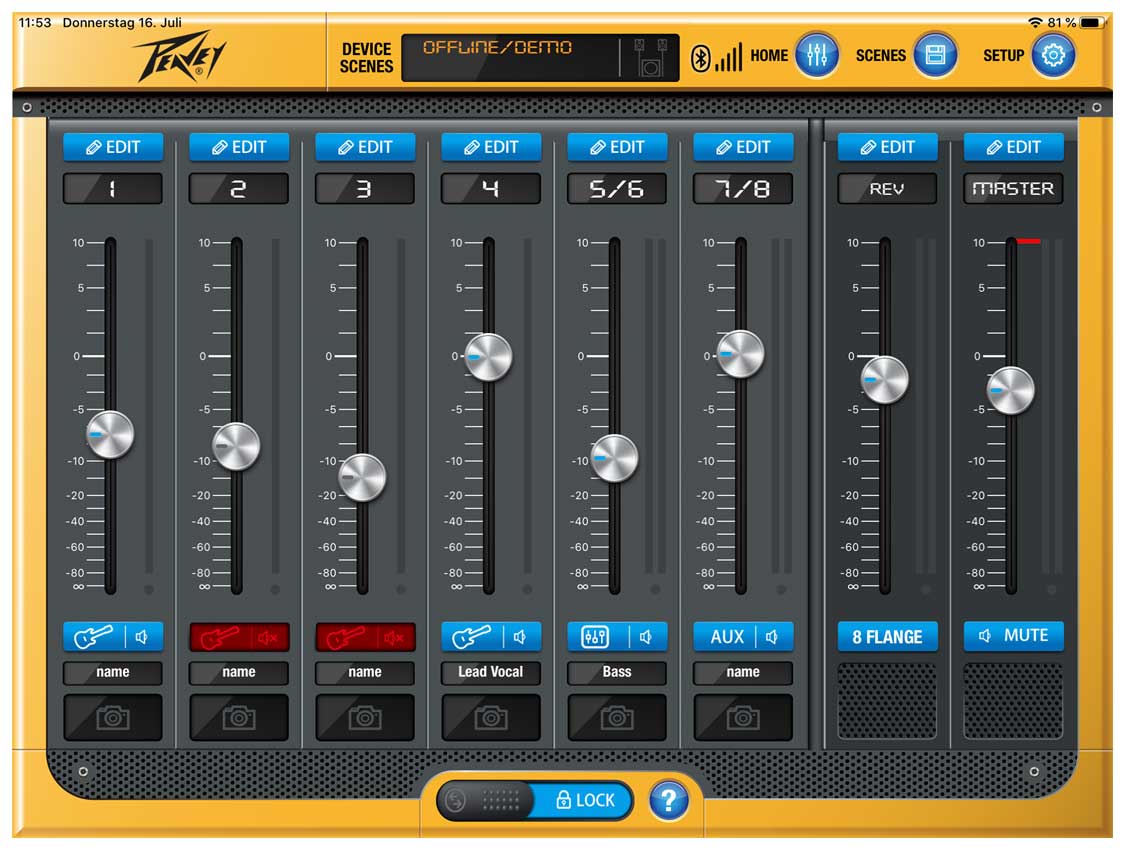

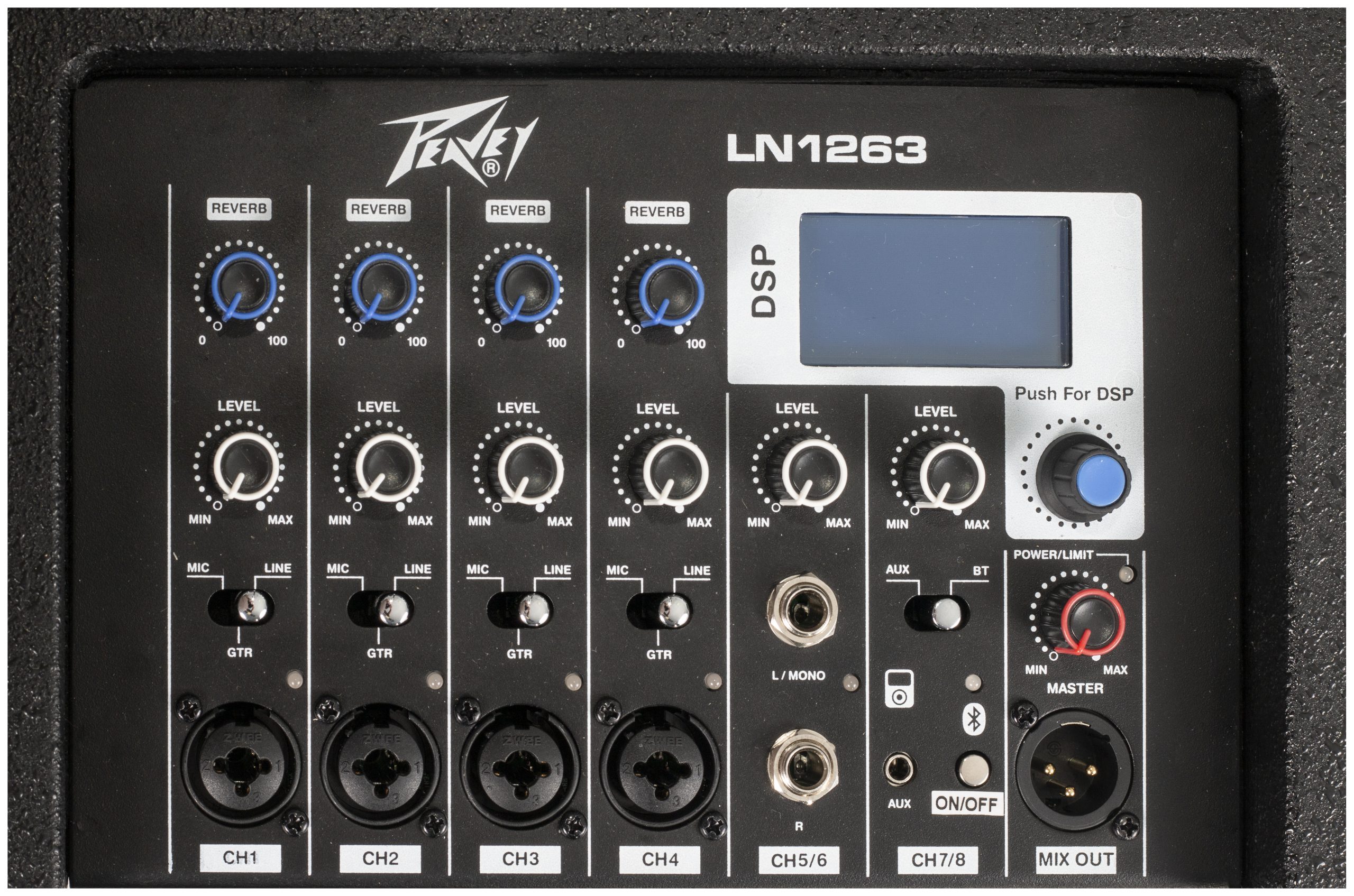

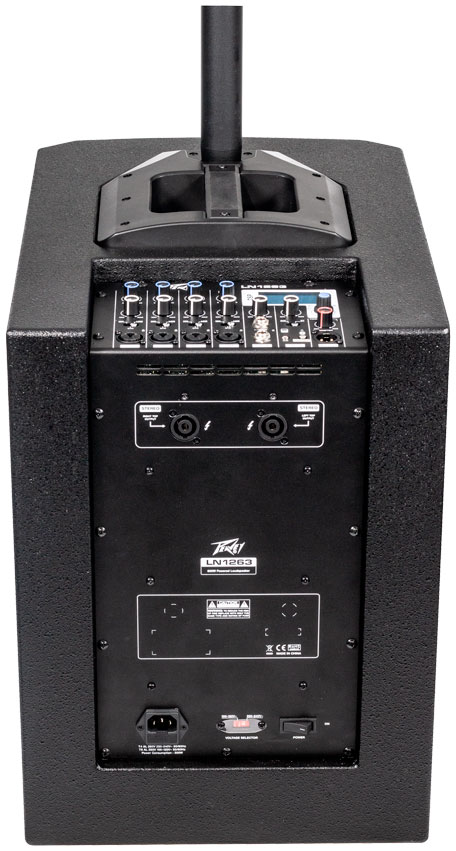

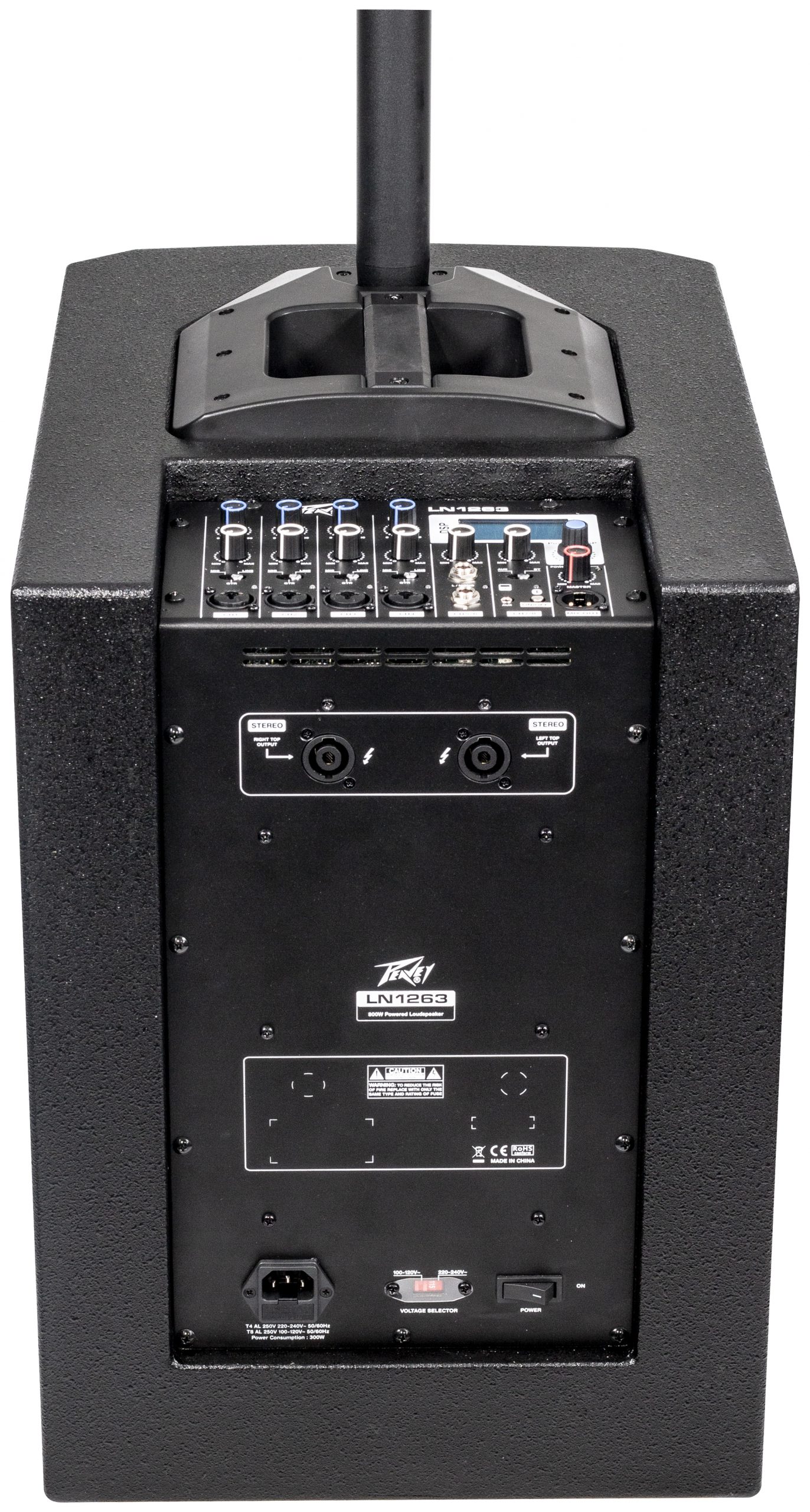

The onboard mixer features 4 combo inputs, each with the option of selecting a guitar input.  Two additional media channels feature stereo 1/4″ and streaming audio Bluetooth in.

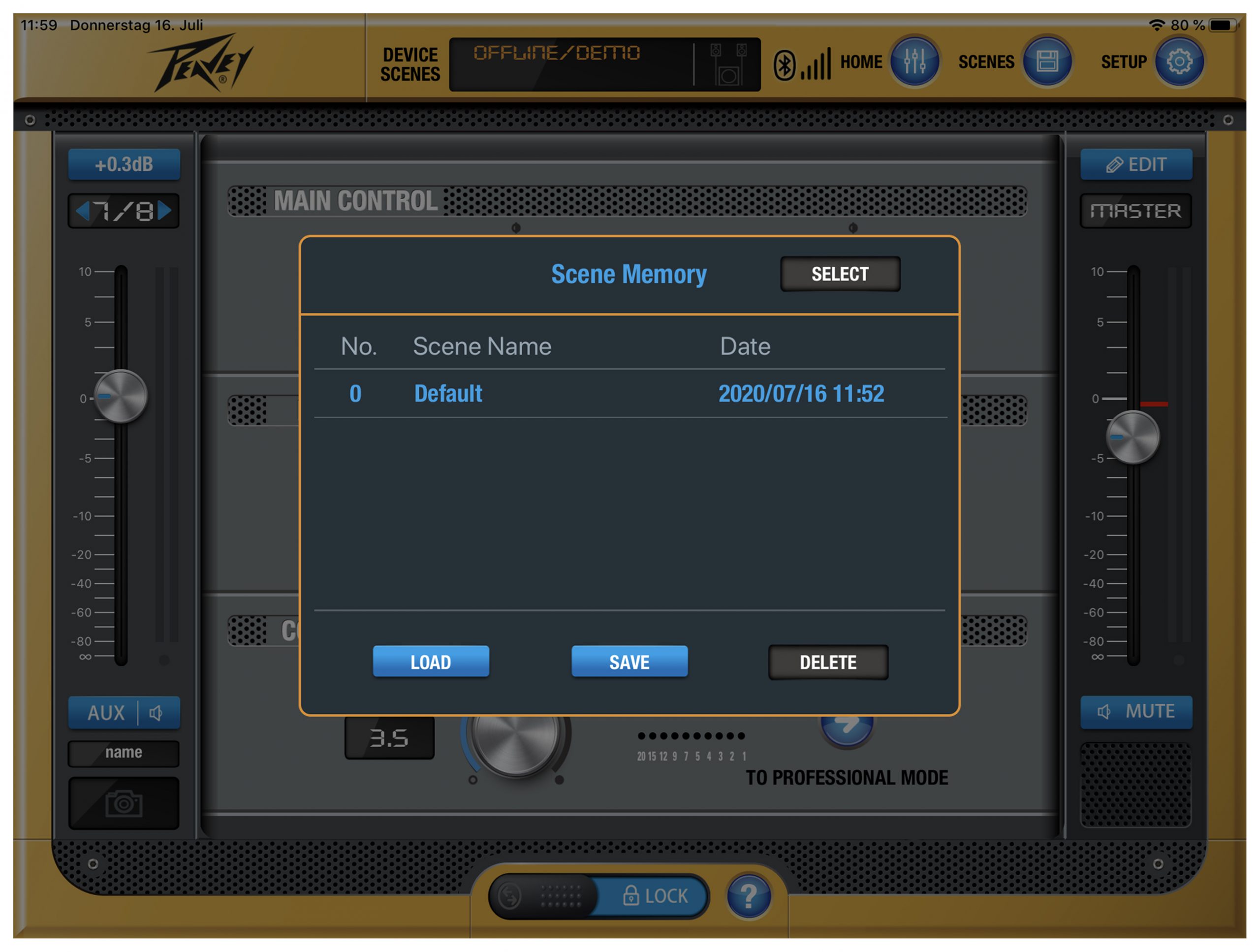

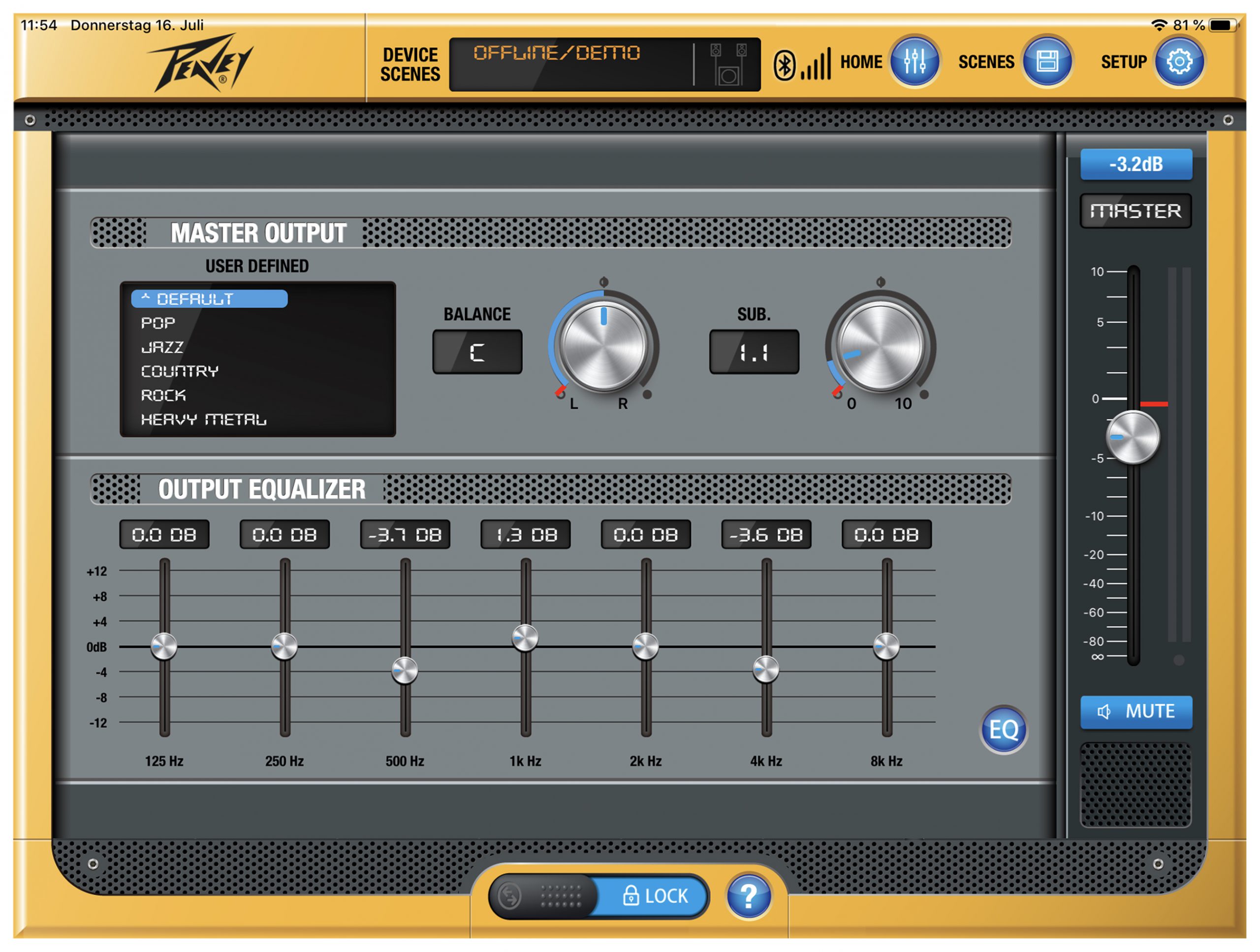

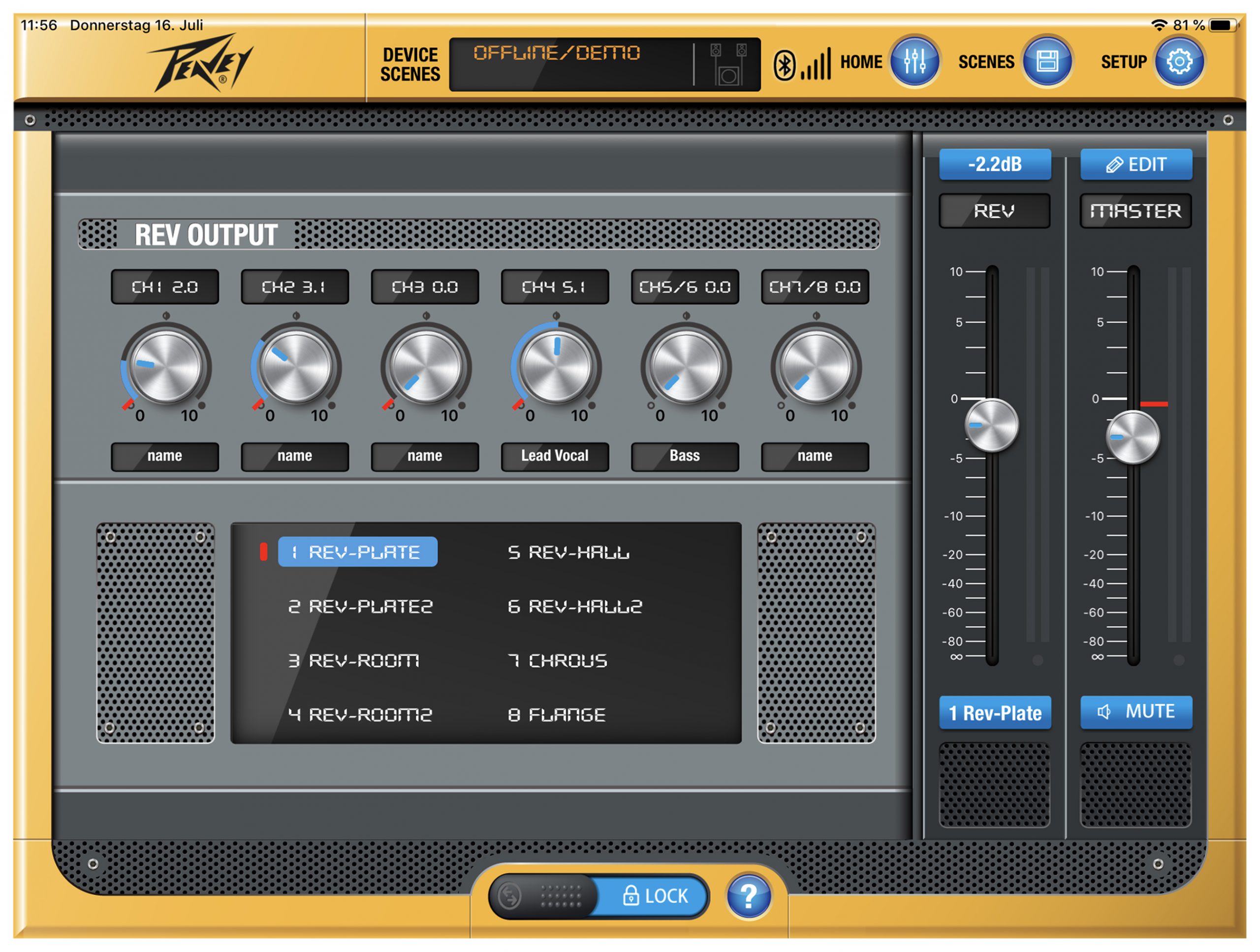

This unique Bluetooth input can handle a separate device other than the one controlling the array.  Features also include seven onboard EQ presets and eight onboard effects, with the ability to save and lock scenes along with an independent sub level control.  Perfect for houses of worship, corporate and social events, DJ, musician, and club applications, or anywhere portable discrete yet powerful sound reinforcement is needed.



Features LN 1263

• Twelve 2.75” custom drivers

• One 12“ subwoofer

• 1,200 Watts maximum power

• 127 dB maximum SPL

• Stereo capable

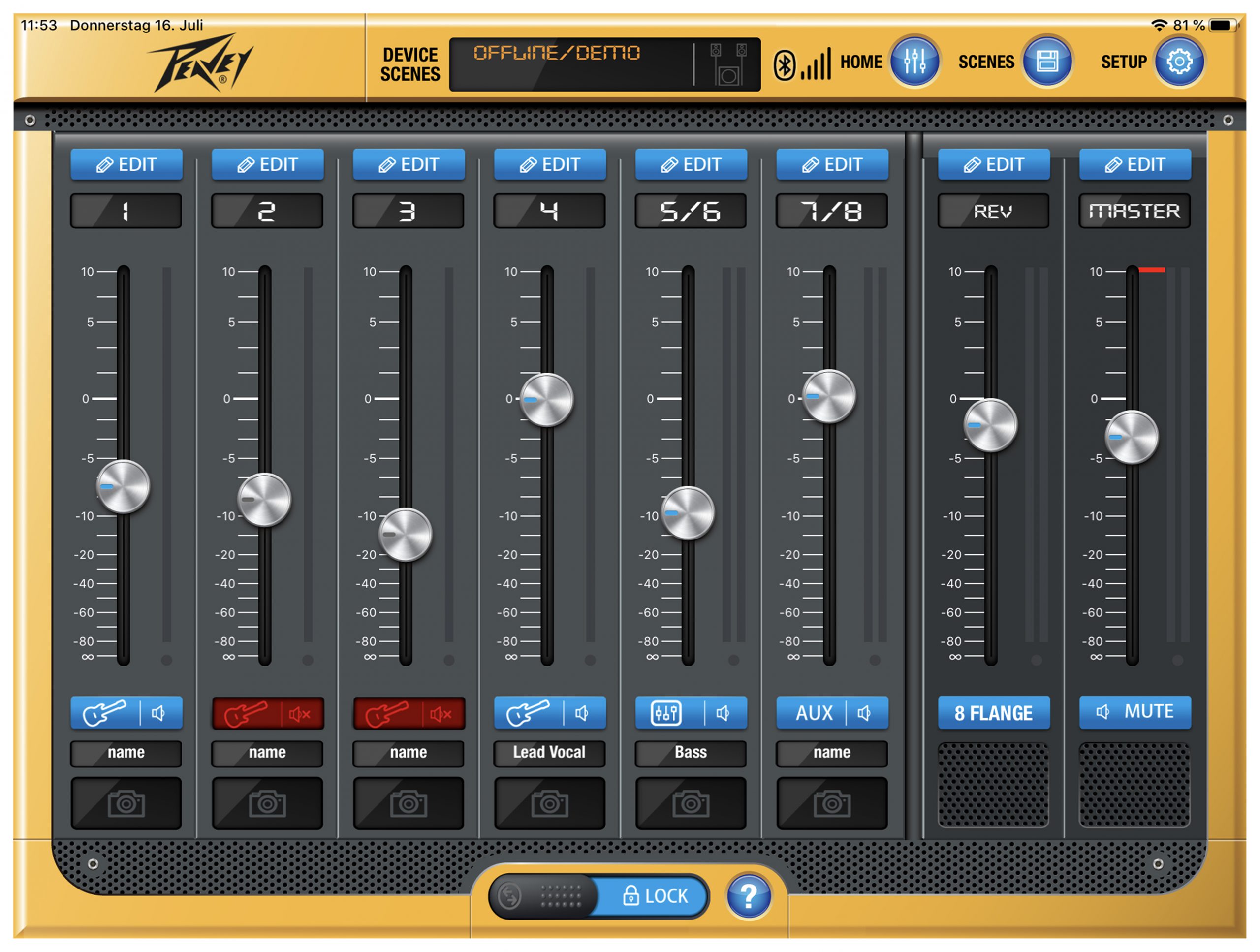

• Eight channel digital mixer

• Bluetooth control via iOS app

• Professional and simple control mode

• Bluetooth audio streaming from any device

• Four XLR Combi inputs

• Four onboard guitar channels

• One 1/4” and one 3.5 mm Stereo input channel

• 32-bit DSP

• Mix out for additional units

• Satellite speaker carrying bag included

Additional information

Channels (Input)

8

Channels (Output)

3

Bluetooth

Yes (Audio Streaming & Control)

USB Playback & Record

No

Internal Effects Engines

Yes

Input Connectors

1 x 3.5 mm Stereo Jack, 2 x 1/4" Jack, 4 x XLR Combo

Output Connectors

1 x XLR, 2 x 4-pin Twist-Lock

Footswitch

No

Frequency Response

35 Hz – 20 kHz

Speaker Configuration

Column Array

Speaker Type

Powered – Bi-Amped

HF Driver

12 x 2.75" Driver

LF Driver

12" Woofer

AUX Out

Yes (1 x XLR – Mix Out)

Pole Mount

Yes

Enclosure Material

Columns – Aluminium & Subwoofer – Plywood

Color

Net Weight

60.2 lbs (27.31 kg)

Product Height

81.89" (2080 mm)

Product Width

max. 13.75" (350 mm)

Product Depth

max. 19.70" (500 mm)

AC Power Input

Dual Voltage – 100-120VAC or 220-240VAC 50/60 Hz

SKU

03618750
