LN™ 1063

Column Array Portable PA System

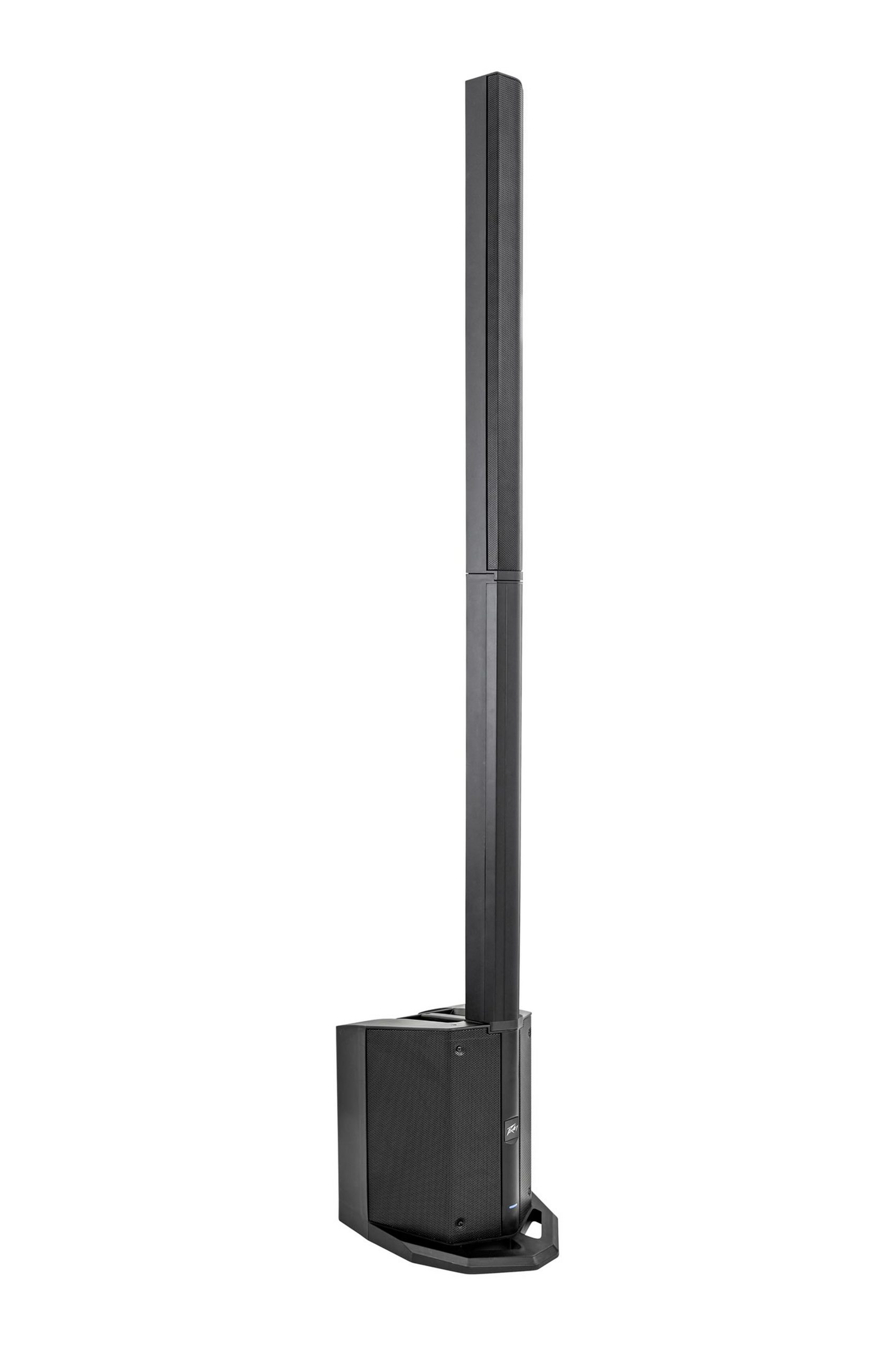

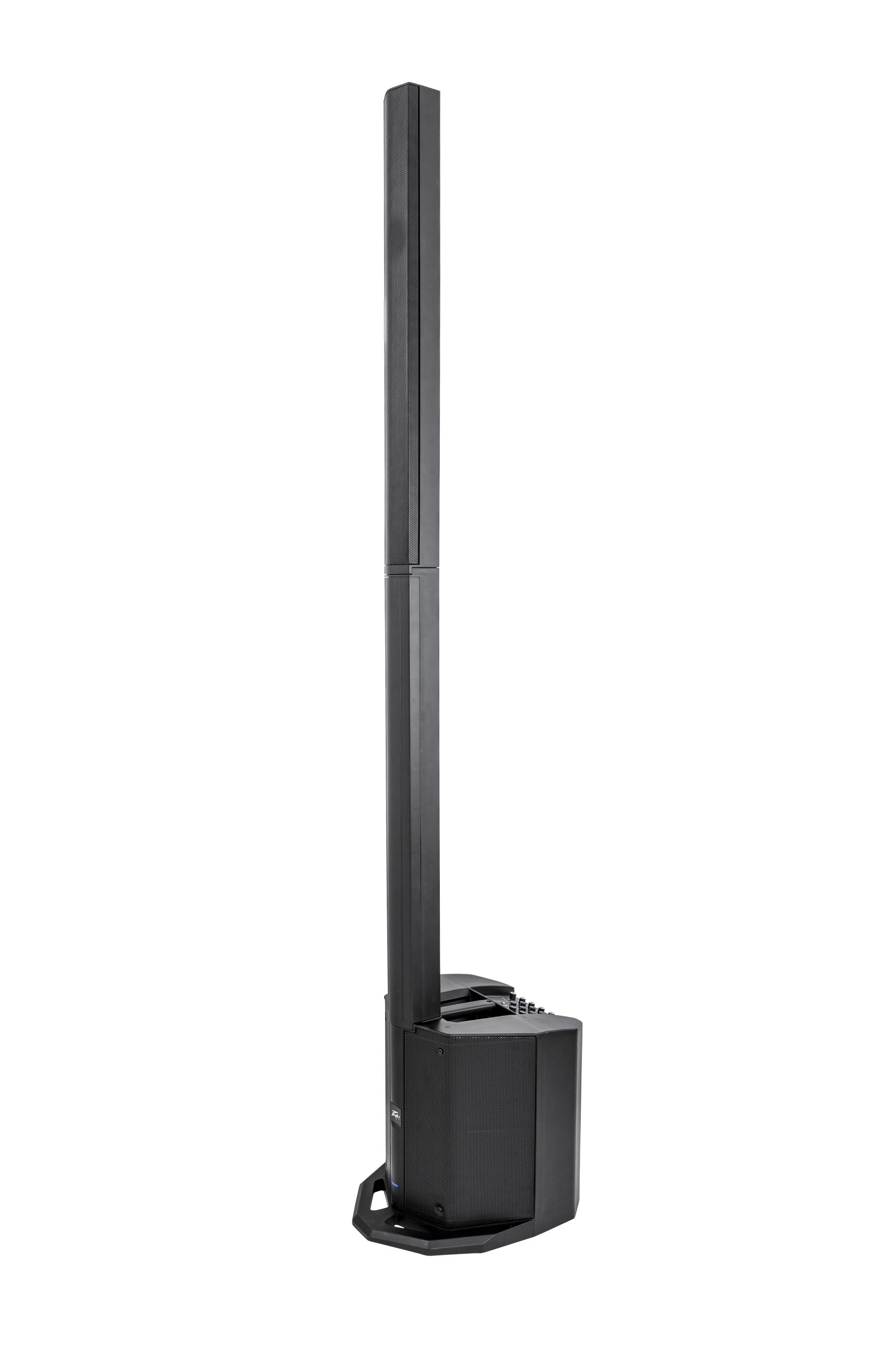

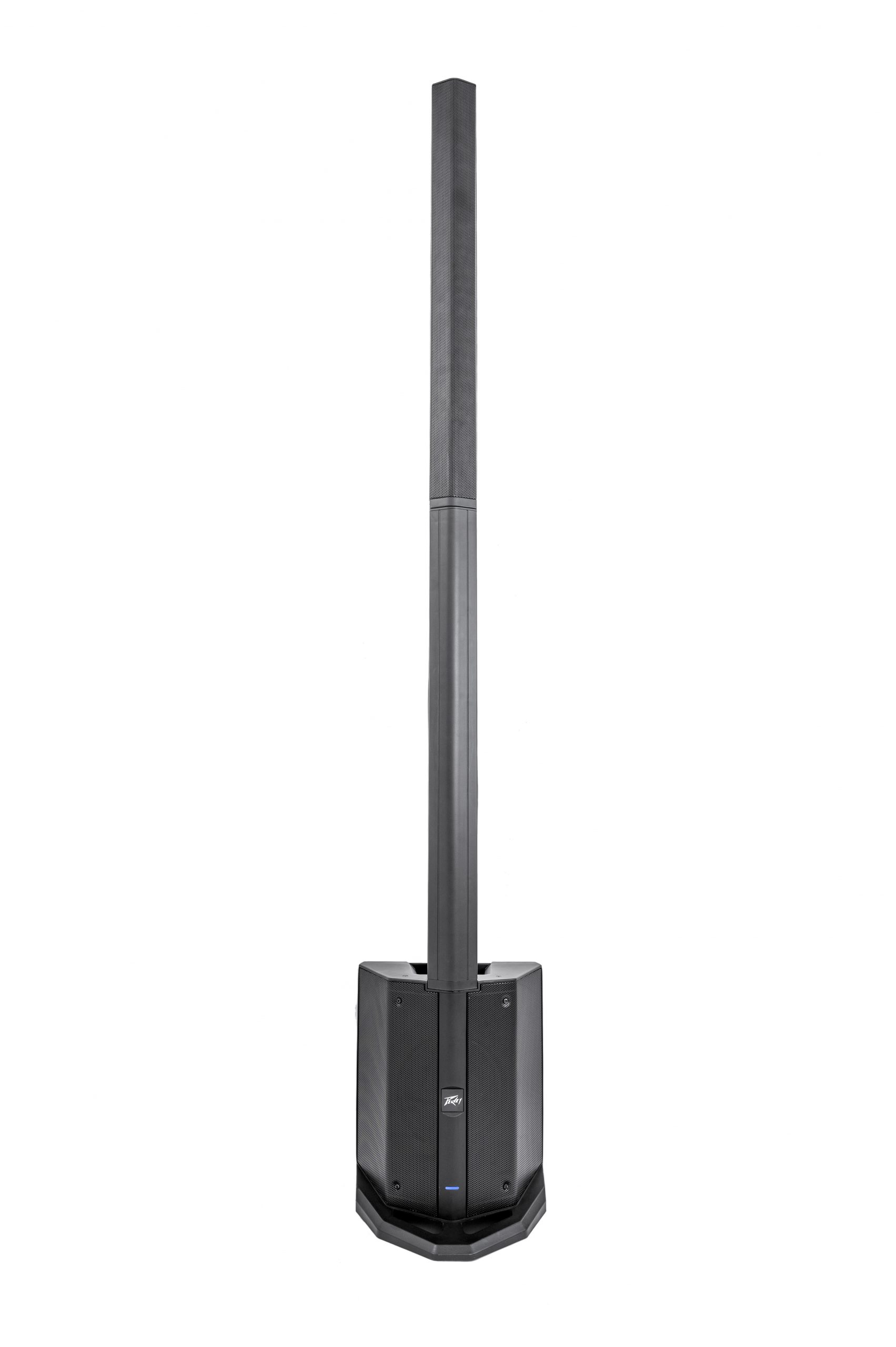

The Peavey® LN™ 1063 is a compact, powerful, lightweight and low profile portable column-array powered PA system.

Utilizing 500 Watts of potential maximum power, the LN 1063 contains six 2.75″ custom drivers for the mid-high column and a custom 8″ driver for the subwoofer. Its clean design is well suited for applications where speakers should be heard and not seen.

The LN 1063 is extremely easy to carry, being delivered in one trip and setup by a single person in just seconds.

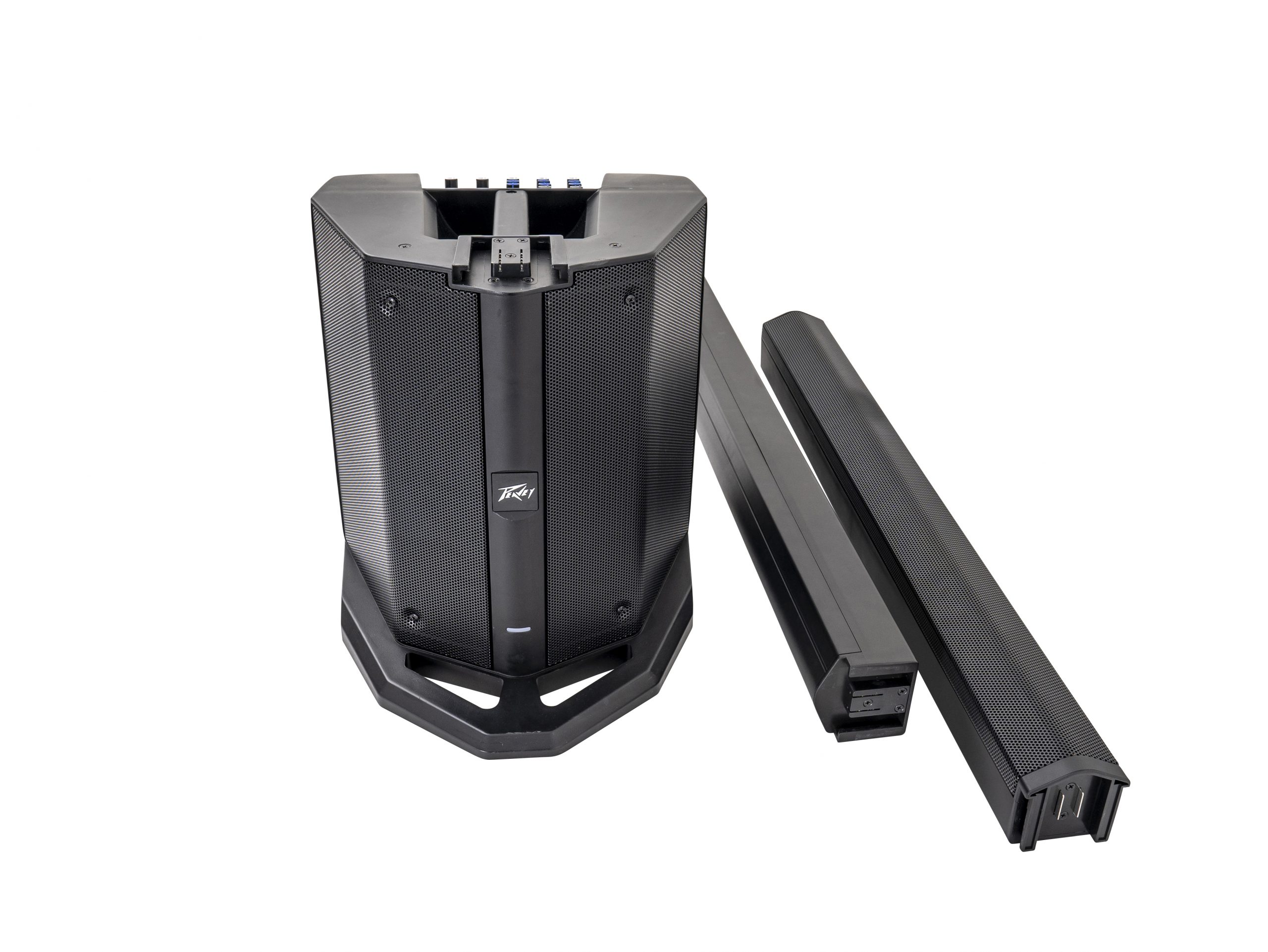

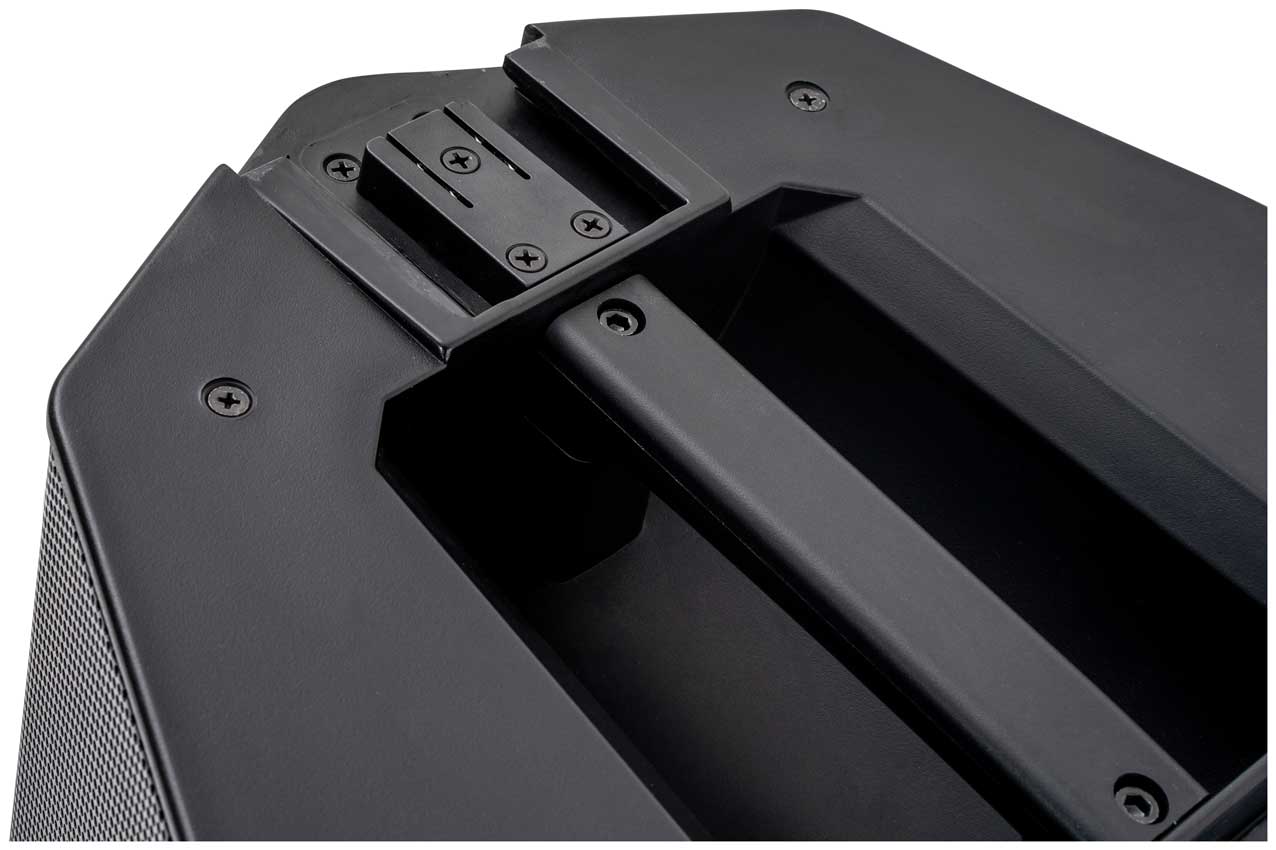

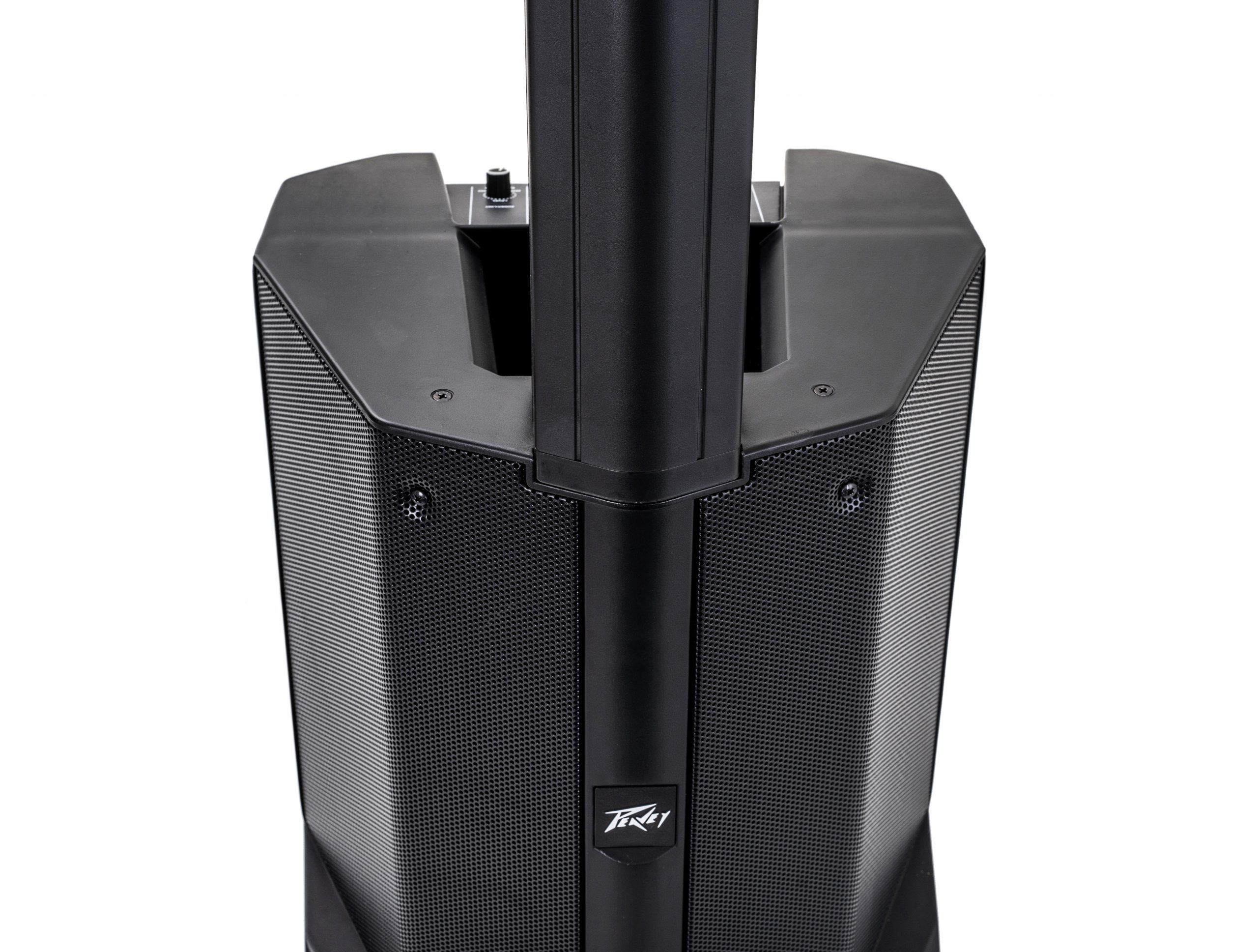

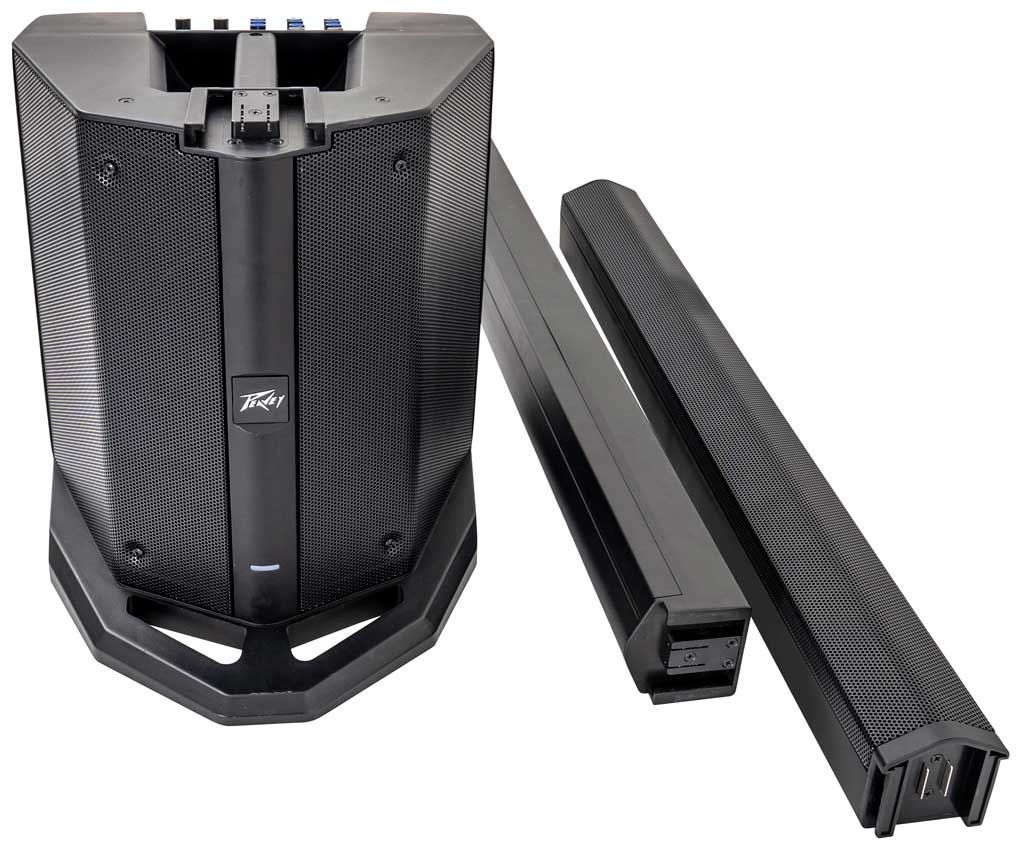

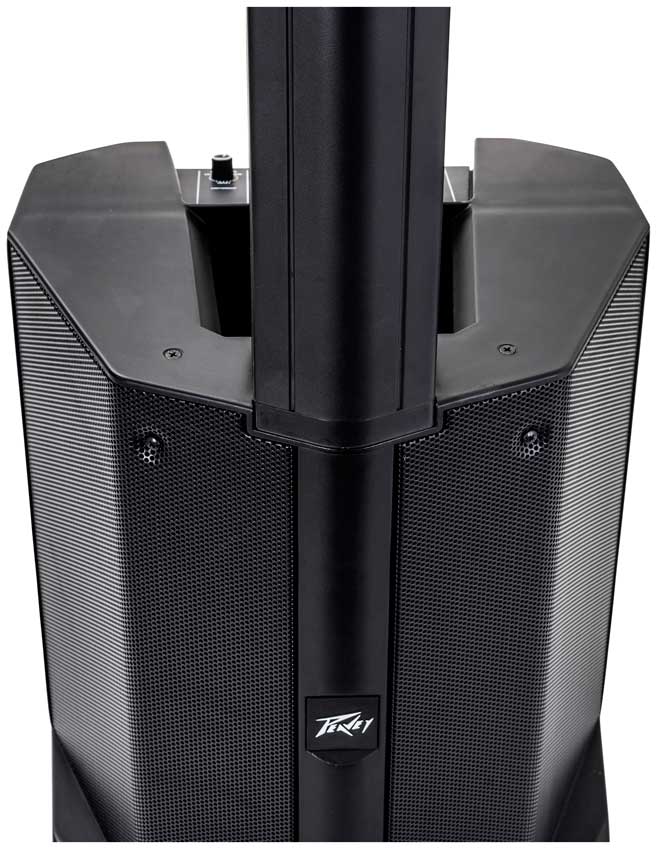

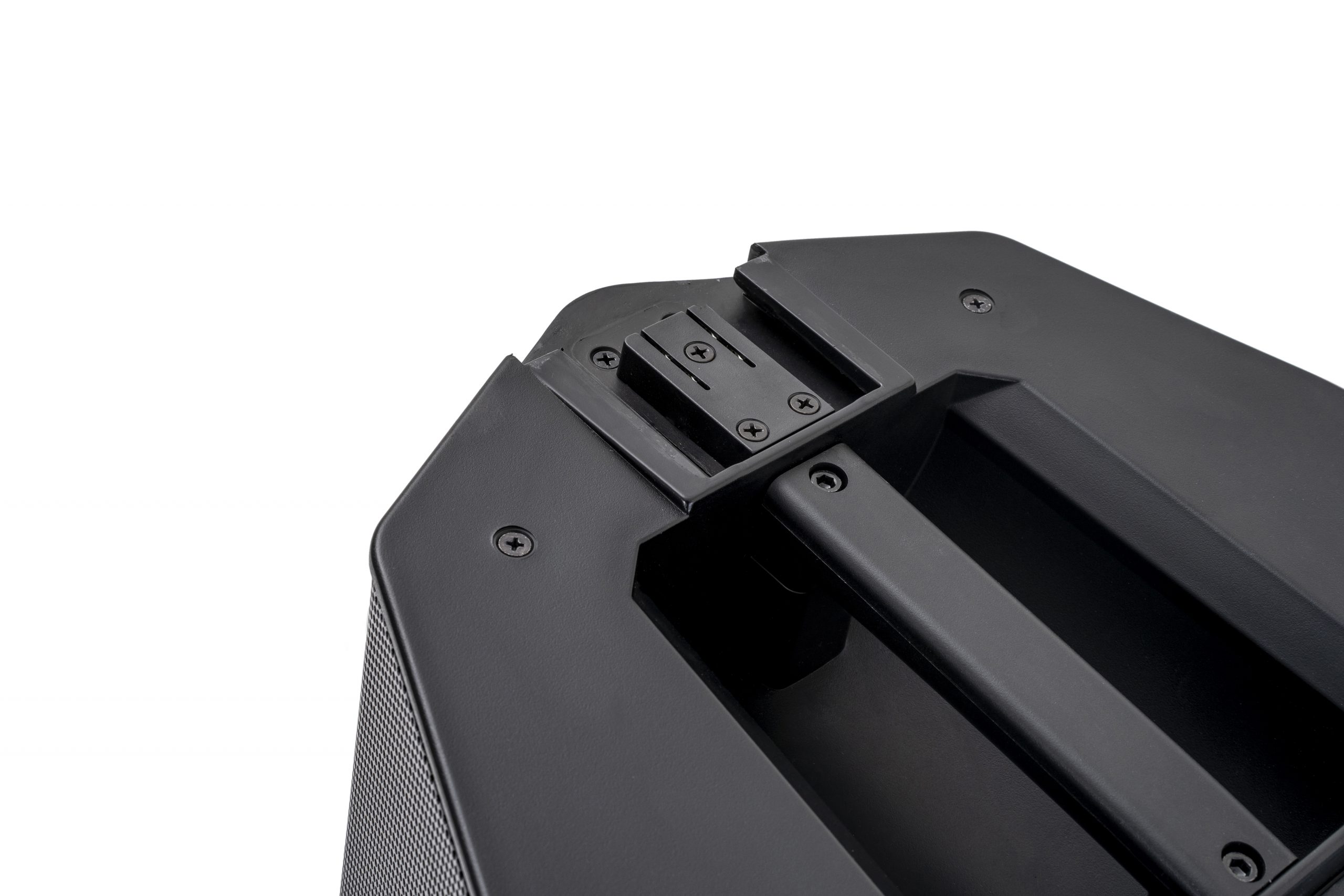

The satellite speakers feature rugged housing and a quick attachment design. The subwoofer has a reinforced ABS plastic base being both robust yet lightweight.

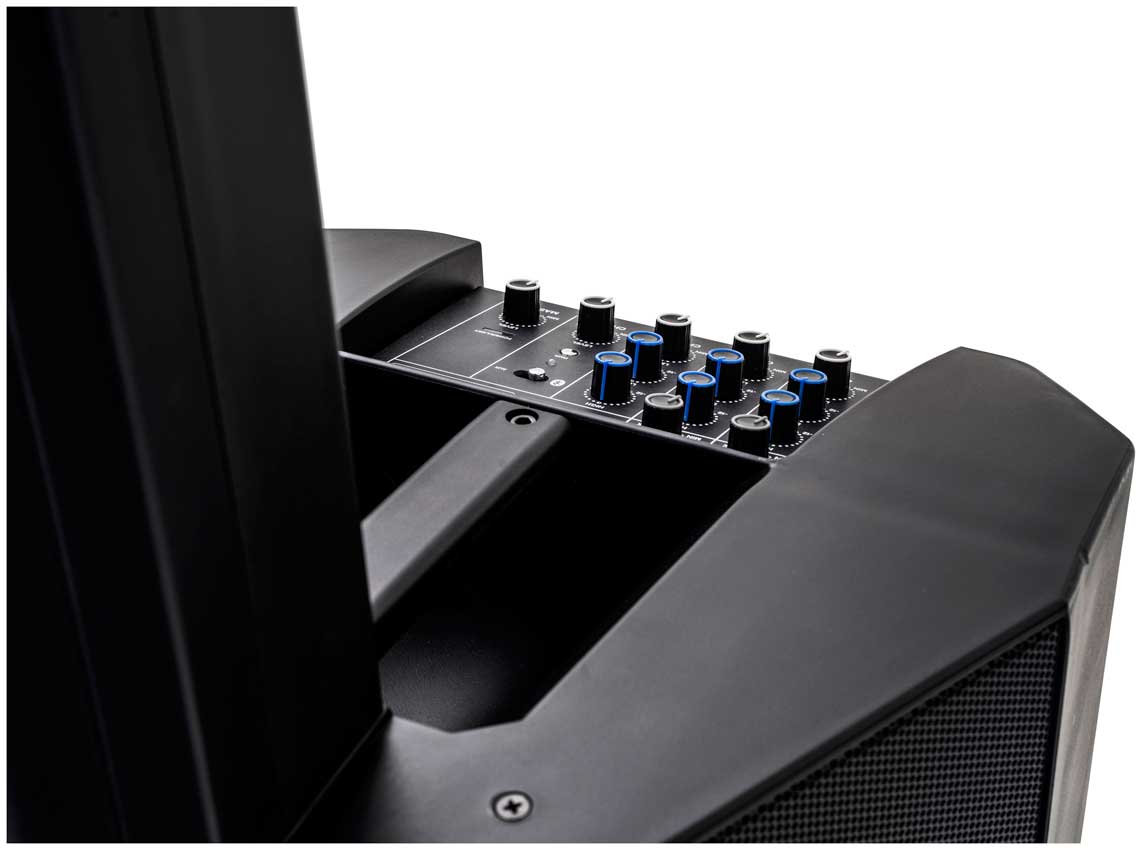

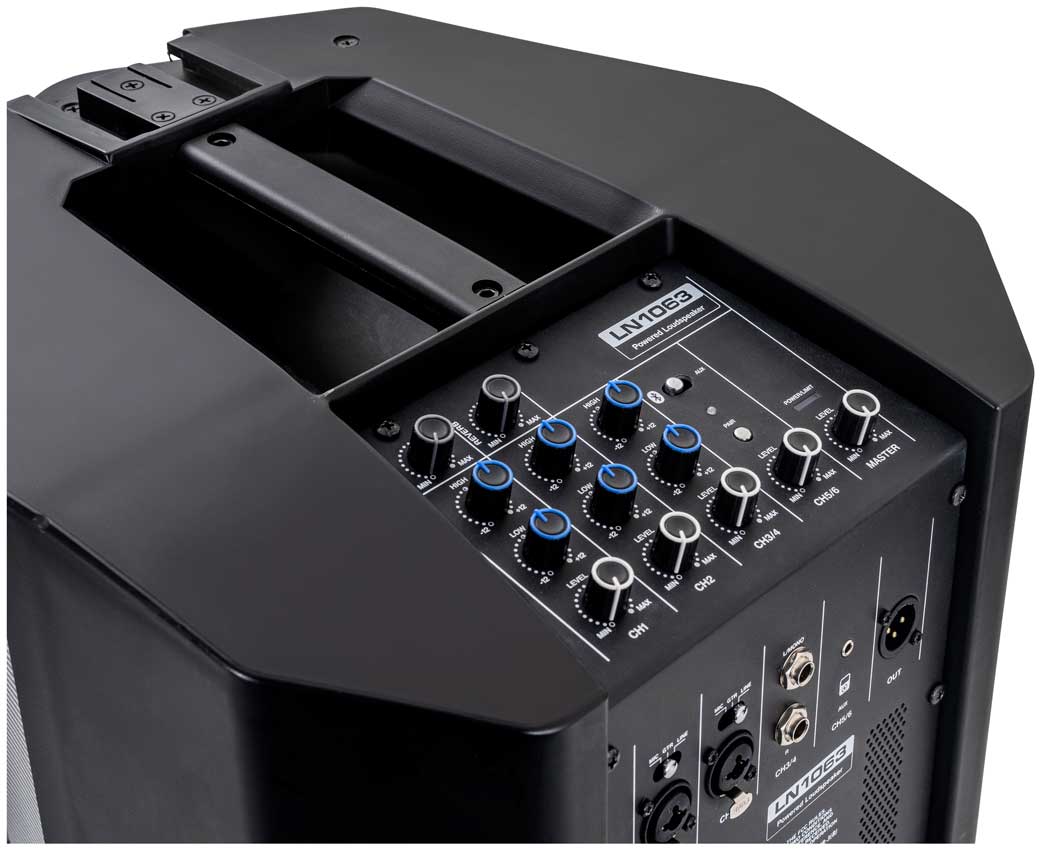

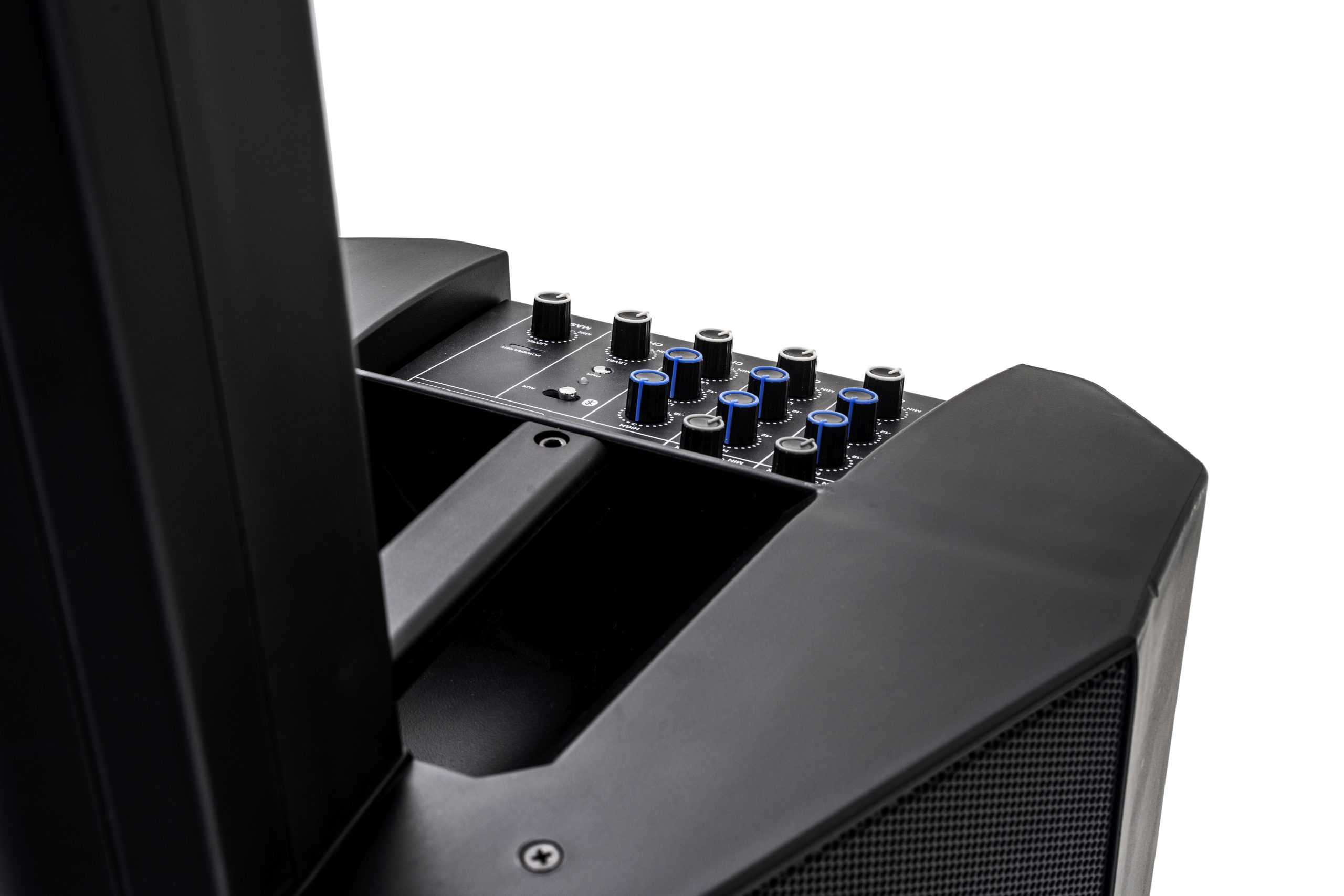

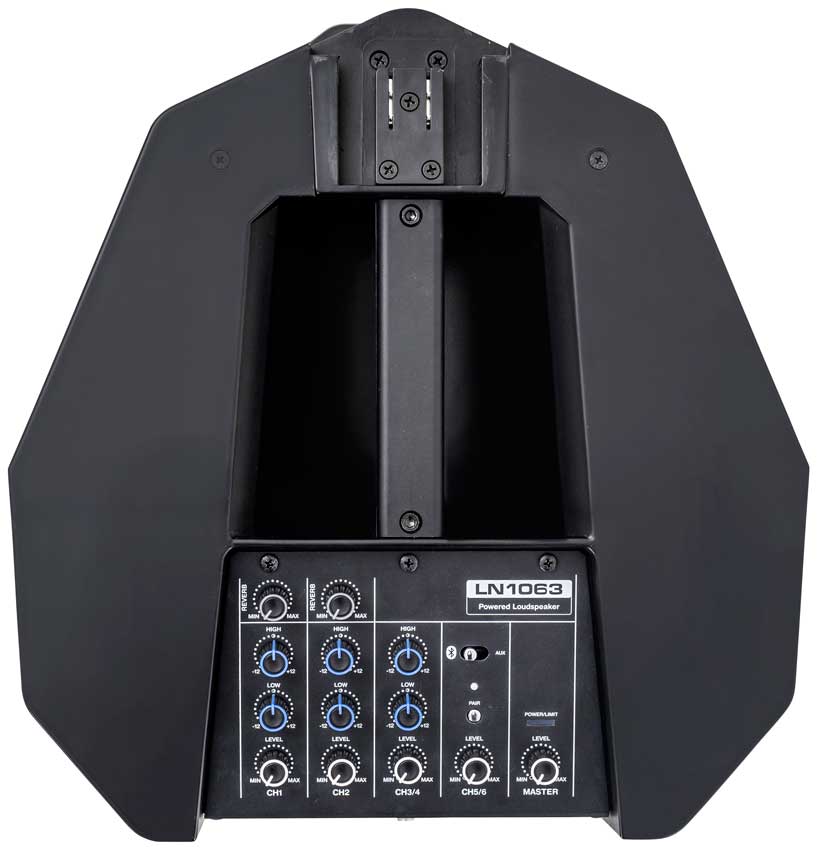

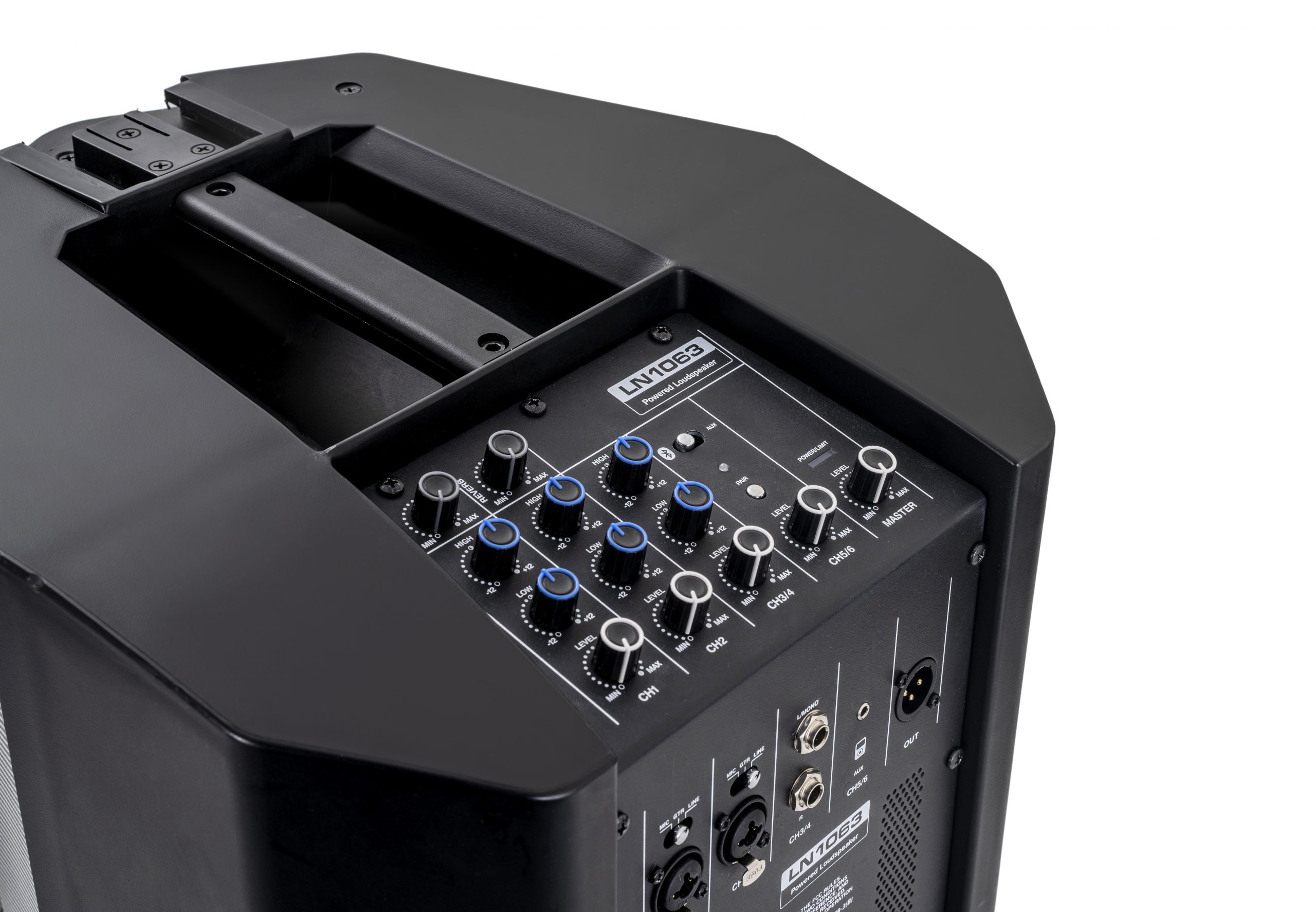

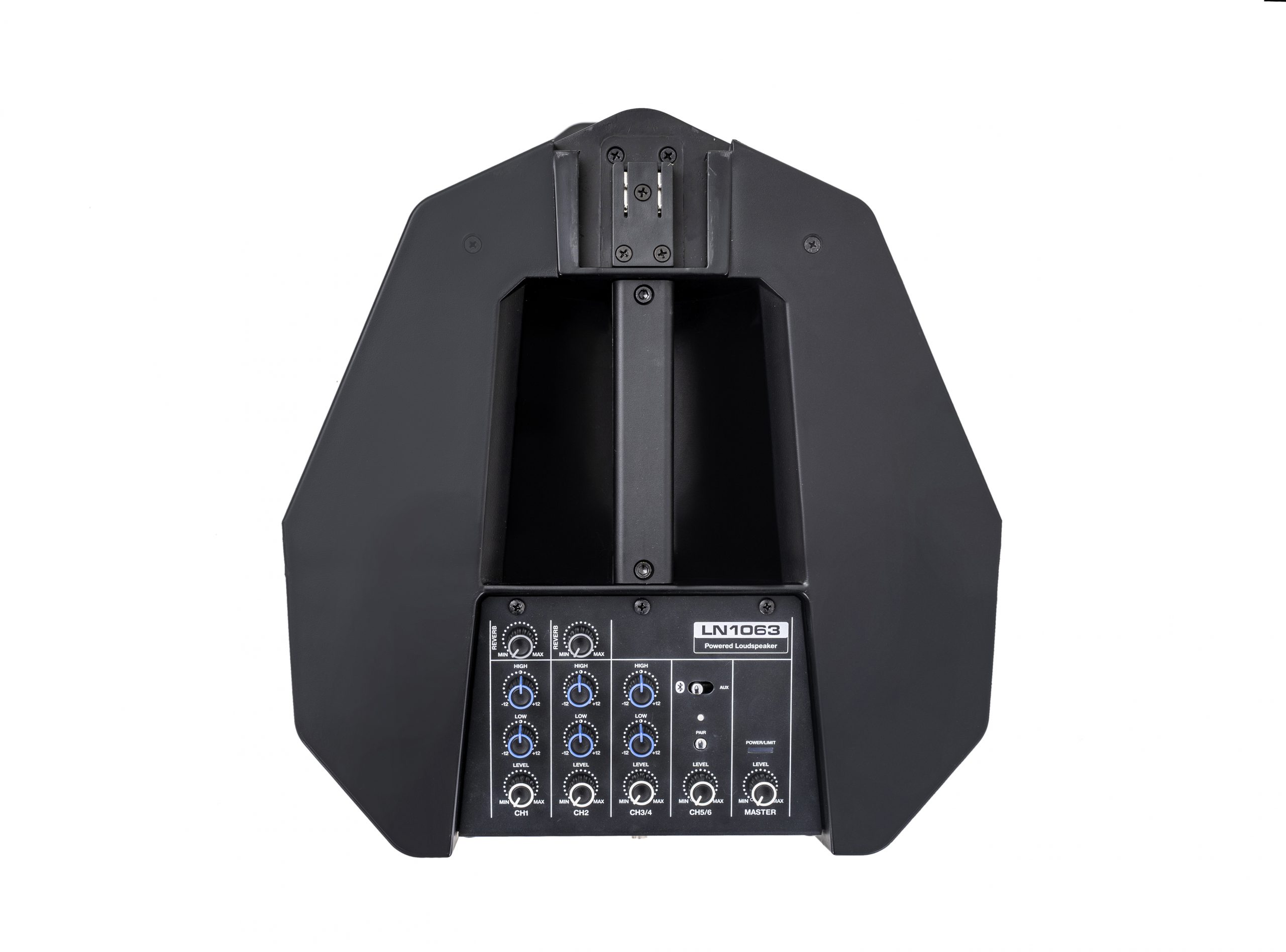

The onboard mixer features two combo inputs, each with the option of selecting a mic, line or guitar input, making this the first column array designed specifically with the acoustic guitar performer in mind. Two additional media channels feature stereo 1/4″ inputs, Bluetooth audio streaming and 3.5 mm stereo inputs.

Perfect for houses of worship, corporate and social events, DJ, musician and club applications, or anywhere portable discrete yet powerful sound reinforcement is needed. The LN 1063 offers the best-in-class, feature-to-value and performance in the pro audio industry.

Features LN 1063

• Six 2.75” custom drivers

• One 8“ subwoofer

• 500 Watts maximum power

• 120 dB maximum SPL

• Six channel mixer

• Bluetooth audio streaming from any device

• Two XLR Combi inputs

• Two onboard guitar channels

• One 1/4” stereo input channel

• One 3.5 mm input

• Reverb on channel 1 & 2

• Mix out for additional units

• Satellite speaker carrying bag included

Additional information

Channels (Input)


Channels (Output)




USB Playback & Record


Internal Effects Engines

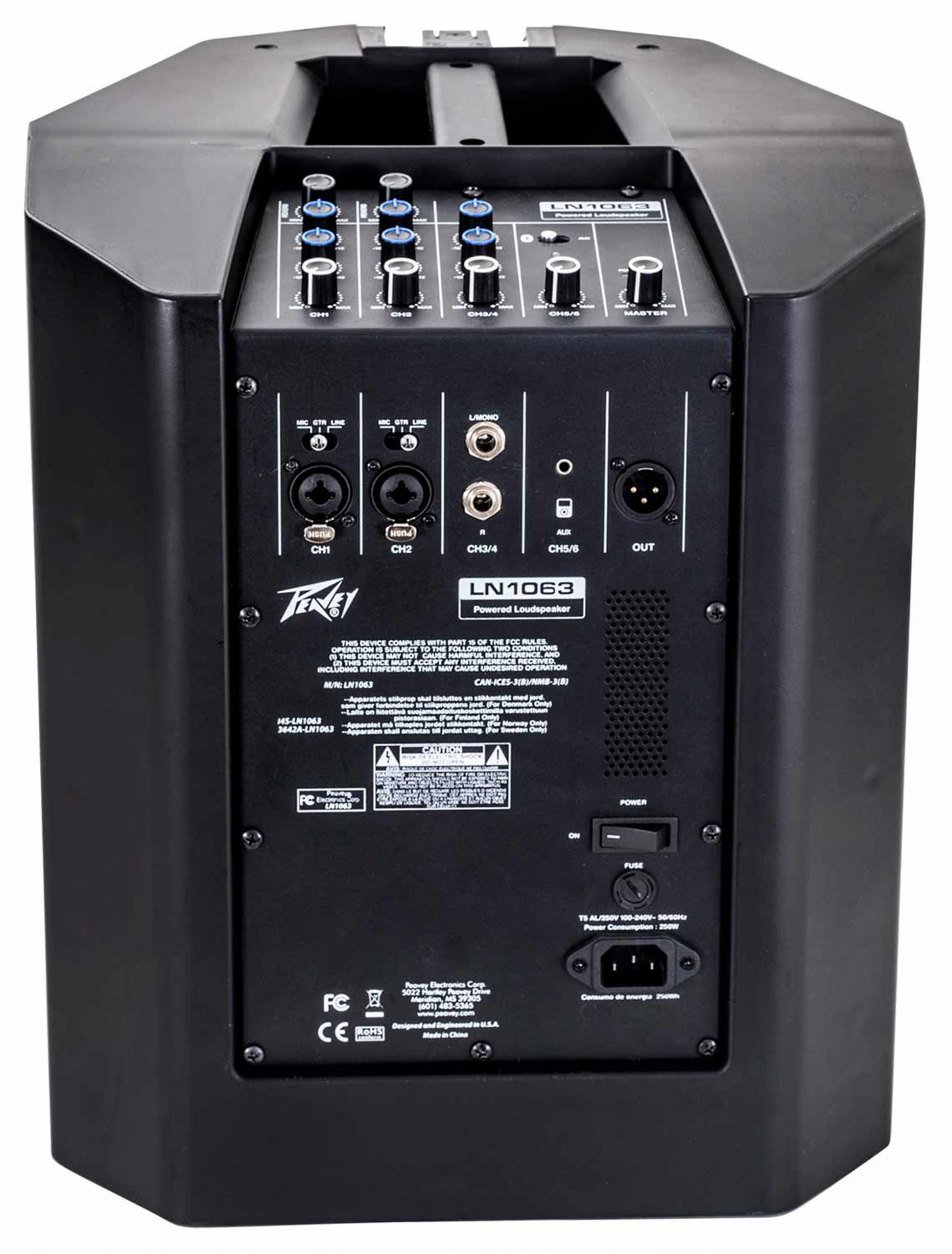

Input Connectors

1 x 3.5 mm Stereo Jack, 2 x 1/4" Jack, 2 x XLR-1/4" Combo

Output Connectors

1 x XLR



Frequency Response

55 Hz – 18 kHz

Speaker Configuration

Column Array

Speaker Type

Powered – Bi-Amped

HF Driver

6 x 2.75" Driver

LF Driver

8" Woofer


Yes (1 x XLR – Mix Out)

Pole Mount


Enclosure Material



Net Weight

28.1 lbs (12.70 kg)

Product Height

81.70" (2070 mm)

Product Width

max. 16" (406 mm)

Product Depth

max. 13.5" (343 mm)

AC Power Input

Universal Power Supply 100-240VAC 50/60 Hz
