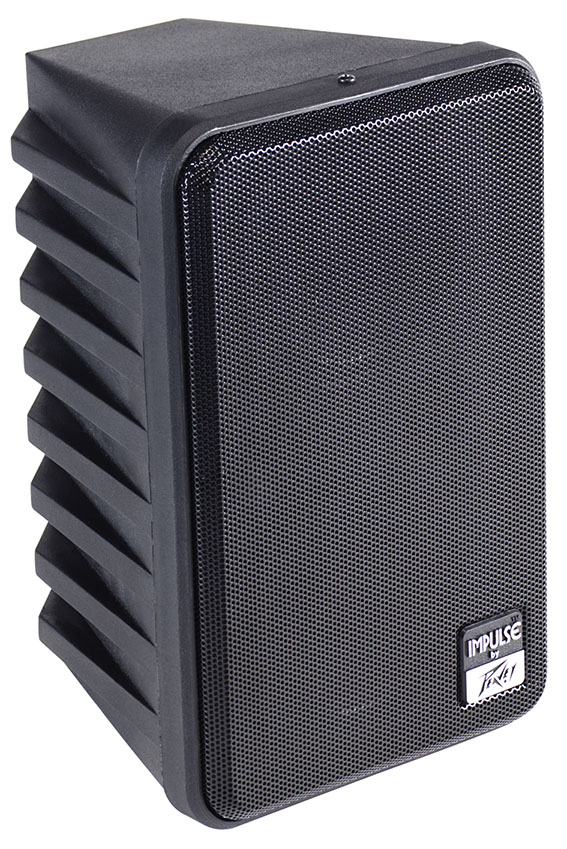

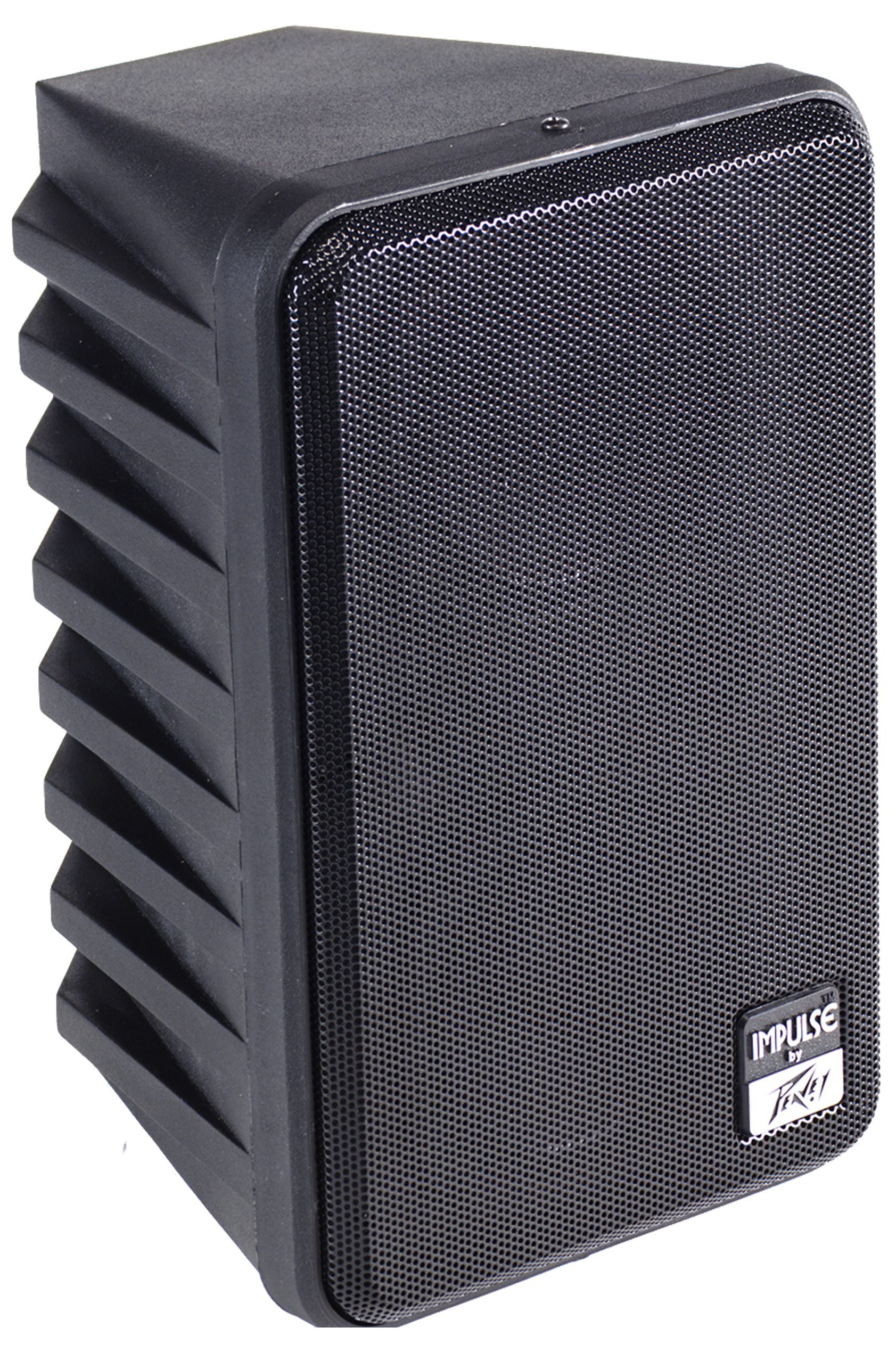

Impulse® 6T - Black

5.25″ Two-Way Speaker System with 70V Line Transformer



A 70 Volt line version of an excellent indoor/outdoor mini two-way speaker system that is perfect for any application from foreground music to speech reinforcement a with built-in transformer for 70V line distribution systems. The Impulse® 6T has a hi-fi sound character with great clarity which is ideal for background music systems in bars, taverns, arenas, lounges, arcades or anywhere multi-channel, multi-speaker sound systems are required. This speaker utilizes a specially designed 5.25″ woofer and a 1″ soft dome tweeter and will provide up to 98 dB SPL with the 35 Watts tap. Its trapezoidal high impact polypropylene cabinet is nearly indestructible. A perforated aluminum grille protects the weather-resistant drivers. With six threaded inserts and optional mounting hardware, this speaker can be wall or ceiling mounted, flown or used in arrays. It is available in black (with a black grille) or white (with a white grille).

Features Impulse 6T

• 5.25″ woofer

• 1″ soft dome tweeter

• Molded polypropylene cabinet

• Six threaded mounting points

• Weather resistant

• Color: Black

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type


IP Rating

Power RMS

10, 15, 50 W @ 8 Ω – Selectable taps – 35, or 5 W

Sensitivity (1W/1m)

83 dB

Maximum SPL

98 dB

Speaker Frequency Response

70 Hz – 20 kHz (±3 dB)

HF Driver

1" Soft Dome Tweeter

LF Driver

5.25" Woofer

Input Connectors

Srew Terminal

Suspension Points

1 x Versamount 35 & Wall Mount Bracket SV 605

Enclosure Material



Net Weight

8.0 lbs (3.60 kg)

Product Height

11.50" (292 mm)

Product Width

7.50" (191 mm)

Product Depth

6.50" (165 mm)
