Impulse® 5c - White

5″ Two-Way Weather-Resistant Loudspeaker

Description

The Impulse® 5c two-way speaker system is a lightweight-yet-rugged molded sound reinforcement enclosure. Designed for install applications, these weather resistant speakers are ideal for music playback or speech. These units are compatible with 100V, 70V or standard 8 ohm inputs. For 100V, 70V transformer operation there are selectable power levels. For 100V setting, there is a 30W, 20W, 10W, and 5W tap selection.

Features Impulse 5c

• Two-way sound reinforcement enclosure

• 5″ woofer

• 100V, 70V or 8 Ω operation

• Power Handling: 40 Watts

• Weather resistant

• Durable molded enclosure

• Includes steel wall mounting bracket

• Metal grille

• Impedance: 8 Ω

• Color: White

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

IP Rating

Power RMS

10, 50 W @ 8 Ω – Selectable taps – 15, 7.5, or 5 W @ 70/100V

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

88 dB

Maximum SPL

105 dB

Speaker Frequency Response

75 Hz – 20 kHz

Coverage (H x V)

80° x 50°

HF Driver

0.75" Silk Dome Tweeter

LF Driver

5" Woofer

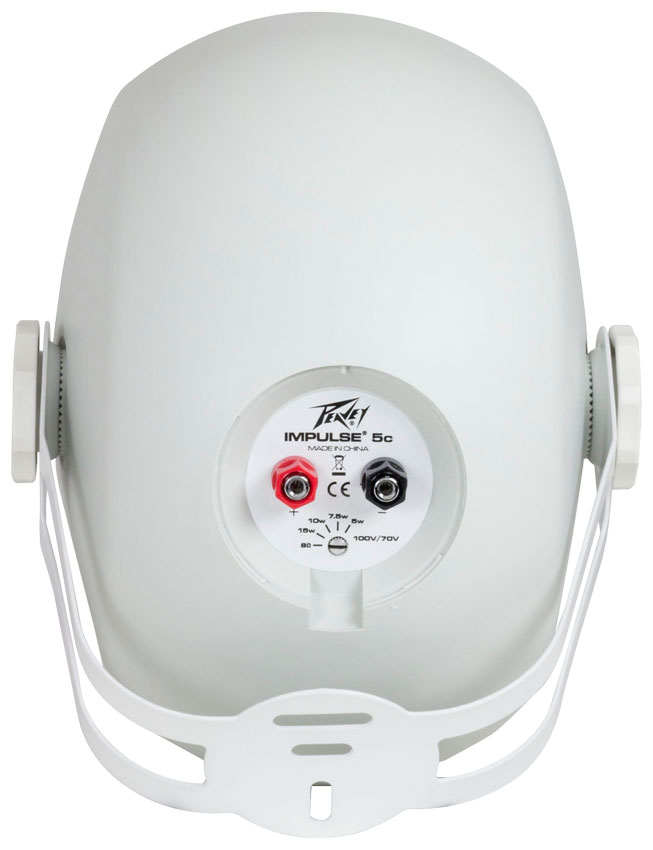

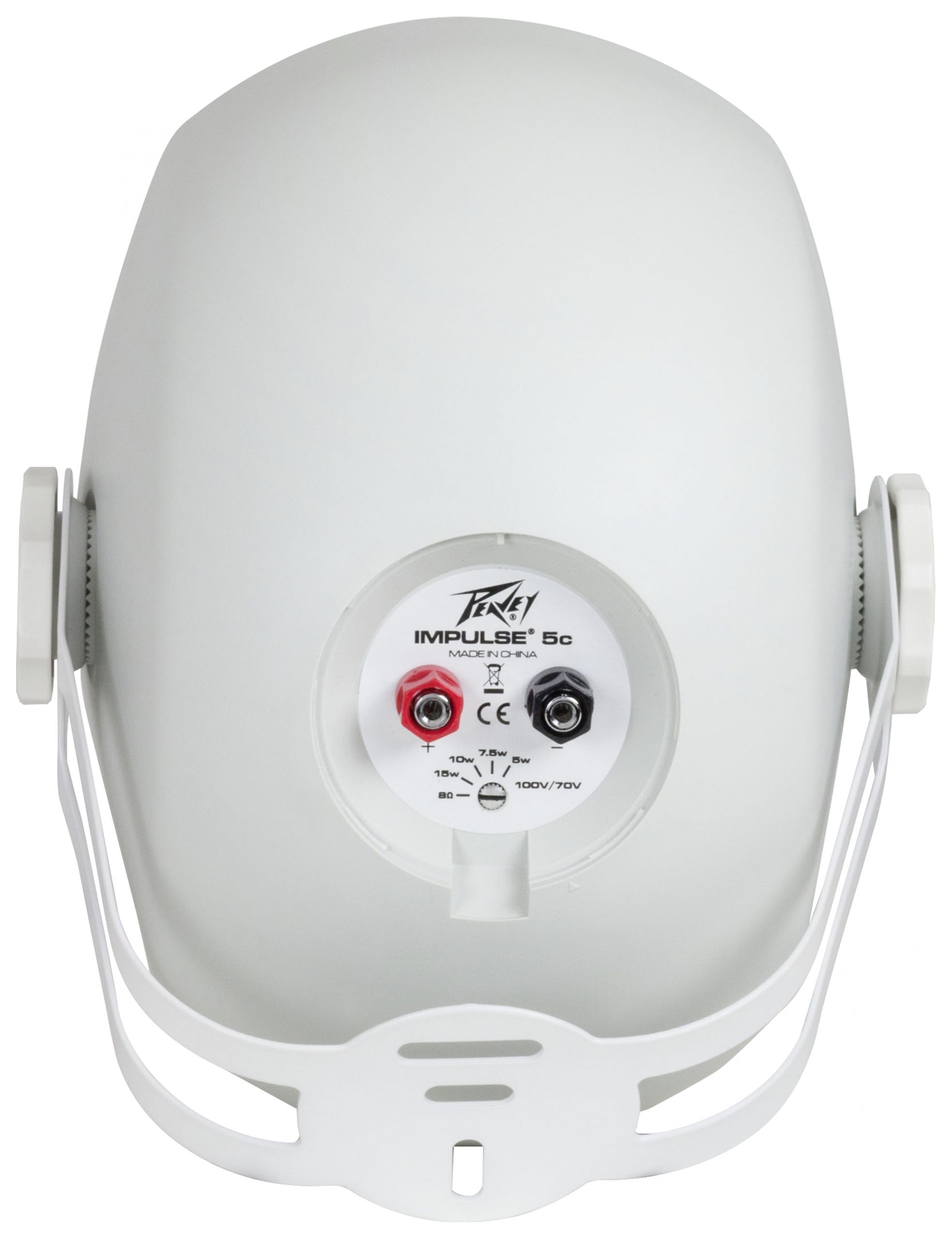

Input Connectors

2 x Binding Post

Suspension Points

Steel Wall Mounting Bracket included

Enclosure Material

Polypropylene

Color

Net Weight

5.0 lbs (2.30 kg)

Product Height

10.50" (265 mm)

Product Width

7.50" (191 mm)

Product Depth

8.00" (205 mm)

SKU

03616710
