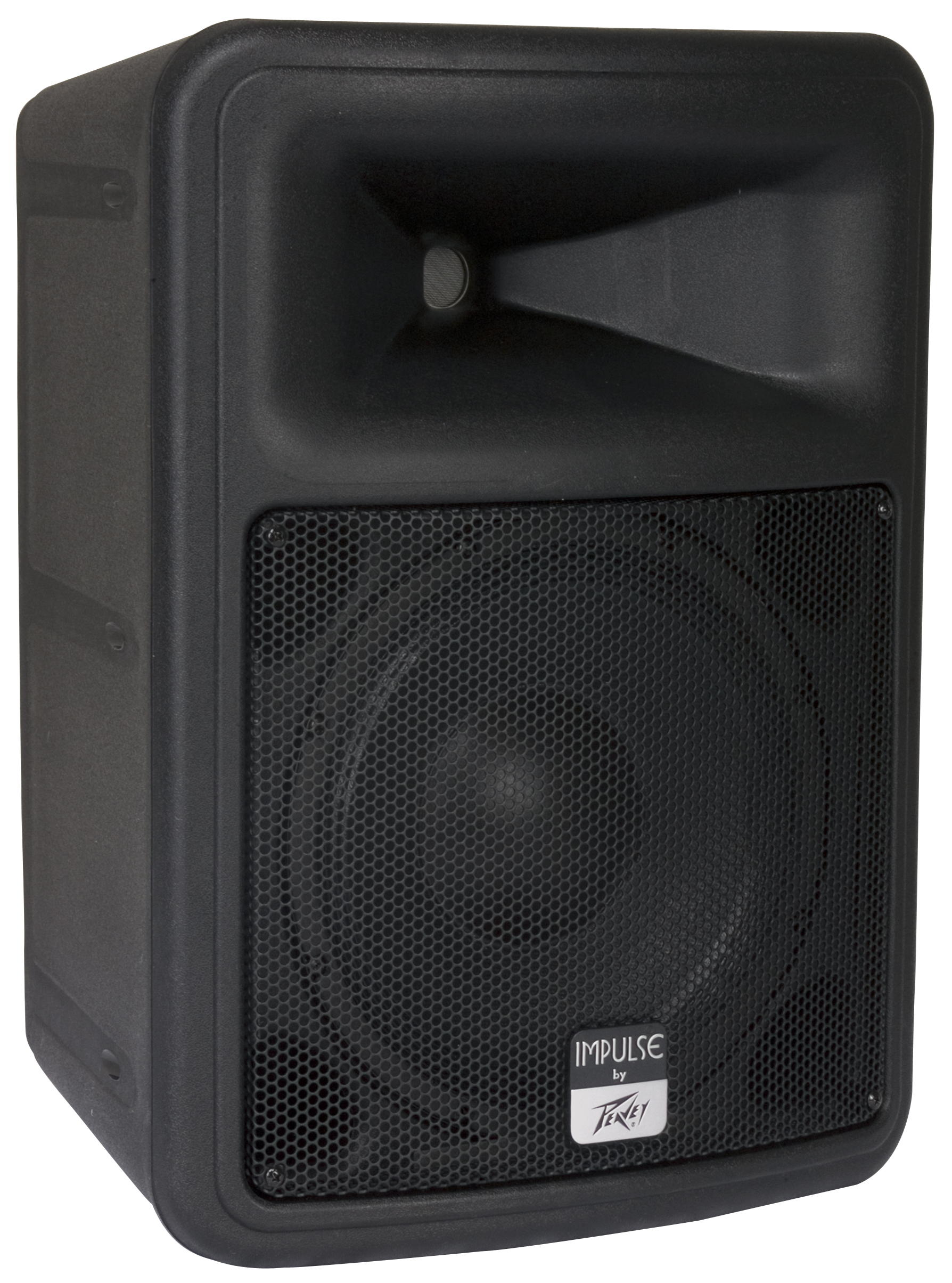

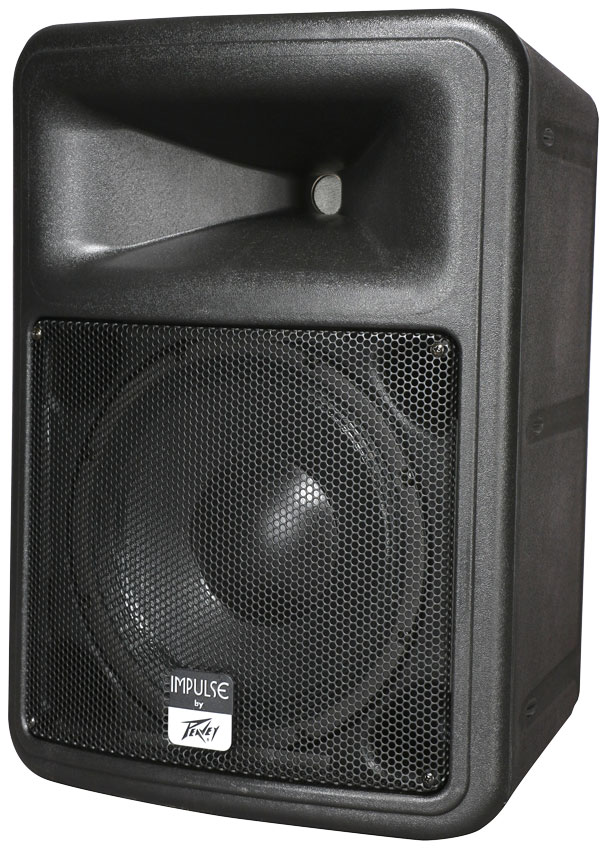

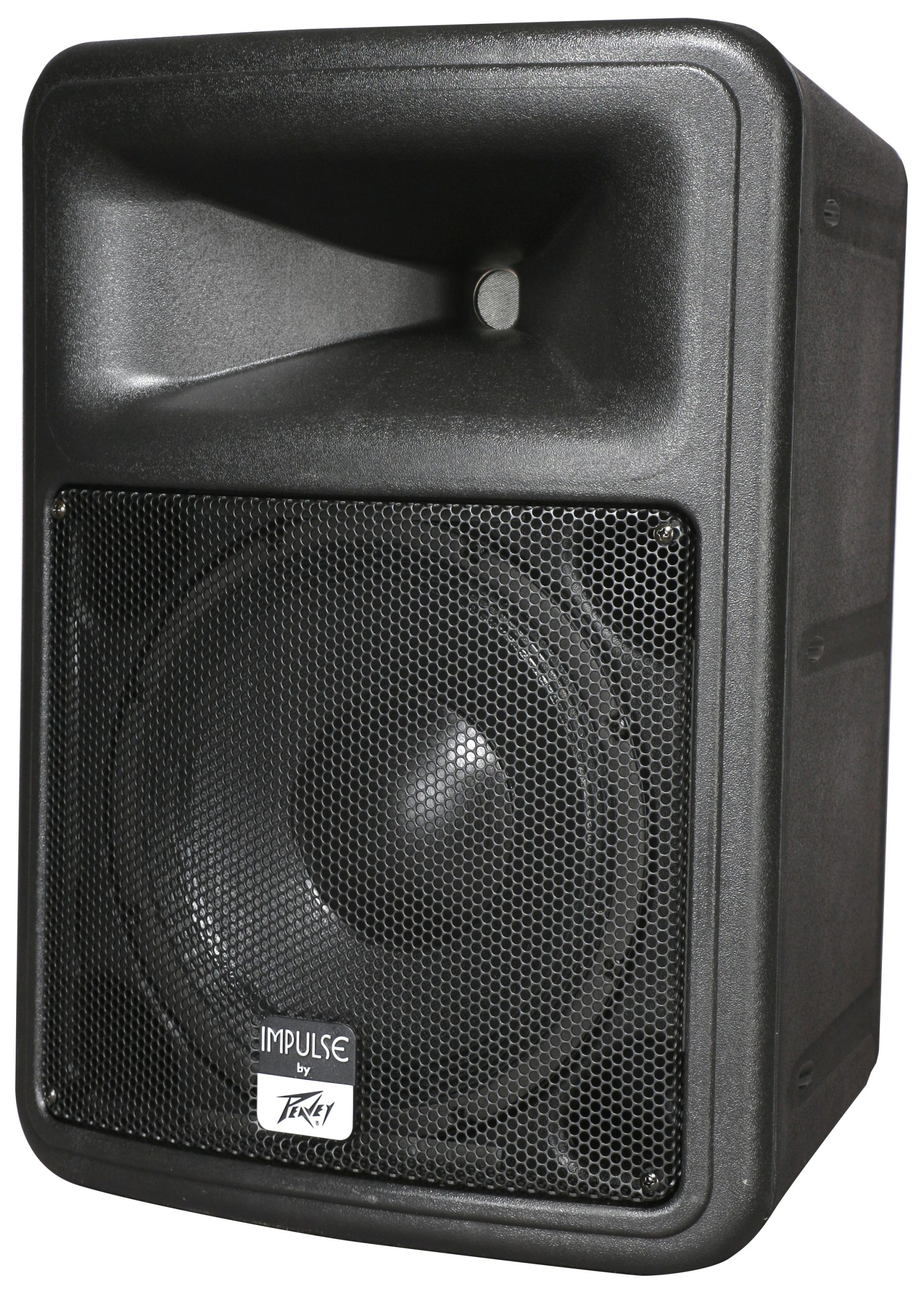

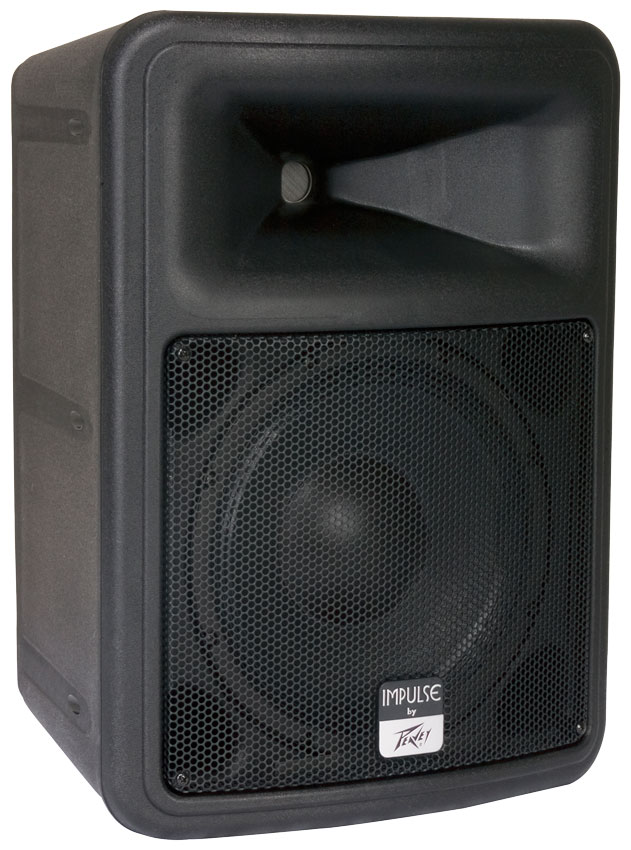

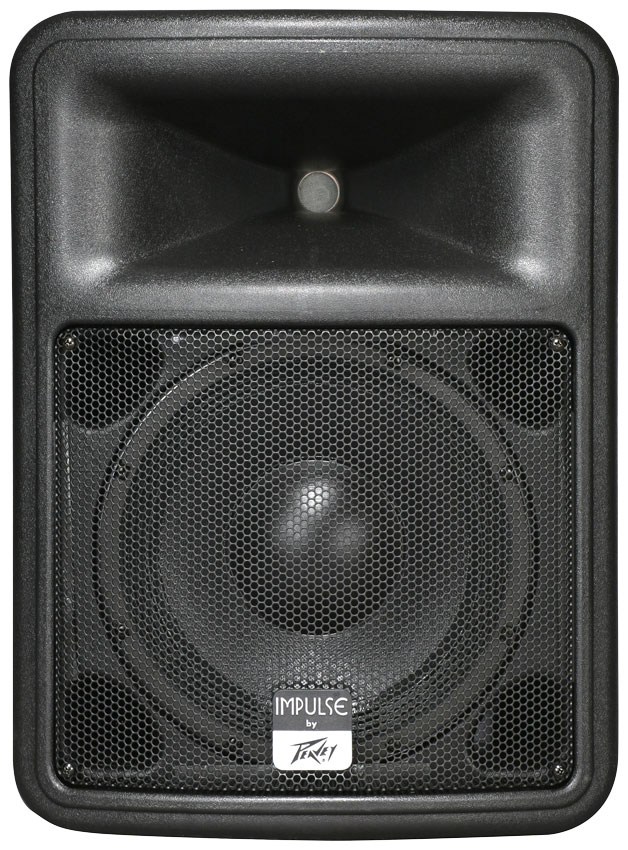

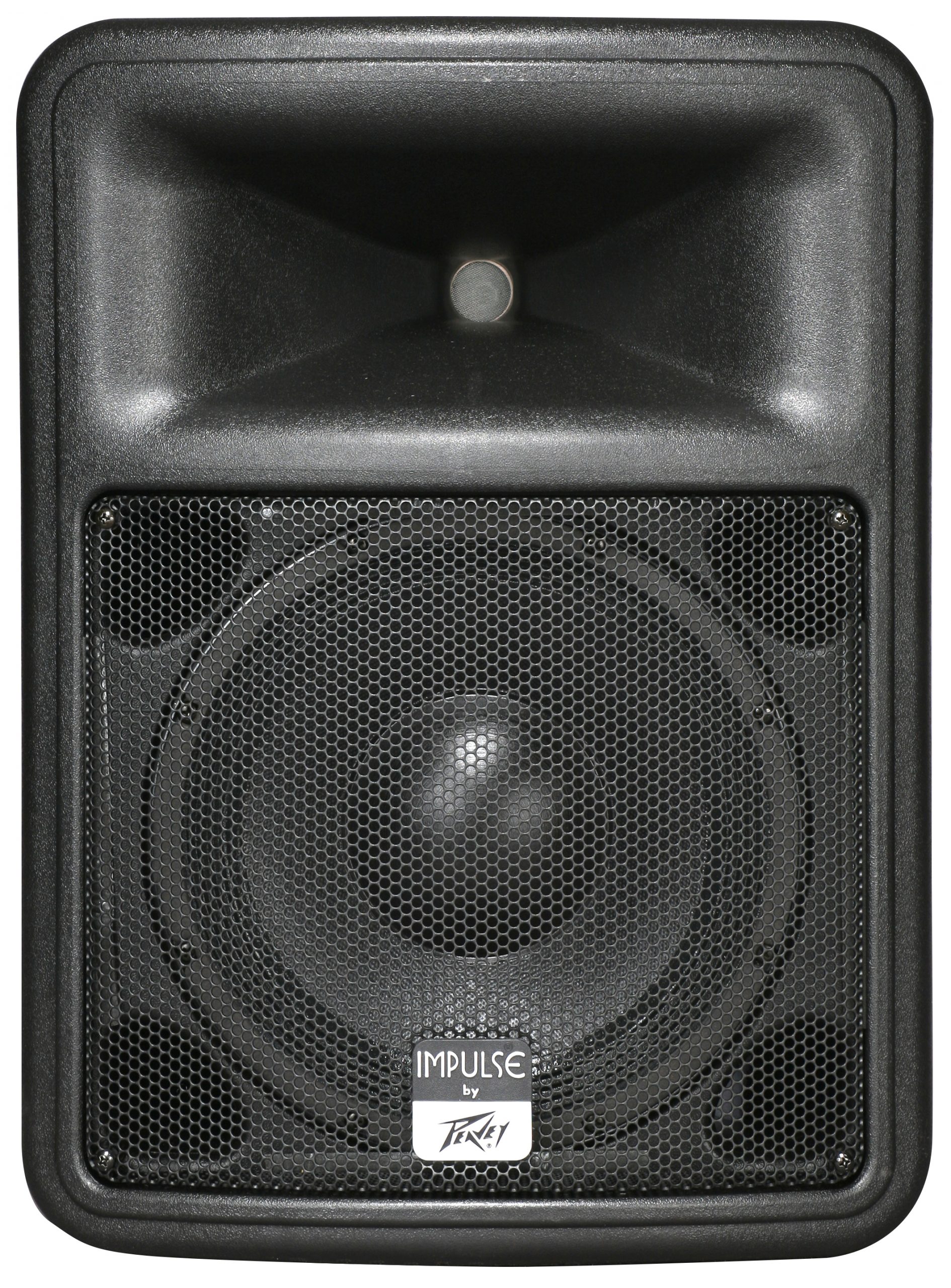

Impulse® 100 - Black

10″ Two-Way Weather-Resistant Loudspeaker

Description

Ultra-high performance from a portable, two-way, full-range speaker system in a compact package. This cosmetically elegant and durable trapezoidal enclosure is made of high-impact polypropylene with a metal grille. The system is comprised of a 10″ long-throw, heavy-duty woofer with a special suspension to provide excellent excursion capability. A 14XT™ compression driver with a 1.4″ titanium diaphragm is coupled to an extremely smooth constant directivity horn with Sound Guard™ II high frequency driver protection. Input connections are made via two 1/4 inch phone jacks connected in parallel for daisy-chaining. The Impulse® 100 provides extremely smooth frequency response and clarity in the midrange that is superlative. The cabinet features a handle, molded-in speaker stand adapter in addition to top and bottom mounting points for flying.

Features Impulse 100

• Two-way weather-resistant molded speaker system

• High-frequency driver coupled with a molded-in horn and a specially-designed, long-throw, heavy duty woofer

• On-board Sound Guard II high-frequency driver protection circuit

• Molded-in stand adapter and flying points on the top and bottom

• Molded-in handle

• Color: Black

Additional information

Speaker Configuration

Full Range 2-way

Speaker Type

Non-Powered

IP Rating

Power RMS

175 W

Power Program

Power Peak

Nominal Impedance

8 Ω

Sensitivity (1W/1m)

96 dB

Maximum SPL

125 dB

Speaker Frequency Response

74 Hz – 18 kHz (±3 dB)

Coverage (H x V)

90° x 40°

HF Driver

14XT™ – 1" Titanium Diaphragma Compression Driver

LF Driver

10" Woofer

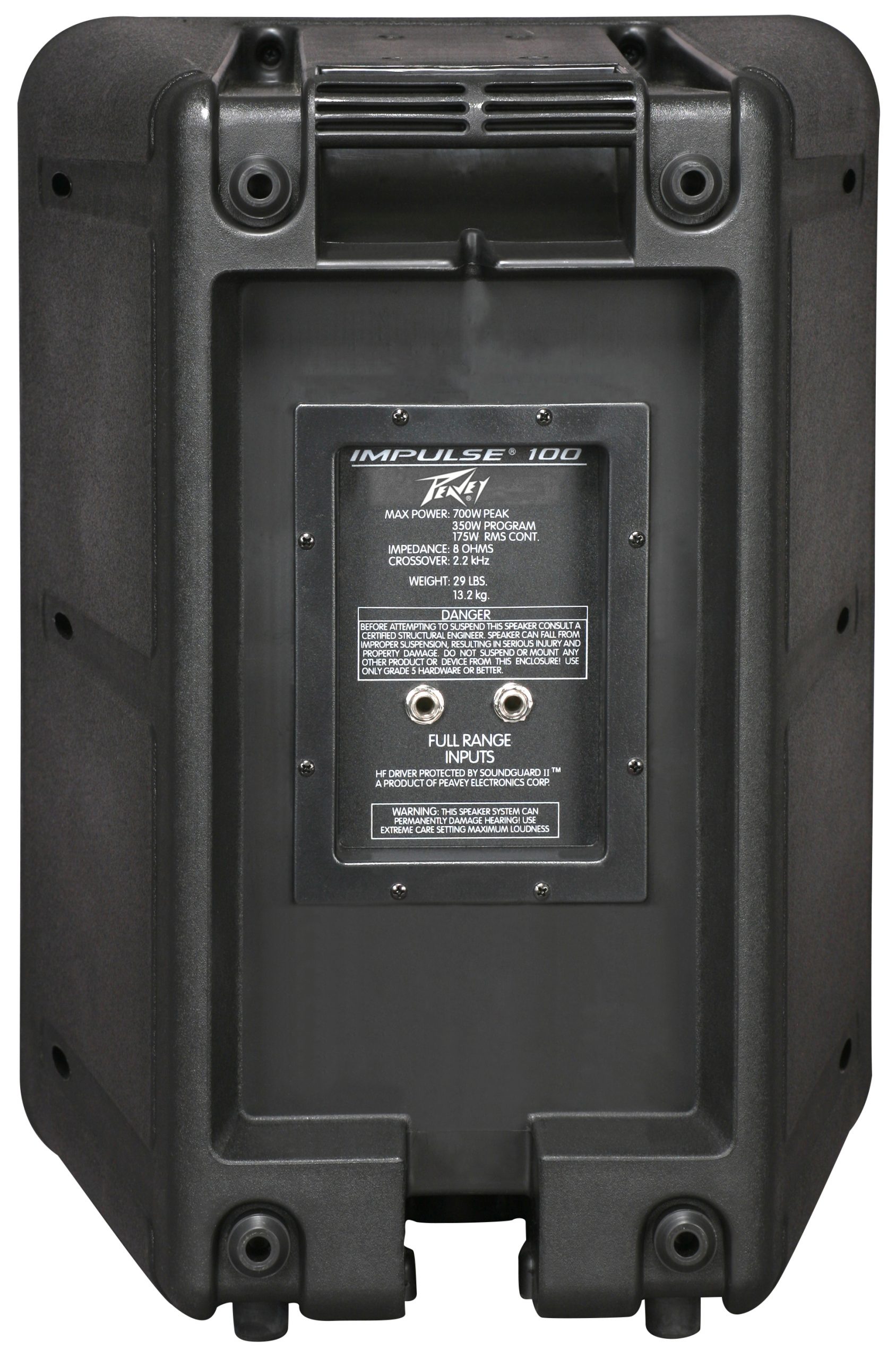

Input Connectors

2 x 1/4" Jack

Suspension Points

2 x Versamount 35

Pole Mount

Yes

Enclosure Material

Polypropylene

Color

Net Weight

29.0 lbs (13.20 kg)

Product Height

18.88" (479 mm)

Product Width

14.00" (356 mm)

Product Depth

13.13" (333 mm)

SKU

00360460
