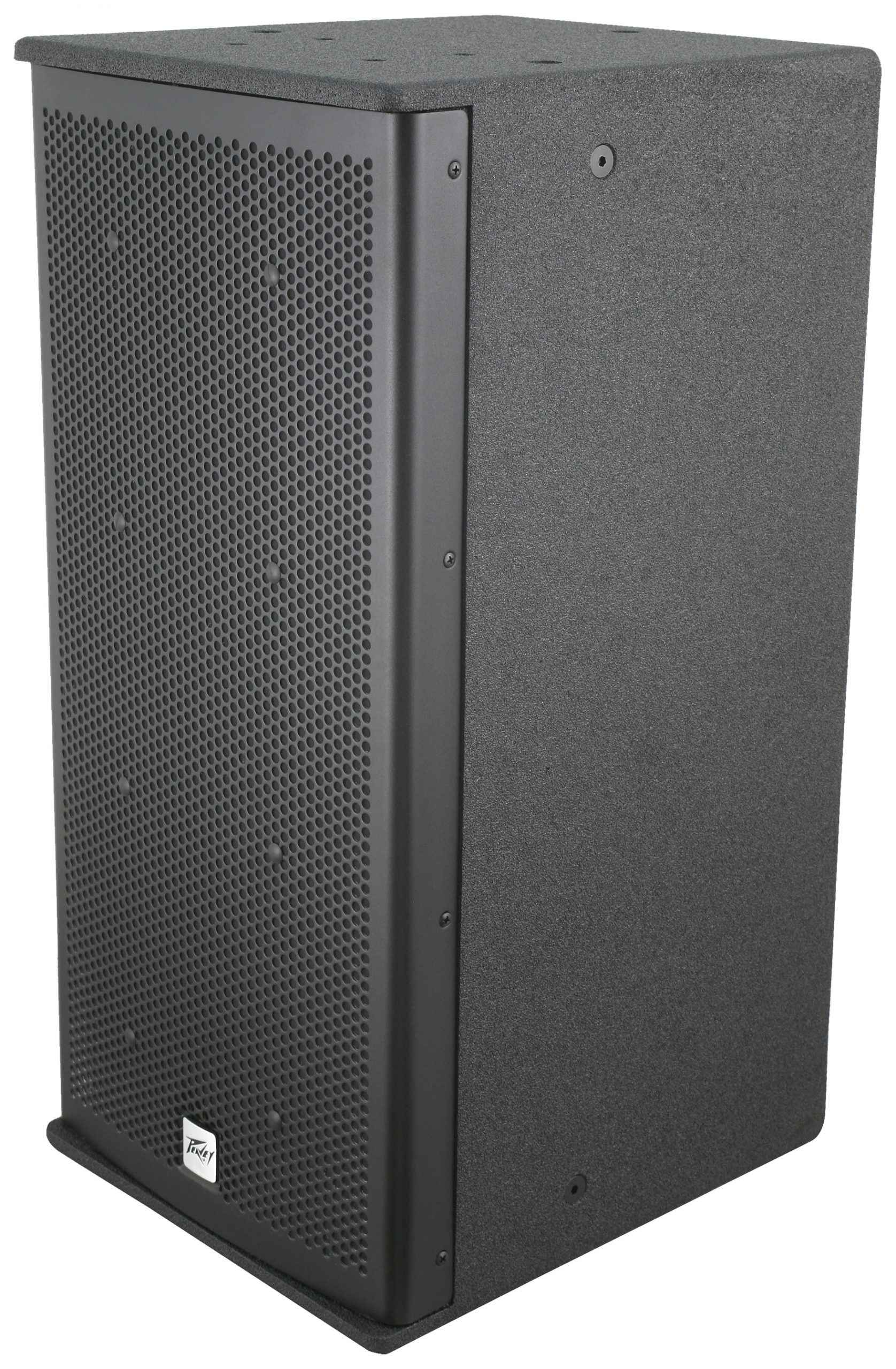

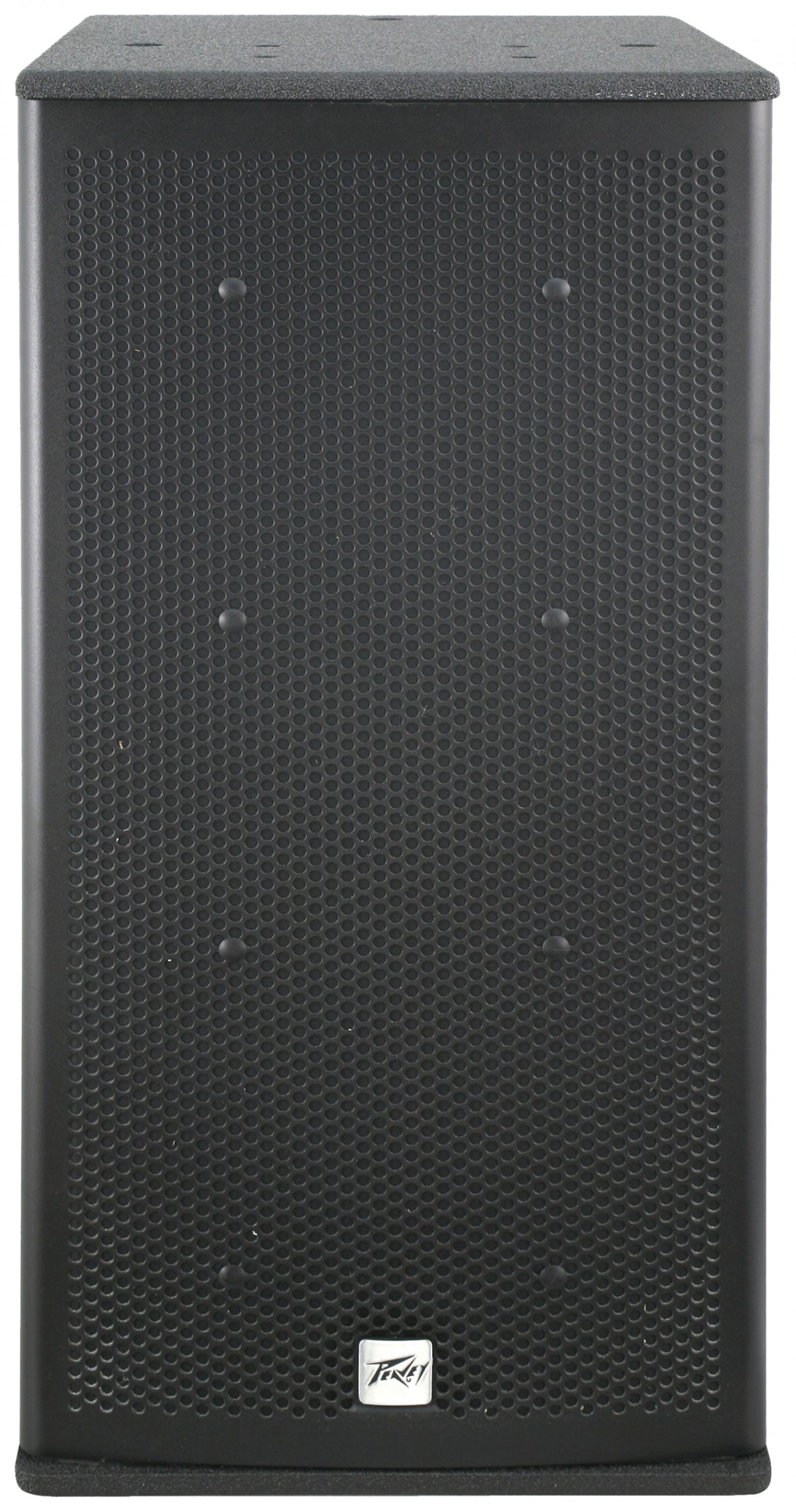

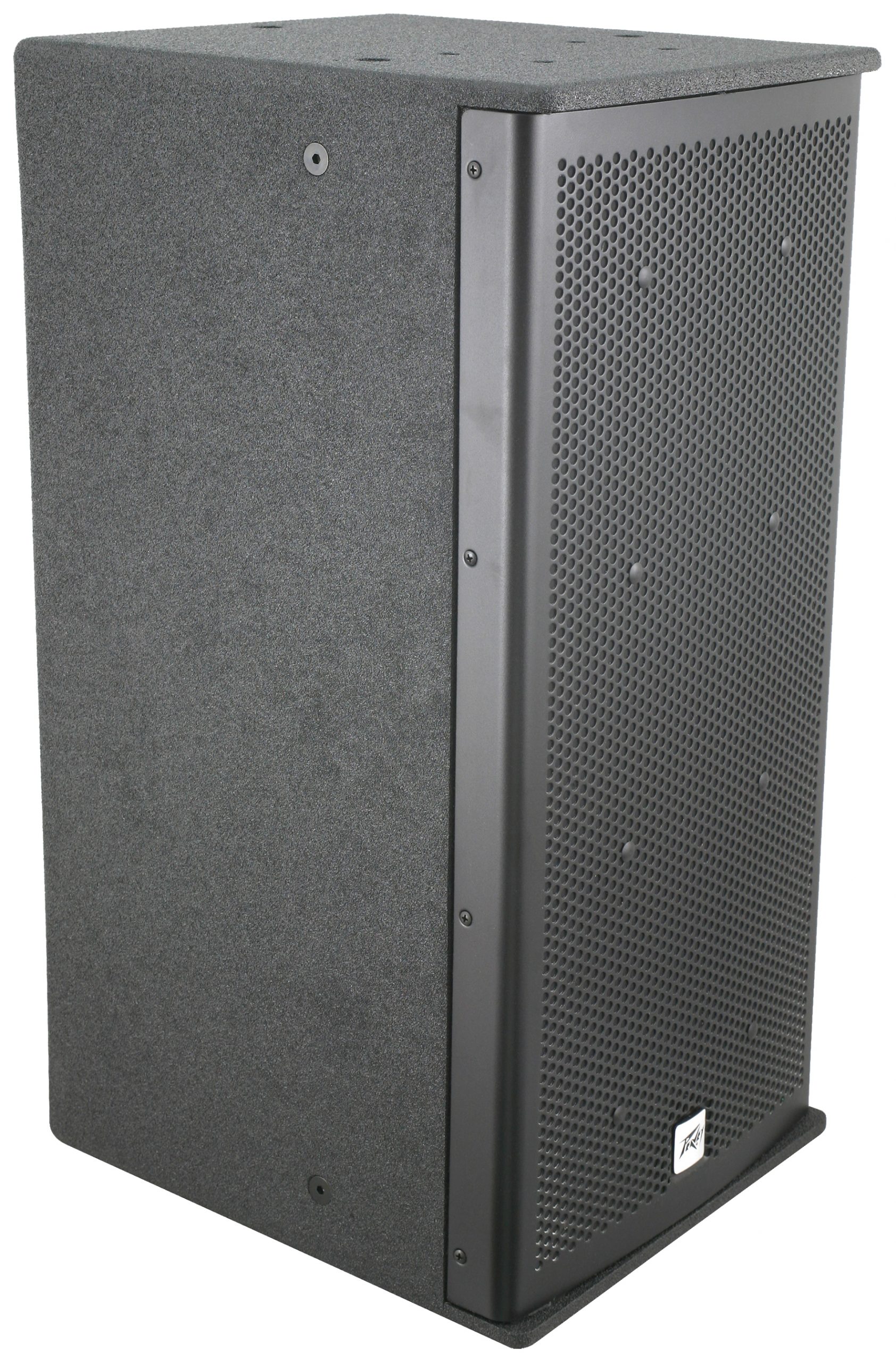

Elements™ 212C Sub (IP56)

2×12″ Weatherproof IP56 Rated Subwoofer

Description

The new Elements™ 212C Sub loudspeaker system from Peavey® Electronics provide unparalleled flexibility for permanent outdoor installations. The Elements 212C Sub system is a dual woofer subwoofer speaker system comprised of a pair of 12″ Water-Resistant Black Widow® woofers tuned for maximum low frequency output. The Elements 212C is an American-made and IP56 rated weather-proof enclosures.

The Elements 212C Sub speaker system is constructed of 1/2 ” thick advanced technology composite fiber panels and are coated with a black Hammerhead™ poly-urea finish. A 18 gauge powder-coated perforated stainless-steel metal grille with an inner hydro-phobic cloth mesh, and a foam third layer protects the front of the system from external moisture and dust. A full set of twelve 3/8″-16 threaded mounting suspension points, 3 each top and 3 each bottom, and 2 each sides & back, is provided for flying and mounting, as well as three sets of 4) 1/4X20 SS inserts. The sets of four are located on the top, rear, and bottom for use with the Peavey Versamount™ 70+ and the Peavey Elements Pole Mount bracket.

The Elements 212C Sub has a water-resistant version of the high power Black Widow WR woofer incorporated, with a resin impregnated cone and dust cap for superior environmental stability. Capable of over 1000 Watts of continuous power handling (AES Std 2-1984), the pair of weather-resistant woofers can handle a lot of sheer power.

Features Elements 212C Sub

• Compact dual 12″ outdoor fully-weatherized subwoofer speaker system

• Dual 12″ water-resistant Black Widow woofers, with a total of 2000 Watts program power

• Triple-layer perforated SS moisture-repellant grille

• Versatile suspension provisions: 3/8″ eyebolts or VM70 bracket or pole mount

• Lighting/power pole mounting bracket fly point set

• Direct radiator vented subwoofer enclosure

• Enclosure is made of advanced technology composite fiber panels

• Cabinet coated in black Hammerhead™ poly-urea finish

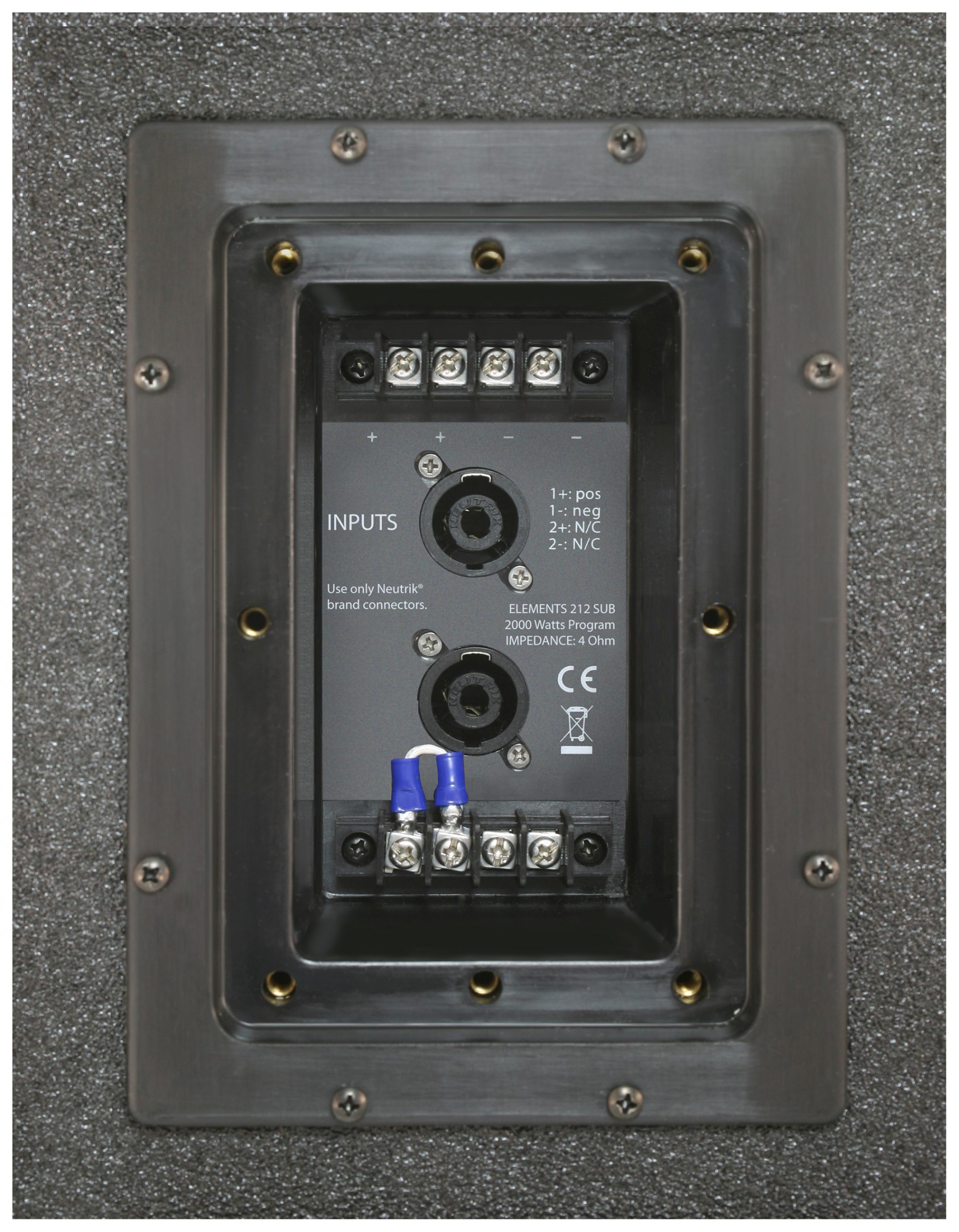

• Weather-sealed input cup cover with gland nut

• 70/100 Volt transformer option available, easily upgraded in the field

• Overall system weatherization rating of IP56

• All external hardware is stainless steel

Additional information

Speaker Configuration

Subwoofer

Speaker Type

Non-Powered

IP Rating

Power RMS

1000 W

Power Program

Power Peak

Nominal Impedance

4 Ω

Sensitivity (1W/1m)

98 dB

Maximum SPL

134 dB

Speaker Frequency Response

63 Hz – 1.5 kHz (±3 dB)

LF Driver

12" Black Widow® 1208-8 SPS WR Water-Resistant Woofer, 4" Voice Coil

Suspension Points

12 x 3/8" & 3 x Versamount 70+

Enclosure Material

Composite

Color

Net Weight

62.0 lbs (28.20 kg)

Product Height

29.44" (748 mm)

Product Width

14.07" (357 mm)

Product Depth

16.35" (415 mm)

SKU

03609130
