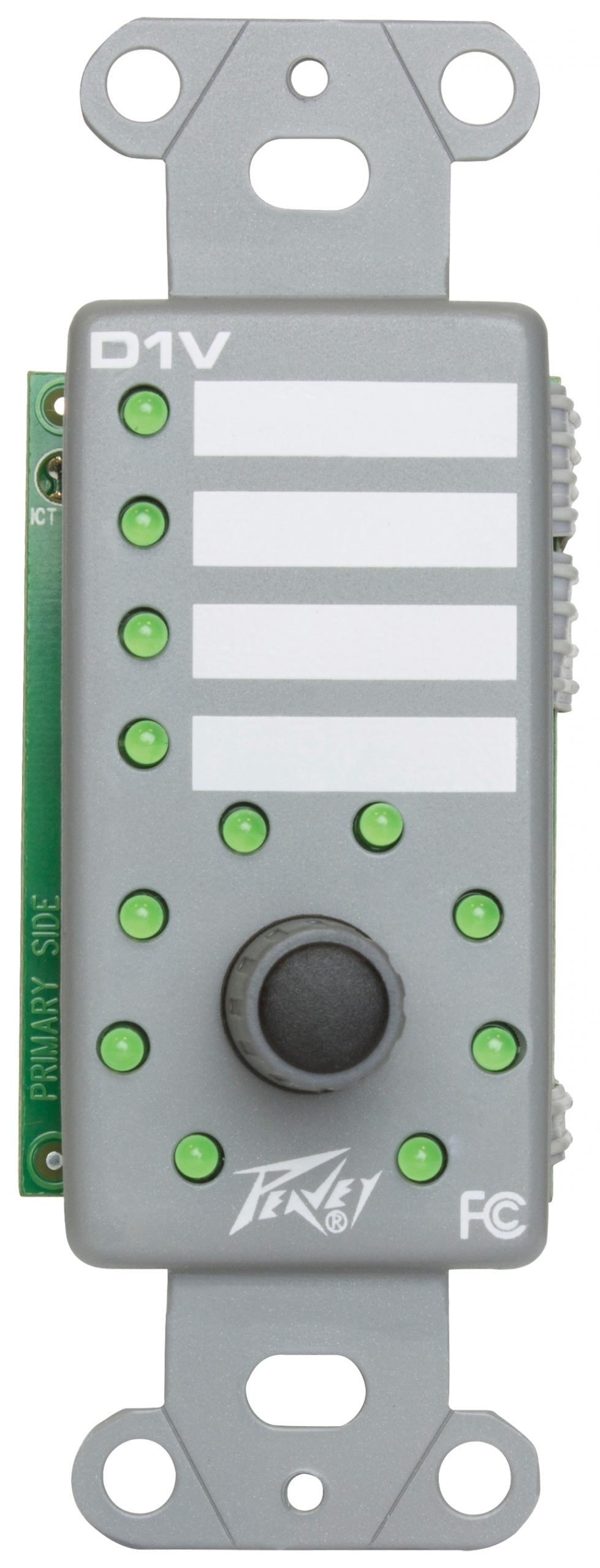

Digitool® D1V™

Rotary Encoder Wall Controller

Description

The D1V™ is a simple wall panel controller option for Digitool® and NION® based systems. The 4 push select options on the rotary encoder can be used to assign zones/sources while the encoder itself adjusts the gain level increment/decrement of a target level control within a Digitool project. The select and encoder functionality can be connected and configured to any DSP or Control object within a NION project.

Digitool can support up to 16 D-Series panels while NION can support up to 31 devices. Convenient CAT5 cabling with RJ45 termination is utilised to link the panels together in an RS-485 multi-drop topology and home run to the processor. The D1V panel is mounted in a standard NEMA 1G mounting box.

Features D1V

• RS-485 multi-drop network

• Easy wiring & installation

• Configurable controls

• Attractive cosmetic package

• Standard Decora™ 1G mounting

• Flexible

• Addressable

• Tracking LED status indication for multiple locations

• Low power requirements

Additional information

Input Connectors

RJ45

Output Connectors

RJ45

Color

SKU

00510410
